100mm Linear Scale For Milling Lathe Machine Replace Accuracy Linear Glass Scale
100mm Linear Scale For Milling Lathe Machine Replace Accuracy Linear Glass Scale
100mm Linear Scale For Milling Lathe Machine Replace Accuracy Linear Glass Scale
100mm Linear Scale For Milling Lathe Machine Replace Accuracy Linear Glass Scale
100mm Linear Scale For Milling Lathe Machine Replace Accuracy Linear Glass Scale
100mm Linear Scale For Milling Lathe Machine Replace Accuracy Linear Glass Scale
+7
More
100mm Linear Scale For Milling Lathe Machine Replace Accuracy Linear Glass Scale
100mm Linear Scale For Milling Lathe Machine Replace Accuracy Linear Glass Scale100mm Linear Scale For Milling Lathe Machine Replace Accuracy Linear Glass Scale

Features & Details

  • 【HIGH PERFORMANCE】- Our grating and precision ruler series have passed strict quality inspection. Meet the standard of accuracy and stiffness good straightness and precise measurement. Travel Length: 100 mm, Accuracy: ±0.005 mm, Resolution: 5μm. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
  • 【DURABLE ALUMINUM BODY】- Aluminum profile scale body, and head with zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
  • 【DOUBLE SEAL & SIGNAL CABLE】- The Linear Scale Encoder features a double layer lip seal to give extra protection from contamination, high abrasive resistance. 3 m signal cable applies multilayer shielded wire steel and metal shell protection.
  • 【STABLE SLIDE PART】- Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. With an additional T-slot (Not including in the package), the back groove could be used for installation when the contact surface is too short, or could be addition support when using long linear scale.
  • 【CONVENIENT & PRACTICAL】- A rigid metal extrusion with slotted end blocks for simple adjustable mounting. Several mounting points for through hole or easy attachment to brackets and additional mounting hardware.

Reviews 4.9
All reviews are from verified purchases
Average rating based on 16 reviews

Reviews with images
See all photos
Top Reviews
duster
Reviewed on Oct 21,2022
Just what you need for accurate measuring
Just what you need for accurate measuring
duster
Reviewed on Sep 30,2022
absolutely brilliant product works like magic and good price if you have a lathe,mill or cnc this is a godsend
absolutely brilliant product works like magic and good price if you have a lathe,mill or cnc this is a godsend
chrisb
Reviewed on Sep 10,2022
nice scale heavy body section, usual cable length. some have commented on plug diagram in listing as being wrong no its correct viewed from rear of plug not front. some reading heads use pins 1 - 5 for power / date not 6 - 9 the scale came with a cross over plug to change this without having to rewire the plug ! overall very happy with them
nice scale heavy body section, usual cable length. some have commented on plug diagram in listing as being wrong no its correct viewed from rear of plug not front. some reading heads use pins 1 - 5 for power / date not 6 - 9 the scale came with a cross over plug to change this without having to rewire the plug ! overall very happy with them

About this item

Product specification
Voltage
5V DC
Current
50mA
Travel Length
100mm
Grating Pitch
0.02mm (50LP/min)
Resolution
5μm (0.005mm) 0.0002"
Accuracy
±0.005 mm or 0.0002" (at 20 deg C)
Response Speed
60m/min or 40inch/sec
Cable Length
3m
Sealing
Double seal
IP Class
53

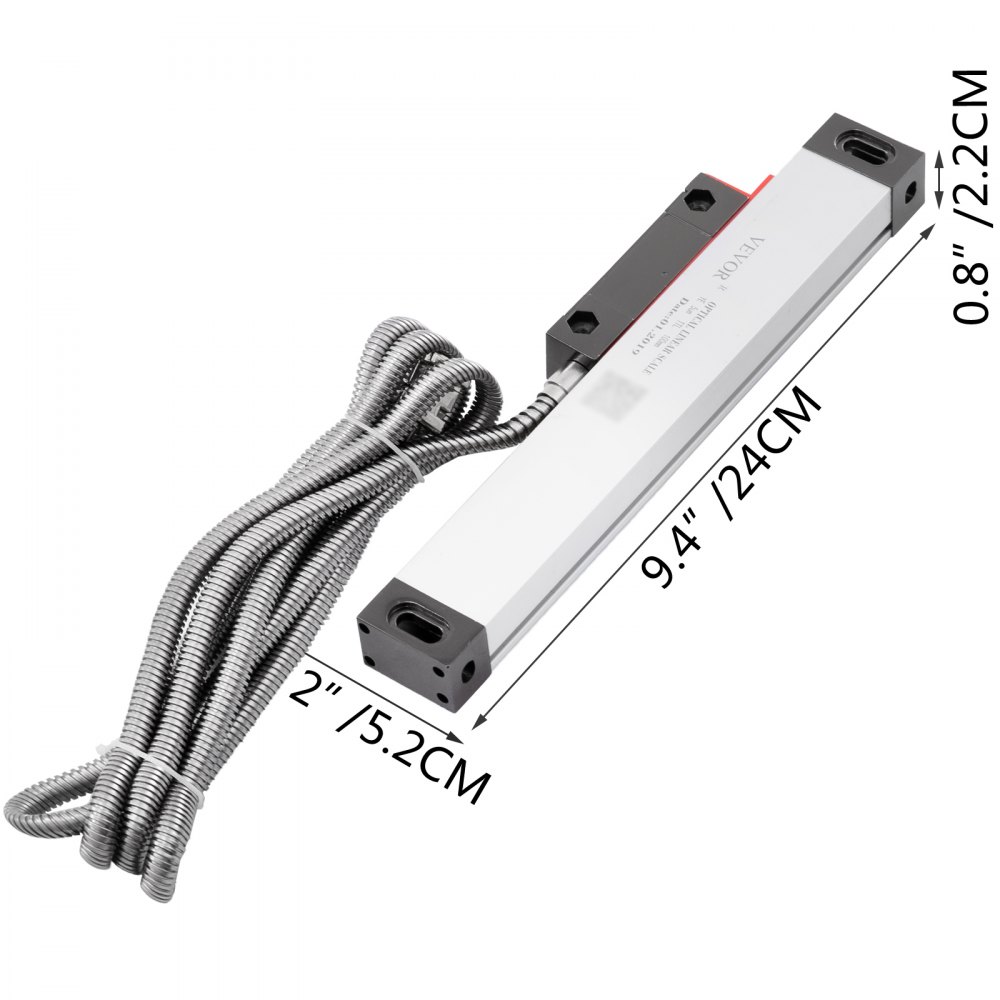

Product Dimension(LxWxH)
24 x 2 x 5cm (9.45" x 0.79" x 1.97")
Description
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.

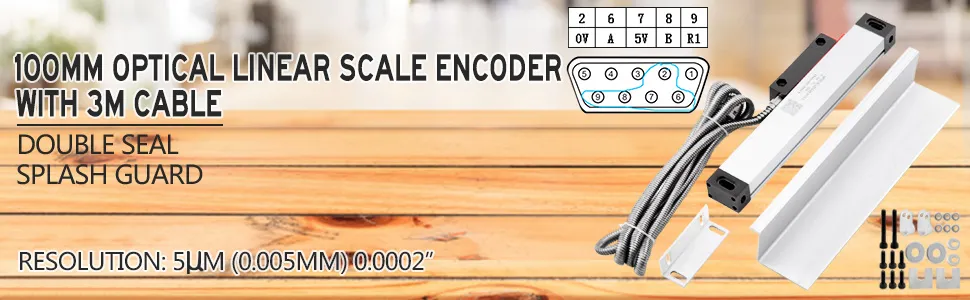

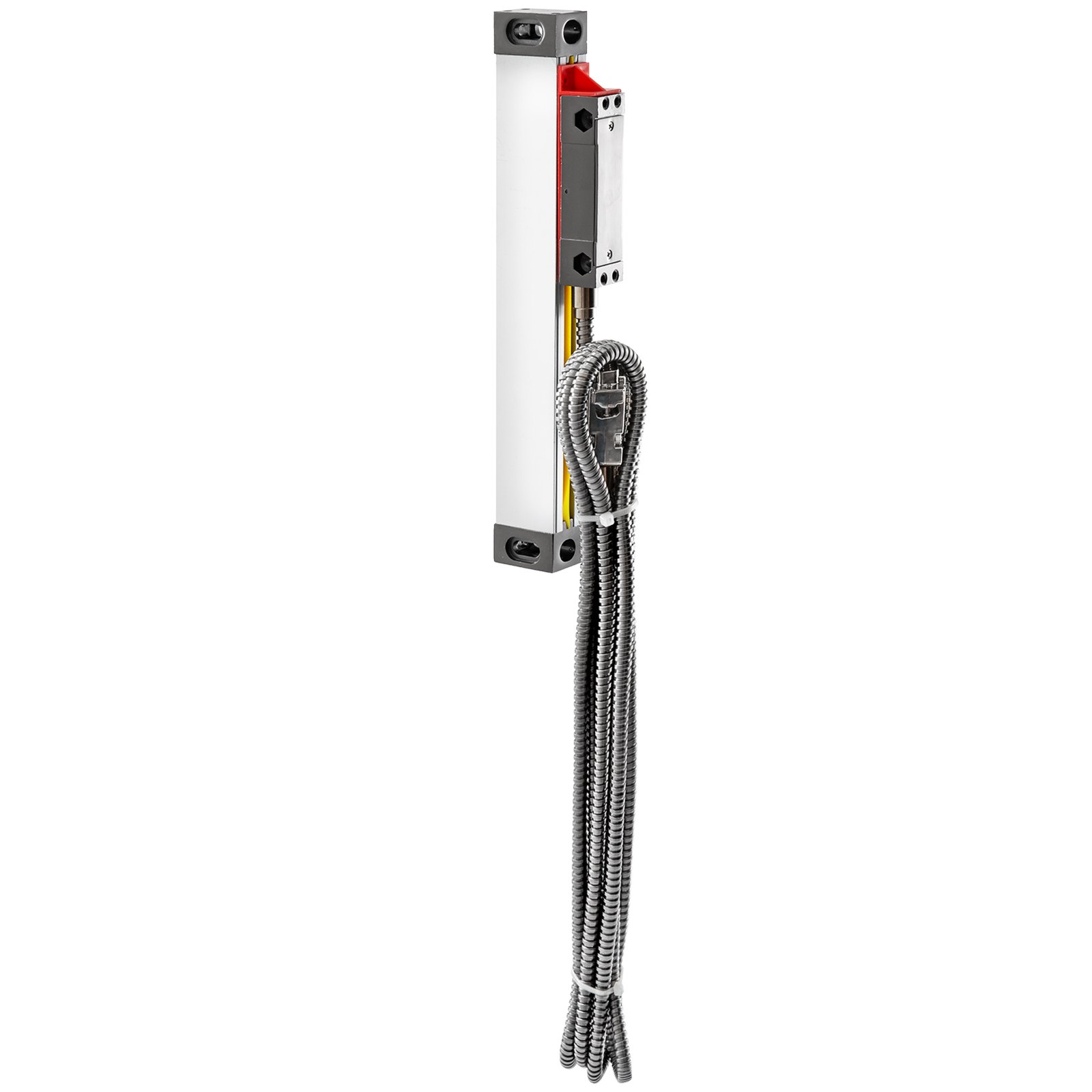

100mm Linear Scale Encoder With 3m Cable
Here we offer you 100mm Linear Scale with accuracy 0.0002" for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools to allow the operator to work faster with resolution: 5μm.
  • High Performance
  • Durable Aluminum Body
  • Double Seal & Signal Cable
  • Stable Slide Part
  • Convenient & Practical
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

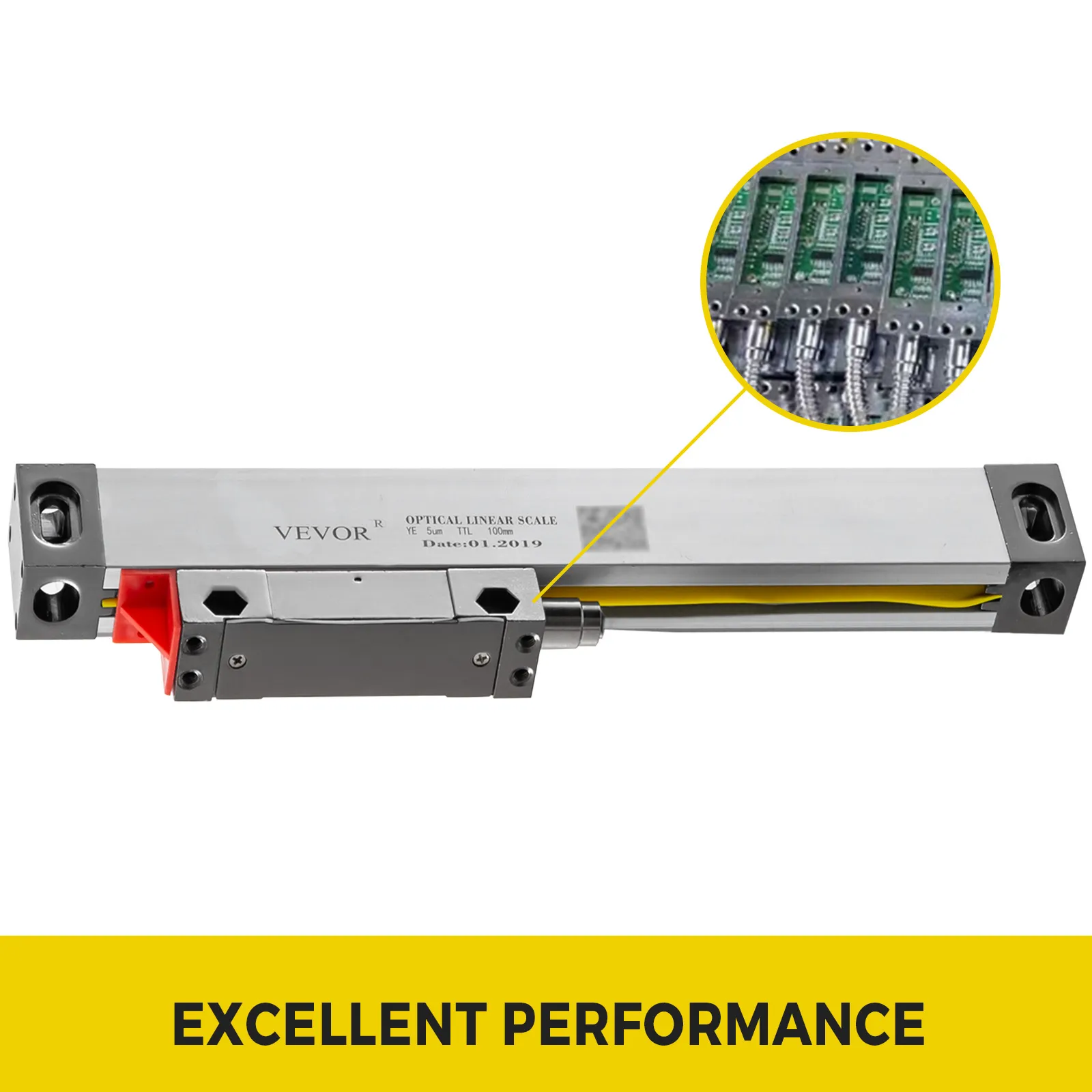

Excellent Performance
The Linear scale applies intelligent chip with travel length 0-100mm, high accuracy 5um, grating pitch: 0.02mm, response speed: 60m/min. 100% brand new and high quality. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.

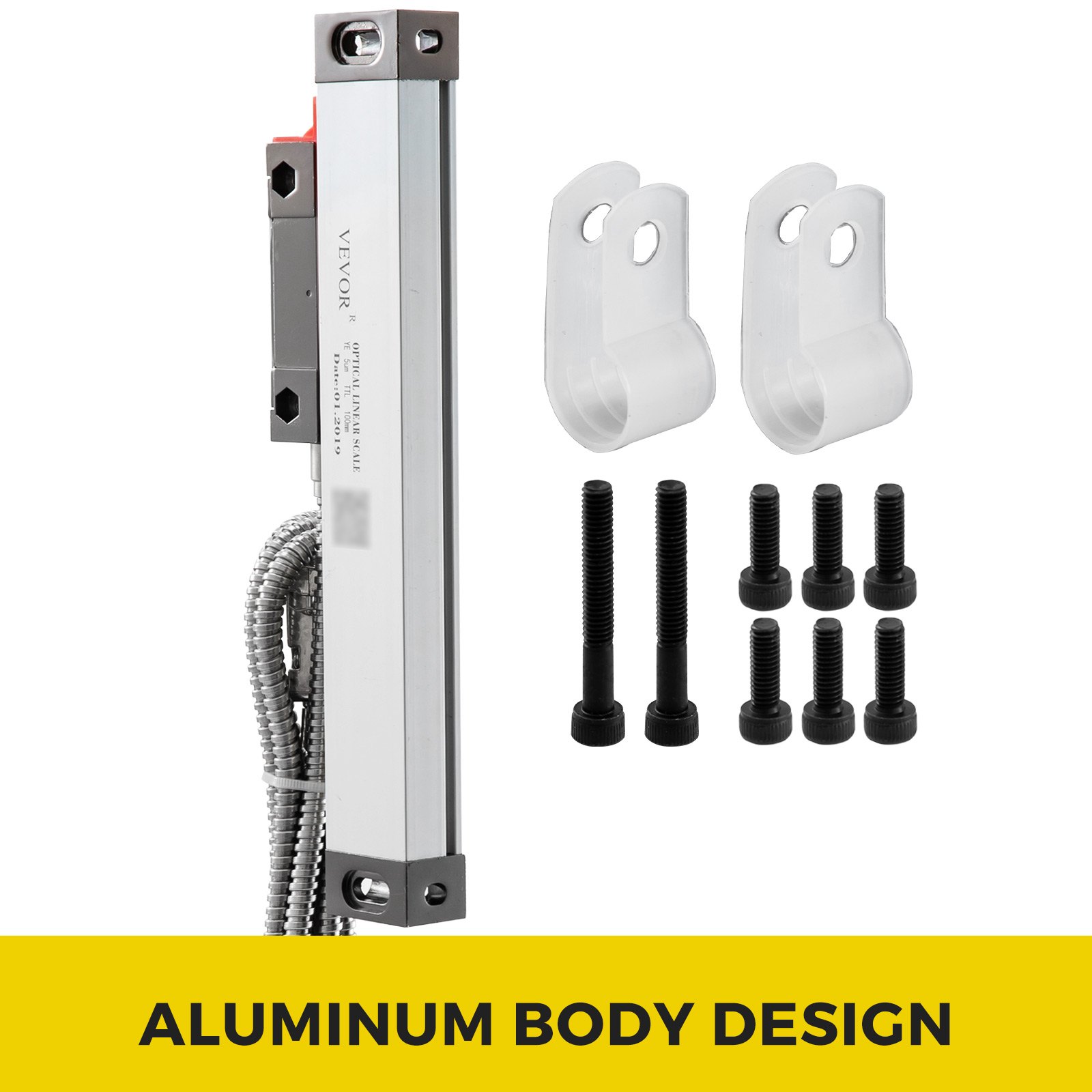

Aluminum Body Design
The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.

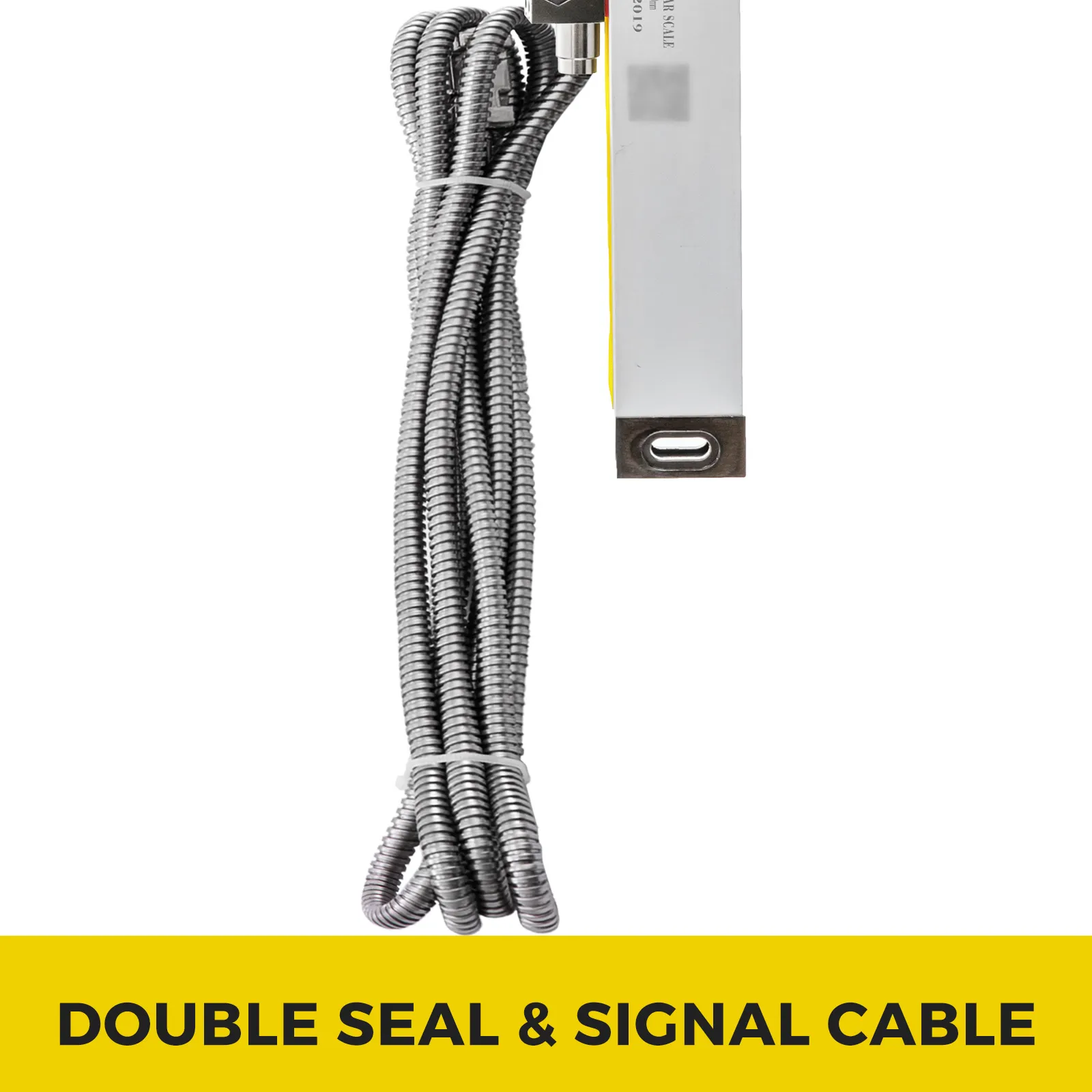

Double Seal & Signal Cable

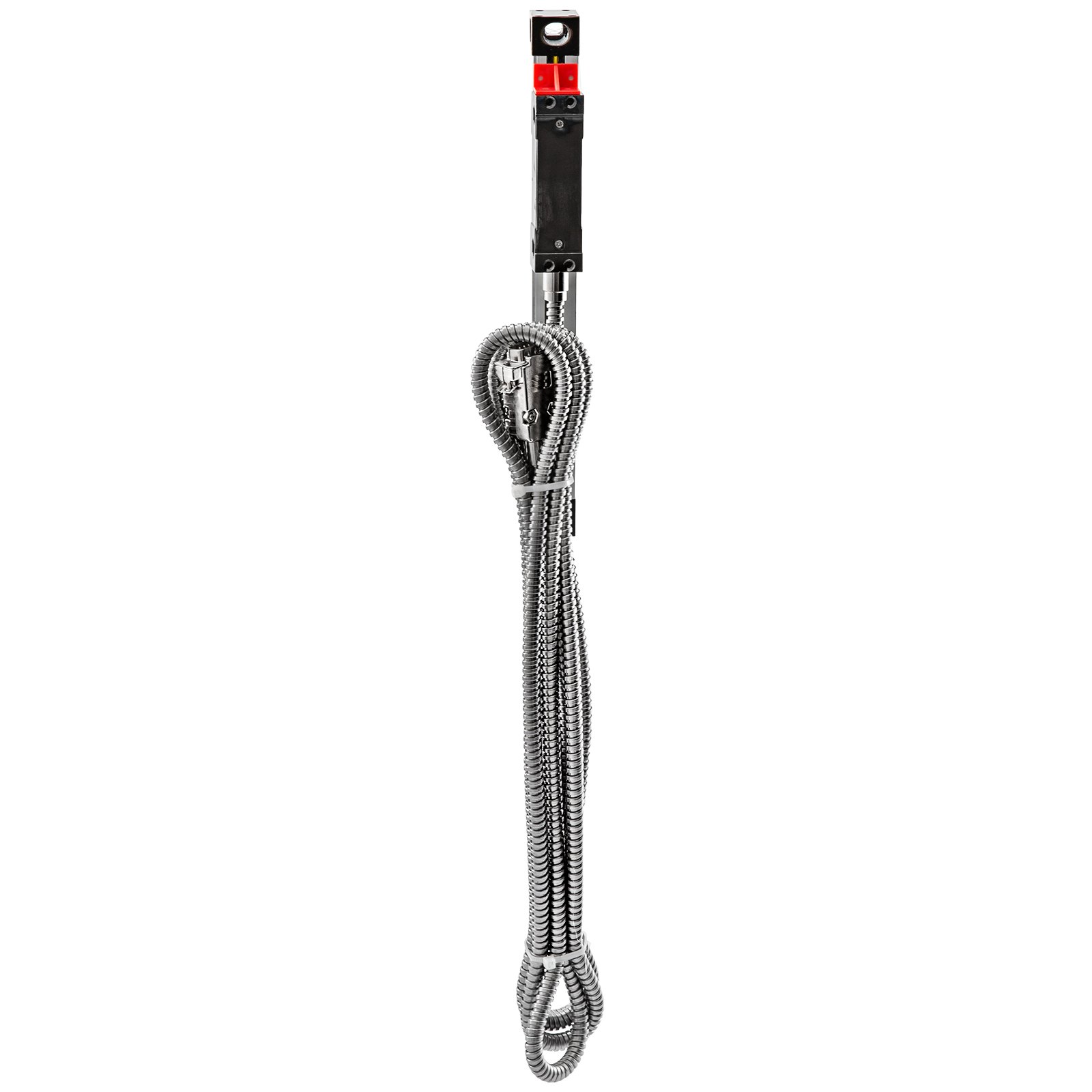

The encoder beam features a double layer lip seal to give extra protection from contamination. Signal cable uses multilayer shielded wire steel and metal shell protection.

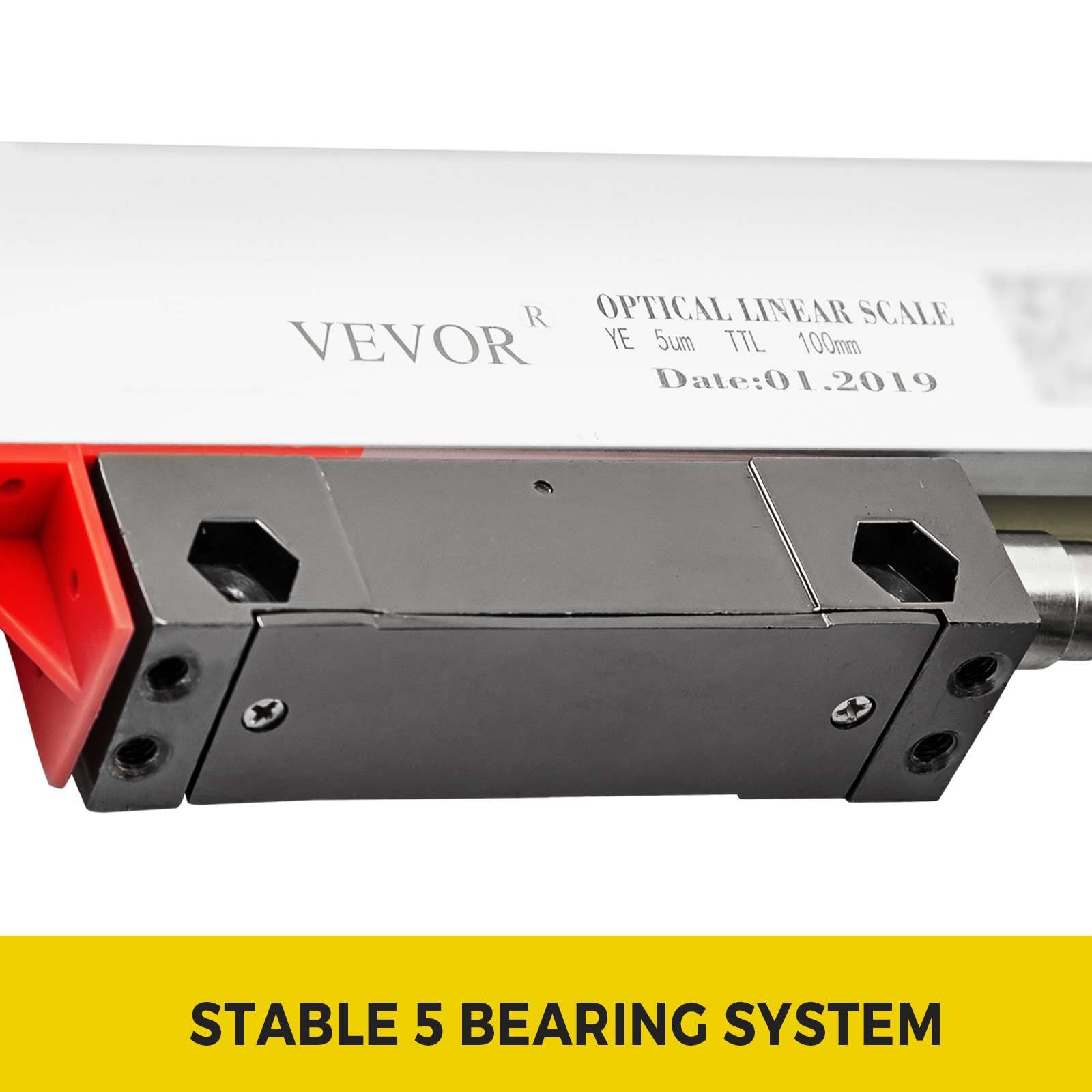

Stable 5 Bearing System
Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
Effortless To Install
The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware. Comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.

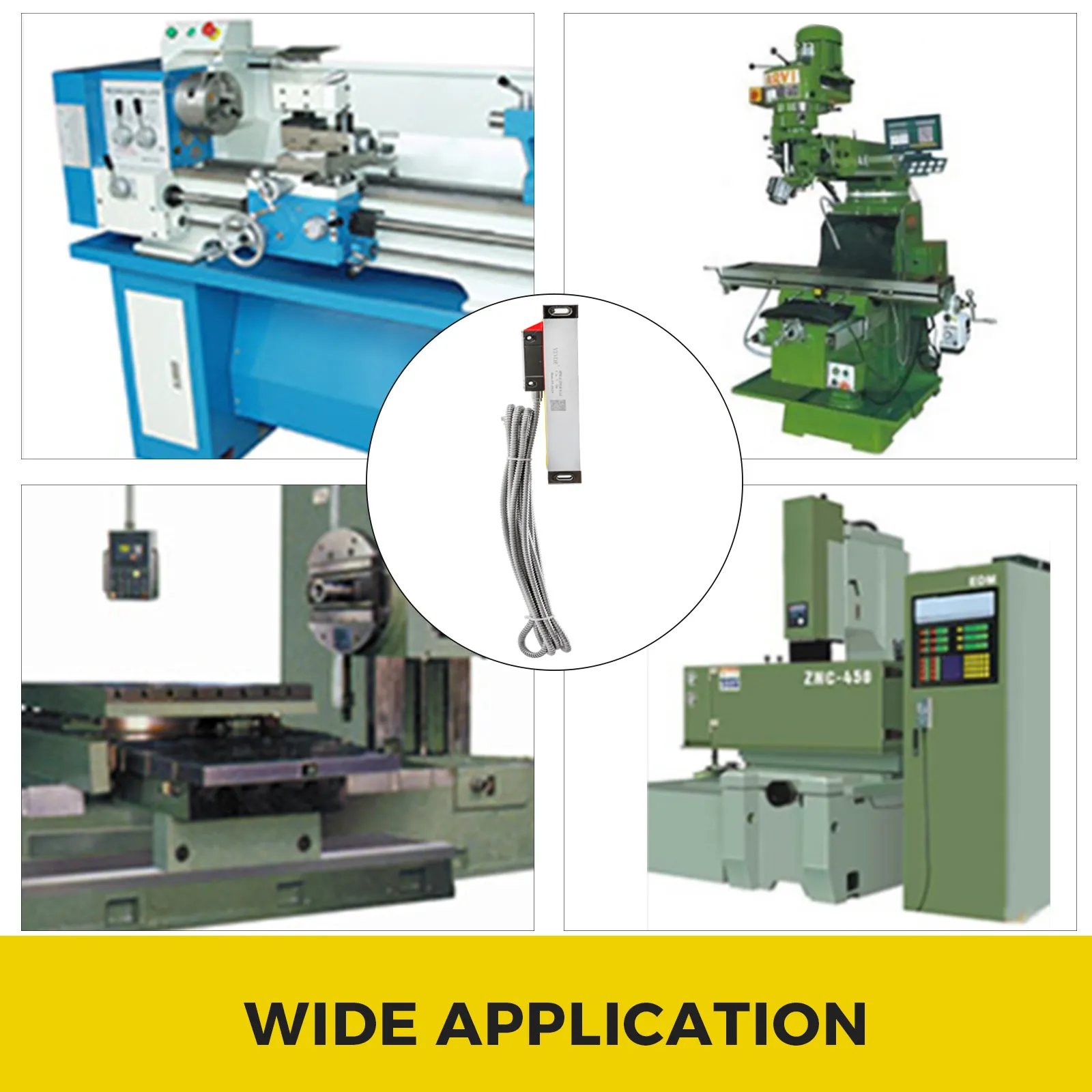

Wide Application
Perfect for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope, video measuring machine, movement control, position monitoring, coordinate measurement and so on.
Specifications
  • Voltage: 5V DC
  • Current: 50mA
  • Travel Length: 100mm
  • Grating Pitch: 0.02mm (50LP/min)
  • Resolution: 5μm (0.005mm) 0.0002"
  • Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
  • Response Speed: 60m/min or 40inch/sec
  • Cable Length: 3m
  • Sealing: Double seal
  • IP Class: 53

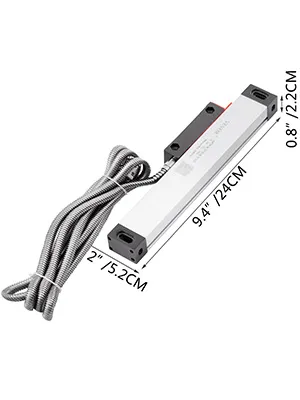

  • Product Dimension(LxWxH): 24 x 2 x 5cm (9.45" x 0.79" x 1.97")

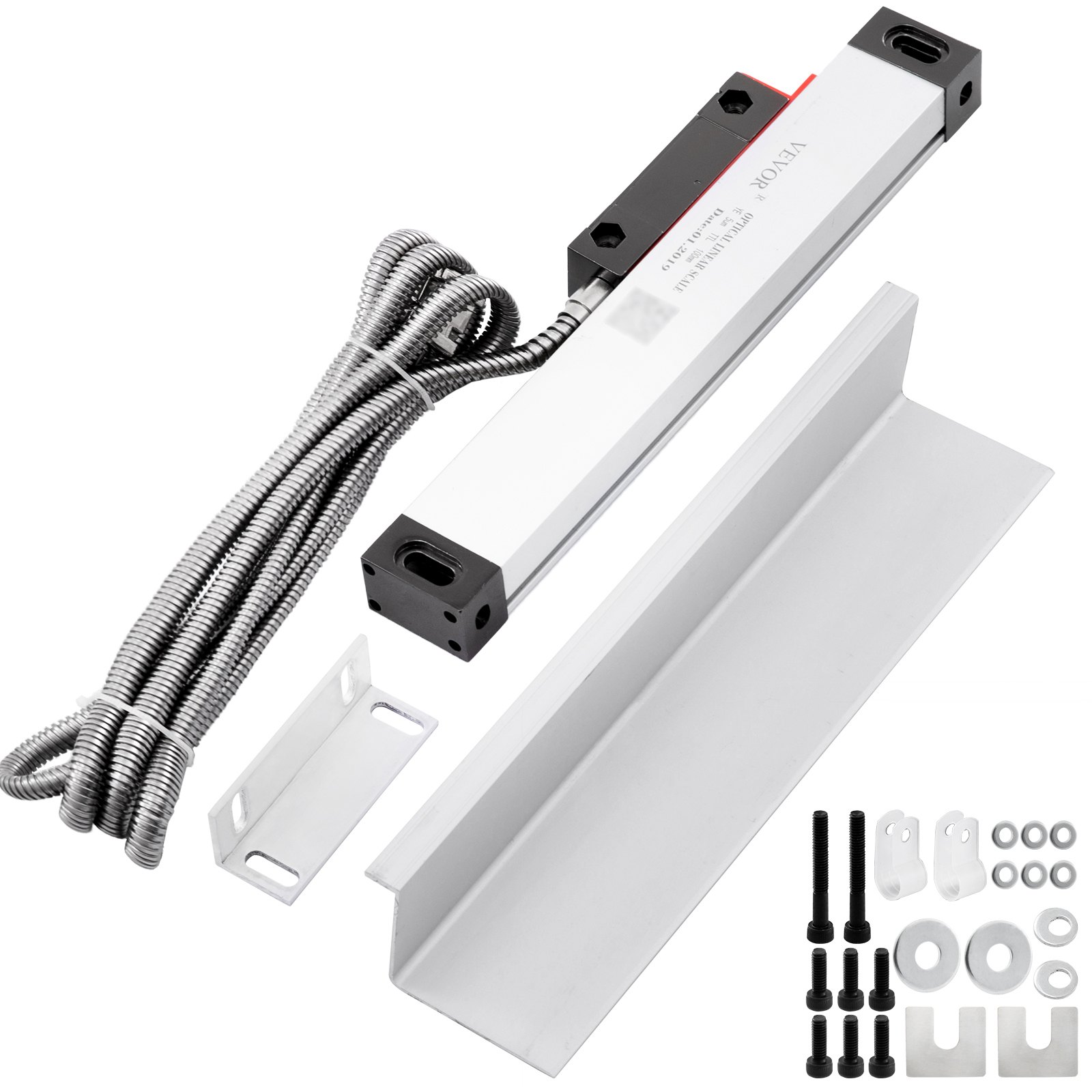

Package Content
  • 1 x Linear Scale Encoder

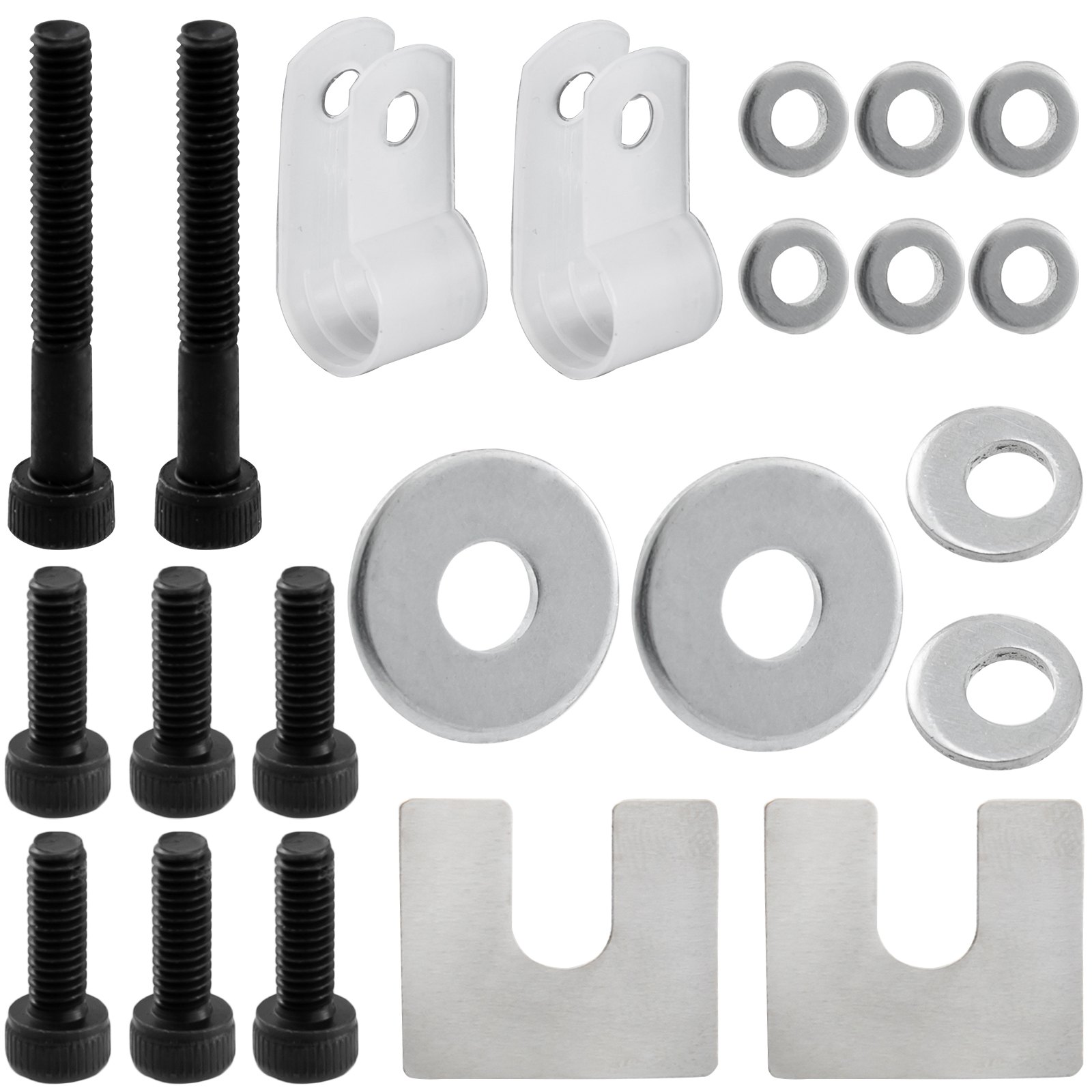

  • 1 x Set of Accessory
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
100mm Linear Scale Encoder With 3m Cable
Here we offer you 100mm Linear Scale with accuracy 0.0002" for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools to allow the operator to work faster with resolution: 5μm.
  • High Performance
  • Durable Aluminum Body
  • Double Seal & Signal Cable
  • Stable Slide Part
  • Convenient & Practical
Excellent Performance
The Linear scale applies intelligent chip with travel length 0-100mm, high accuracy 5um, grating pitch: 0.02mm, response speed: 60m/min. 100% brand new and high quality. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
Aluminum Body Design
The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
Double Seal & Signal Cable
The encoder beam features a double layer lip seal to give extra protection from contamination. Signal cable uses multilayer shielded wire steel and metal shell protection.
Stable 5 Bearing System
Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
Effortless To Install
The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware. Comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.
Wide Application
Perfect for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope, video measuring machine, movement control, position monitoring, coordinate measurement and so on.
Package Content
  • 1 x Linear Scale Encoder
  • 1 x Set of Accessory
Specifications
  • Voltage: 5V DC
  • Current: 50mA
  • Travel Length: 100mm
  • Grating Pitch: 0.02mm (50LP/min)
  • Resolution: 5μm (0.005mm) 0.0002"
  • Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
  • Response Speed: 60m/min or 40inch/sec
  • Cable Length: 3m
  • Sealing: Double seal
  • IP Class: 53
  • Product Dimension(LxWxH): 24 x 2 x 5cm (9.45" x 0.79" x 1.97")
