Features & Details

• Product Parameter: The industrial water cooler chiller is 6L capacity, 12L/max.flow, Precision: ±32.54℉/0.3℃, Cooling capacity: 1400W, 110V Voltage, and 60Hz Frequency.
• Efficient Cooling Fan: The water cooler chiller has two professional forced air-cooled radiators, high heat dissipating capacity, and not easy to be blocked. High-speed fans inside quickly take away the heat. And the water inlet and outlet ports are made of anti-corrosive brass to keep from any leakage problems and extend long service life.
• Constant & Intelligent Temperature Mode: CW-5000 series industrial chiller can be used to cool high-power lasers. Two working temperature modes are constant temperature and intelligent temperature adjustment. The smart temperature control mode can be adjusted to the corresponding water temperature as the temperature changes, and the water temperature can be automatically adjusted according to the season.
• Various Alarm Functions: This professional industrial chiller has multiple warning protection mechanisms such as water flow alarm protection, high/low temperature alarm, compressor delay protection as well as compressor over-current protection.
• Multiple Application: CW-5000 Series professional industrial water cooler machine is suitable for small water-cooled cooling devices requested machinery. The Industrial Water Chiller has a patent Certificate, CE, and ROHS Certificate. It is designed for cooling the one CO2 glass laser tube under 80W/100W of the laser engraving and cutting machine. Emitting rate higher than 60%.

Frequently Bought Together

Videos for this product

About this item

Product specification

Model

CW-5000

Voltage

220V

Frequence

60Hz

Current

4.5-7A

Tank Capacity

1.6 Gallon / 6 L

Compressor Power

0.65KW, 0.75HP

Cooling Capacity

1400W

Refrigerant

R-410a

Refrigerant Charge

11.6-12.3oz / 330-350g

Precision

±32.54℉ / 0.3℃

Reducer

Capillary

Pump Power

48W

Maximum Flow

3.17 Gal/min (12L/min)

Maximum Pumping Lift

8.7 Yards / 8 m

Inlet and Outlet

External Φ0.4in / 10mm Nylon Connector

Packing Dimensions

28.3"x17.3"x24.4" / 720x440x620 mm

Product Size

22.4"x11.02"x18.50" / 570x280x470 mm

Protection

Over Current Protection for compressor, Over-Flow & Over-Heat Alarm

Description

Industrial Water Cooler Chiller

CW-5000 Series is a professional cooling machine referring to international, advanced thermolysis cooling system design, suitable for small water-cooled cooling devices requested machinery. It has a 6L cooling tank capacity with completed water flow and over high-temperature alarm functions. Built-in cooling fan for effective ventilation ensures its high heat dissipating capacity. Designed for cooling the one CO2 glass laser tube under 80W/100W of the laser engraving and cutting machine.

• Product Parameter
• Efficient Cooling Fan
• Accurate Thermostat
• Various Alarm Functions

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

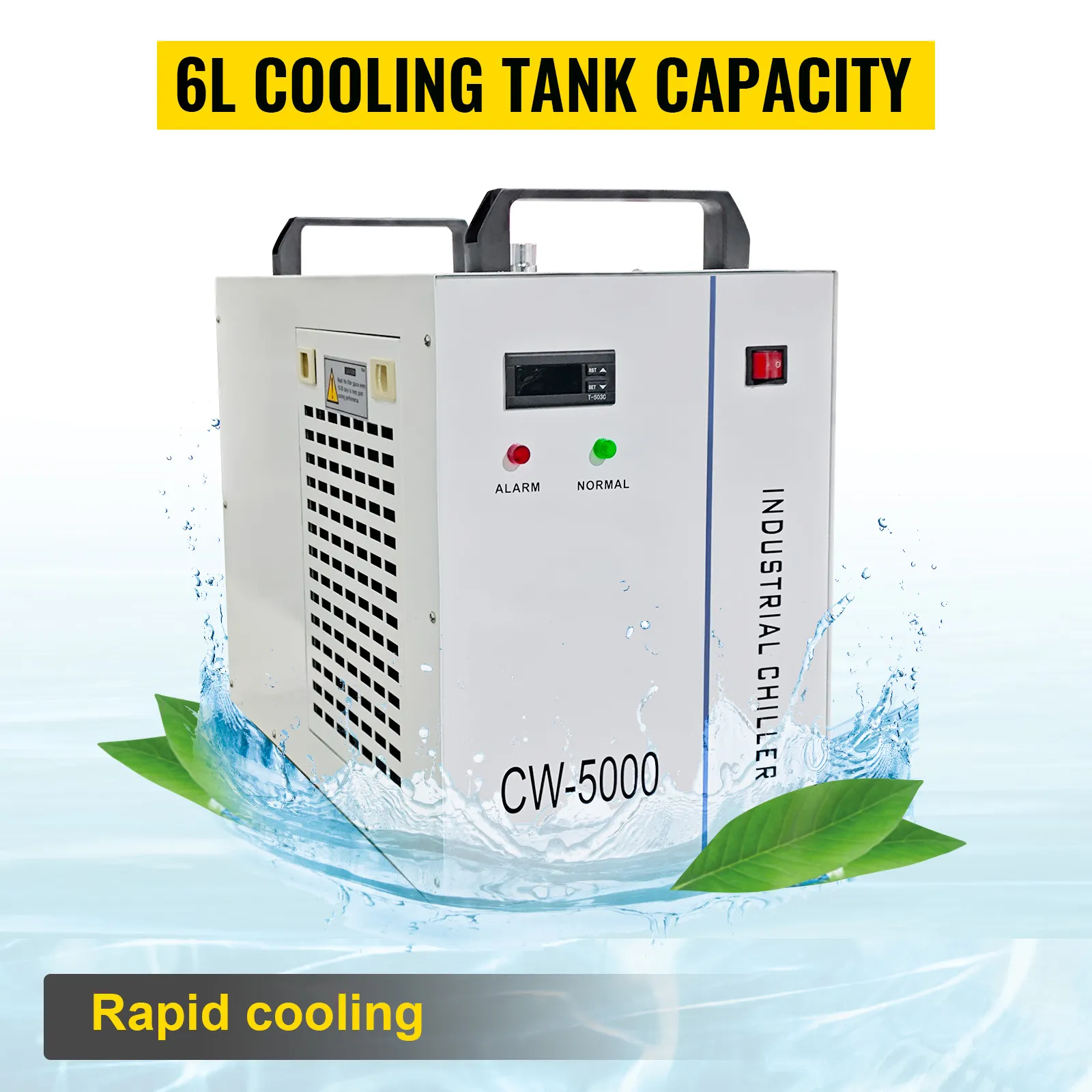

6L Cooling Tank Capacity

The water cooler chiller features a stable performance with a 6L large-capacity cooling box. Equipped with a precision scale, you can fill with water according to the scale.

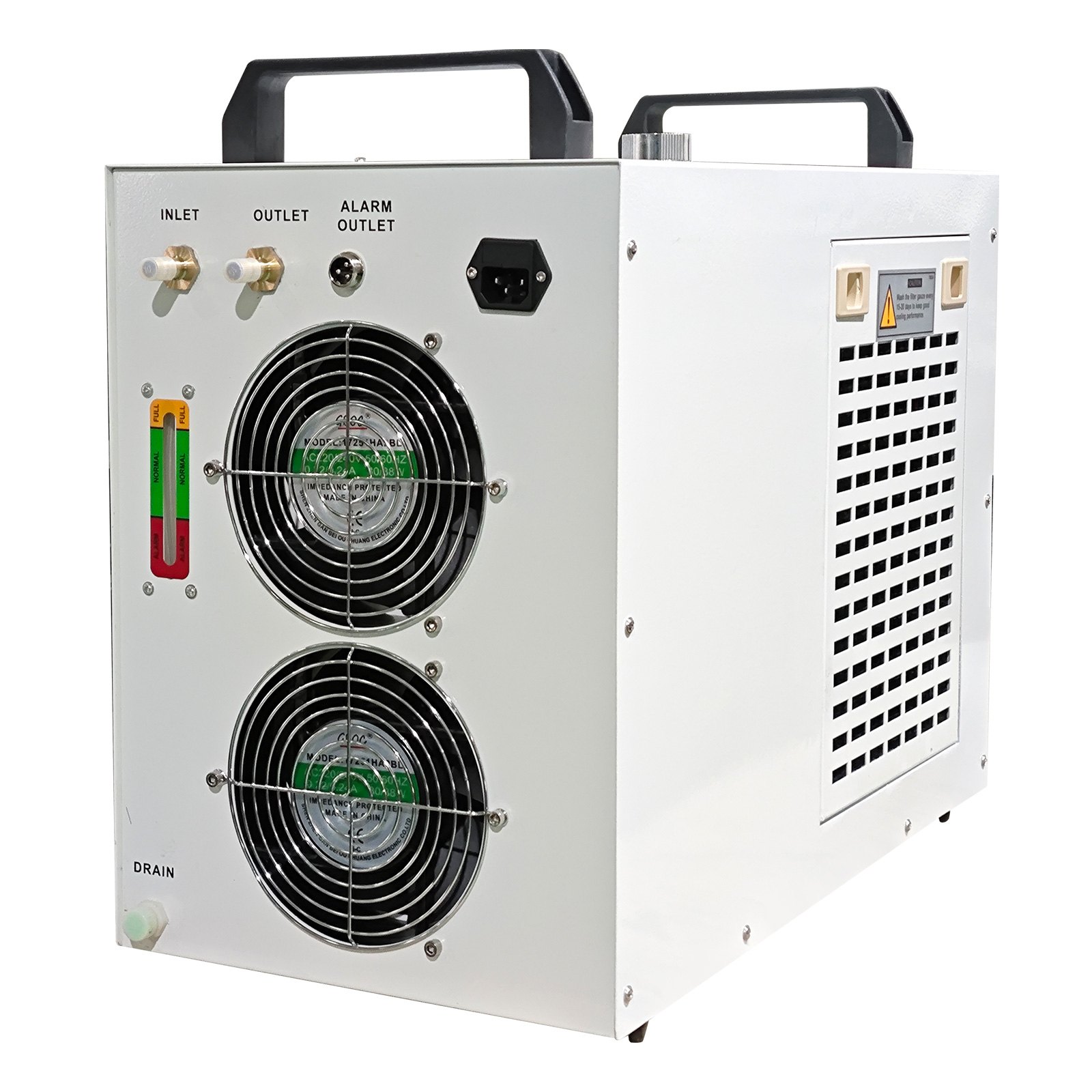

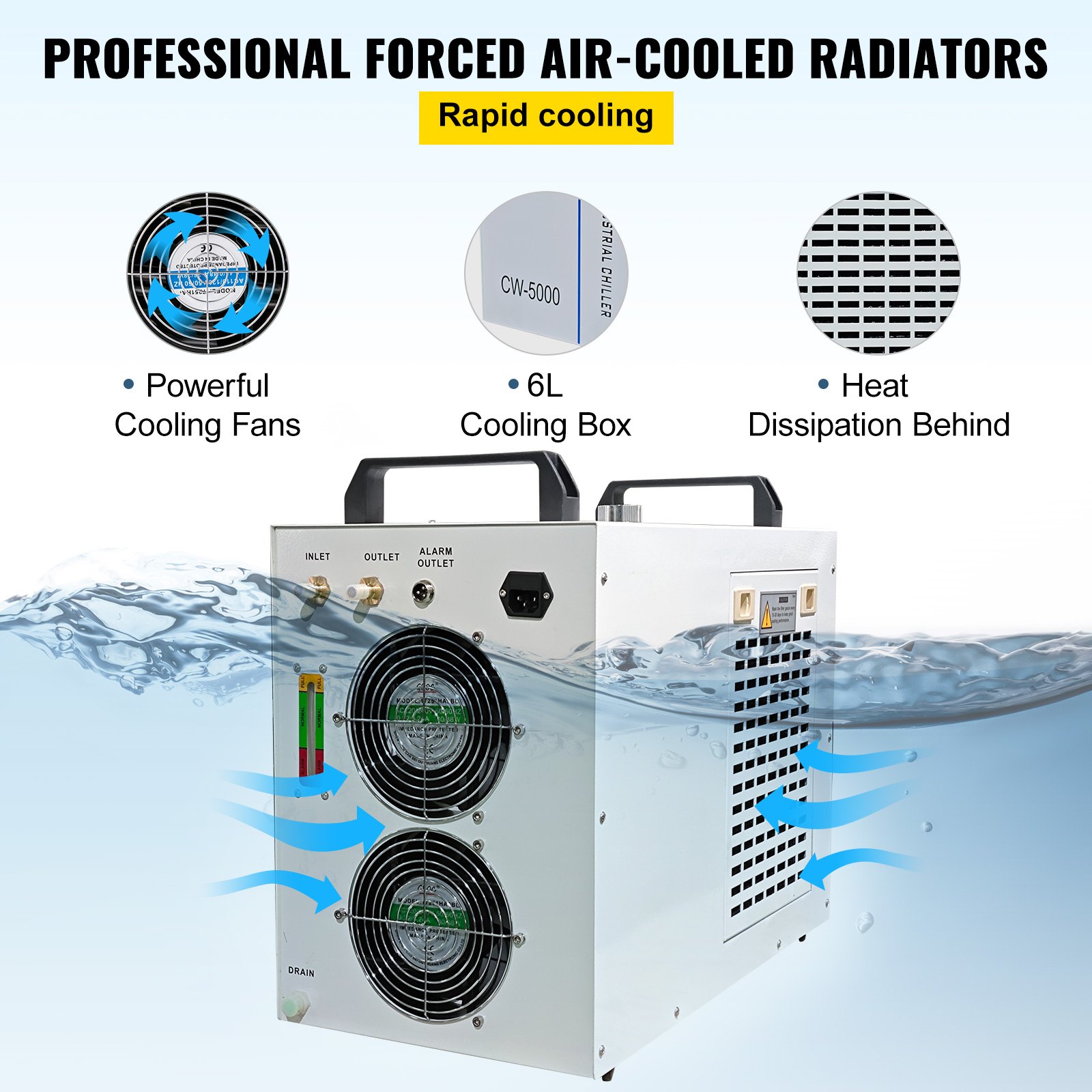

Dual Cooling Fans

Professional forced air-cooled radiators inside quickly takes away the heat. High heat dissipating capacity decides that the water cooler chiller is not easy to be blocked.

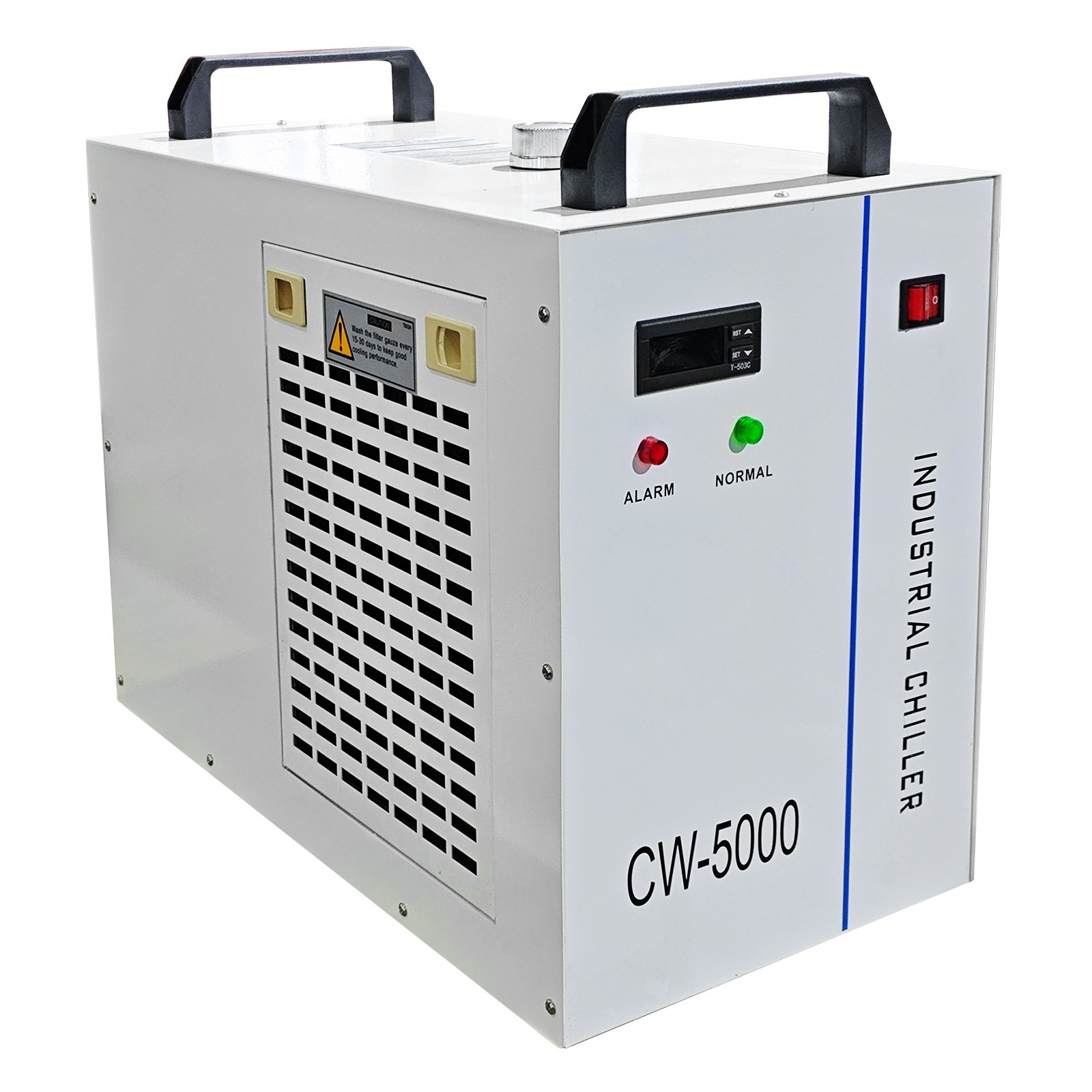

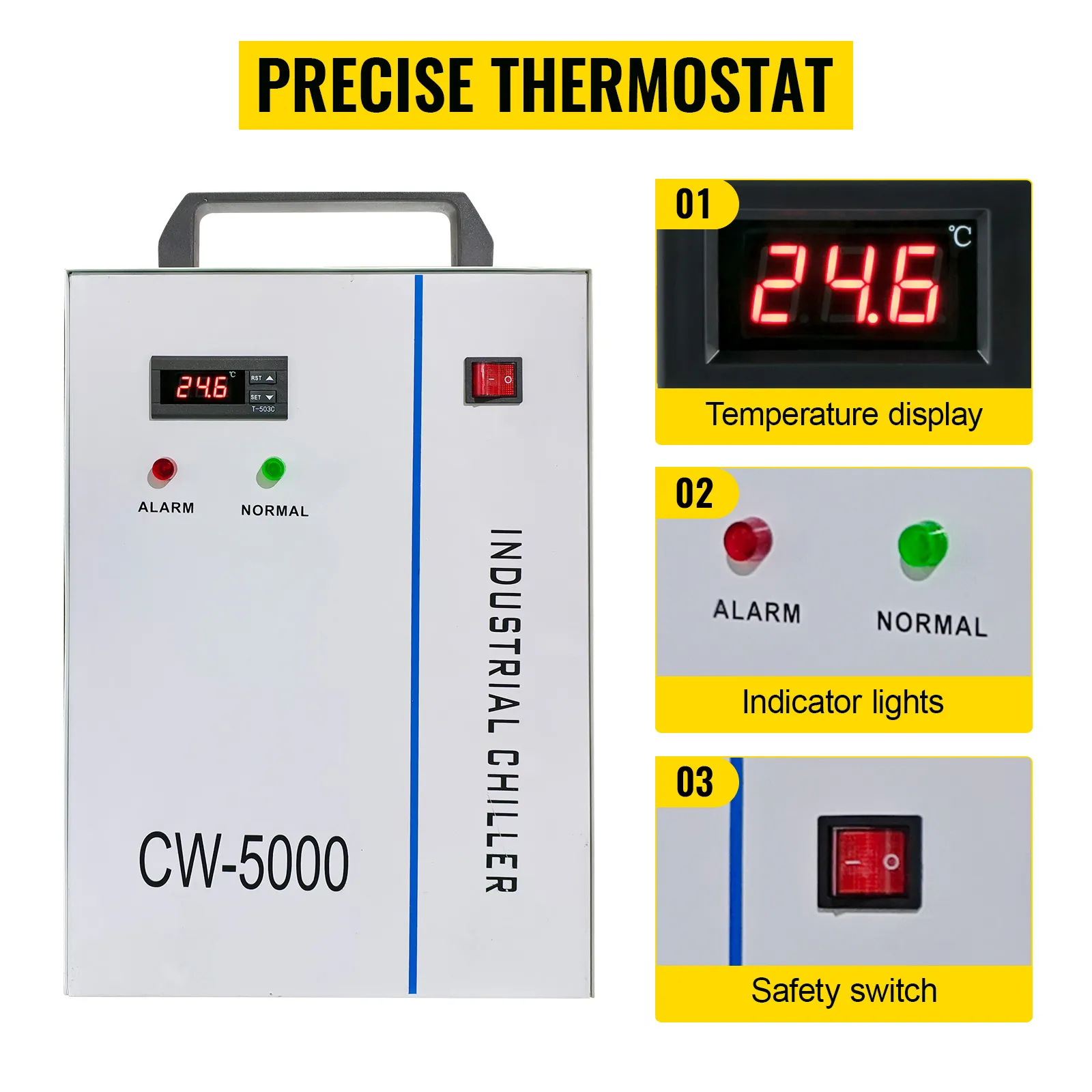

Precise Thermostat

This CNC machine industrial chiller equips an accurate temperature controller. You can adjust and monitor the real-time temperature accurately to ensure the working status of the machine.

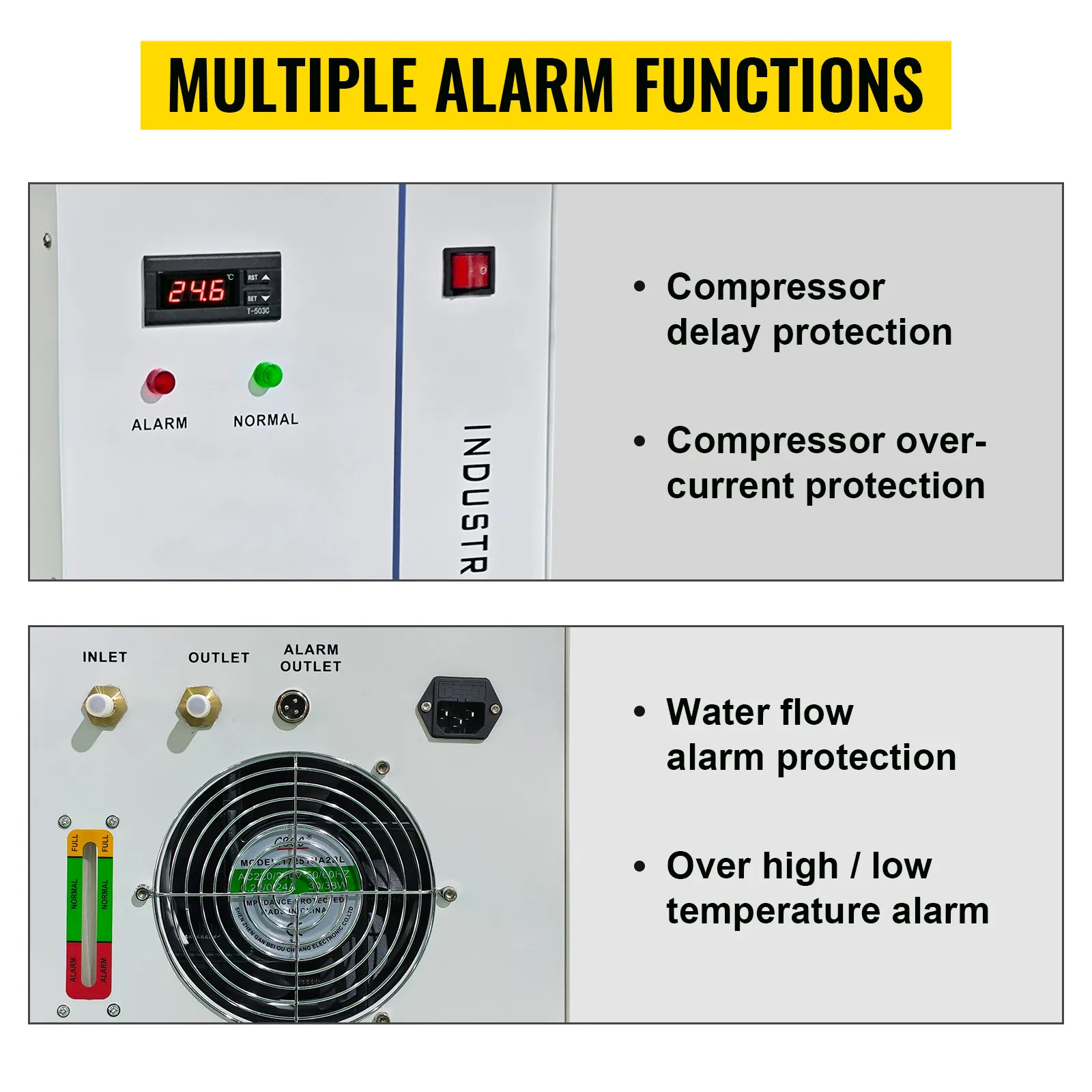

Multiple Alarm Functions

This laser engraver water chiller has various protection, and early warning functions water flow alarm protection, high/low temperature alarm, compressor delay protection as well as compressor over-current protection. These measures can protect the machine from overheating and extend its service life.

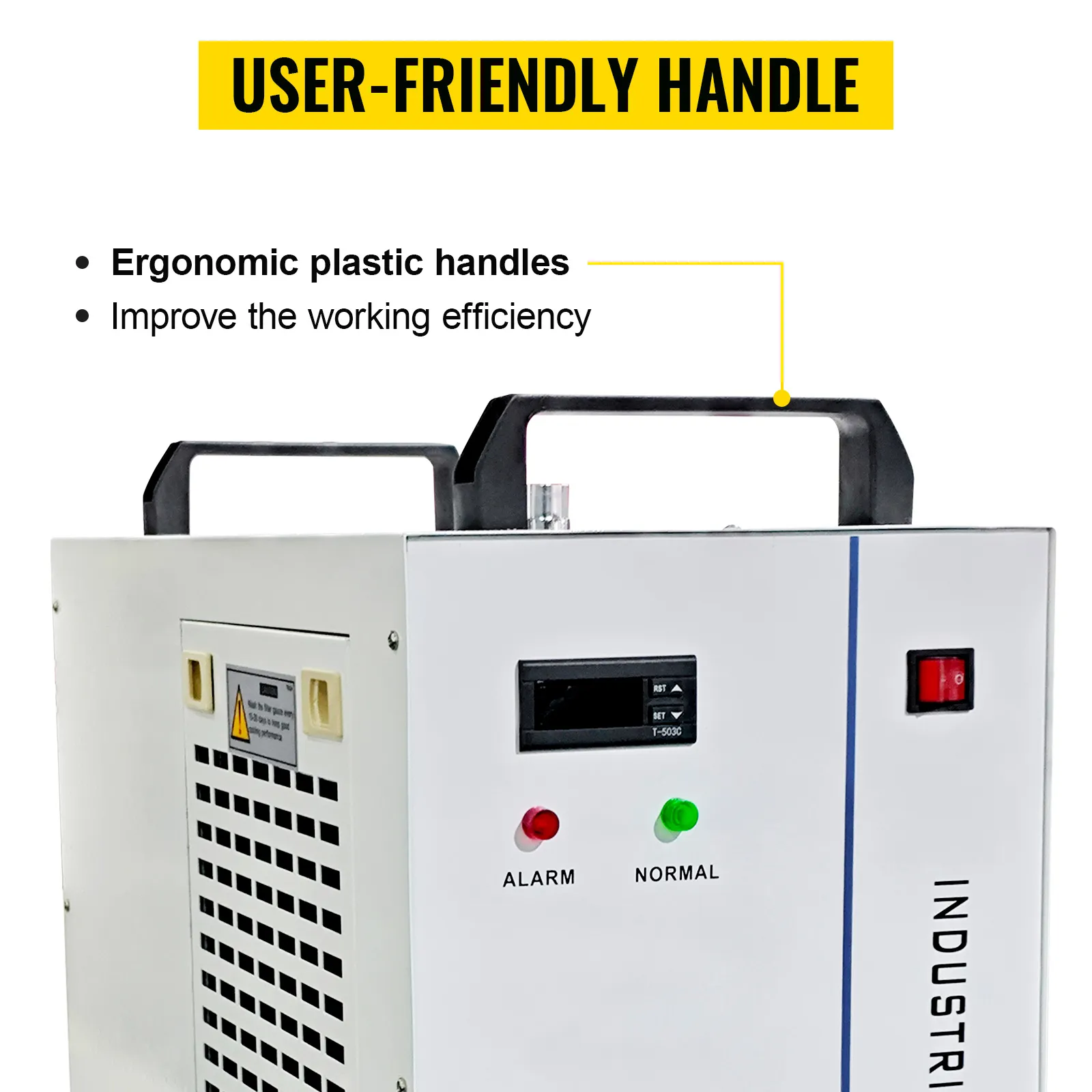

User-friendly Handle

Rubber handles are super durable and reliable. The ergonomic design makes it very comfortable to hold, saving time and effort as well as improving the working efficiency.

Wide Application

CW-5000 Series is a professional cooling machine, easy to install and operate, compact, and easily movable. It is designed for cooling the one CO2 glass laser tube under 80W/100W of the laser engraving and cutting machine.

Specifications

• Model: CW-5000
• Voltage: 220V
• Frequence: 60Hz
• Current: 4.5-7A
• Tank Capacity: 1.6 Gallon / 6 L
• Compressor Power: 0.65KW, 0.75HP
• Cooling Capacity: 1400W
• Refrigerant: R-410a
• Refrigerant Charge: 11.6-12.3oz / 330-350g
• Precision: ±32.54℉ / 0.3℃
• Reducer: Capillary
• Pump Power: 48W
• Maximum Flow: 3.17 Gal/min (12L/min)
• Maximum Pumping Lift: 8.7 Yards / 8 m
• Inlet and Outlet: External Φ0.4in / 10mm Nylon Connector
• Packing Dimensions: 28.3"x17.3"x24.4" / 720x440x620 mm
• Product Size: 22.4"x11.02"x18.50" / 570x280x470 mm
• Protection: Over Current Protection for compressor, Over-Flow & Over-Heat Alarm

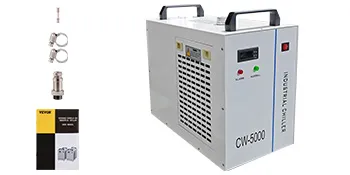

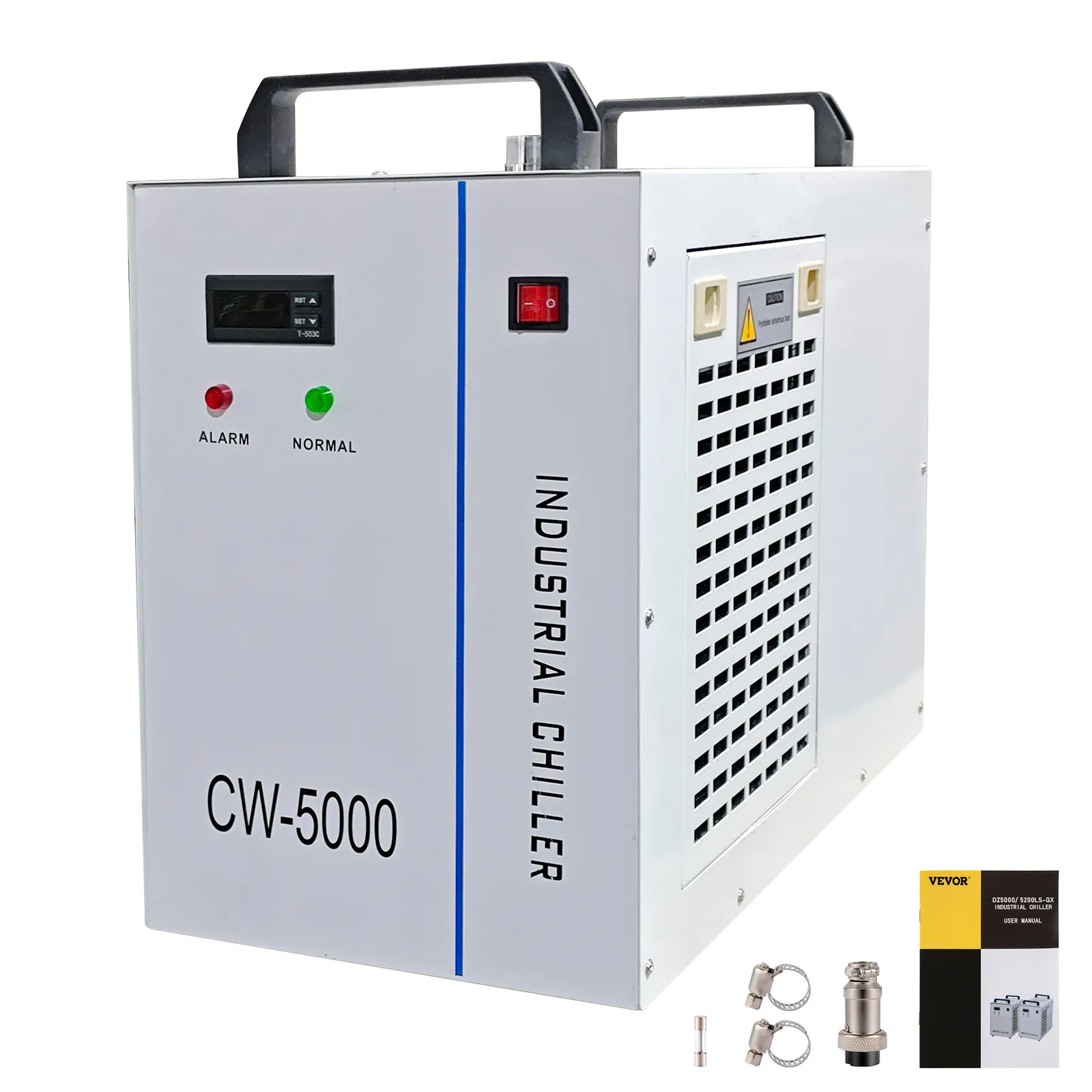

Package Content

• 1 × DZ5000LS-QX Water Chiller Machine
• 1 × Power Cable
• 2 x Sealing Washer
• 1 × Spare Fuse
• 1 × User Manual
• 1 × Alarm Signal Output Plug

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

Industrial Water Cooler Chiller

CW-5000 Series is a professional cooling machine referring to international, advanced thermolysis cooling system design, suitable for small water-cooled cooling devices requested machinery. It has a 6L cooling tank capacity with completed water flow and over high-temperature alarm functions. Built-in cooling fan for effective ventilation ensures its high heat dissipating capacity. Designed for cooling the one CO2 glass laser tube under 80W/100W of the laser engraving and cutting machine.

• Product Parameter
• Efficient Cooling Fan
• Accurate Thermostat
• Various Alarm Functions

6L Cooling Tank Capacity

The water cooler chiller features a stable performance with a 6L large-capacity cooling box. Equipped with a precision scale, you can fill with water according to the scale.

Dual Cooling Fans

Professional forced air-cooled radiators inside quickly takes away the heat. High heat dissipating capacity decides that the water cooler chiller is not easy to be blocked.

Precise Thermostat

This CNC machine industrial chiller equips an accurate temperature controller. You can adjust and monitor the real-time temperature accurately to ensure the working status of the machine.

Multiple Alarm Functions

This laser engraver water chiller has various protection, and early warning functions water flow alarm protection, high/low temperature alarm, compressor delay protection as well as compressor over-current protection. These measures can protect the machine from overheating and extend its service life.

User-friendly Handle

Rubber handles are super durable and reliable. The ergonomic design makes it very comfortable to hold, saving time and effort as well as improving the working efficiency.

Wide Application

CW-5000 Series is a professional cooling machine, easy to install and operate, compact, and easily movable. It is designed for cooling the one CO2 glass laser tube under 80W/100W of the laser engraving and cutting machine.

Package Content

• 1 × DZ5000LS-QX Water Chiller Machine
• 1 × Power Cable
• 2 x Sealing Washer
• 1 × Spare Fuse
• 1 × User Manual
• 1 × Alarm Signal Output Plug

Specifications

• Model: CW-5000
• Voltage: 220V
• Frequence: 60Hz
• Current: 4.5-7A
• Tank Capacity: 1.6 Gallon / 6 L
• Compressor Power: 0.65KW, 0.75HP
• Cooling Capacity: 1400W
• Refrigerant: R-410a
• Refrigerant Charge: 11.6-12.3oz / 330-350g
• Precision: ±32.54℉ / 0.3℃
• Reducer: Capillary
• Pump Power: 48W
• Maximum Flow: 3.17 Gal/min (12L/min)
• Maximum Pumping Lift: 8.7 Yards / 8 m
• Inlet and Outlet: External Φ0.4in / 10mm Nylon Connector
• Packing Dimensions: 28.3"x17.3"x24.4" / 720x440x620 mm
• Product Size: 22.4"x11.02"x18.50" / 570x280x470 mm
• Protection: Over Current Protection for compressor, Over-Flow & Over-Heat Alarm
