Name: VEVOR VFD Variable Frequency Drive Inverter for Spindle Motor Speed Control (4.0KW-380V)
Brand: VEVOR
SKU: 4KW380V5HPKBPLBPQV0
Price: 125.99 GBP
Availability: Discontinued
Rating: 4.80 (24 reviews)

Features & Details

【PREMIUM QUALITY】- This VFD adopts the US intel and SILICON LABS chip. With communication port, adopting standard international MODBUS main circuit control.

【FLEXIBLE CONTROL】- Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting and so on. Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes.

【POWERFUL PERFORMANCE】- With extremely strong anti-jamming capability; With low output ratting torque, low speed running ability; Internal simple PLC, 6 multifunction input terminals, to achieve operation, zero speed, calculator, external exception program instructions and alarm; Auto voltage regulation (AVR) technique, for ensuring the inverter load capability.

【SAFETY PROTECTION】- Adopts overload protection, fuse protection, over-voltage (DC voltage>800V) or under-voltage (DC voltage<400V) protection, restart protection, stall protection, short-circuit protection and over-heat protection.

【WIDE APPLICATION】- Used for constant torque loads (such as hard starting: Air compressor, HVAC units) and variable torque loads (such as pumps, fans, etc.).

Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Tough Equipment & Tools, Pay Less

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

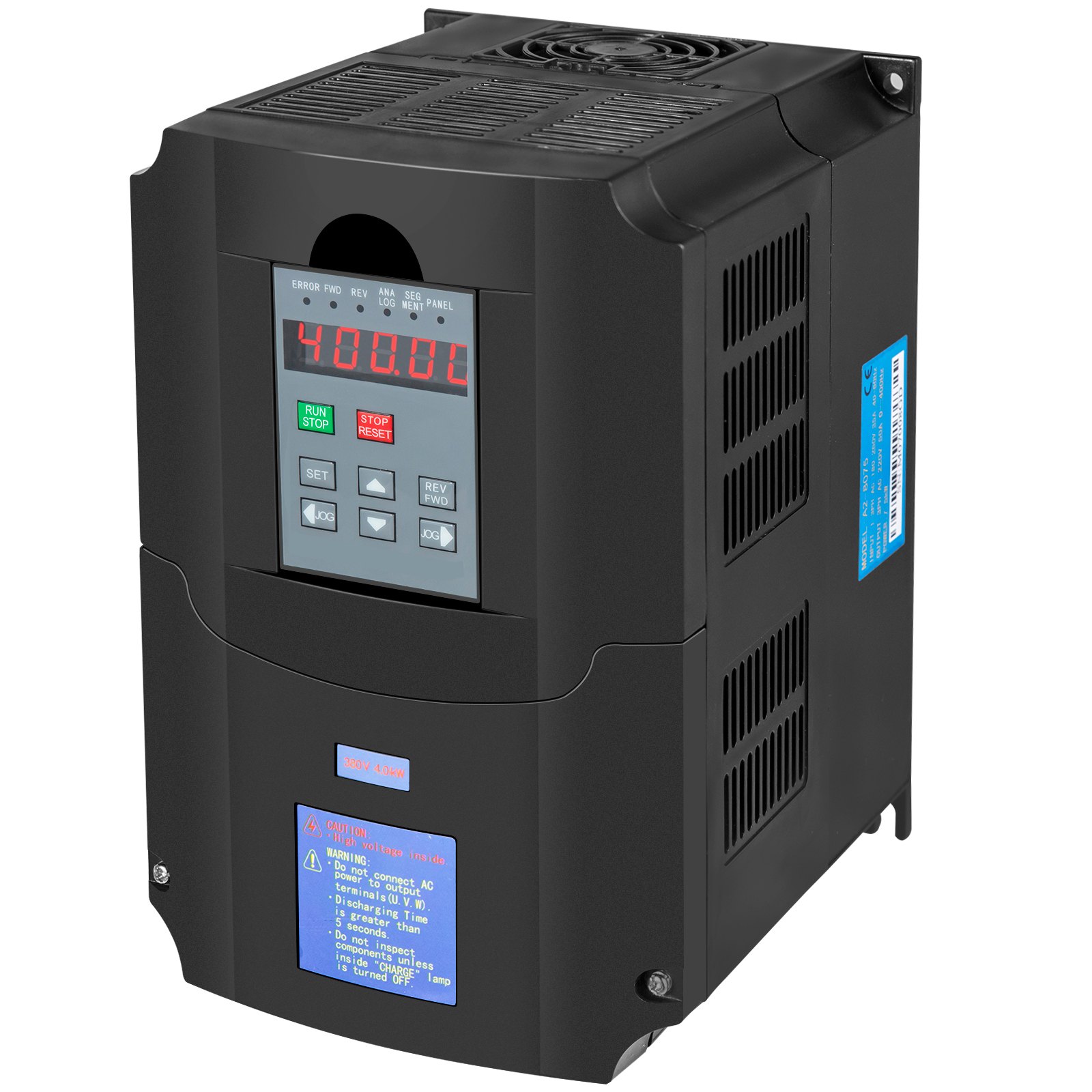

4KW Variable Frequency Drive

This VFD can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter. The input for this VFD is three-phase, output is three-phase. You can control the different speed as you like when you use this VFD. This item use Sine wave PWN(SPWM ) for the control system and performance excellently.

Premium Quality
Flexible Control
Powerful Performance
Safety Protection

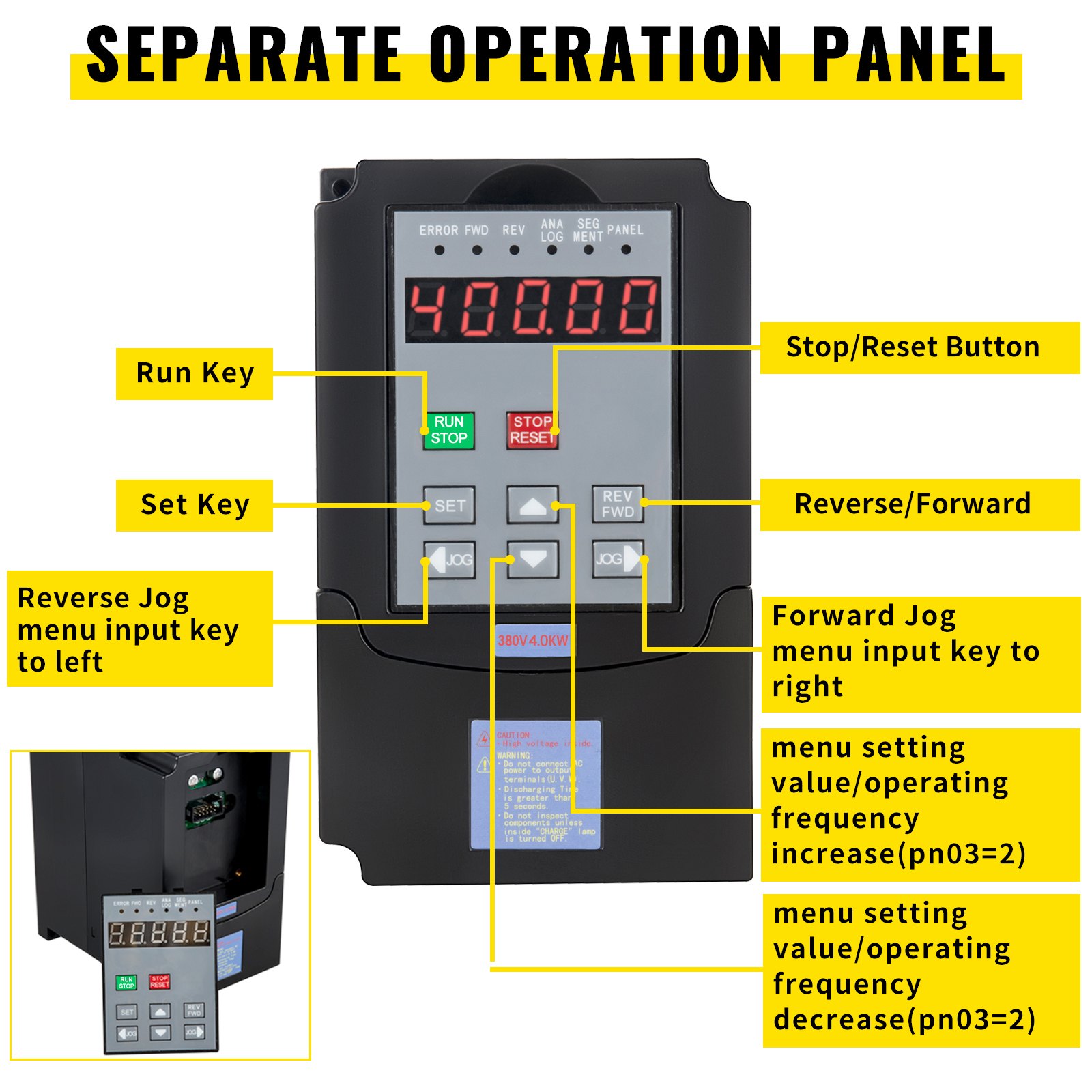

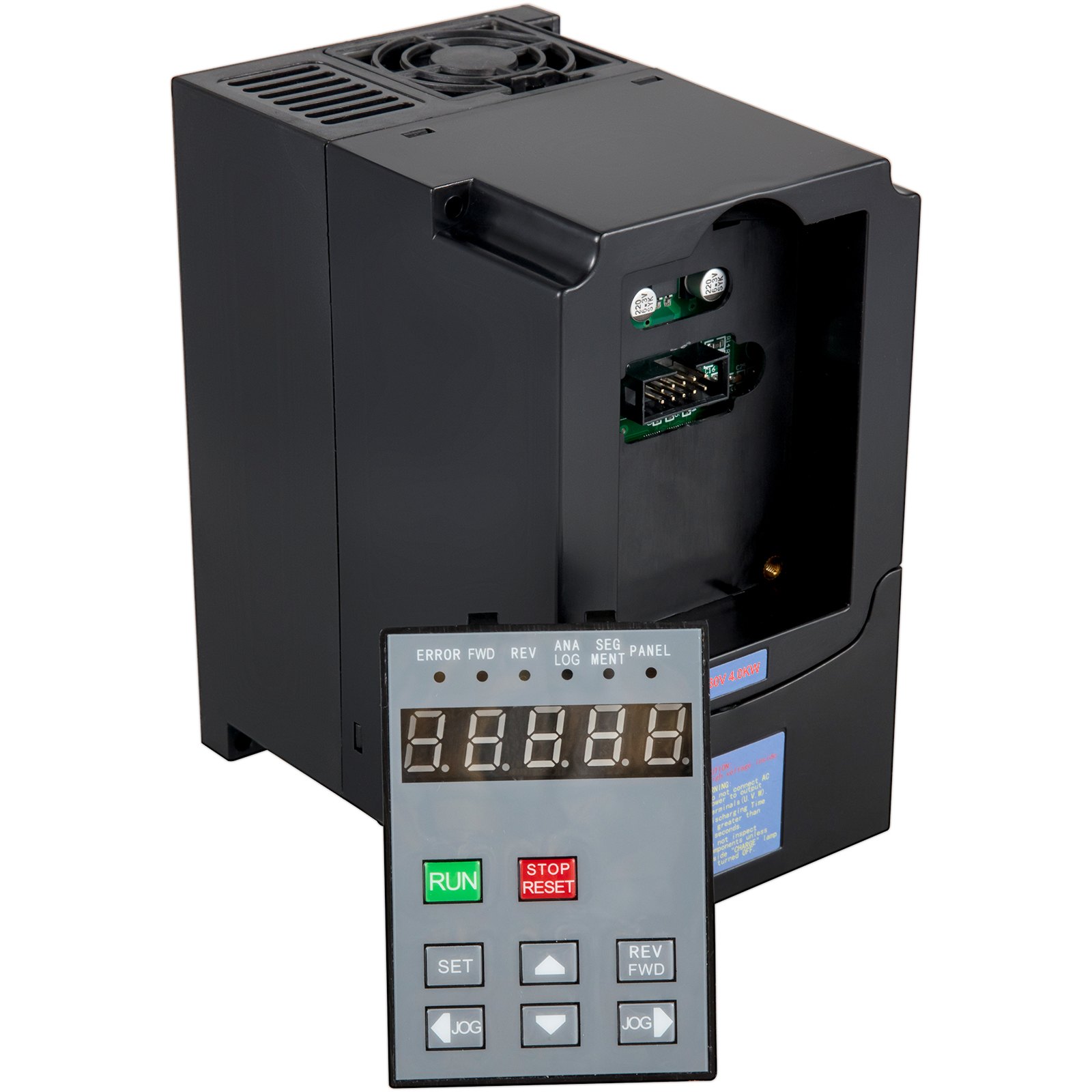

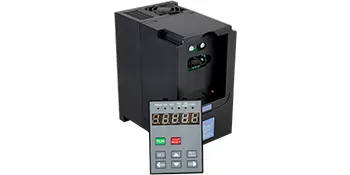

Separate Control Panel

With full-featured clear buttons to achieve quick and easy operation. The panel is detachable for convenient remote control.

Three Phase

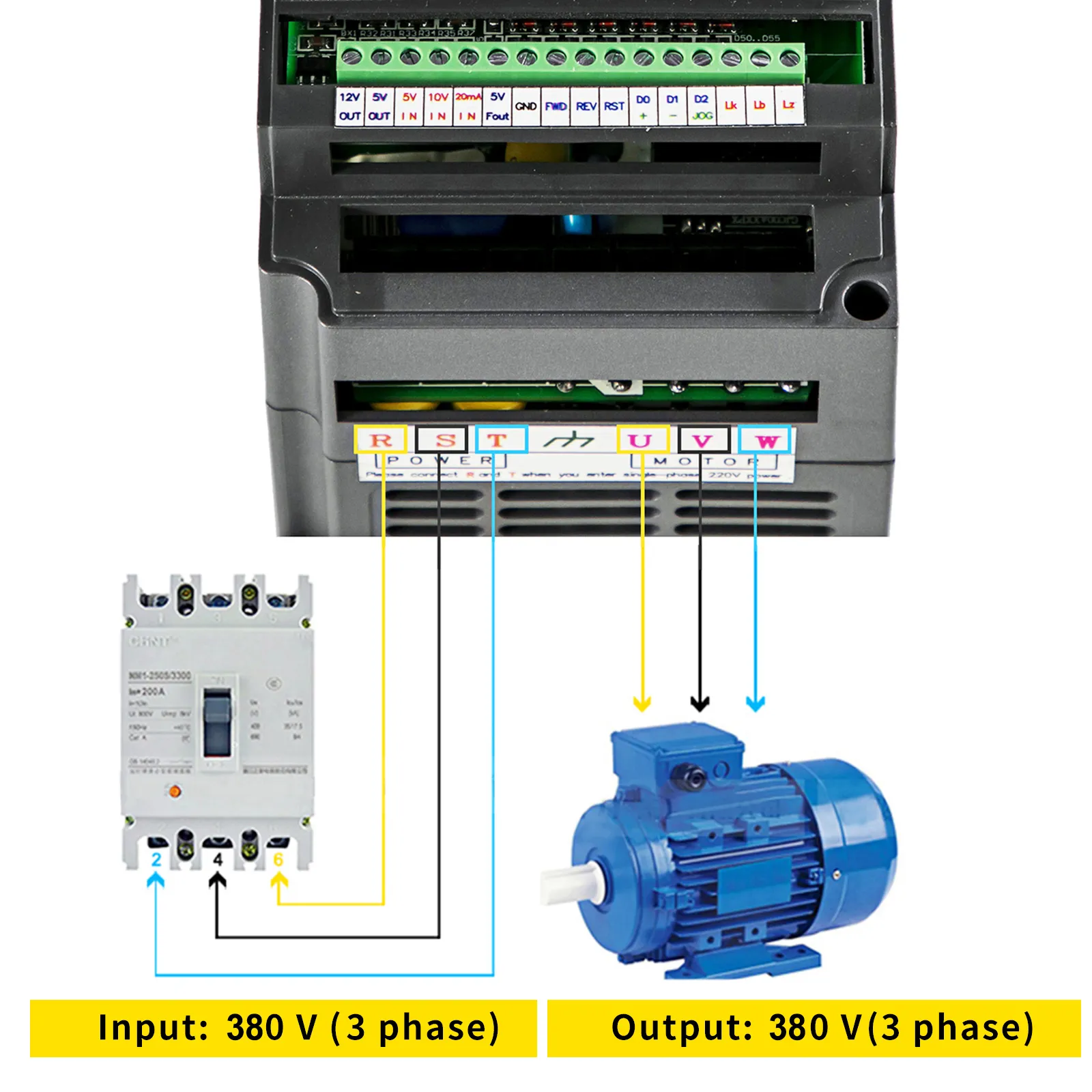

This is three phase VFD with 3 phase 380V input and 3 phase 380V output, and with power of 4KW.

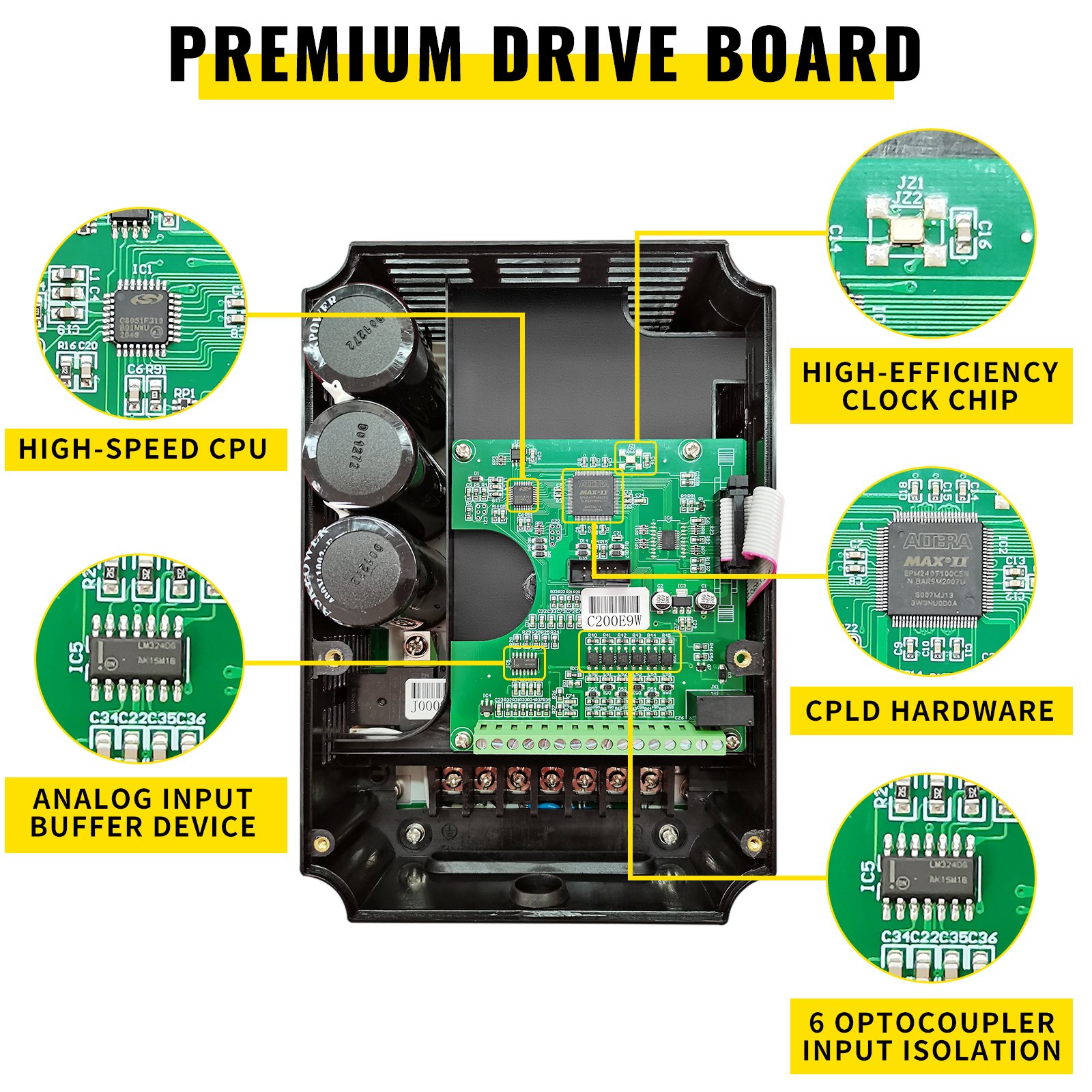

Premium Driver Board

The driver board is cleaned and painted. Adopted with the US intel and SILICON LABS chip, with communication port.

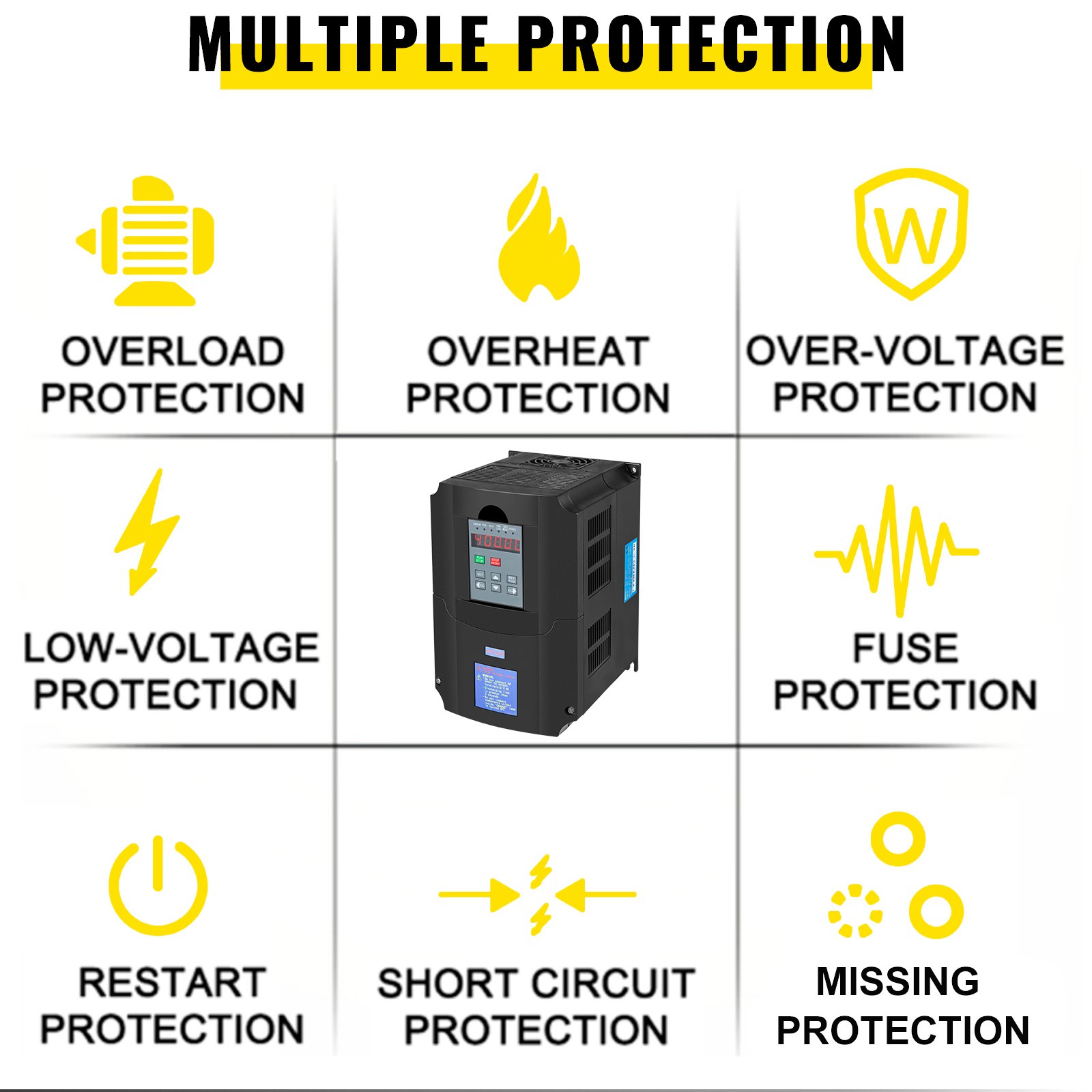

Safety Protection

Adopts overload protection, fuse protection, over-voltage (DC voltage>800V) or under-voltage (DC voltage<400V) protection, restart protection, stall protection, short-circuit protection and over-heat protection.

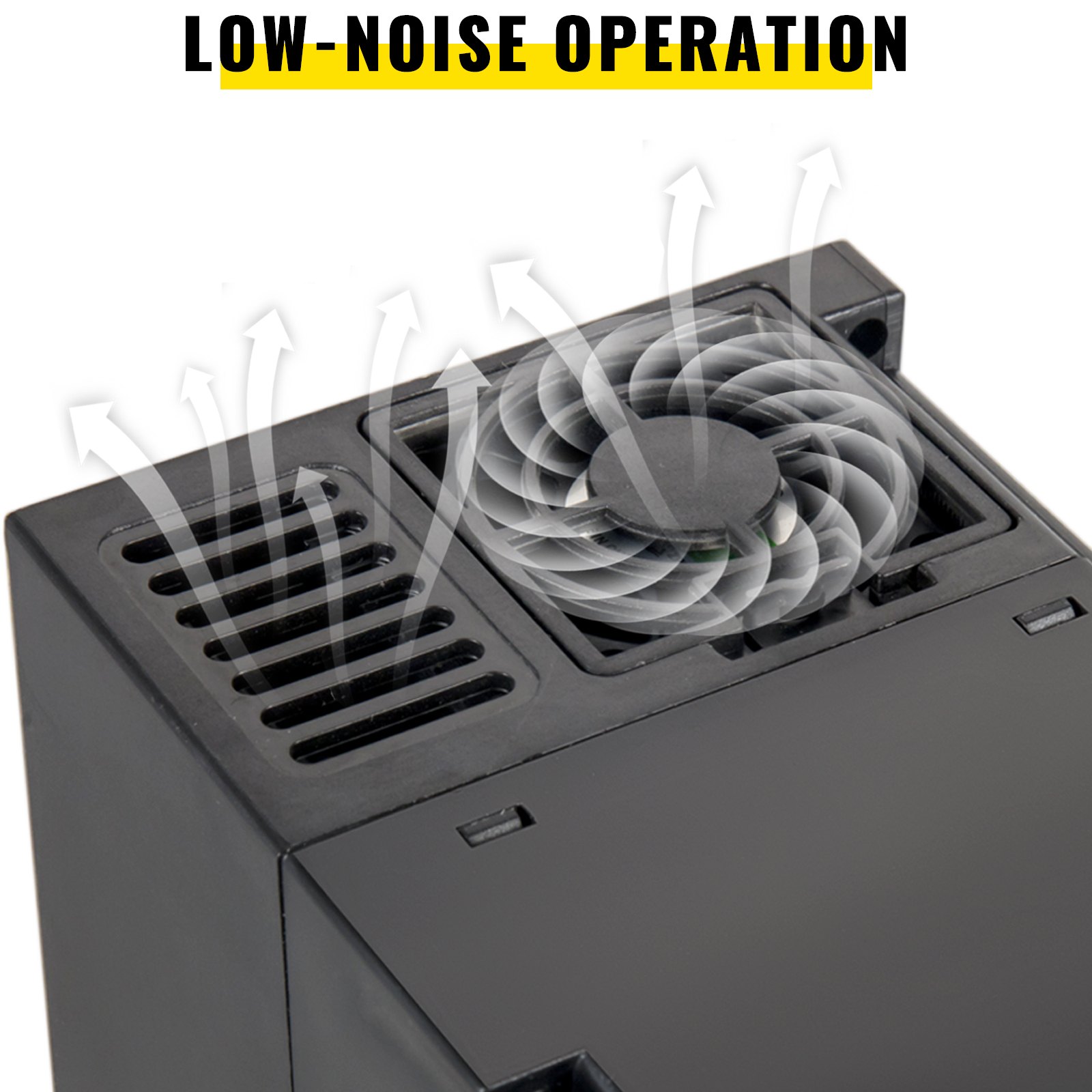

Effective Heat Dissipation

Adopts large area of cooling vents and a forced air-cooled fan, offering powerful cooling capacity.

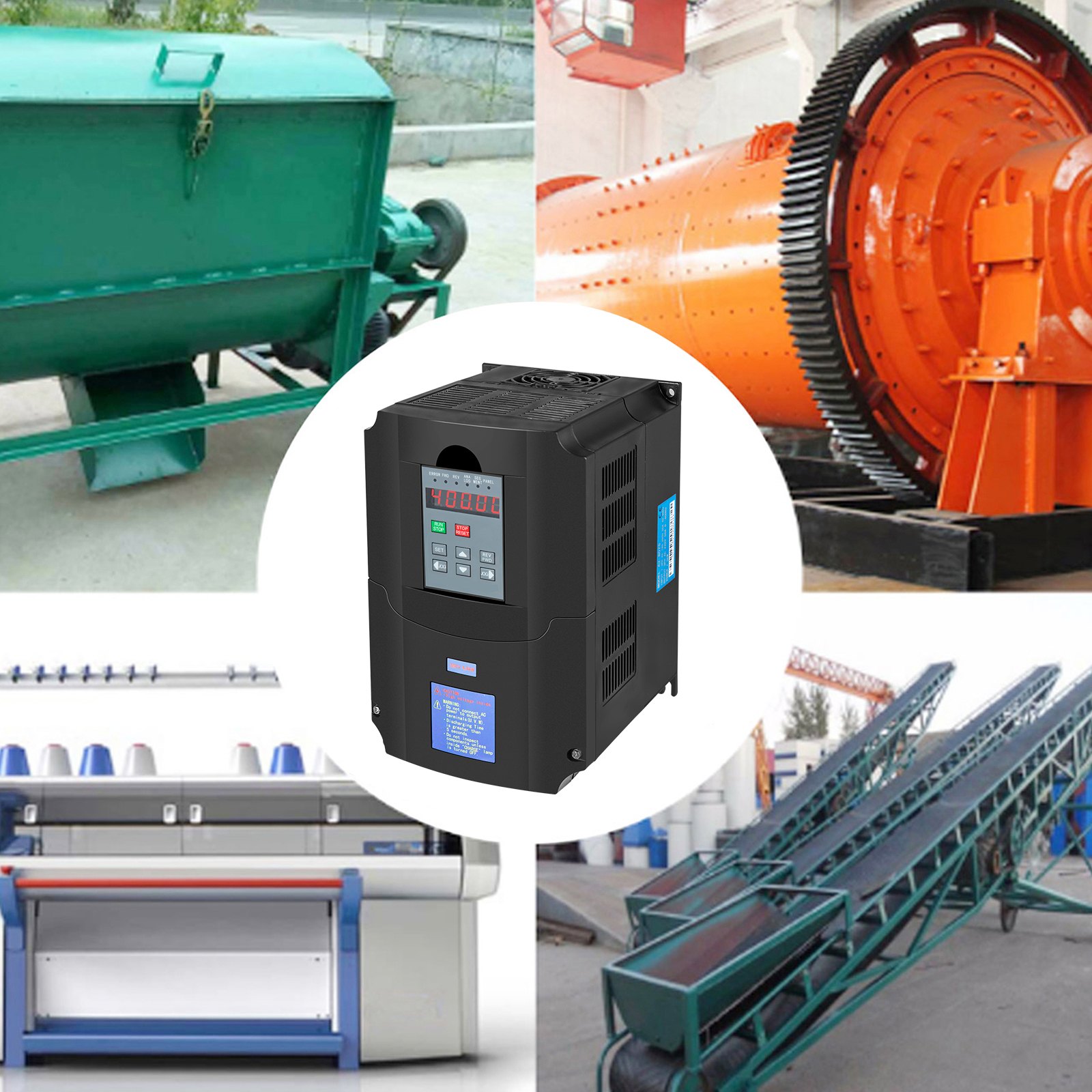

Widely Used

Applied in machinery winding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator and other speed control machines.

Package Content

1 x 4KW Variable Frequency Drive Inverter
1 x English Manual

Specifications

Power: 4 KW
Input Voltage: 380V ± 15%
Output Voltage: 380V ± 15%
Input Frequency: 48-63 HZ
Output Frequency: 0-400 HZ
Input phase: 3 phase
Output phase: 3 phase
Control Mode: SPWM
Working Temperature: -10~40 ℃
Humidity: 0-95% Relative Humidity (without dew)

VEVOR VFD Variable Frequency Drive Inverter for Spindle Motor Speed Control (4.0KW-380V)

4.8 24 Reviews

￡ 125 99

Exclusive ￡5.00 off for your first three orders on the App.

Security & Privacy

100% Secure payment

Secure privacy

FREE Returns

30-day Free Returns

Refund for lost packages / damaged items

Professional Service

12-months warranty

Customer Support

Reviews 4.8

All reviews are from verified purchases

Average rating based on 24 reviews

Top Reviews

Brightsparkey

Reviewed on Nov 18,2022

Easy to use and seems to work fine. Fan is noisy but at least airflow is adequate. One thing to be aware of is the external button controls don't function the same as the built in panel for stop/start and rev. The external button must be latched to keep the motor running. I used a 3 way rotary switch in the end. No problems encountered with radio noise or interference, and the controller has good control of the motor start and stop speed. Even though it doesn't have braking, the motor spins down fast enough on my lathe. Not enough mileage to comment on reliability, but it been put through its paces with no signs of distress. Shame these units are discontinued, as I have a couple of other machines that could benefit from one.

gary howell

Reviewed on Nov 09,2022

Found it easy to use and connect up. I find it to be value for money.

parwood

Reviewed on Oct 24,2022

a great product essay to set up out of the box wired up and running am really happy with with it the good thing as i can get intouch if there was ever a problem

DavidJ

Reviewed on Oct 22,2022

Excellent quality unit , does all that is required of it. Only thing is that for a relatively inexperienced engineer set-up proved to be a little complex. Used to enable the use of a 3 phase Pillar drill where only sigle phase available. However achieved and now understand the manual much better. Will buy again for 3 other machines in due course

Steve

Reviewed on Oct 18,2022

Does what it's supposed to at a great price. Time will tell on reliability but its holding up so far

Engineer

Reviewed on May 25,2022

Arrived safely and worked very well.Has all the various functions that I need when I used it to run and regulate my 72 x 2 Belt Grinder

Zrt121

Reviewed on May 24,2022

Bought this to try it, It was a low price, I have a Fobco Star drill with A three Phase motor, and I wanted to power it with 240v power. I rewired the motor To delta 240V , I had to change the setting from 400HZ to 50HZ and the motor starts and runs perfect , It is best to read the whole manual as there are a lot of setting that you can change. I bought the 1.5KW unit and it powered an old 0.33BHP / 0.25KW motor with no problems

cnc fella

Reviewed on May 07,2022

Arrived in good time and seems of decent quality, does what it says on the tin. not to hard to wire up. would use again

Dave

Reviewed on Apr 20,2022

It worked great, after I figured the settings. read all the workbook as I missed setting 32 . VEVOR 1.5KW 2HP Variable Frequency Drive Inverter

Trex

Reviewed on Apr 01,2022

This is the second vfd I've purchased for speed controlling a 3-phase motor. First my belt grinder and this one has gone on my bench drill
