Details & Features

• 【LARGE WORKING BENCH】-Themax working area of the soldering machine is 180 x 235 mm / 7.09 x 9.25 inches,enabling itto work under different working conditions. The large welding area also means high efficiency for your works.
• 【EIGHT TEMPERATURE WAVES】-This T-962 SMD reflow oven can provide eight kinds of stored temperature parameter waves as options so you can choose the temperature according to your needs, and it also has excellent cooling functions.
• 【INTELLIGENT TEMPERATURE CONTROL】-Theoutputpowerof the soldering station reaches to 800W.Fast infrared radiation,combined with wind-circulation, makes the temperature in the drawer more exact and even.The whole soldering process can be completed automatically according to the temperature parameter waves you choose.
• 【INTEGRATION STATION】-The integrated design, combining the firm external appearance, visualoperation,and user-friendly operation interface, gives you a lightweight and compact heating rework station that will save more money for you.The simple operating instructions can help you use the machine easily.
• 【WIDE APPLICATION】- The T-962 reflow soldering machine can solder most PCB boards small parts, for example, CHIP, SOP, PLCC, QFP, BGA, etc. It is the ideal rework solution from single runs to on-demand small-batch production.

• Self-contained Micro-Processor controlled IC Heater and solder rework station.
• Uses up to 800 watts of energy efficient Infrared heating and air circulation to re-flow solder in a large 180×235mm area.
• Memory eight kinds of temperature parameter waves can be provided as choice, and establish to move heating and cool off function compulsory.
• Adoption fast infrared radiation and circulation the wind for heat makes the temperature very accurate and even.
• Thermal cycle accuracy is maintained by closed loop micro-computer control with infrared heaters, thermocouple and circulating air.
• Automatically by micro-computer control. The entire soldering process is completes automatically from Preheat, Soak and Reflow through cool- down.
• Pre-set heating modes are selected by user interaction with thermal cycle progress observed on LCD display.

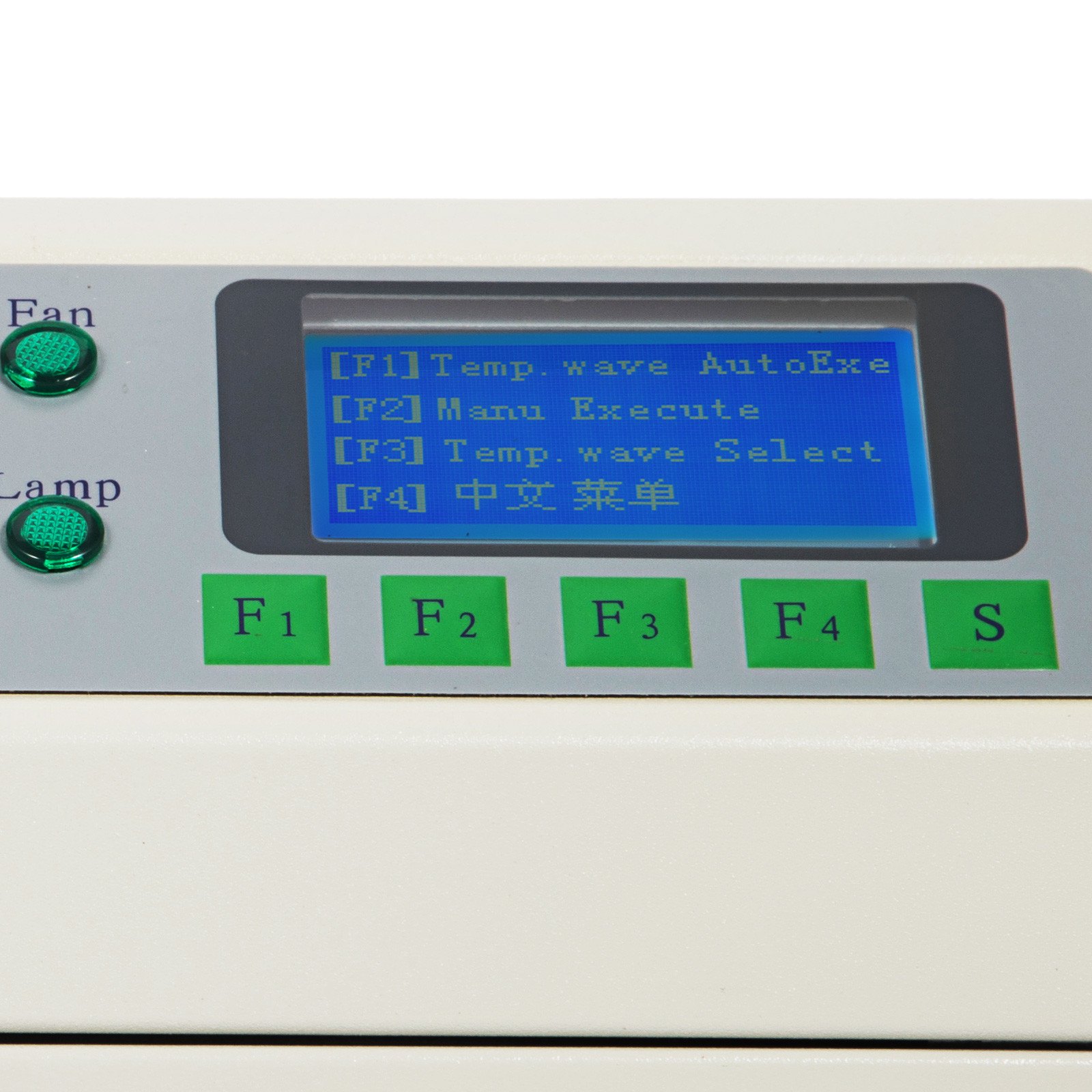

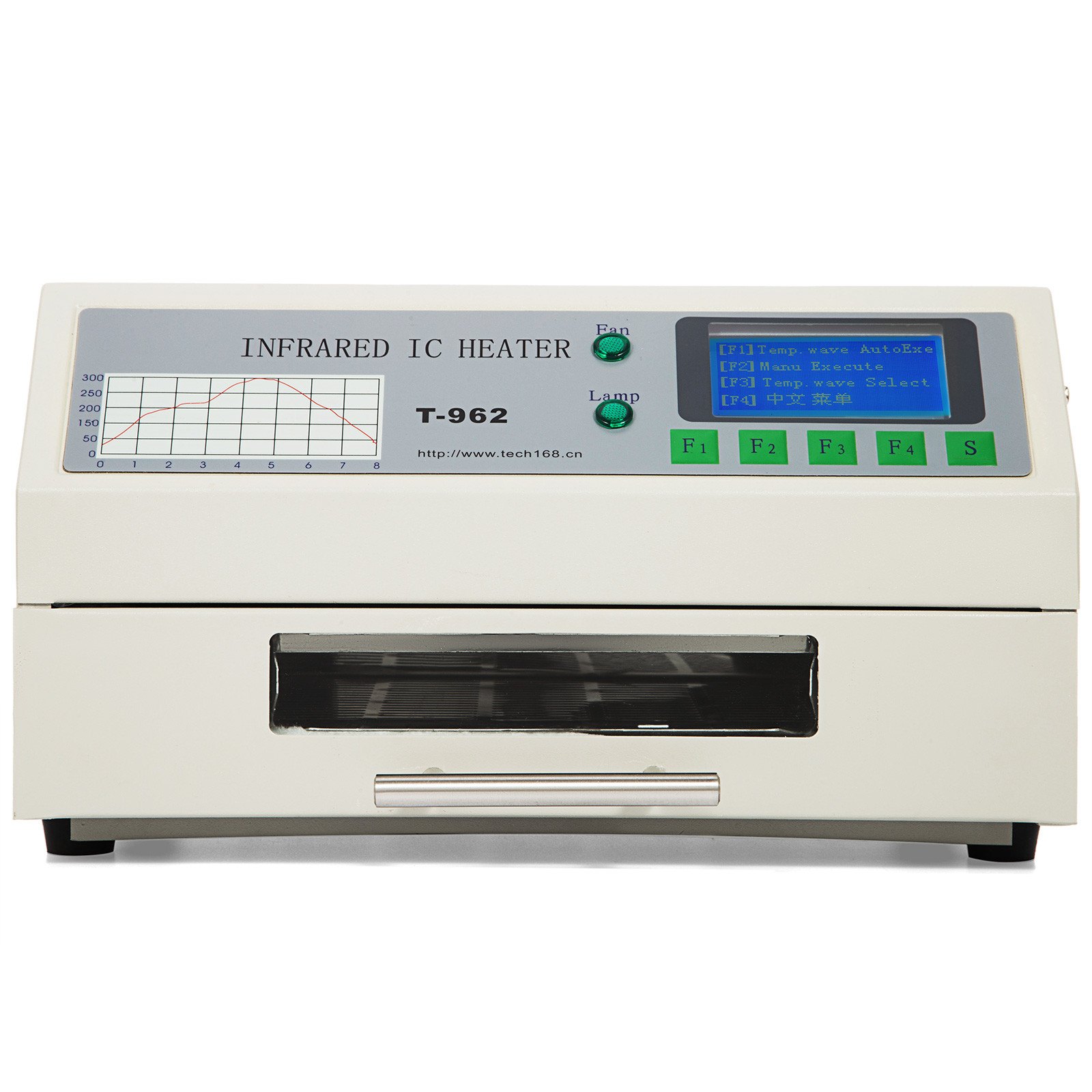

• Complete visual operation by the high quality LCD screen. Soldering cycles are keypad selected and progress displayed on the T962 LCD.
• Can be used for the glue solidifying, circuit board thermal aging, PCB maintenance, etc;
• Can solder single and double PCB panels with all kinds of encapsulation form such as CHIP, SOP, PLCC, QFP, BGA, etc

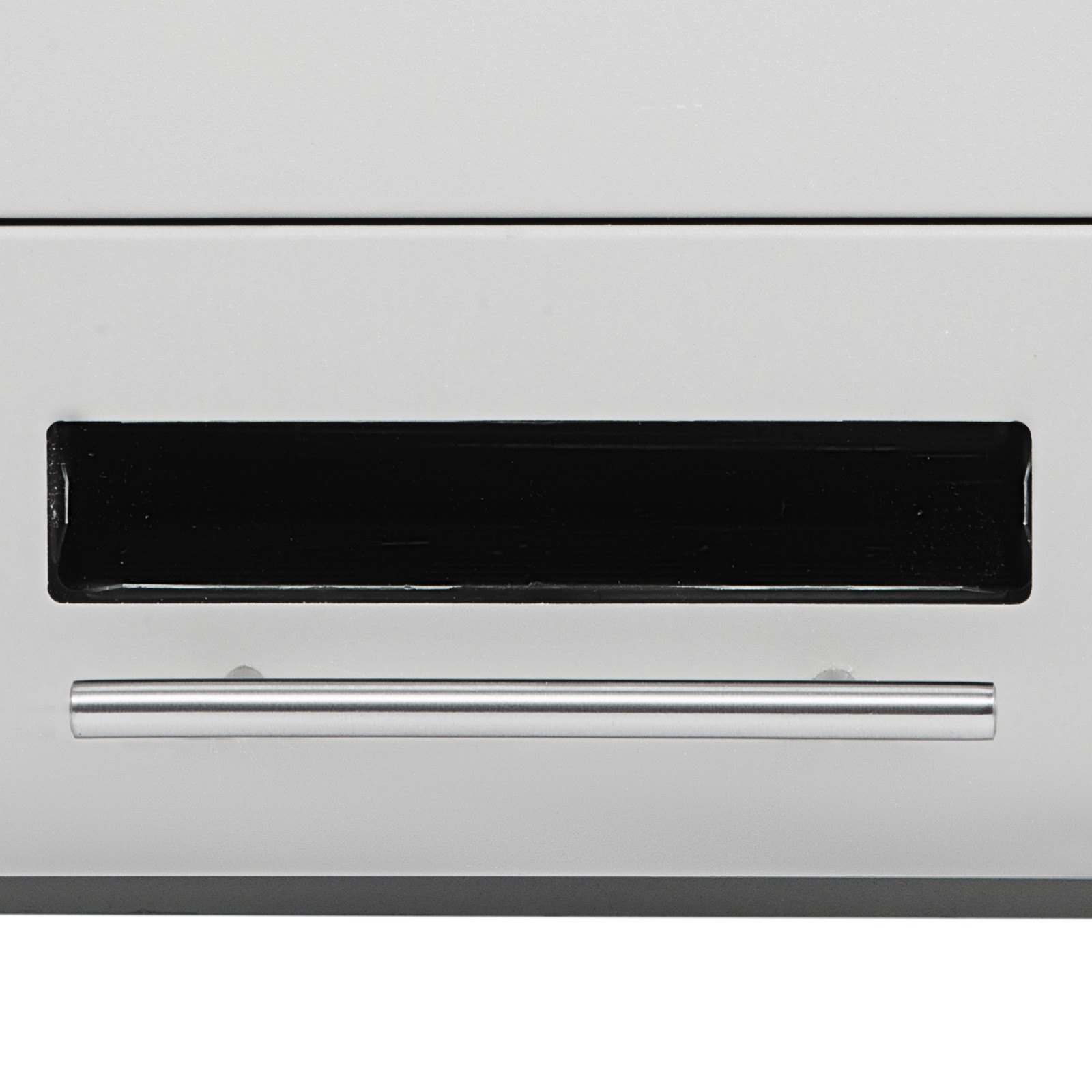

• A single windowed drawer holds assemblies within the heating chamber.

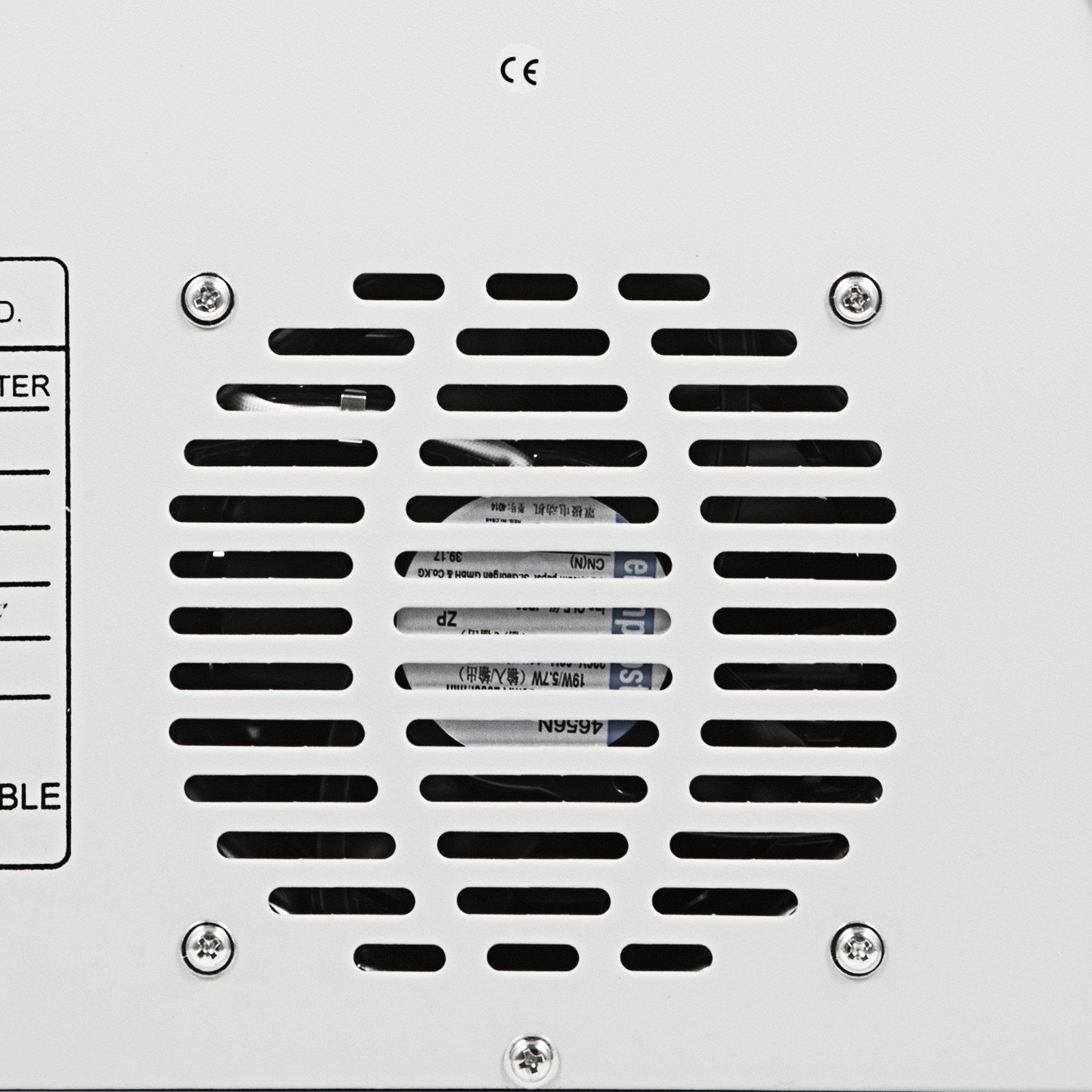

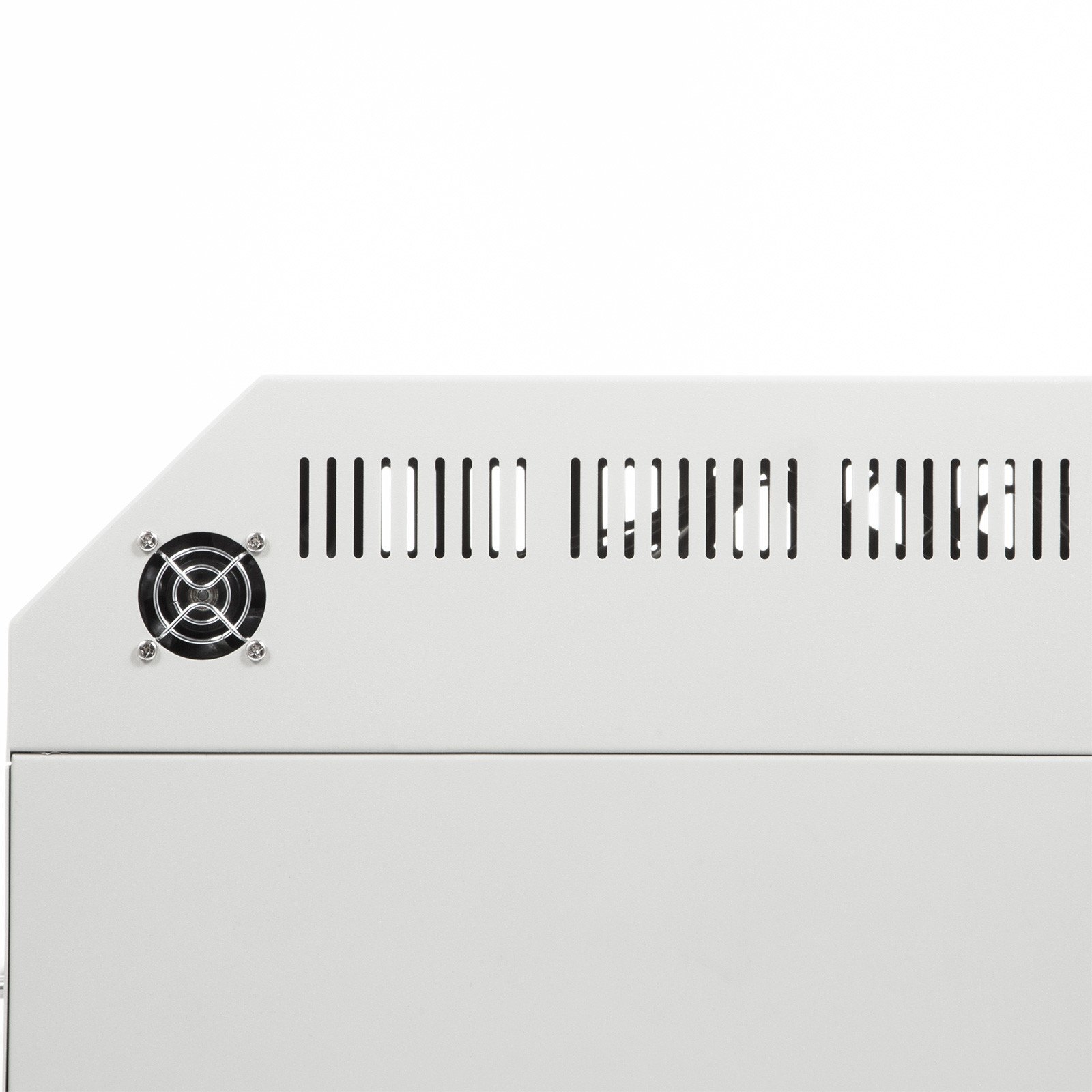

• Equiped with exhaust fan to satisfy the need of the soldering.
• Economical rework solution from single runs to on-demand small batch production.
• High-frequency design is ergonomic, practical and easily operated.
• 2-year warranty

Specification

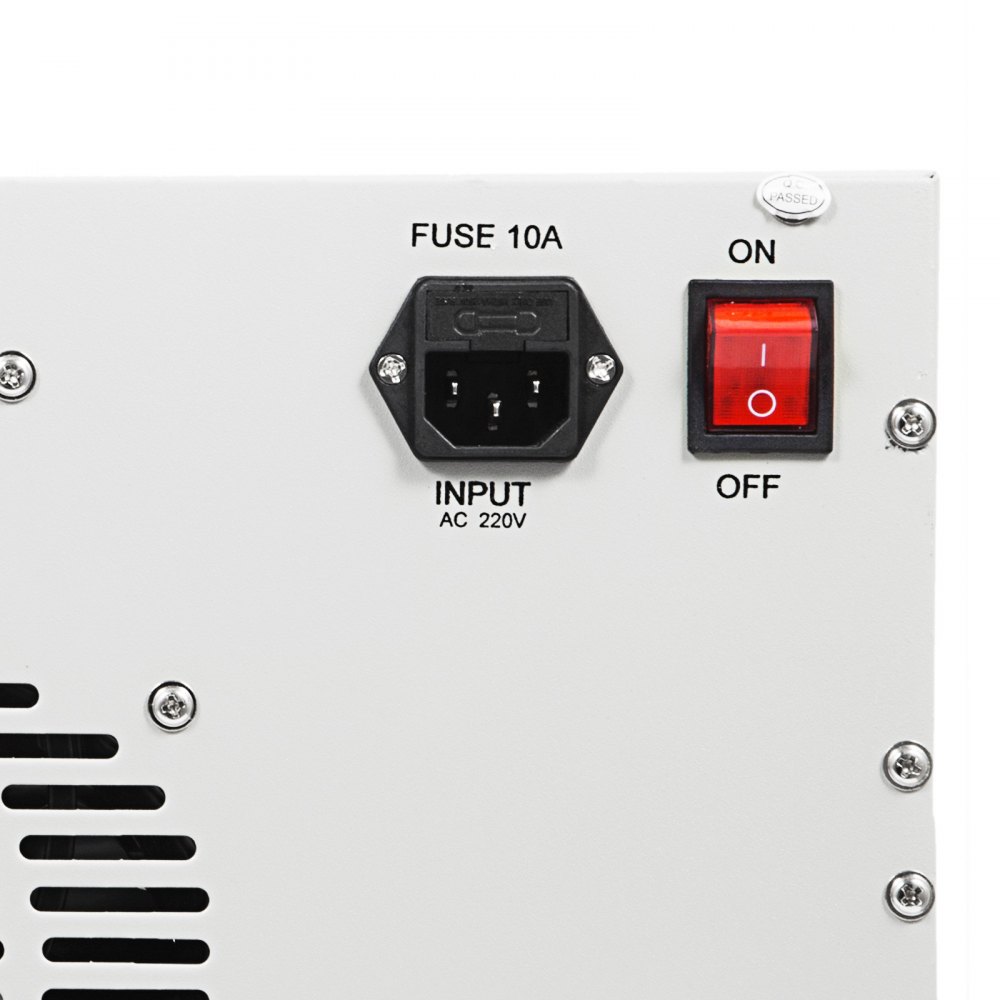

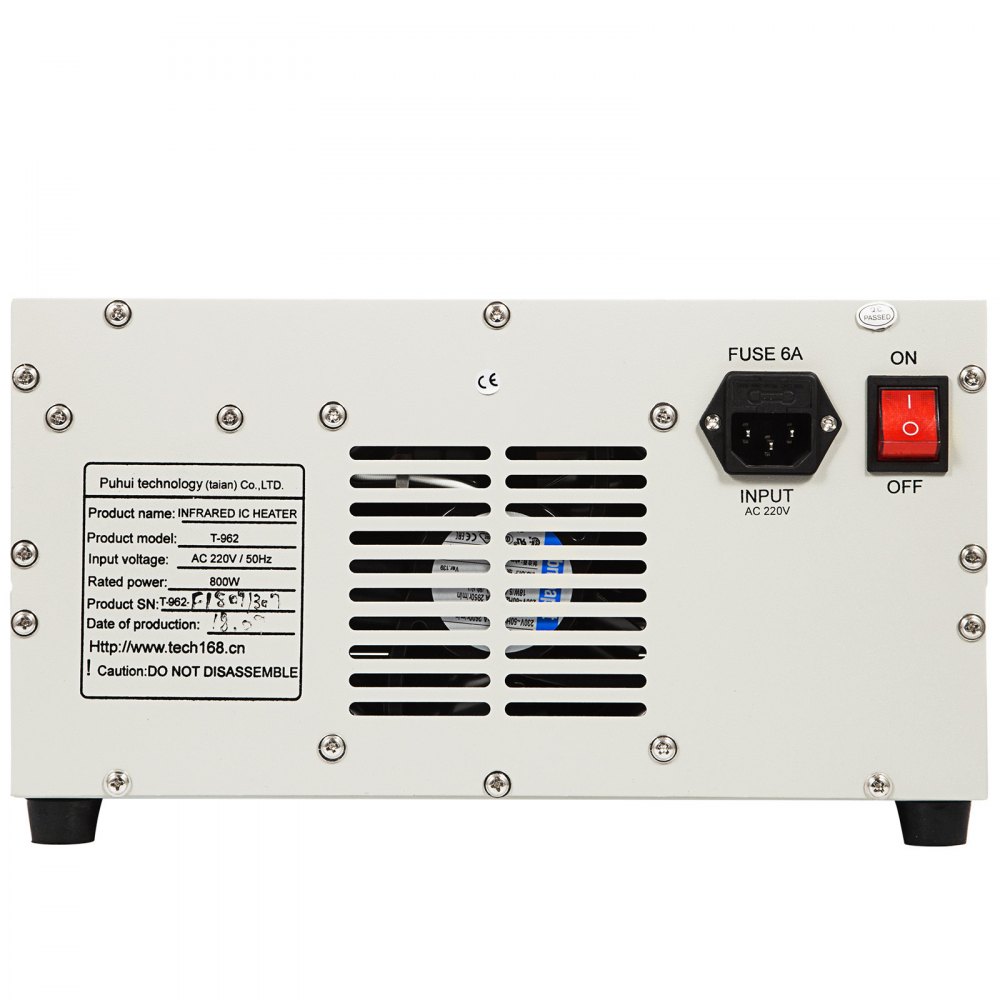

• Supply voltage:AC 220V / 50~60Hz
• Soldering area:180 x 235 mm / 7.09 x 9.25 inches

• Rated power:800W
• Temperature range:0~280℃
• Function:Thermostat Drying
• Cycle time:1~8 min
• Heating type:Infrared Heating
• The curve storage capacity: 8

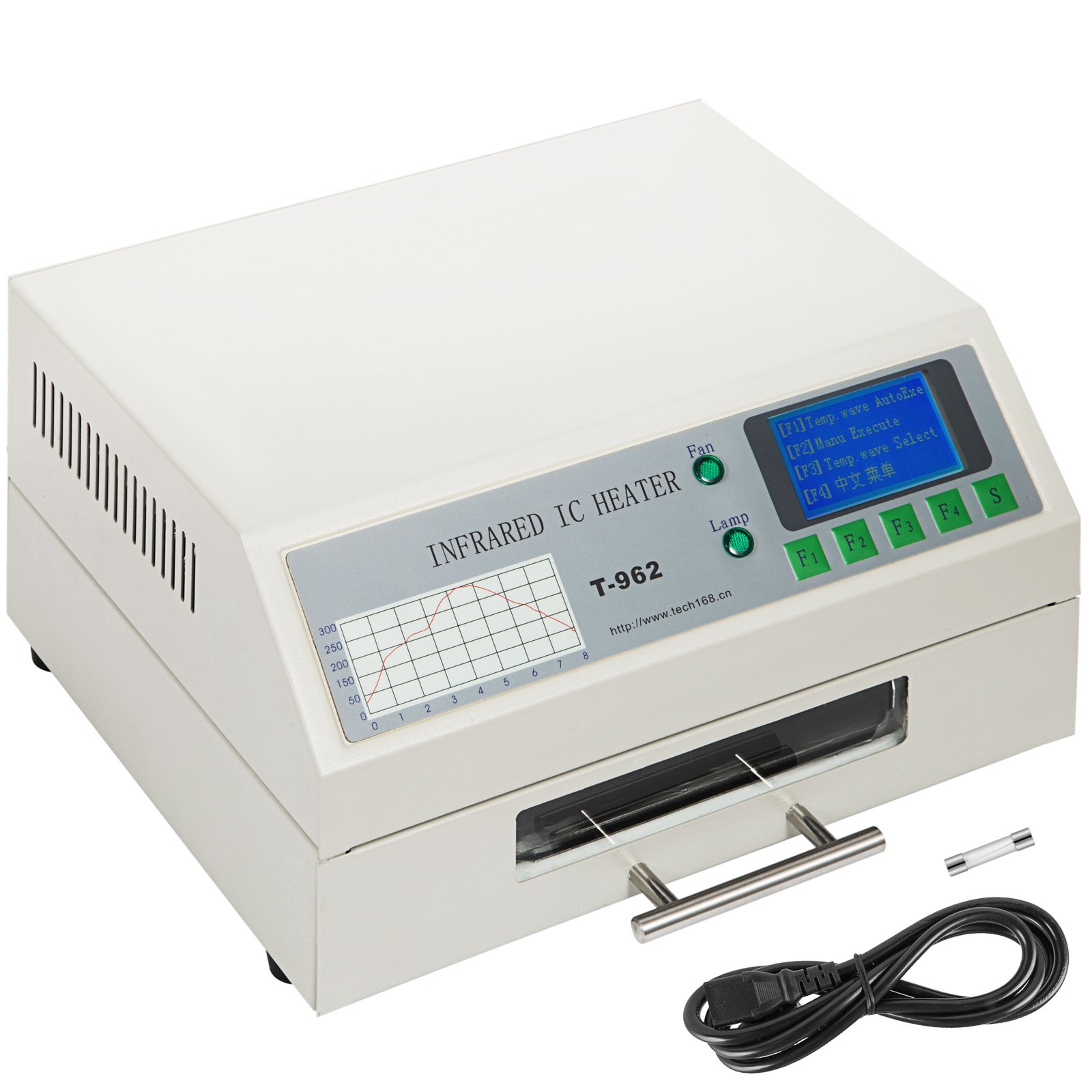

• 1 X T-962 Main Heater Infrared Oven

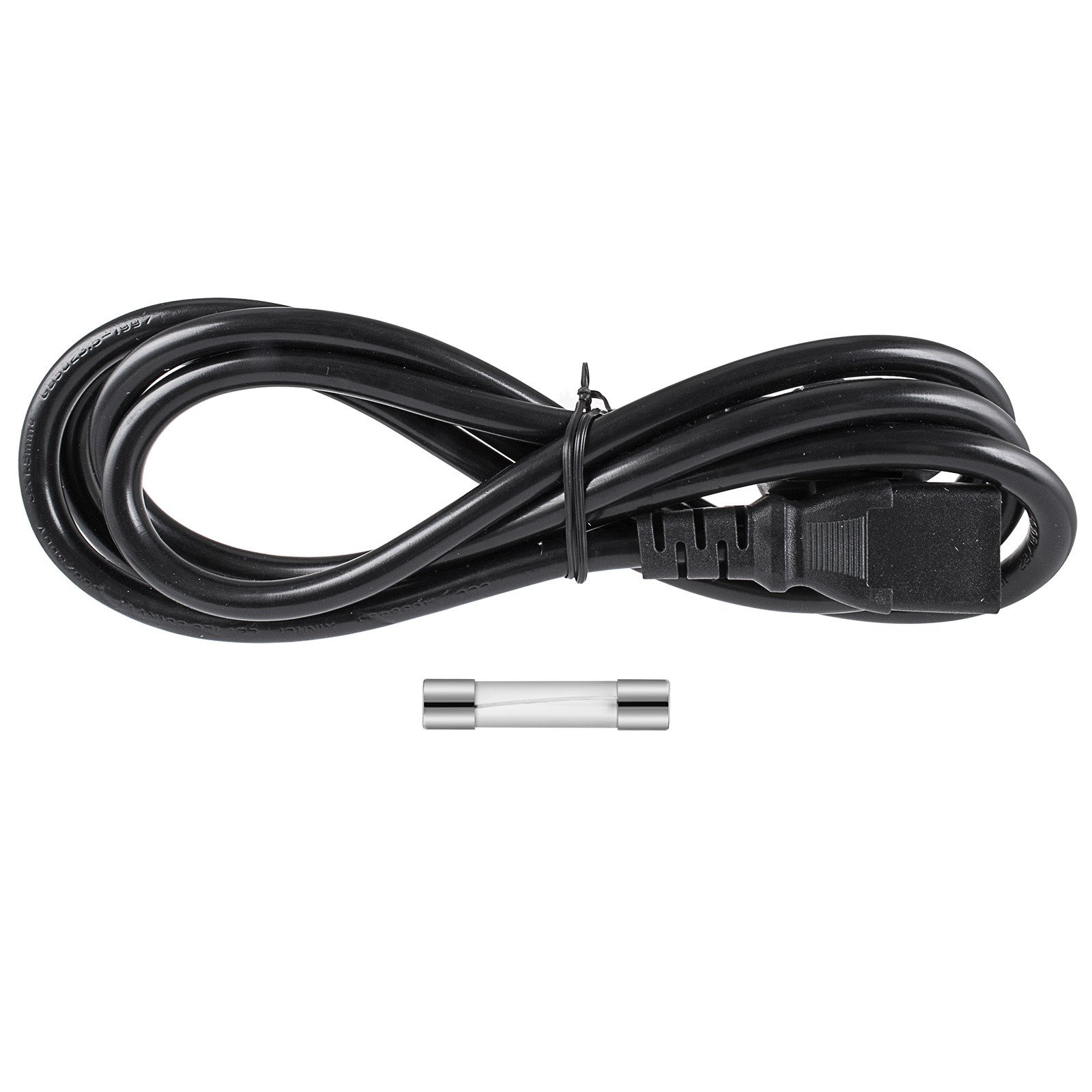

• 1 X Power Cord
• 1 X English Manual
