The color code sensor photoelectric sensor is a sensor that recognizes color. The photoelectric sensor adopts the principle of light emission and reception, emits modulated light, receives the reflected light of the measured object, and distinguishes different colors according to the strength of the received light signal, or discriminates whether the object exists or not.

• 【Main Diameter】- Color code sensor photoelectric sensor GDJ-411. Light source color: Blue and green. Response time: 50us. Detect distance: 11 mm.
• 【Working Principle】- Adopts the principle of light emission and reception, distinguishes different colors according to the strength of the received light signal.
• 【Durable and Reliable】- Durable precision die-cast metal casing, features multiple protection such as power inverting protection, load short circuit protection.
• 【Two Lines Output】- With light on output and dark on output two line switched output, has a bright pass and dark pass function and has output indicators.
• 【Application】-Has a color sensitivity knob, uses blue and green color light source, can detect a variety of different colors. NOTE: Adjust the sensitivity of detecting color before using it.

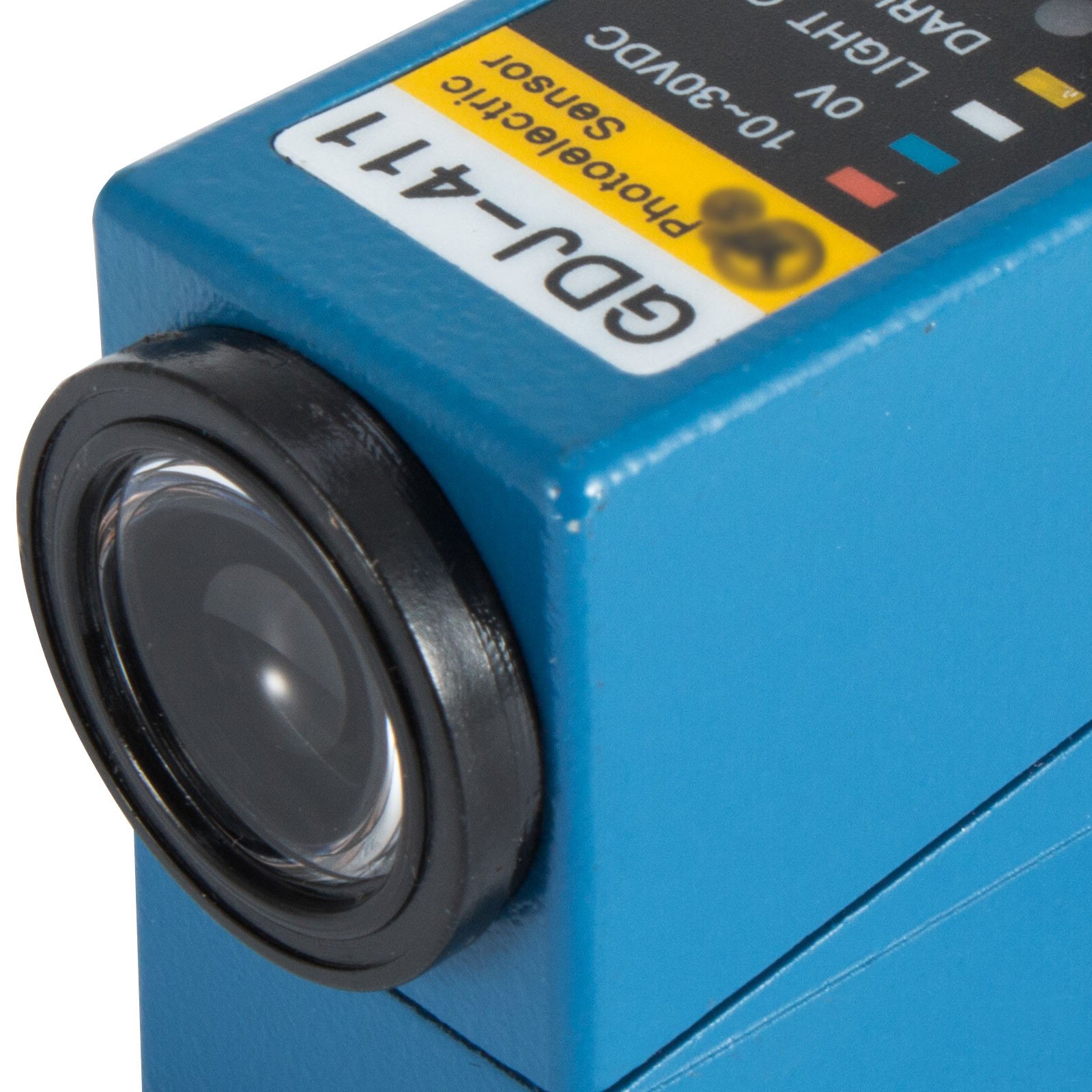

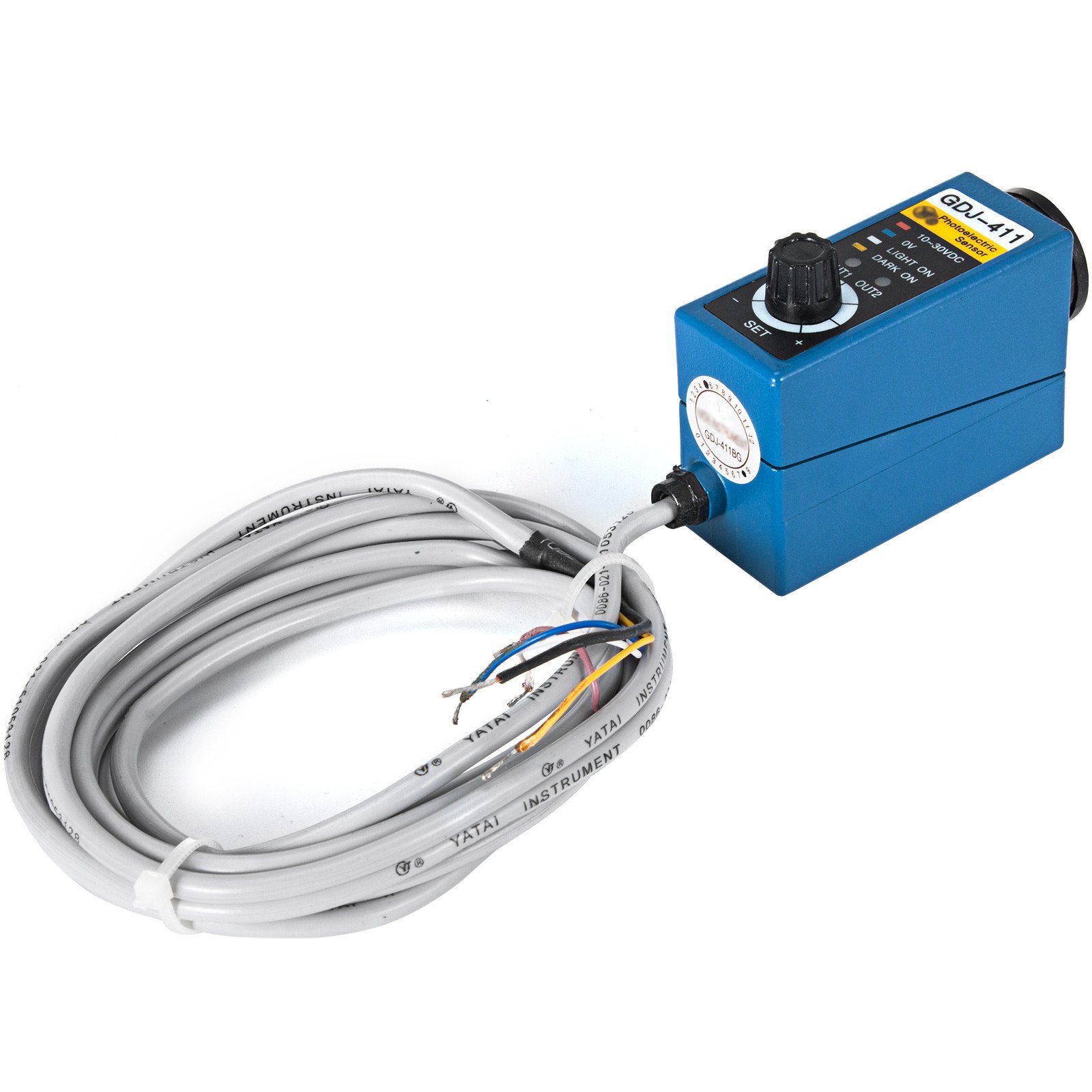

• Color Code Sensor

Photoelectric sensor GDJ-411, uses blue and green color light source, features 50us response time and 11mm detect distance, can distinguishes different colors.

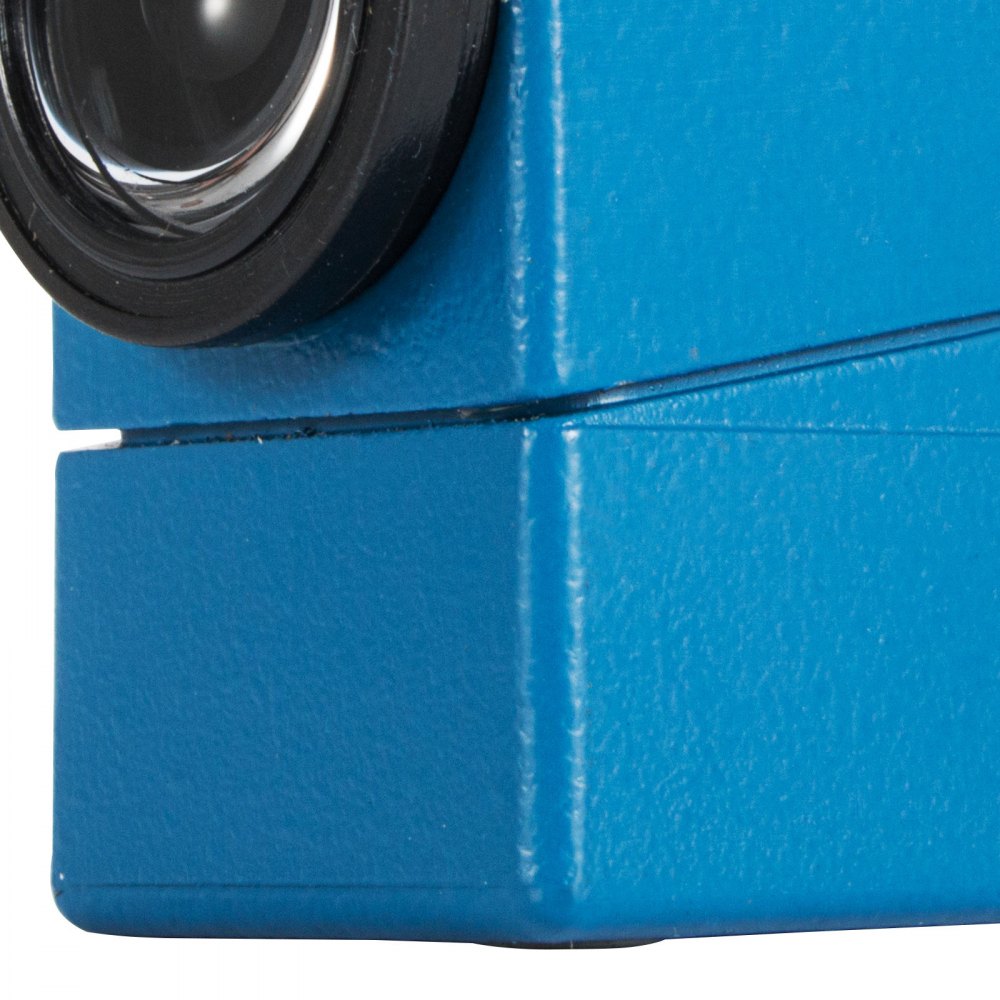

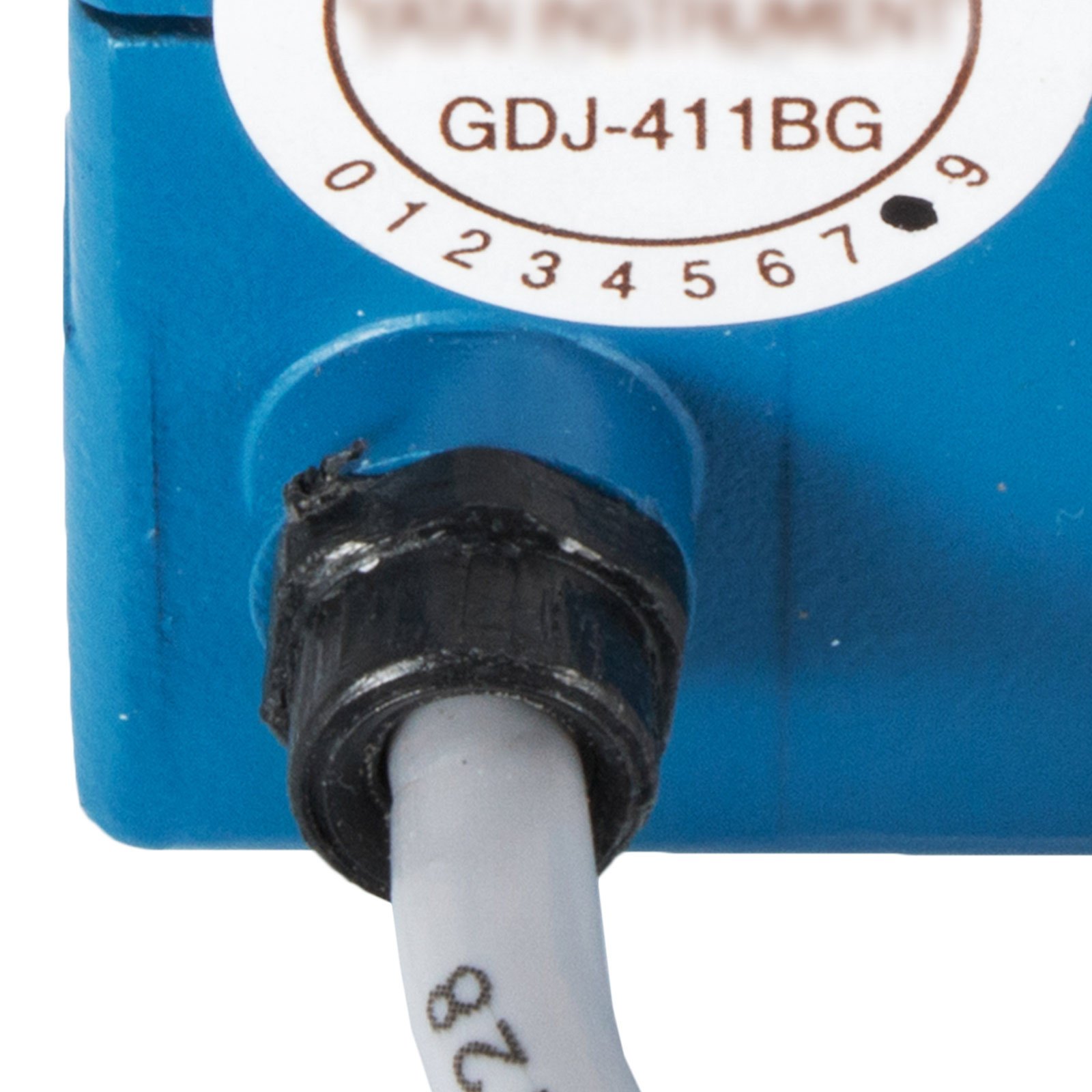

• Durable Material

Precision die-cast metal casing, durable and robust, with good heat dissipation, electromagnetic shielding and sealing.

• Working Principle

Adopts the principle of light emission and reception, distinguishes different colors according to the strength of the received light signal, or discriminates whether the object exists or not.

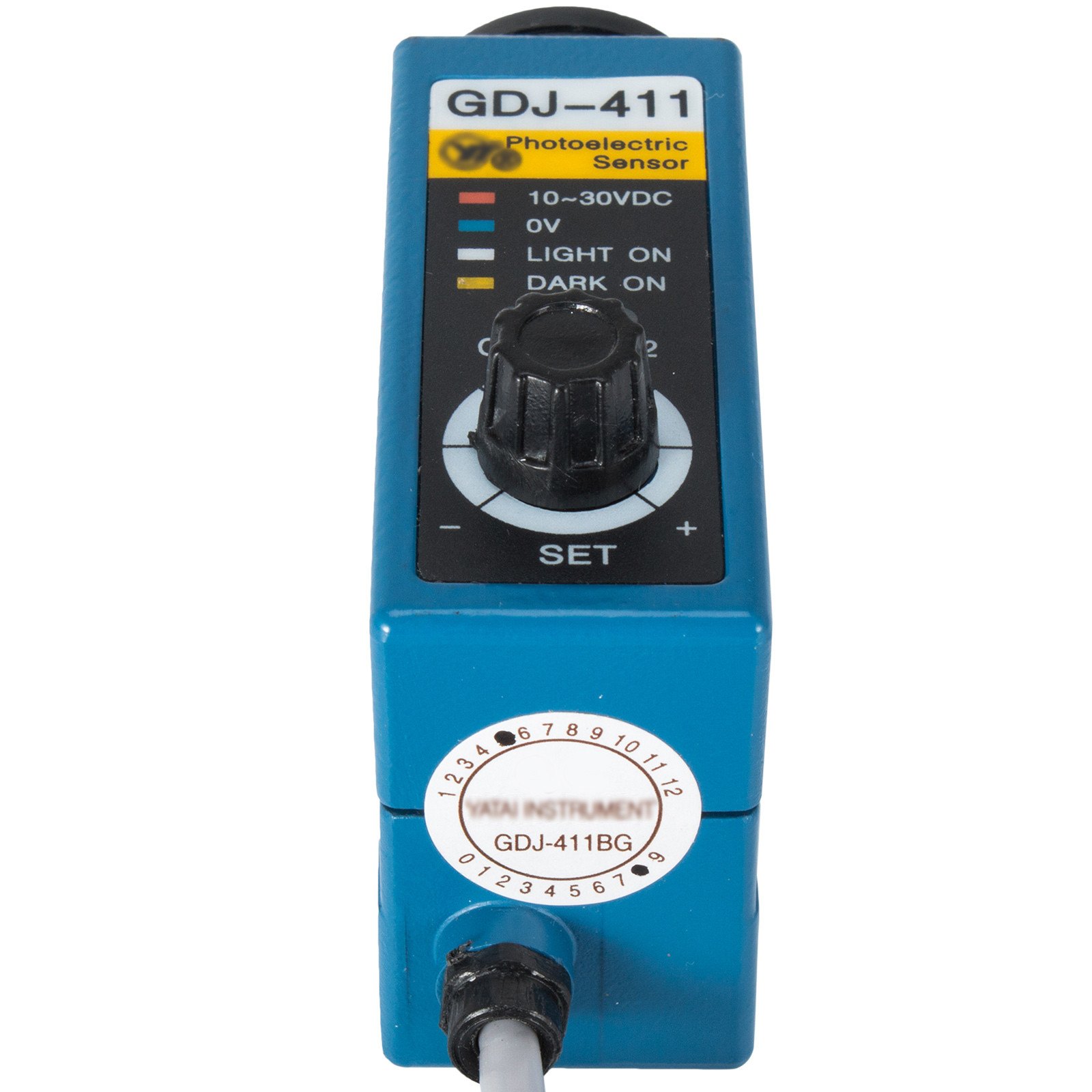

• Two Lines Output

Features two line switched output: Light on output, dark on output, has a bright pass and dark pass function and has output indicators.

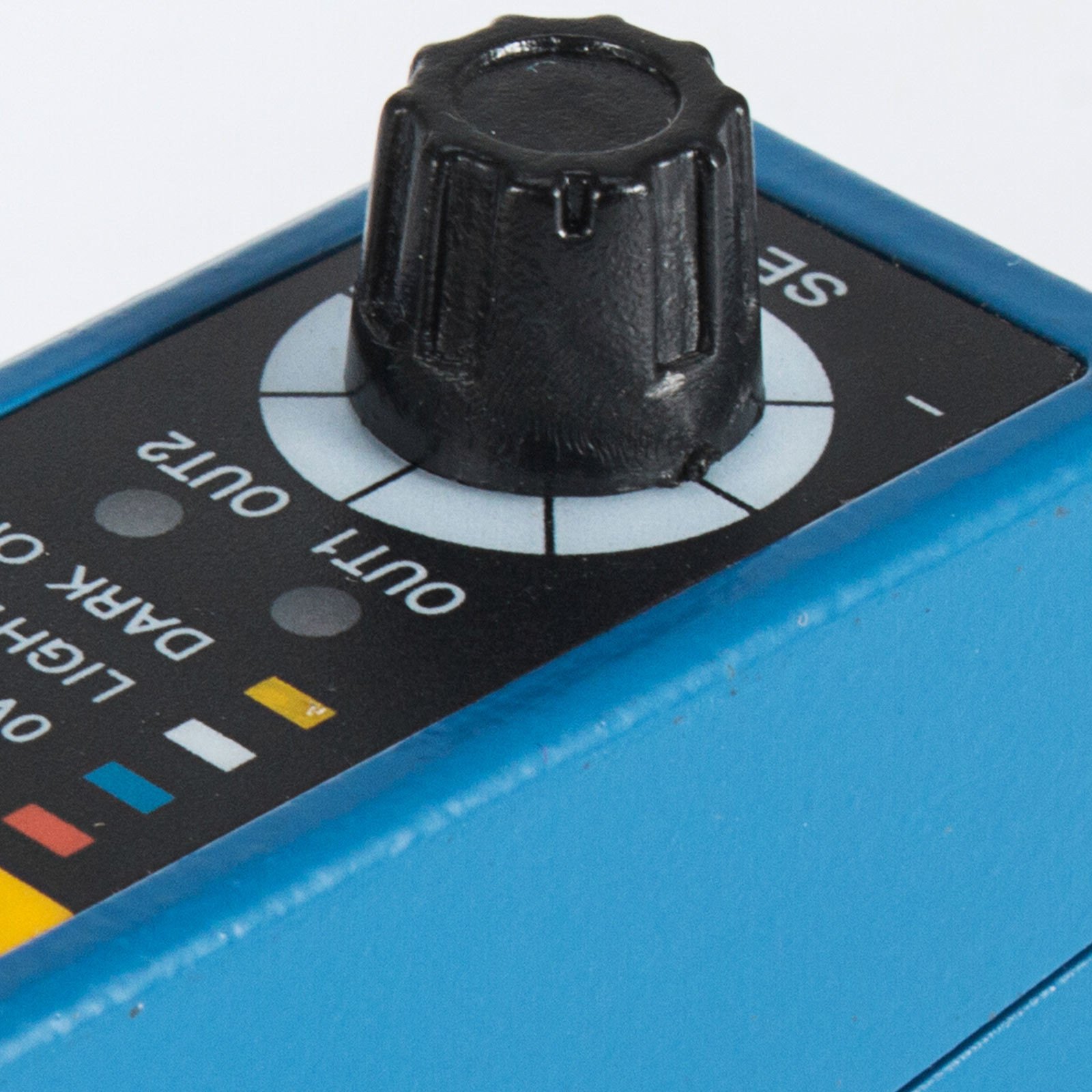

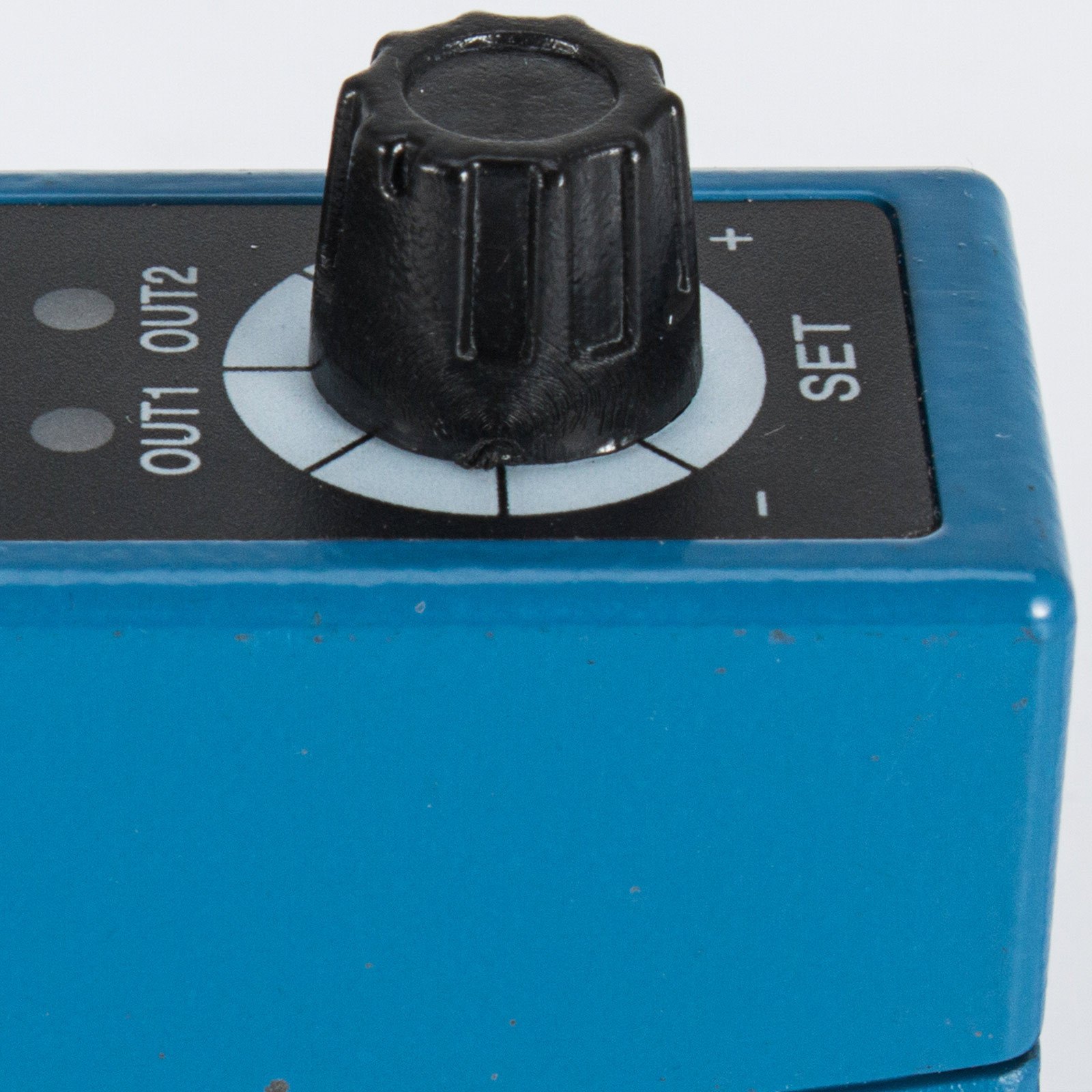

• Sensitivity Knob

With blue and green color light source, can detect a variety of different colors. Has a color sensitivity knob, and must adjust the sensitivity of detecting color before using it.

• Protection Function

Power inverting protection, load short circuit protection, over current protection, overload protection, short circuit protection, polarity misconnection protection.

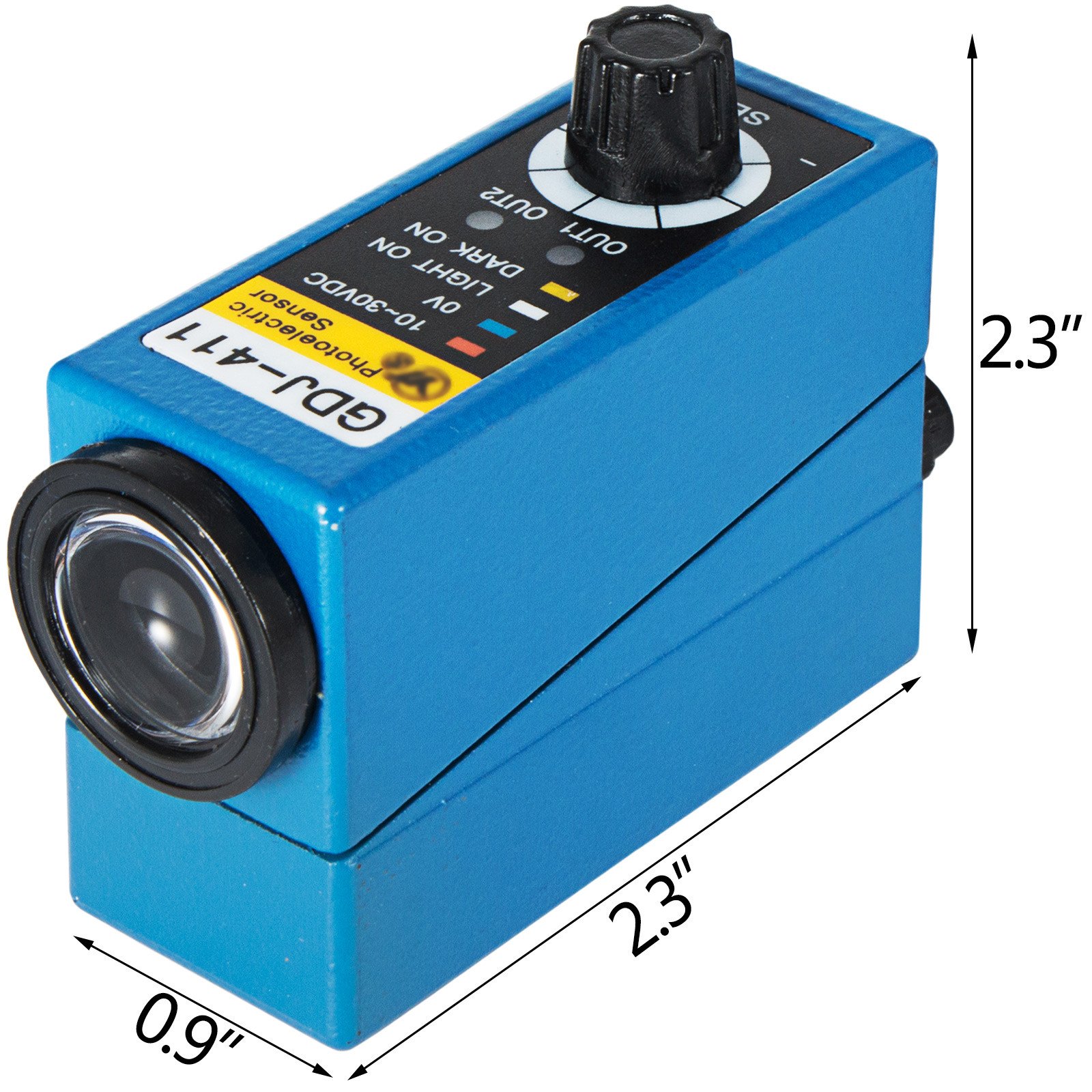

• Product: Color code sensor photoelectric sensor
• Model: GDJ-411
• Light source color: Blue green
• Response time: 50us
• Detect distance: 11 mm
• Switched output: Two lines output (Light on output, dark on output)
• Switch output power: <200 mA
• Switch output electrical level
• Low level (connect): <1.5 V
• High level (break): Supply voltage-0.7 V
• Power supply voltage: 10-30 VDC
• Power supply current: <80 mA

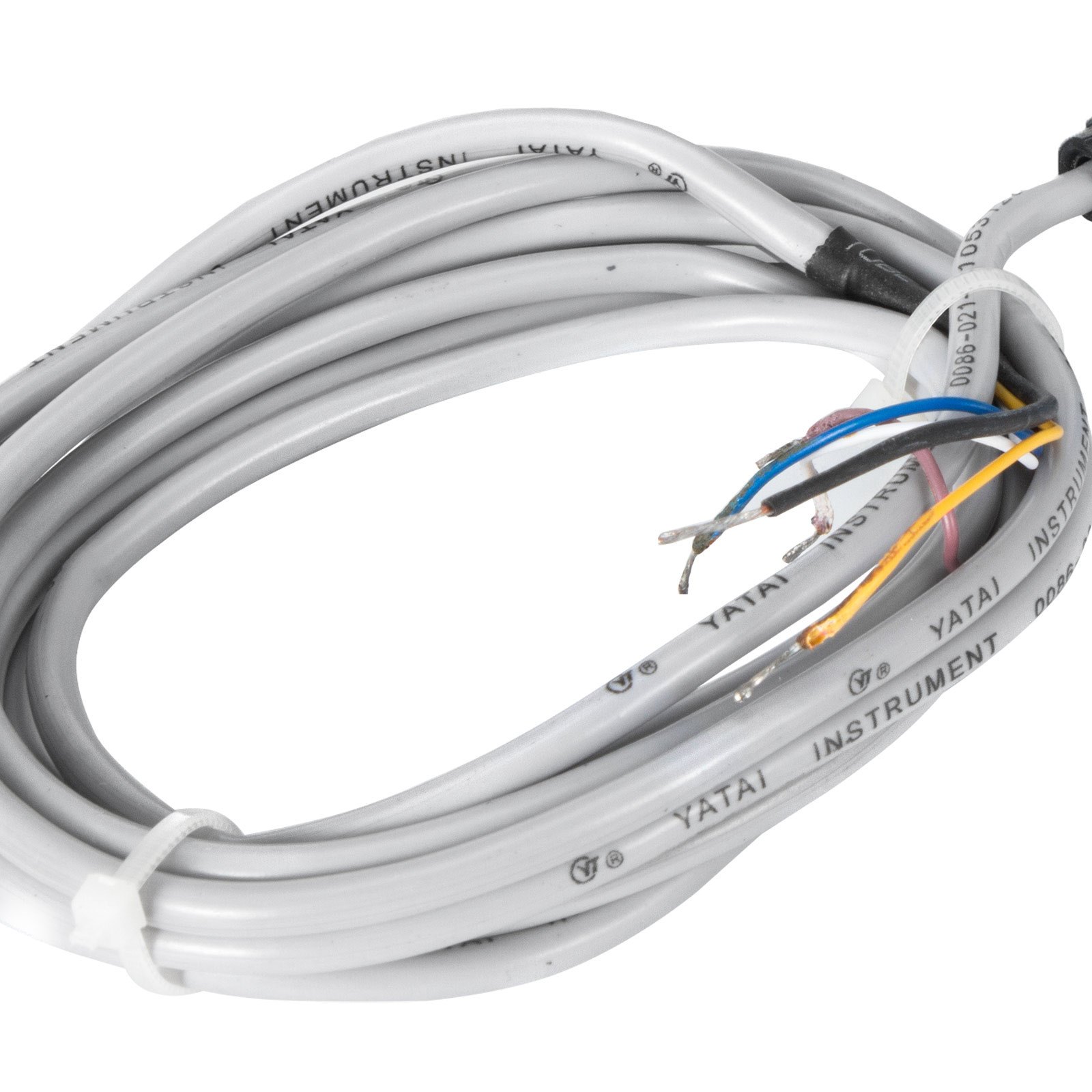

• Wire length: 2 m
• Working environment
• Temperature: 0-50 cent degree
• Sunlight: <10000 Lux
• Protection function: Power inverting protection, load short circuit protection
• Package size: 16x9x8 cm (6.3x3.5x3.2 inch)
• Gross weight: 1 kg (2.2 lbs)

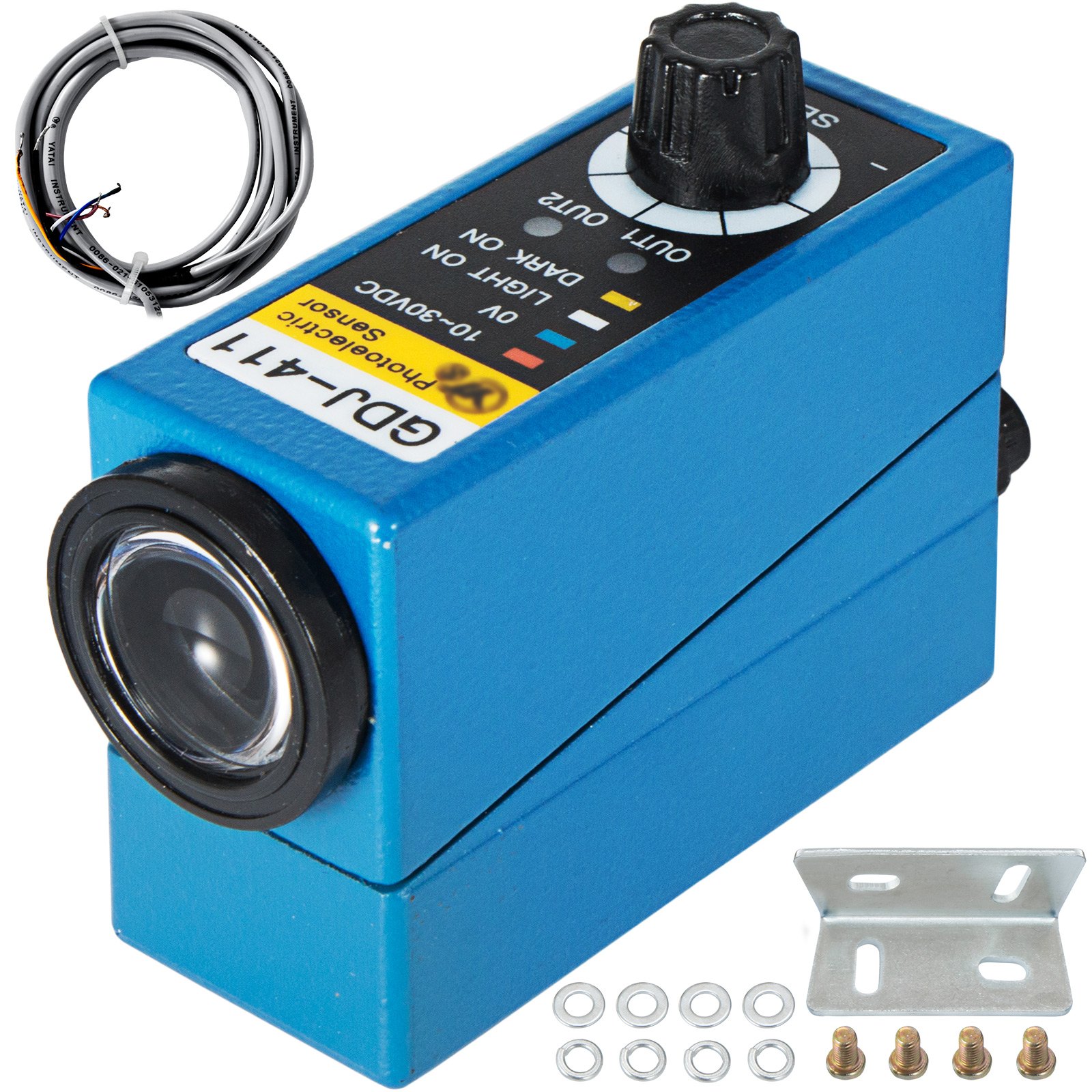

• 1 x Color Code Sensor Photoelectric Sensor

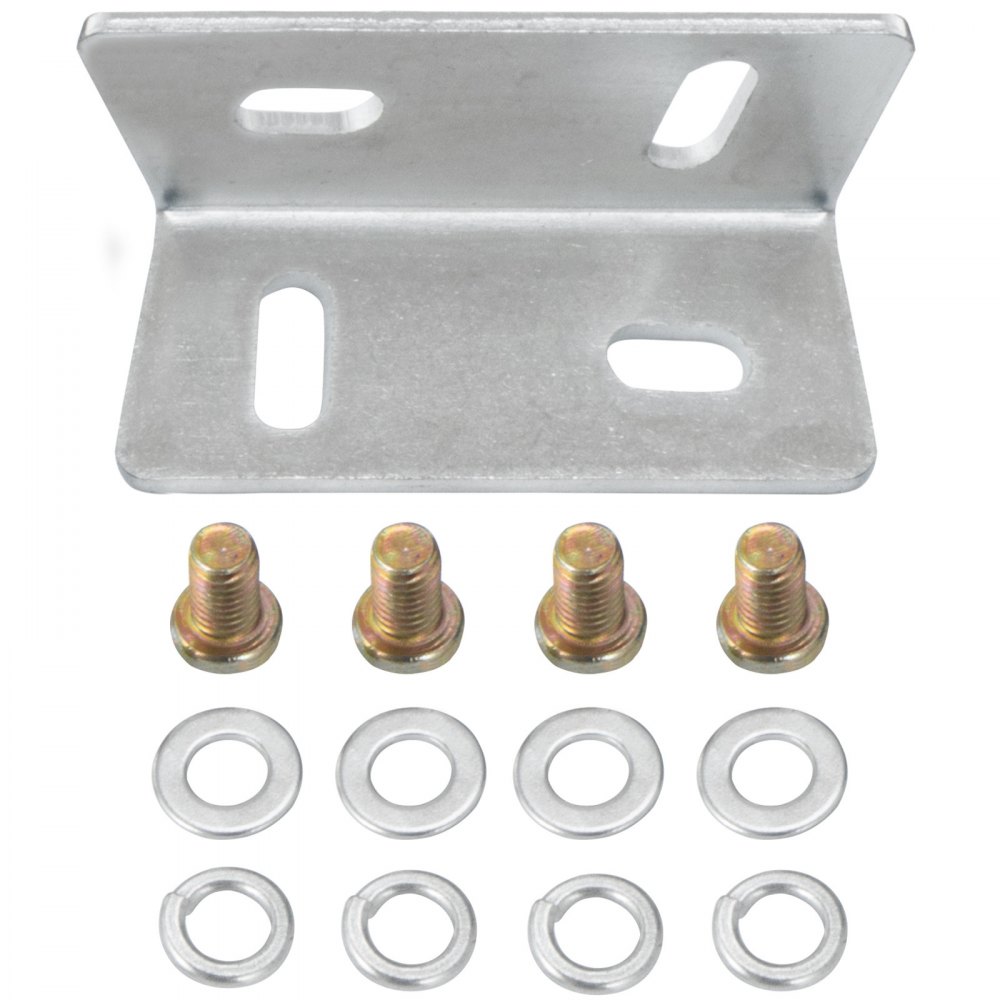

• 1 x Set of Mounting Accessories
• 1 x Product Manual
