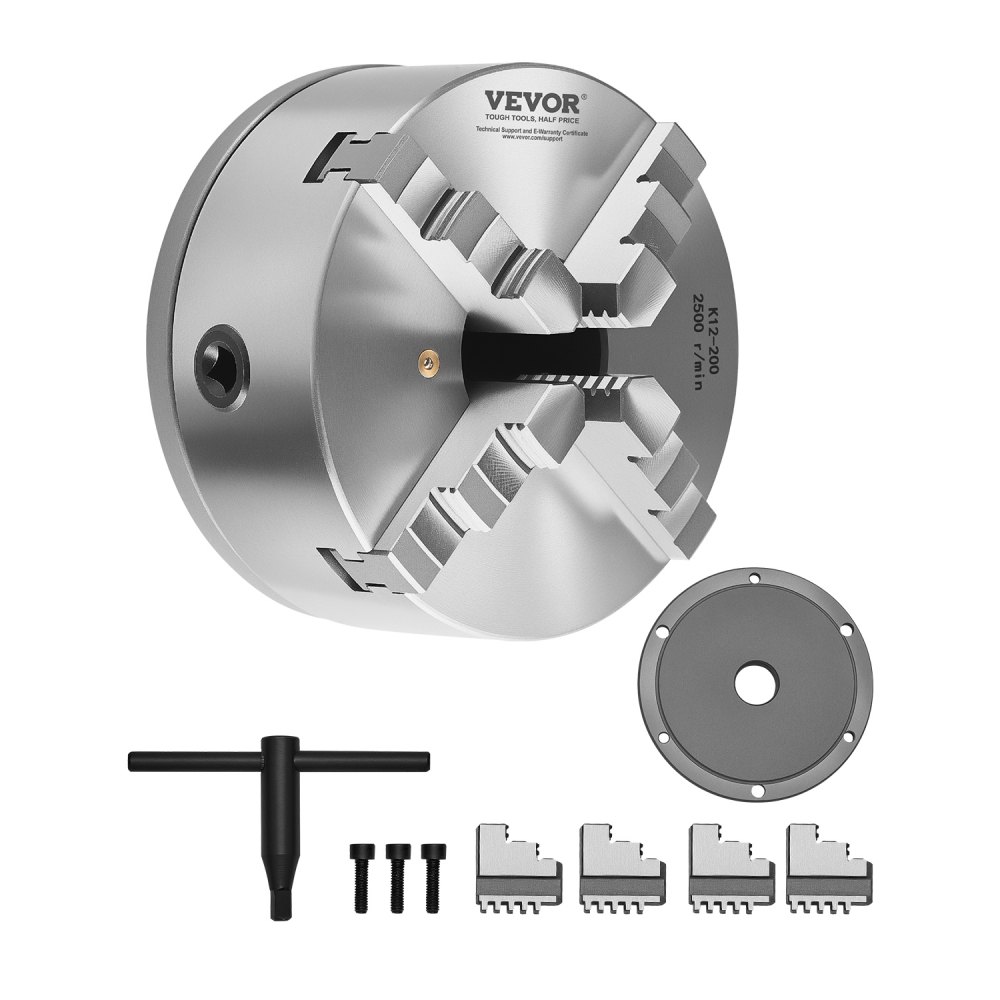

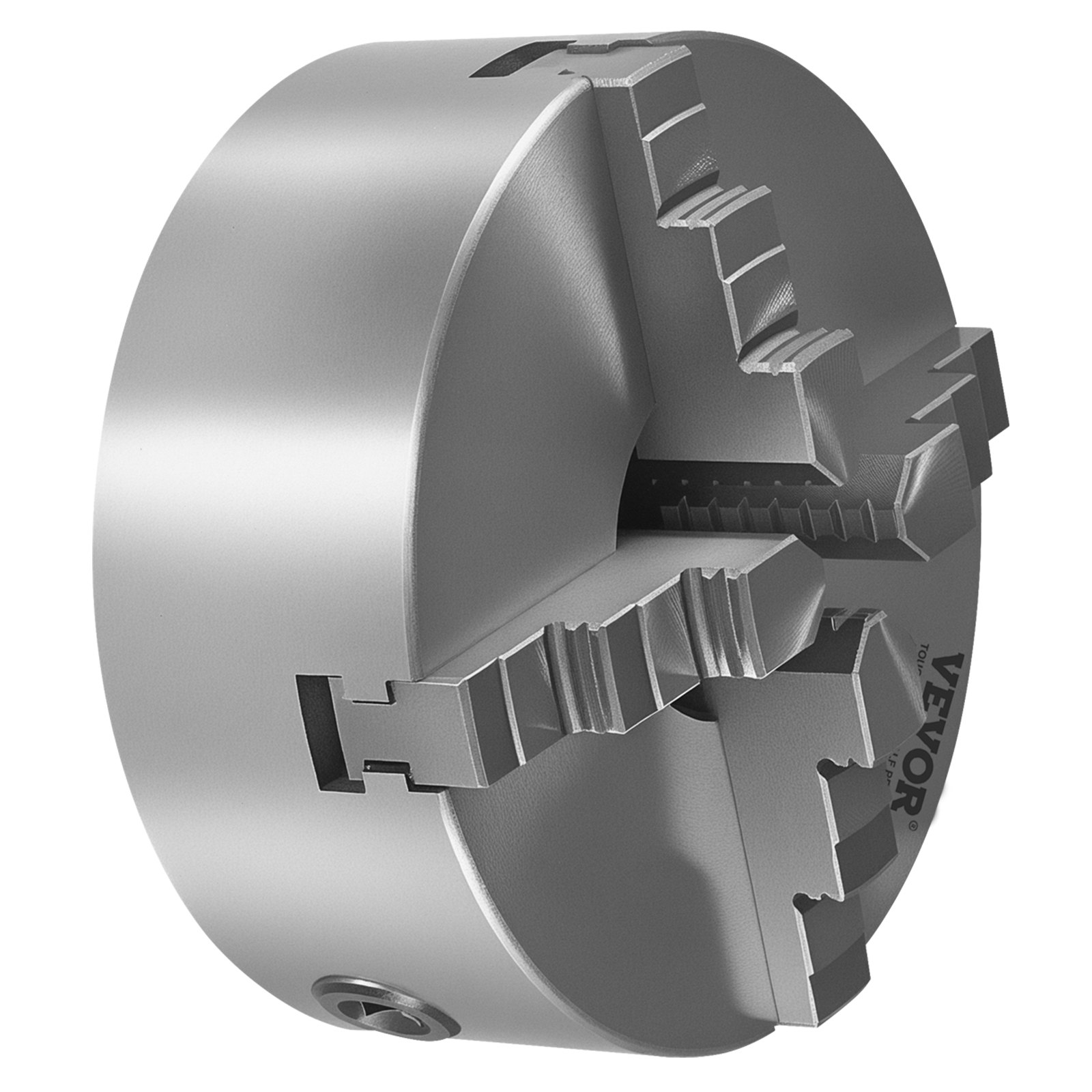

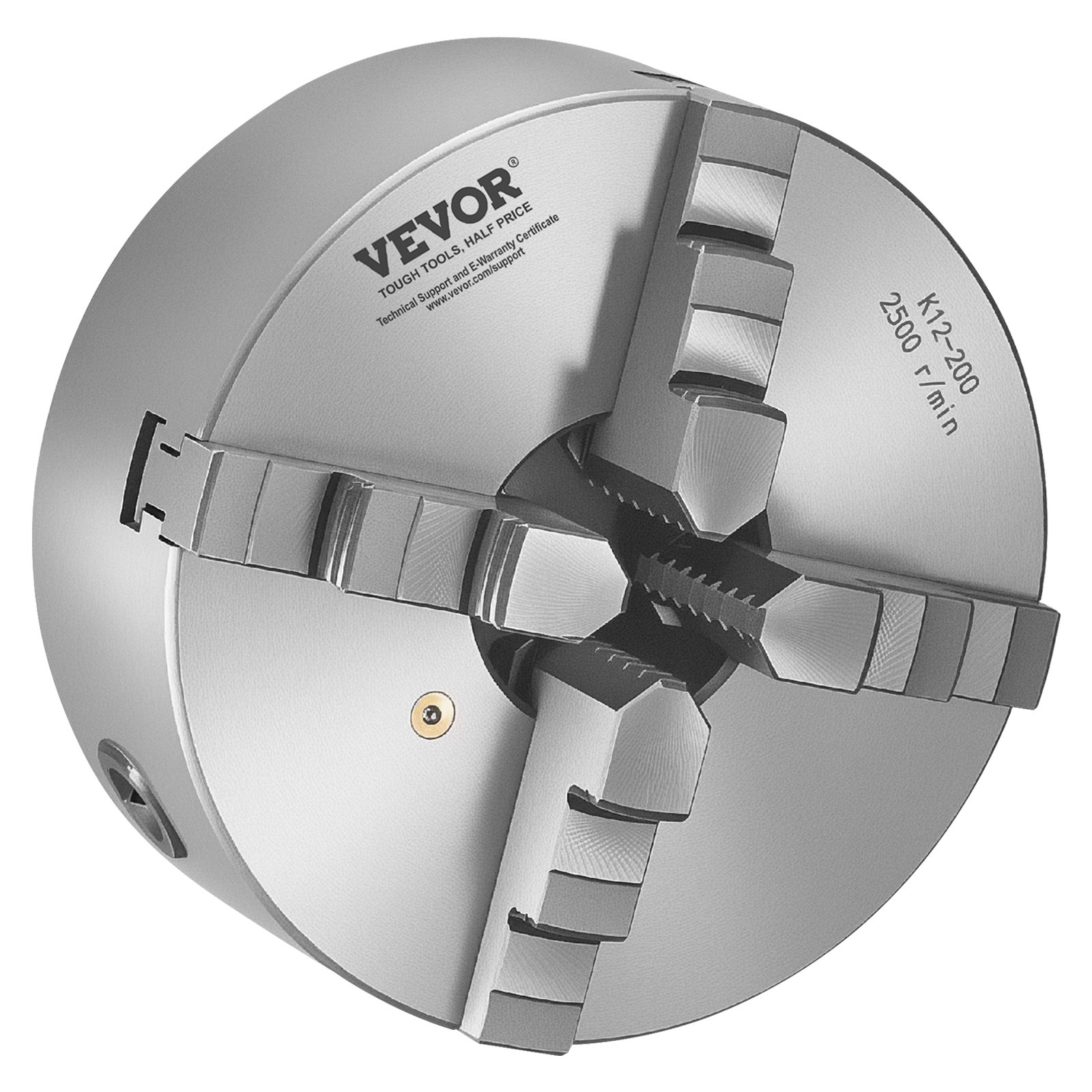

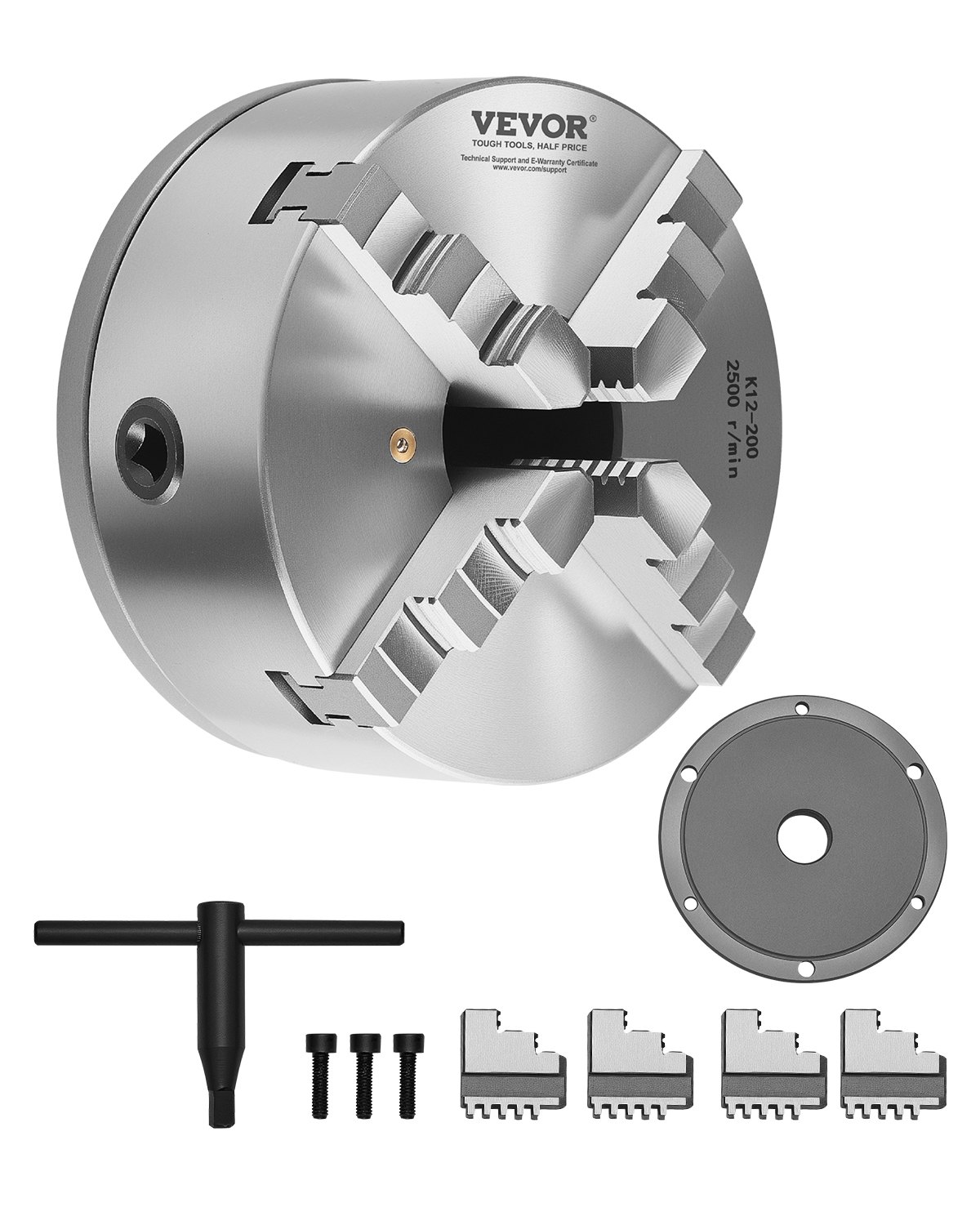

VEVOR 8 in 4-Jaw Self-Centering Lathe Chuck 1 1/2 in-8 Threaded Backing Plate
VEVOR 8 in 4-Jaw Self-Centering Lathe Chuck 1 1/2 in-8 Threaded Backing PlateVEVOR 8 in 4-Jaw Self-Centering Lathe Chuck 1 1/2 in-8 Threaded Backing Plate

Features & Details

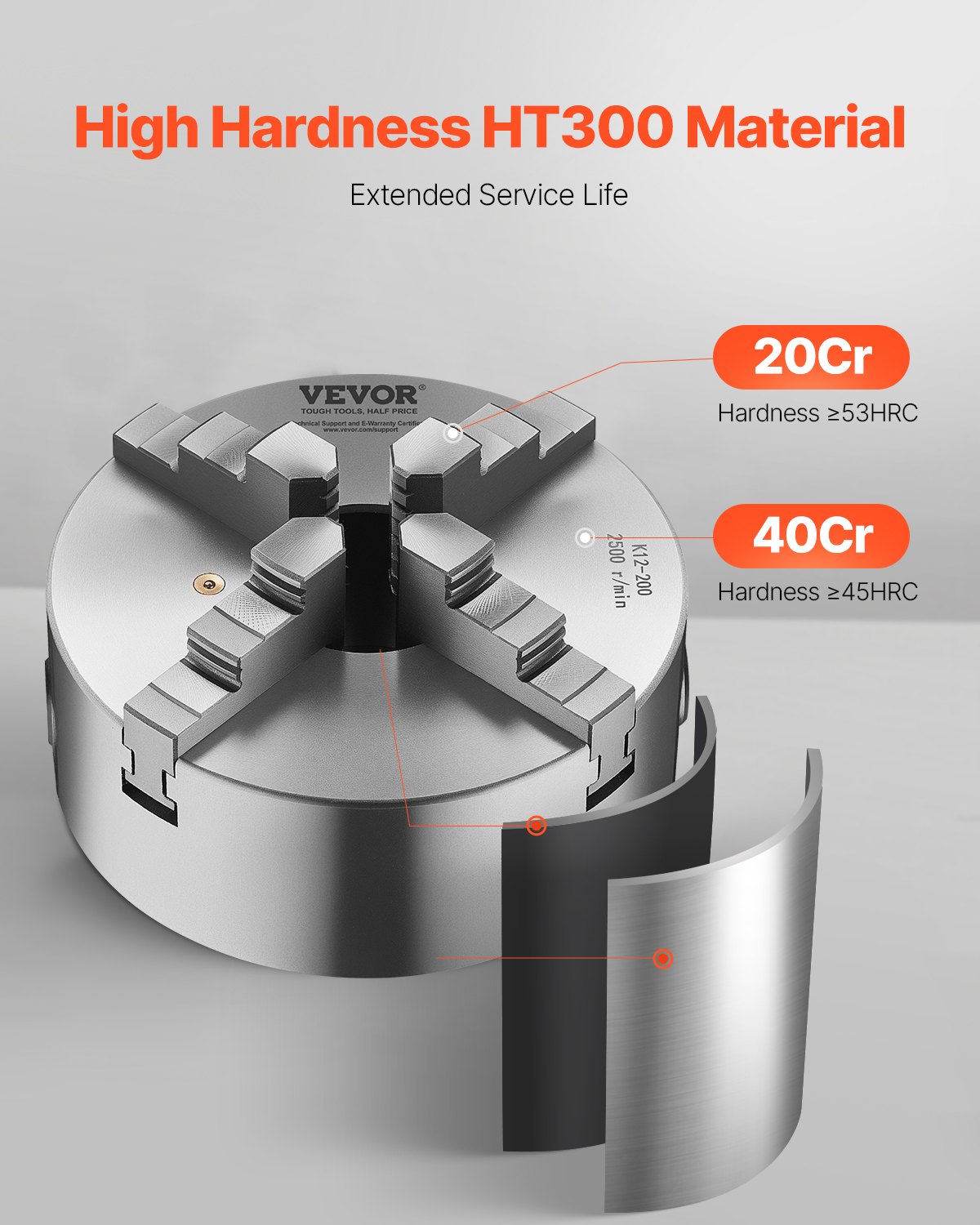

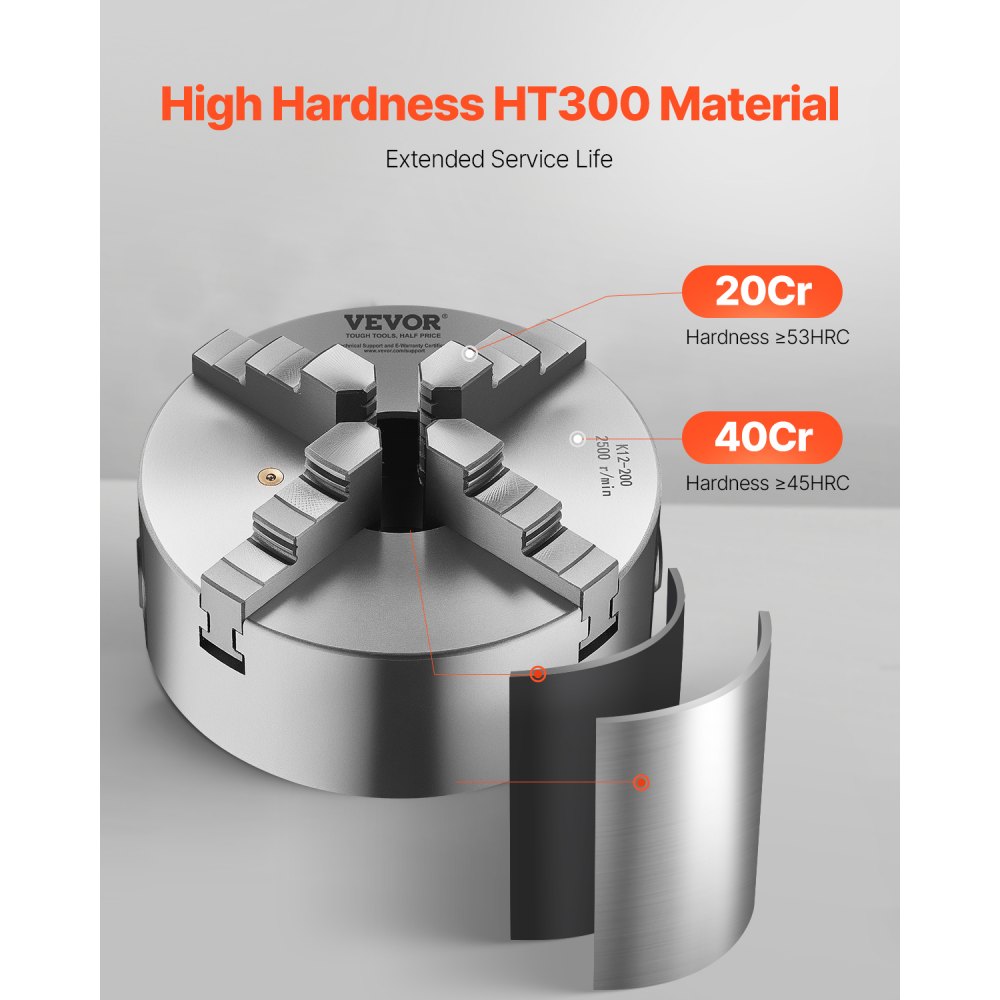

  • Outstanding Hardness: Crafted from premium HT300 cast iron, this lathe chuck features jaws with a hardness of ≥53 HRC and a scroll plate hardness of ≥45 HRC. Quench-hardened for enhanced durability, it ensures excellent hardness and rust resistance, ensuring a long-lasting service life

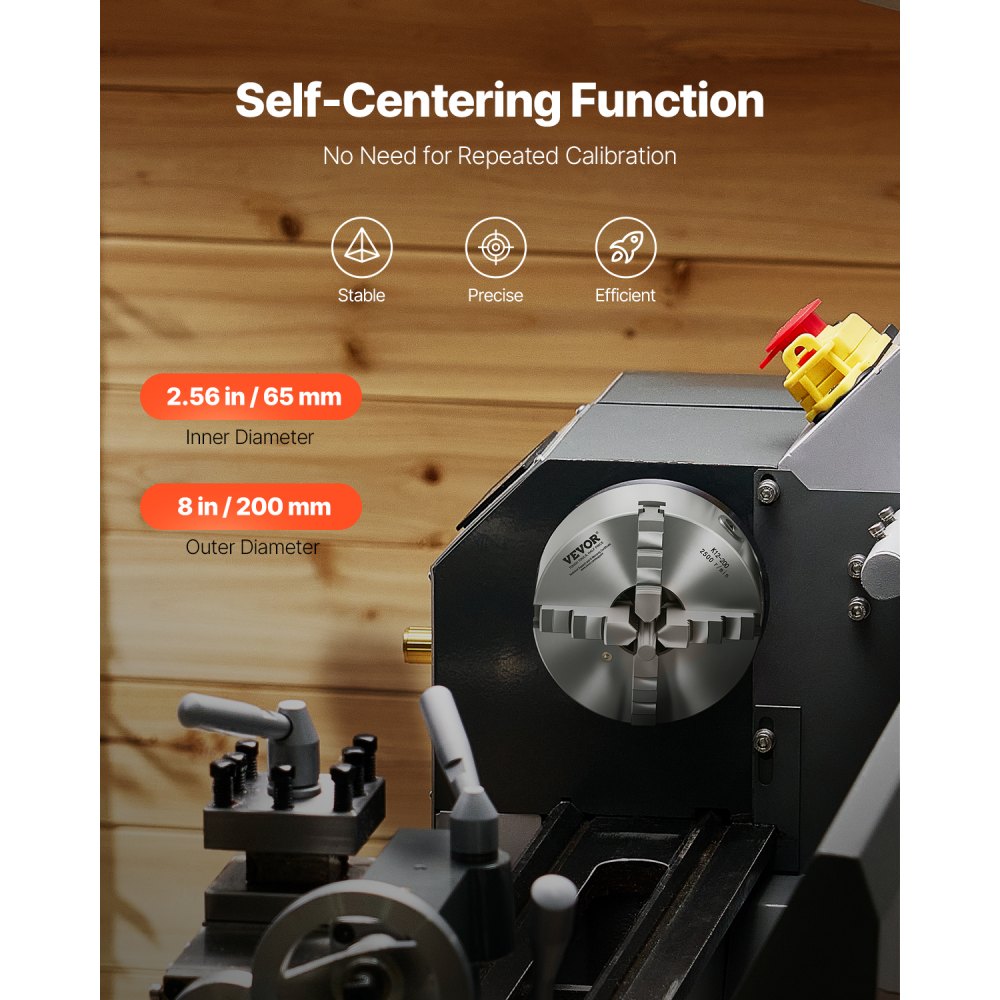

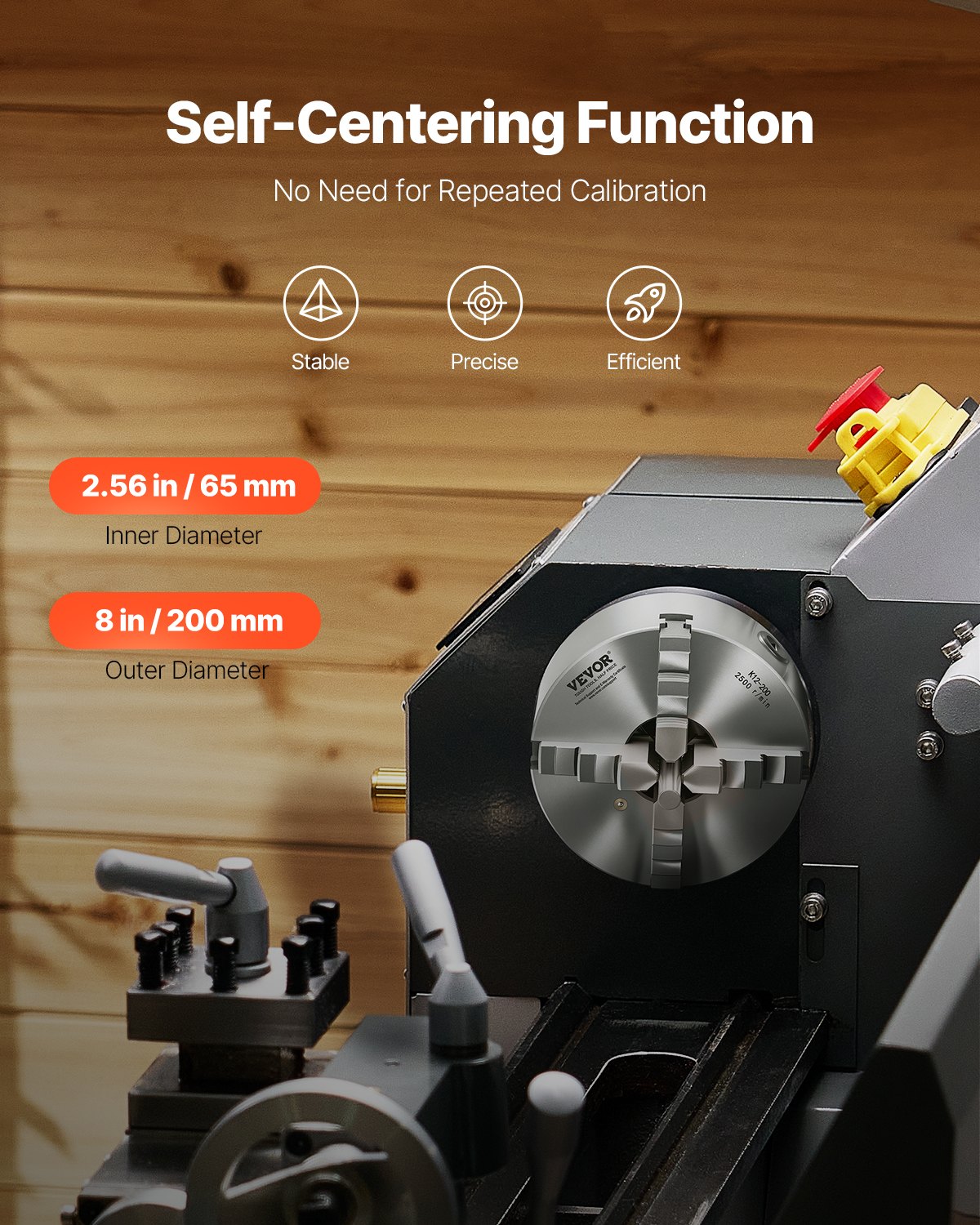

  • Self-Centering Function: The built-in self-centering feature allows for hassle-free use without repeated calibration. It ensures precise control over clamping accuracy, maintaining the stability and high precision of the lathe chuck for flawless performance

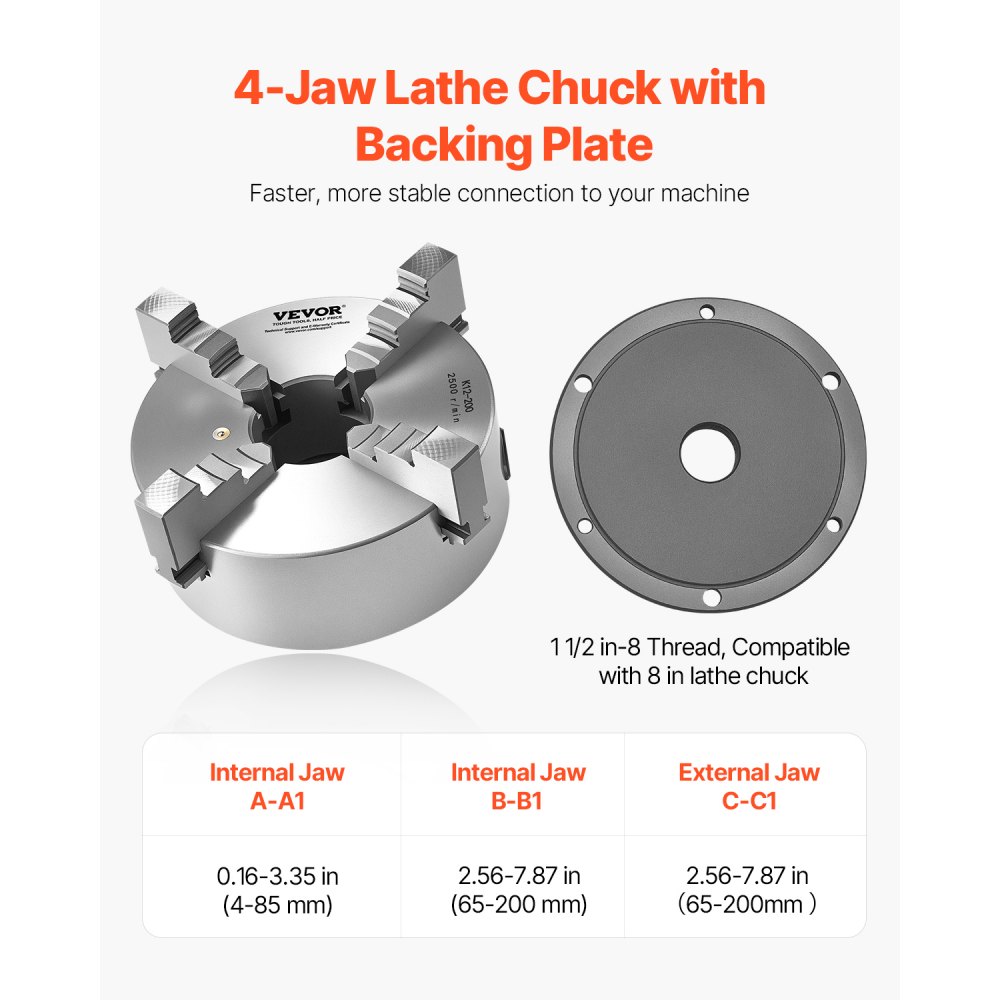

  • 8-Inch 4-Jaw Lathe Chuck: Featuring a 1 1/2 in-8 threaded adapter backing plate, this lathe chuck achieves a faster and more stable connection to your machine. With a 2.56 in (65 mm) inner diameter and 8 in (200 mm) outer diameter, it clamps workpieces ranging from 0.16-7.87 in (4-200 mm), making it versatile for a variety of sizes

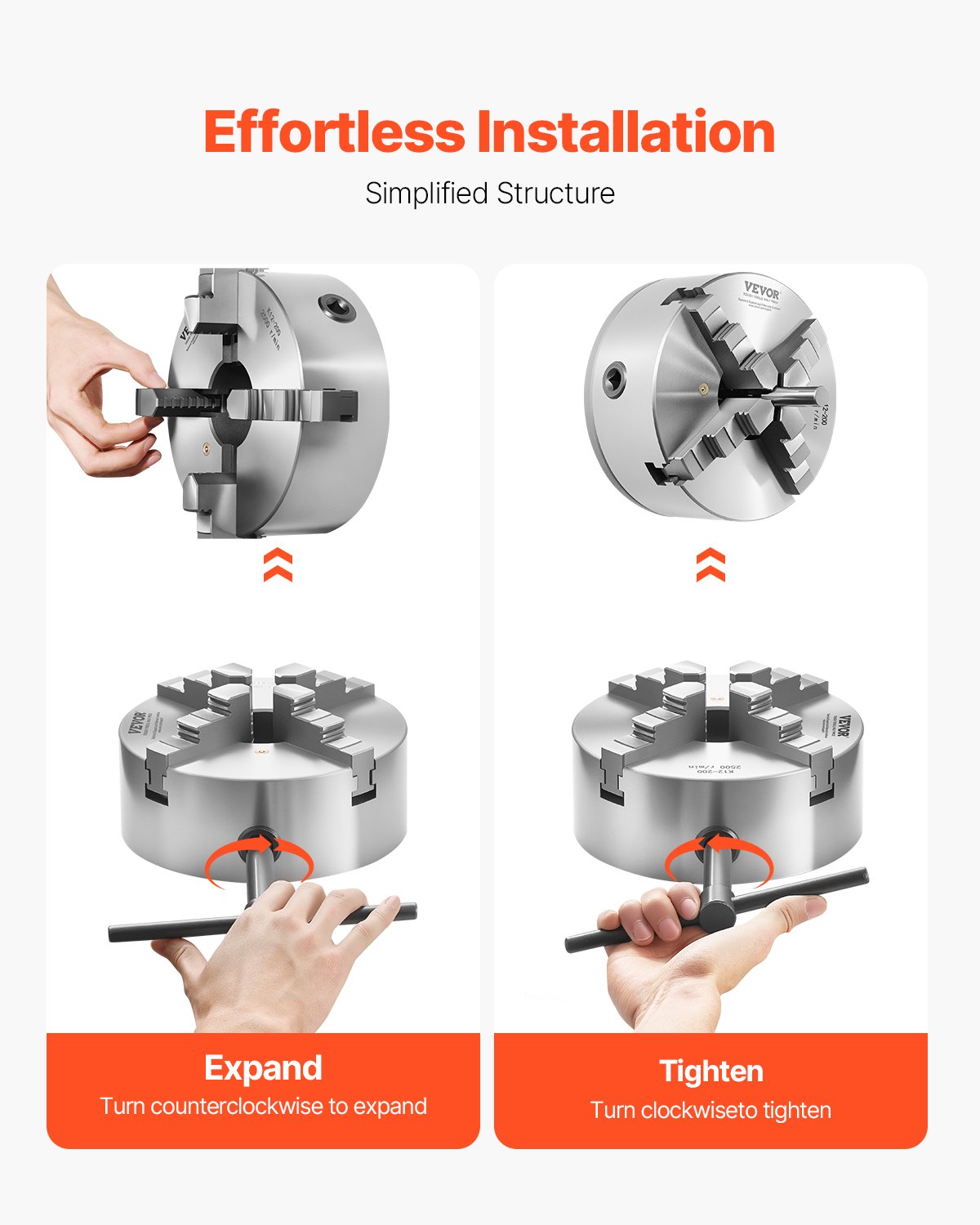

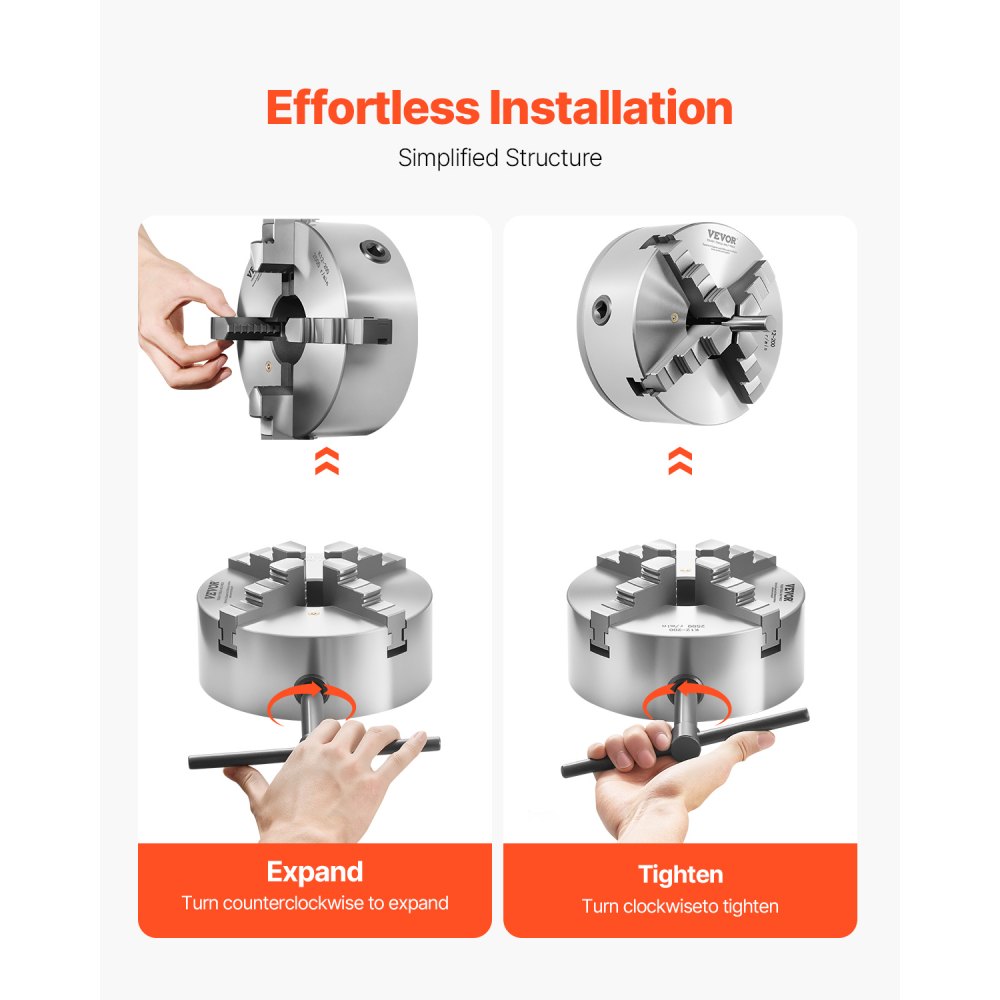

  • Hassle-Free Operation: Featuring a simple, compact design, this lathe chuck balances functionality and reliability. Equipped with a T-shaped tool, installation of our lathe chuck is a breeze. Just follow the correct sequence for a seamless setup

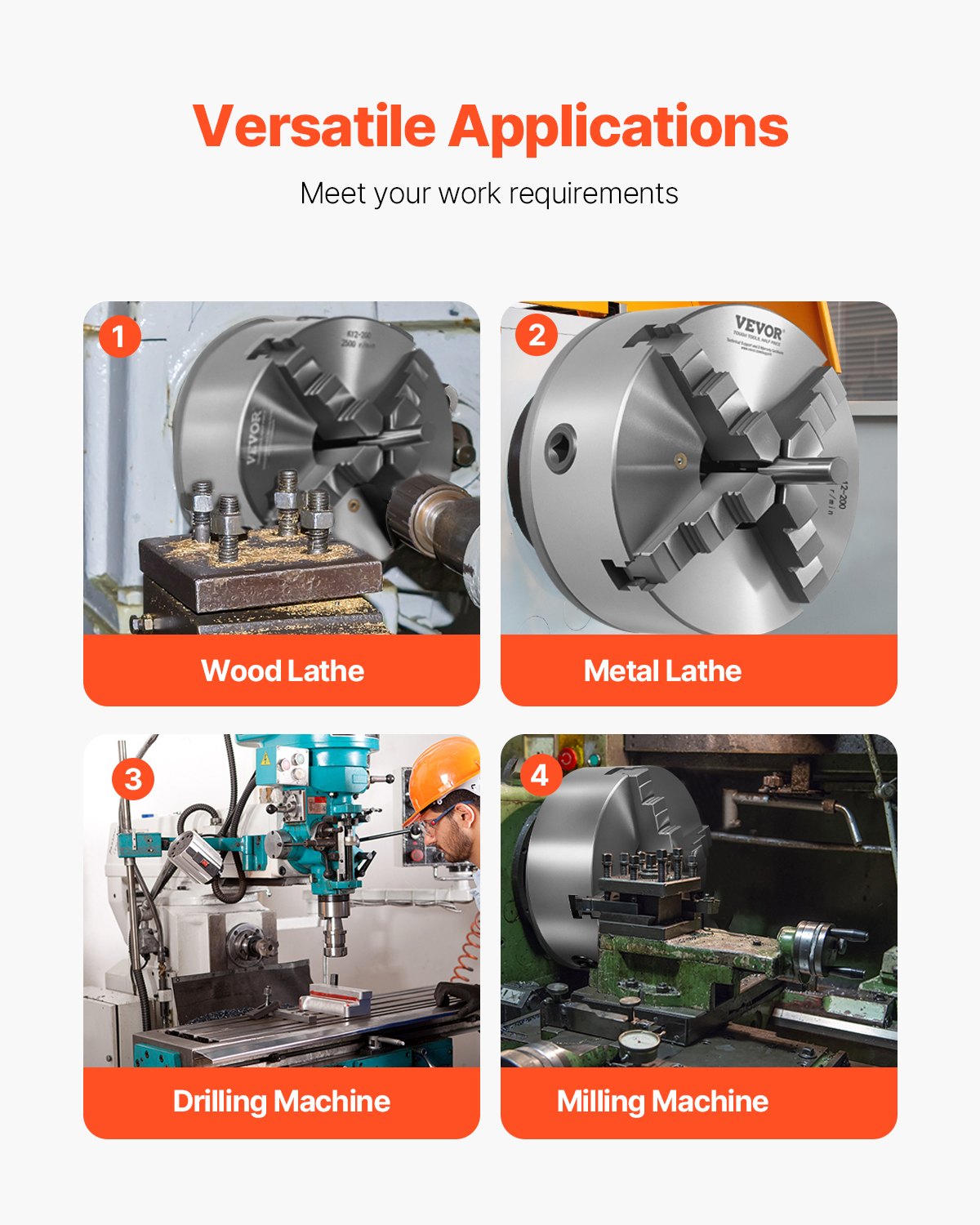

  • Ideal for Most Lathes: Whether you're working with metal, drilling, or milling, our lathe chuck will enhance your machining efficiency and flexibility. It helps you achieve precise and consistent results every time
See More

About this item

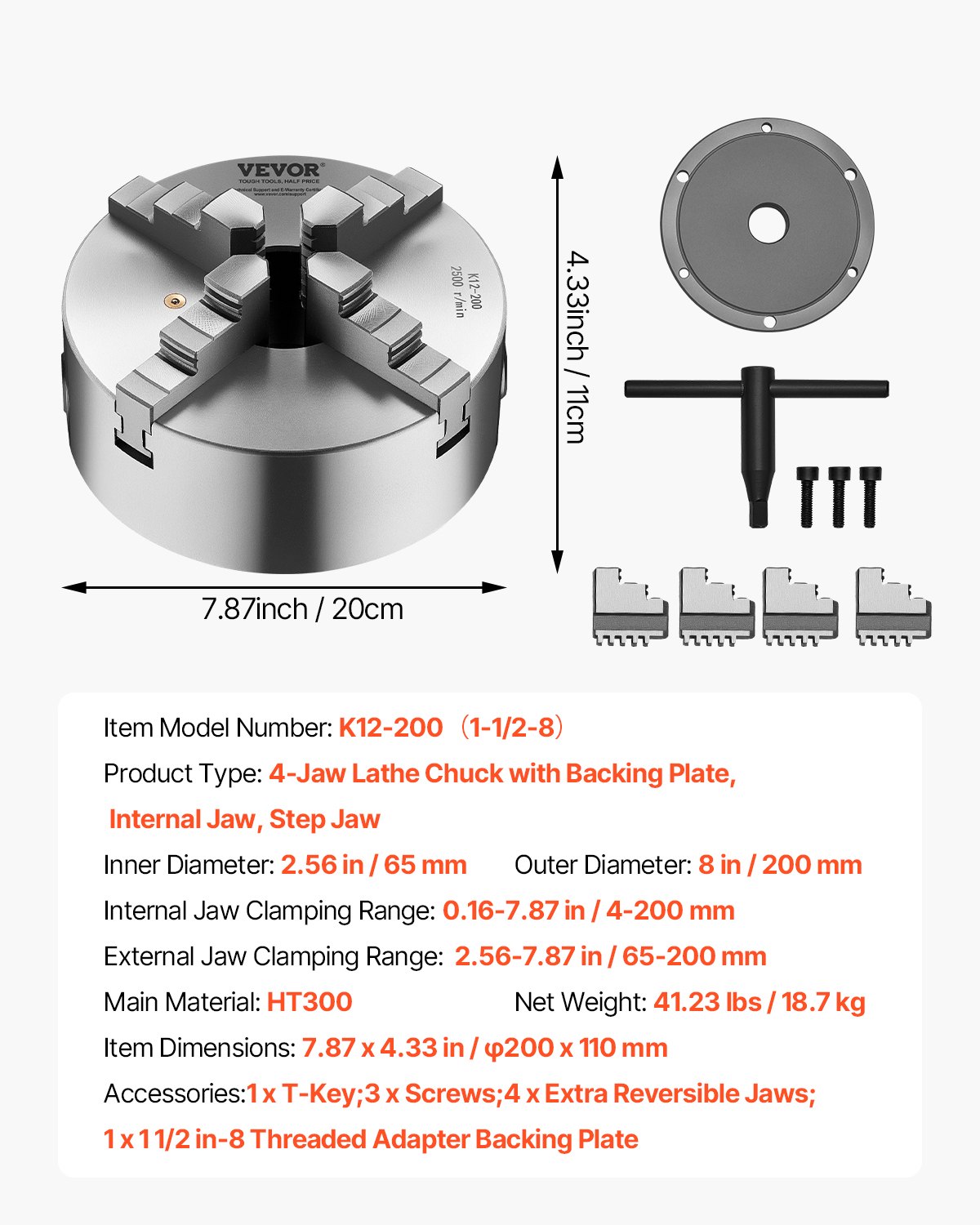

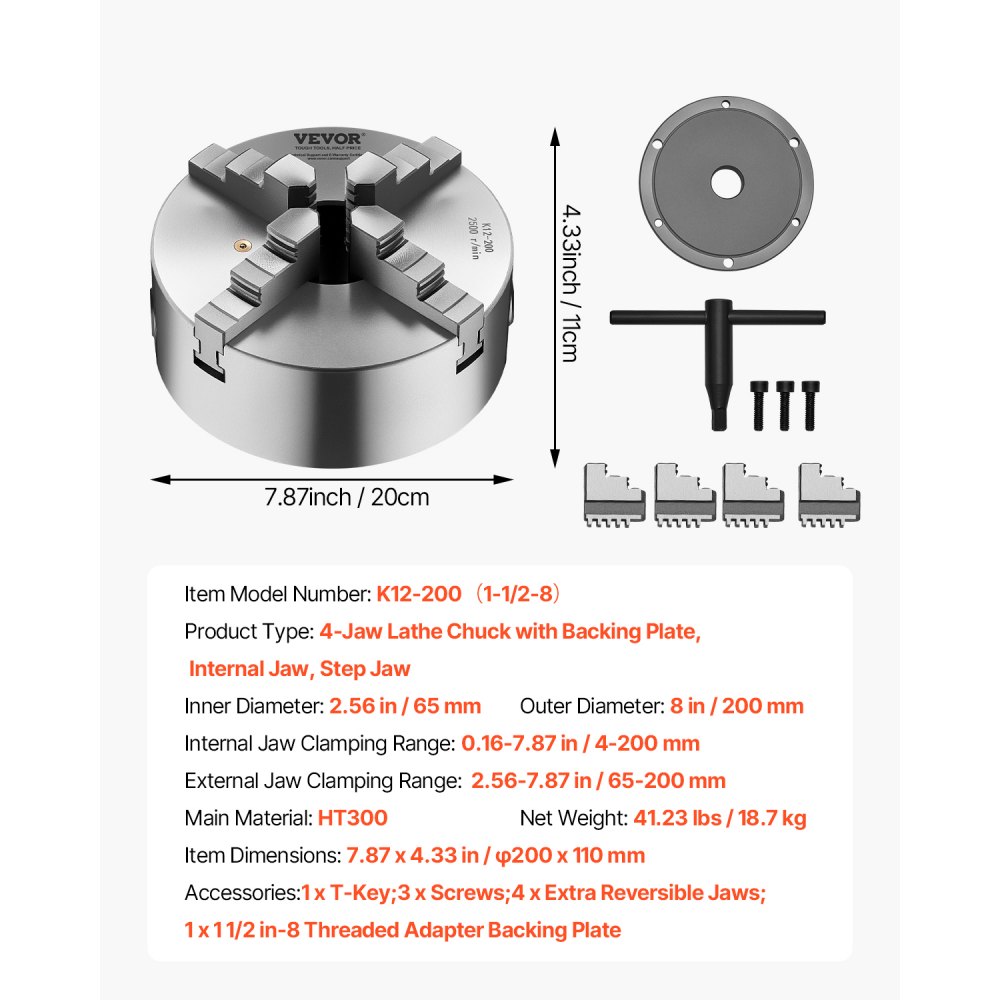

Product specification
Item Model Number
K12 200（1-1/2-8）
Product Type
4-Jaw Lathe Chuck with Backing Plate, Internal Jaw, Step Jaw
Inner Diameter
2.56 in / 65 mm
Outer Diameter
8 in / 200 mm
Internal Jaw Clamping Range
0.16-7.87 in / 4-200 mm
External Jaw Clamping Range
2.56-7.87 in / 65-200 mm
Main Material
HT300
Net Weight
41.23 lbs / 18.7 kg
Item Dimensions
7.87 x 4.33 in / φ200 x 110 mm
Description

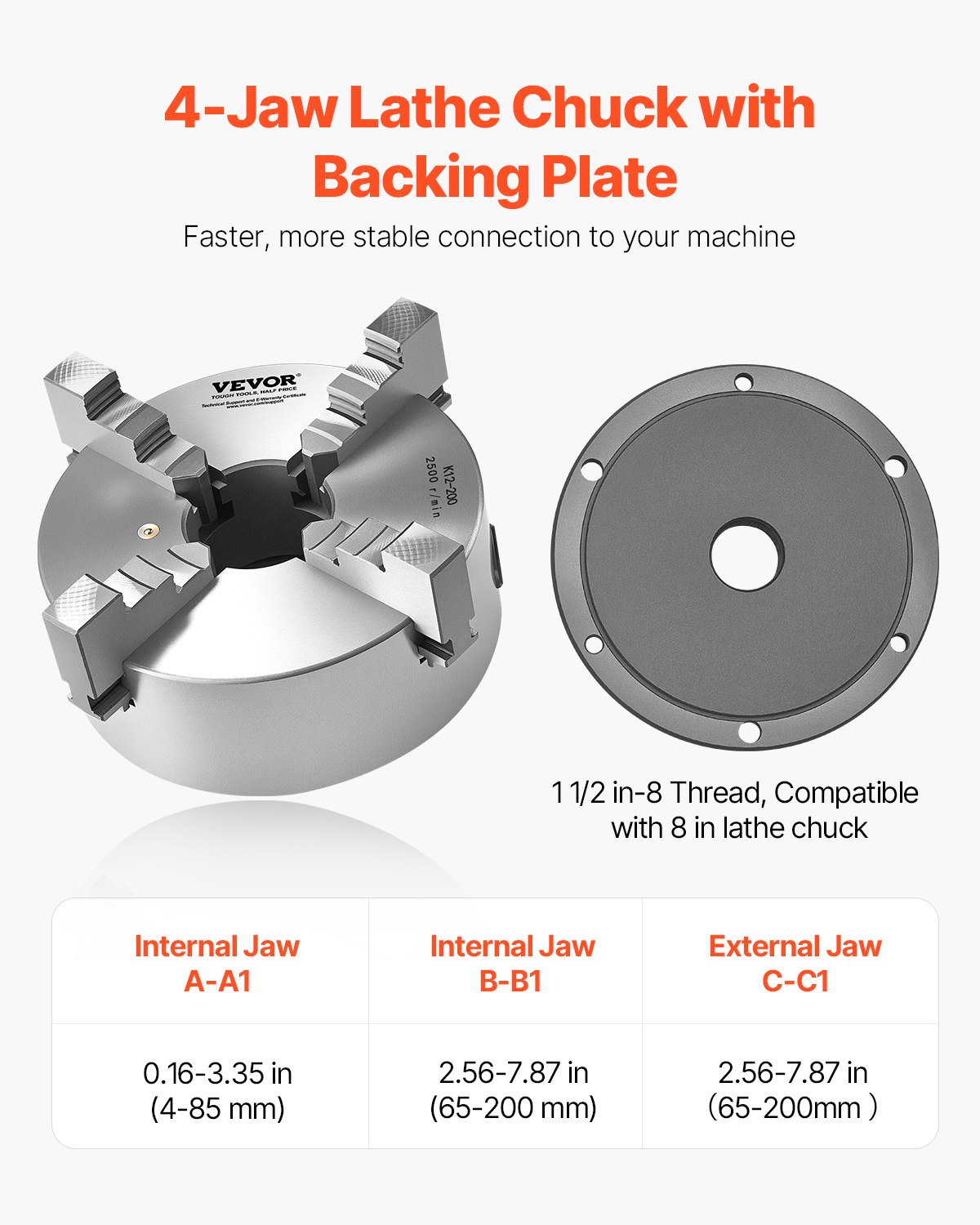

8-Inch 4-Jaw Lathe Chuck with Backing Plate
Our lathe chuck with backing plate achieves faster, steadier machine connection. Built from premium HT300 cast iron, jaw hardness ≥53 HRC for exceptional durability. The self-centering design ensures high-precision clamping ranging from 0.16 in to 7.87 in with 2.56 in I.D and 8 in O.D.
Key Features
Stable and Reliable
Engineered for high hardness and precision, this lathe chuck features a T-shaped tool for easy installation. Whether you're turning or clamping small workpieces, expect consistent, reliable performance every time.
Precision Machining
With a self-centering function and fine gears, our lathe chuck ensures precise control over the clamping accuracy, making it ideal for precision machining tasks.
Multiple Uses
Designed for both internal and external clamping, this self centering lathe chuck meets a variety of machining needs, providing you with efficient and stable clamping performance.
Product guides and documents
User manual-en (PDF)Review
