Features & Details

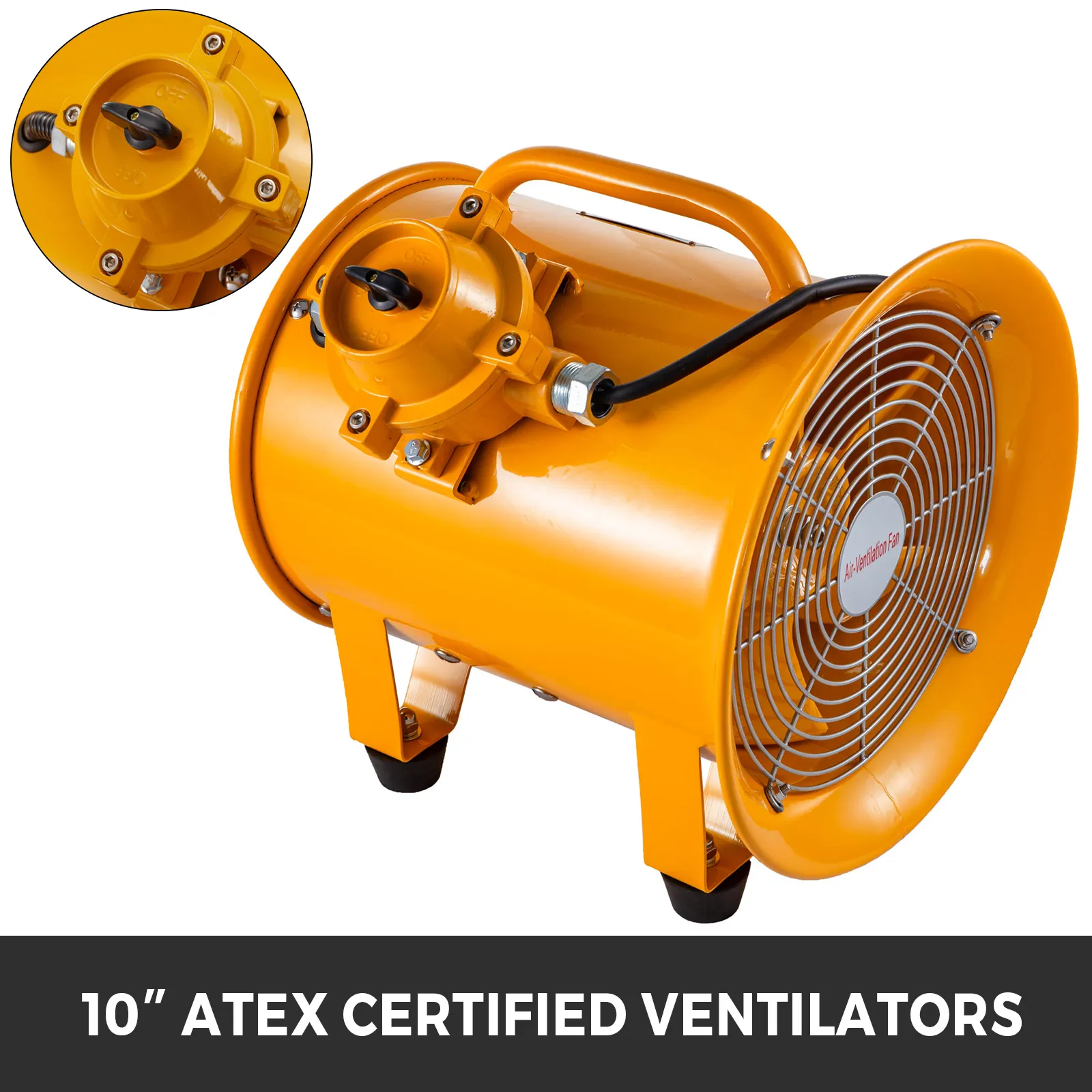

- 10'' Explosion-Proof Axial Fan: EX Certified explosion-proof fan is designed with an explosion-proof switch. Power: 350W. Voltage: 220V. Frequency: 60 Hz. Current: 3.2A. Fan Diameter: 10 in/ 250 mm. Static Pressure: 350Pa. Axial Fan Bearing Type: 6202. Certification: ATEX, CE, UL, RoHS, TÜV.
- 350W Pure Copper Motor: The explosion fan features an explosion-proof, high-velocity, 100% copper winding motor. 3450 RPM motor speed is suitable for long-term ventilation. It can move a large amount of air quickly with low noise at only 66 dB (A). Keep the air in your working area clear and avoids build-ups.
- 3300 m³/h Large Air Flow: The axial fan exhaust can control a large air volume of the 1942 CFM / 3300 m³/h, and the six metal blades provide fast and effective ventilation. It extracts the maximum amount of air and maintains high-efficiency work. Besides, 2 high-density grills ensure portable ventilators work continuously and safely.

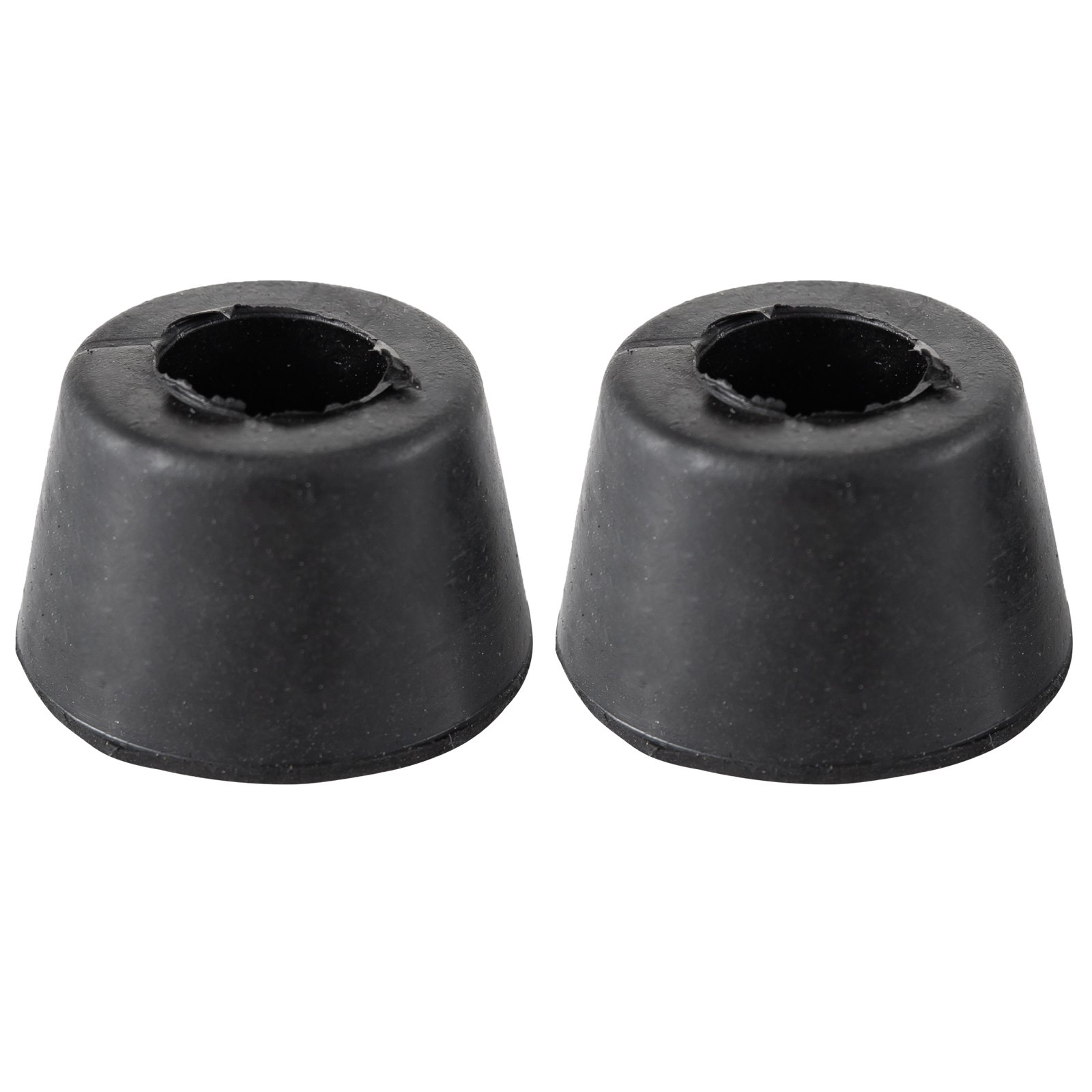

- Sturdy & Humanized Design: The ventilator explosion is equipped with a durable 0.079 in / 2.0 mm steel sheet housing, bringing excellent durability and extending its service life. Two handles and four rubber feet allow you to use and carry it effortlessly. 2 extra rubber feet are provided for easy replacement.
- Ventilate Anywhere: The explosion-proof exhaust fan is perfectly connected to a 10'' anti-static flexible air duct. It is widely used in most places where airflow is needed, ideal for air exhaustion in factories, warehouses, offices, workshops, laboratories, gas stations, military plants, etc.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 2 reviews
Reviews 5.0
All reviews are from verified purchases
See all 2 reviews
About this item
Product specification
- Color
- Orange
- Power
- 350W
- Voltage
- 220V
- Frequency
- 60 Hz
- Current
- 3.2A
- Motor Speed
- 3450 RPM
- Air Flow
- 1942 CFM / 3300 m³/h (55 m³/min)
- Fan Diameter
- 10 in/ 250 mm
- Noise
- 66 dB(A)
- Static Pressure
- 350 Pa
- Motor Type
- 100% Copper, Explosion-proof
- Ex Mark
- EX db IIB T4 Gb Certified by DNV
- CE Certificate Number
- CN208A1Z 001
- UL Certificate Number
- E498516
- Other Certification
- RoHS, TÜV
- Fan Material
- 0.079 in / 2.0 mm Steel Sheet
- Blades Material
- Aluminum Alloy
- Axial Fan Bearing Type
- 6202
- Fan Dimensions(L x W x H)
- 13.78 x 13.38 x 14.96 in / 35 x 34 x 38 cm
- Net Weight
- 28.66 lbs / 13.00 kg
Description

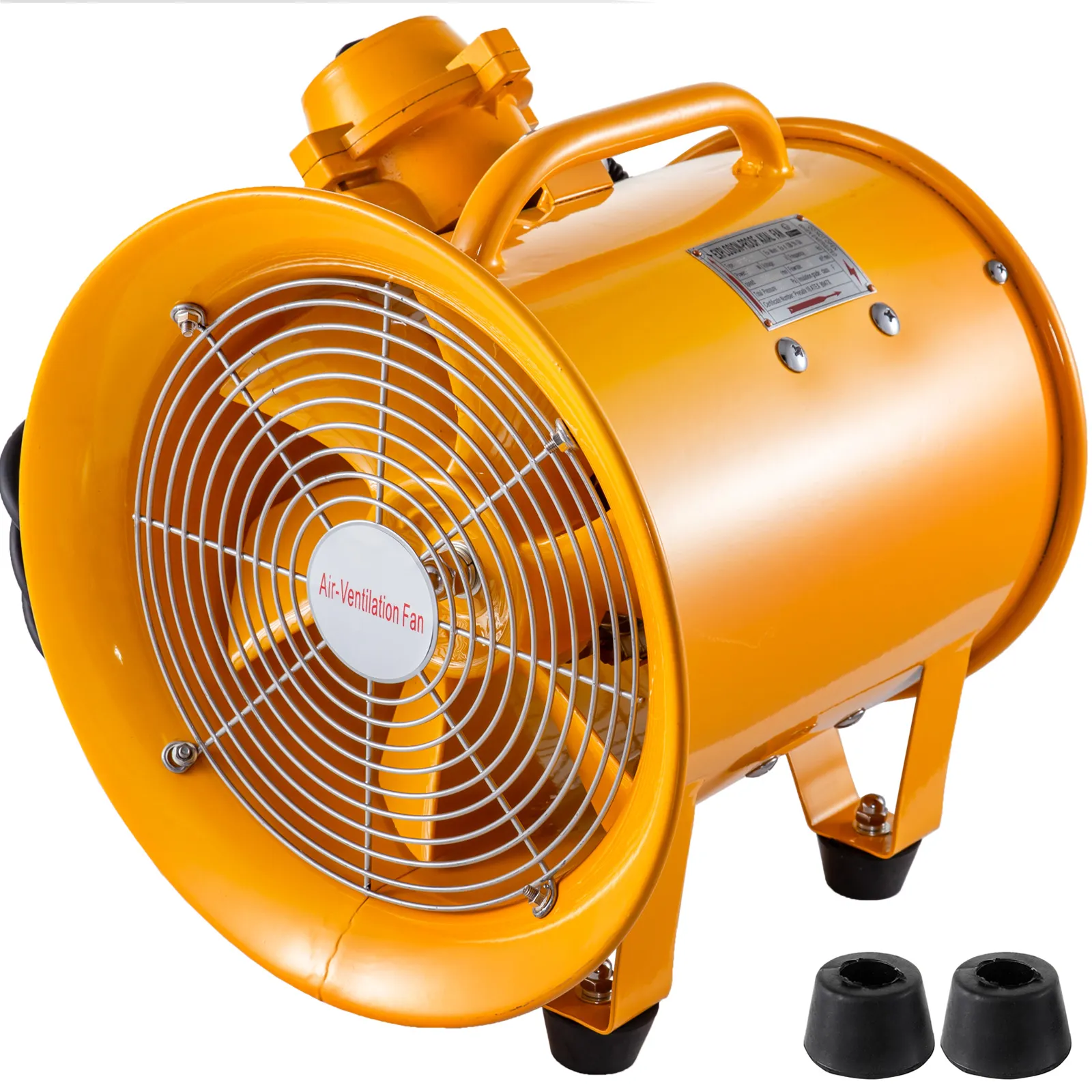

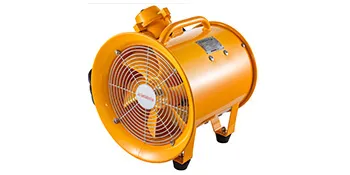

10'' Explosion-Proof Axial Fan
3450RPM High Speed & Portable Handle & Low Noise
This 10'' / 250 mm explosion-proof axial fan features 1942 CFM / 3300 m³/h large air volume, and 3450 r/min motor speed to provide high working efficiency and directional airflow to limited access areas. It is the ideal ventilation fan for factories, basements, warehouses, tunnels, and more places requiring ventilation. Avoid hazards from forming and let air in trapped rooms flow and circulate. Robustness and power have all come together to provide you with a superior ventilating solution.
- 10'' Explosion-Proof Axial Fan
- 350W Pure Copper Motor
- 3300 m³/h Large Air Flow
- Sturdy & Humanized Design
- Ventilate Anywhere
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

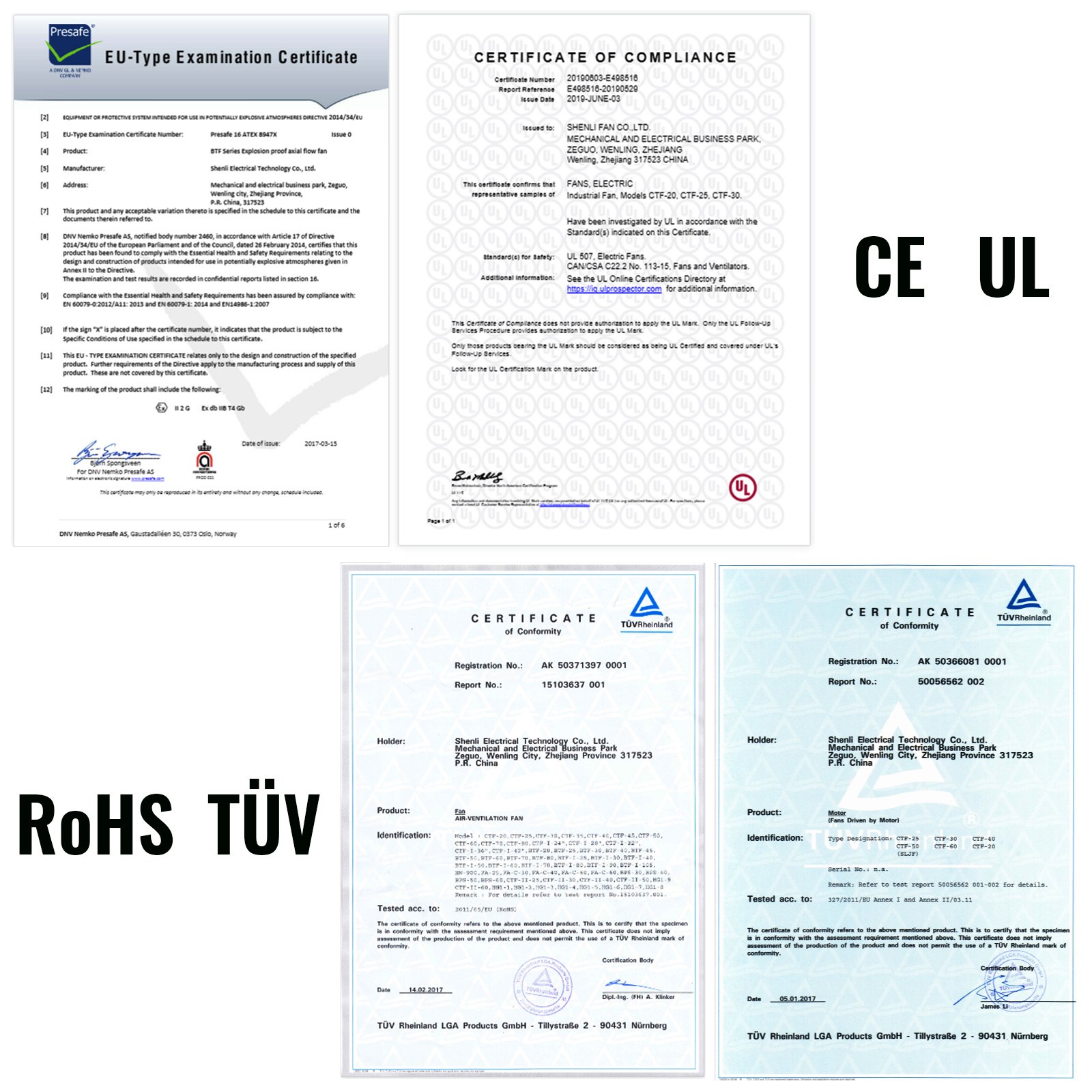

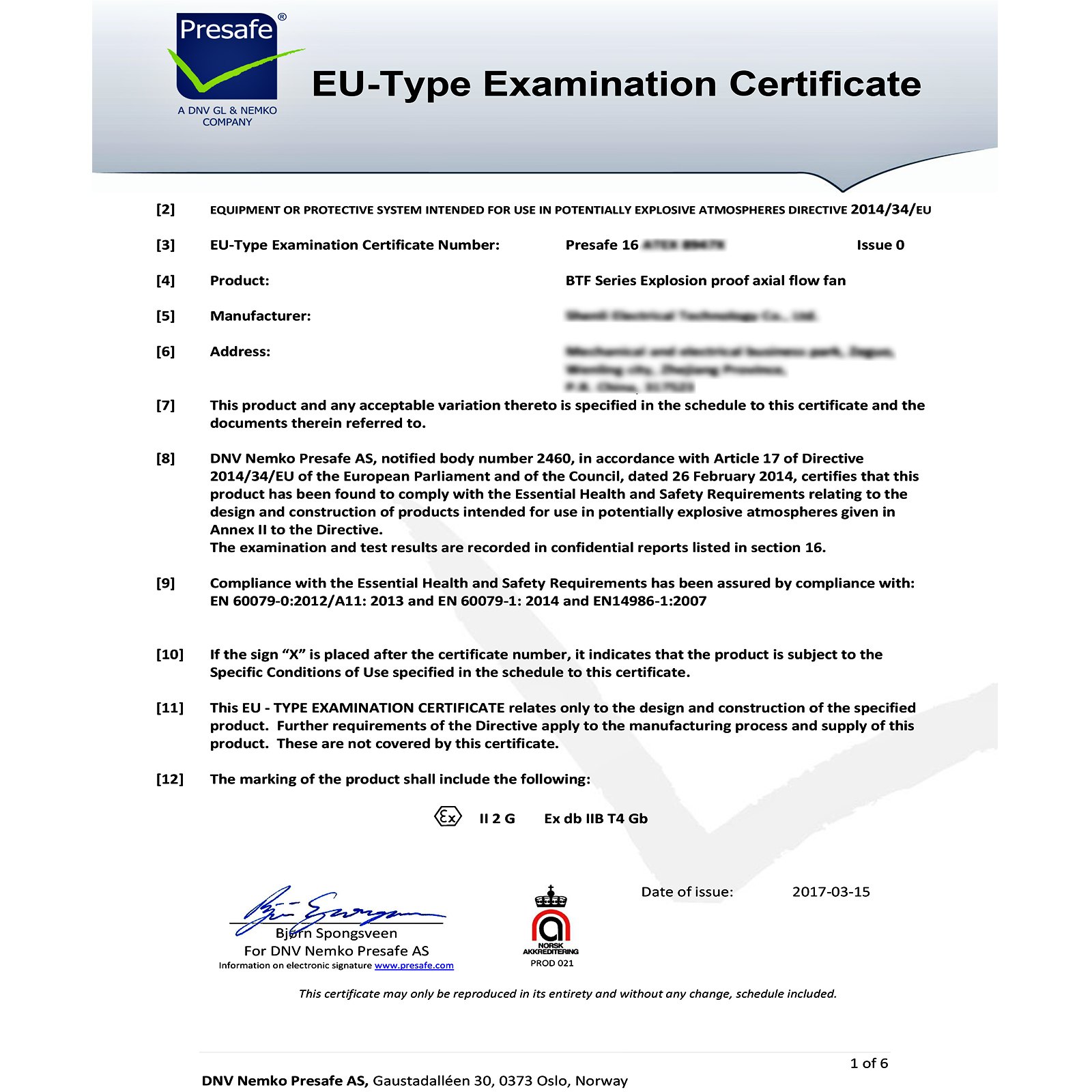

ATEX Certified Axial Fan
The portable exhaust fan is certified with ATEX, CE, UL, RoHS, TÜV, explosion-proof, and is safer to use. EX Mark: EX db IIB T4 Gb Certified by DNV. CE Certificate Number: CN208A1Z 001. UL Certificate Number: E498516.

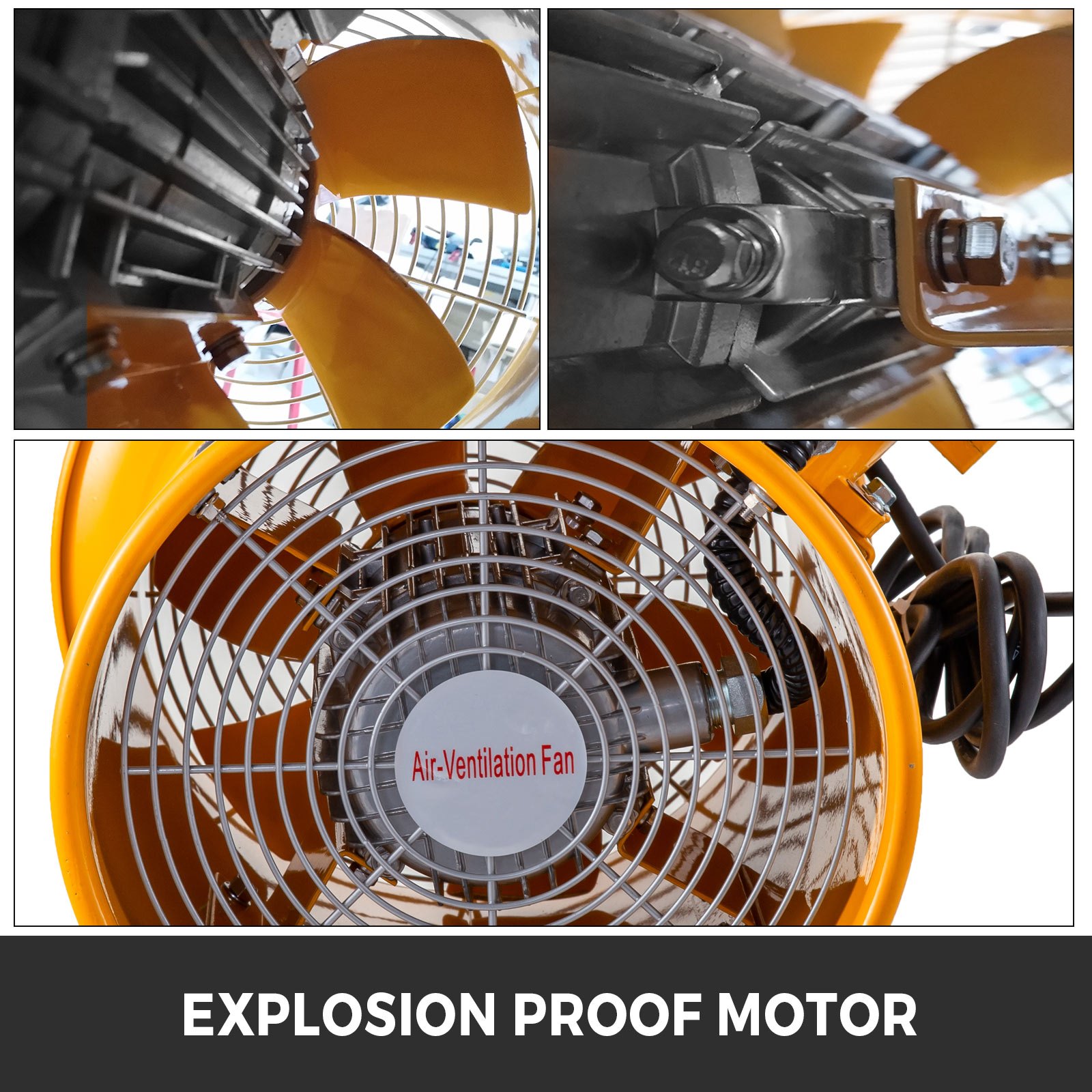

Pure Copper Motor
The portable explosion-proof fan features a 350W pure copper motor with a 3450 RPM high speed and fits long periods of ventilation work. Impedance-protected motors contain windings that have a higher heat resistance.

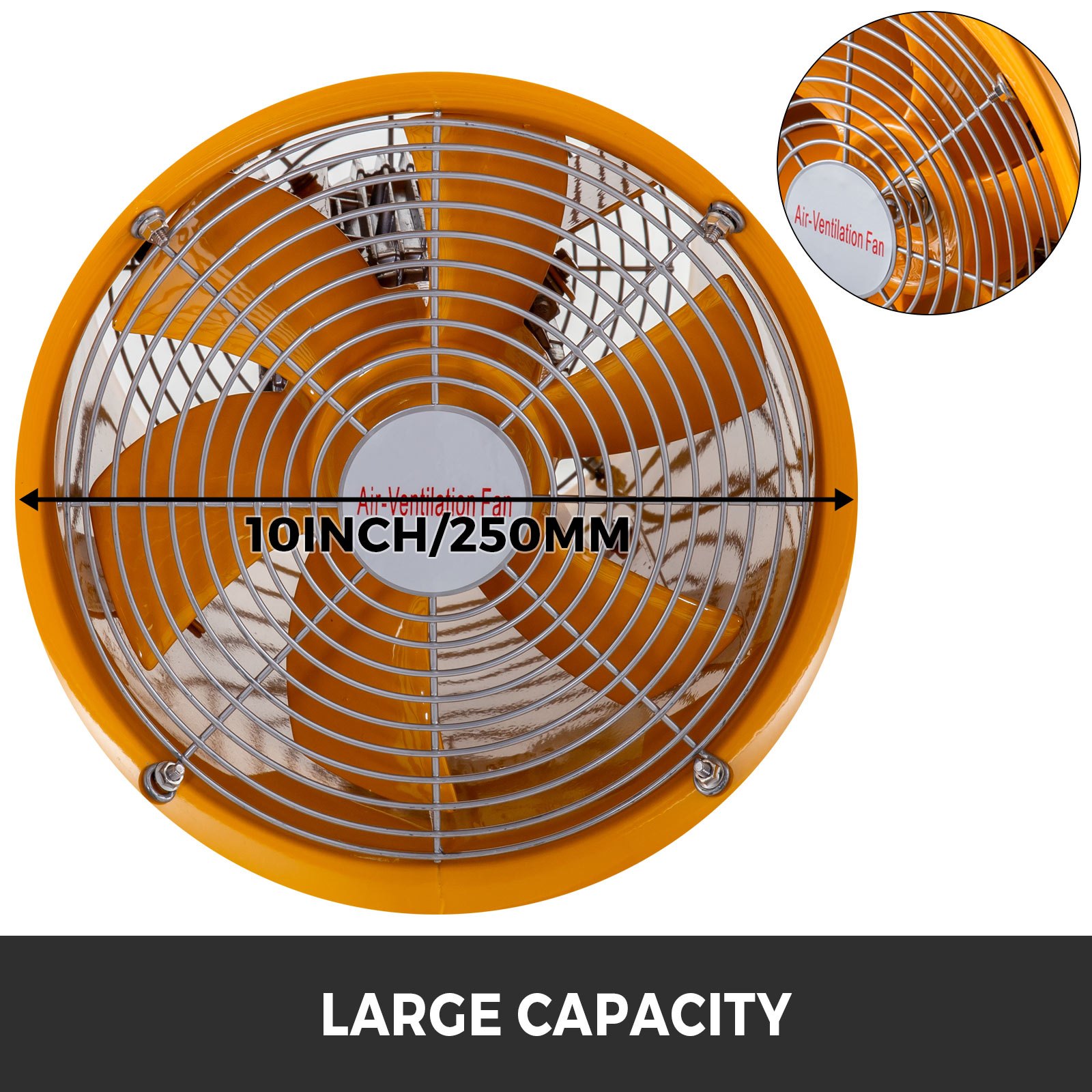

Aluminum Alloy Blades
10 inch / 250 mm fan diameter and 6 thick blades provide a large air volume: 1942 CFM / 3300 m³/h, which means it can quickly move a large amount of air. Aluminum alloy blades are built to resist heat, cold, and corrosion.

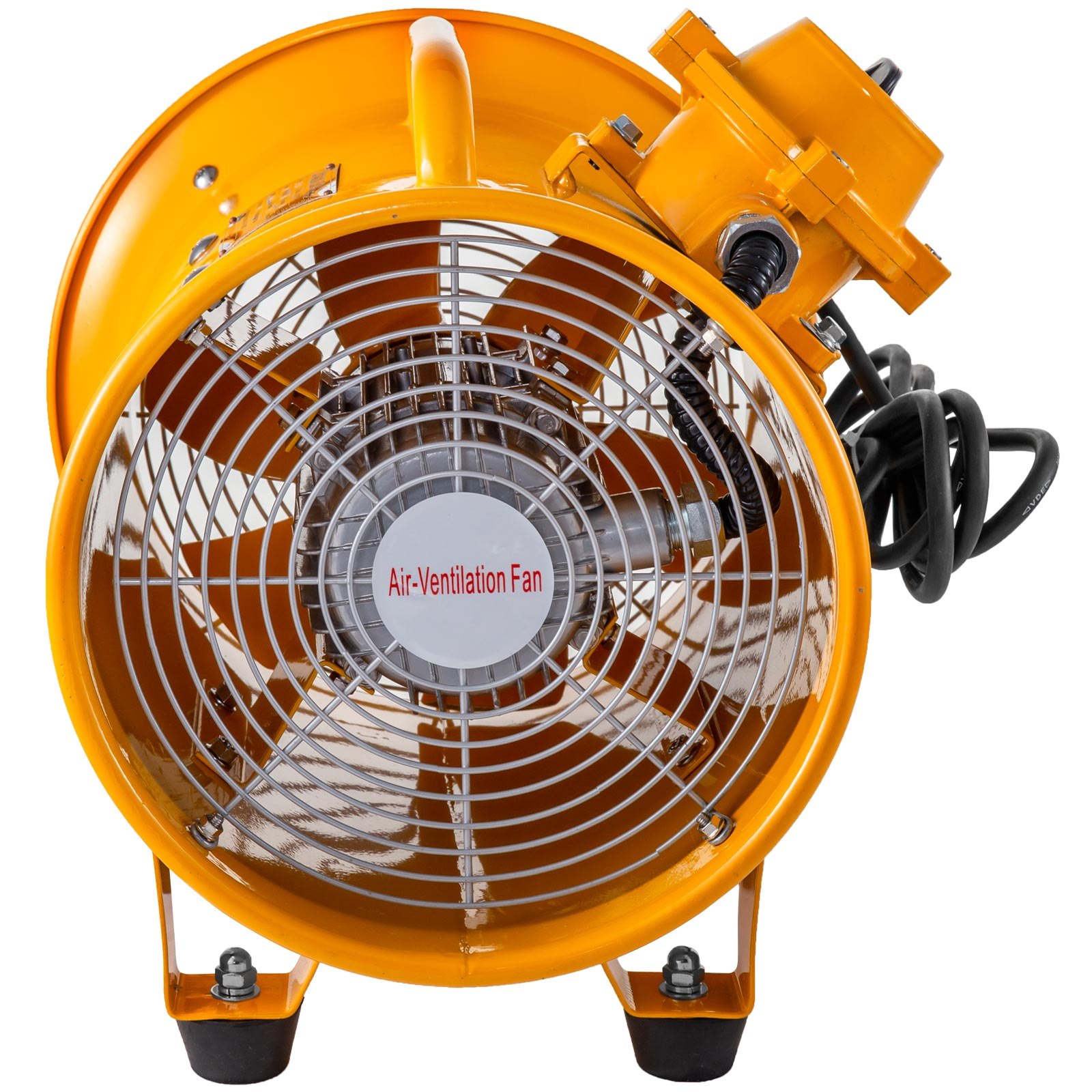

Heavy Duty Steel Housing
This portable exhaust fan shell is constructed from a 0.079 in / 2.0 mm steel sheet, which can resist rust, compression, vibration, and deformation. In addition, two high-density covers avoid small animals from flying into the machine.

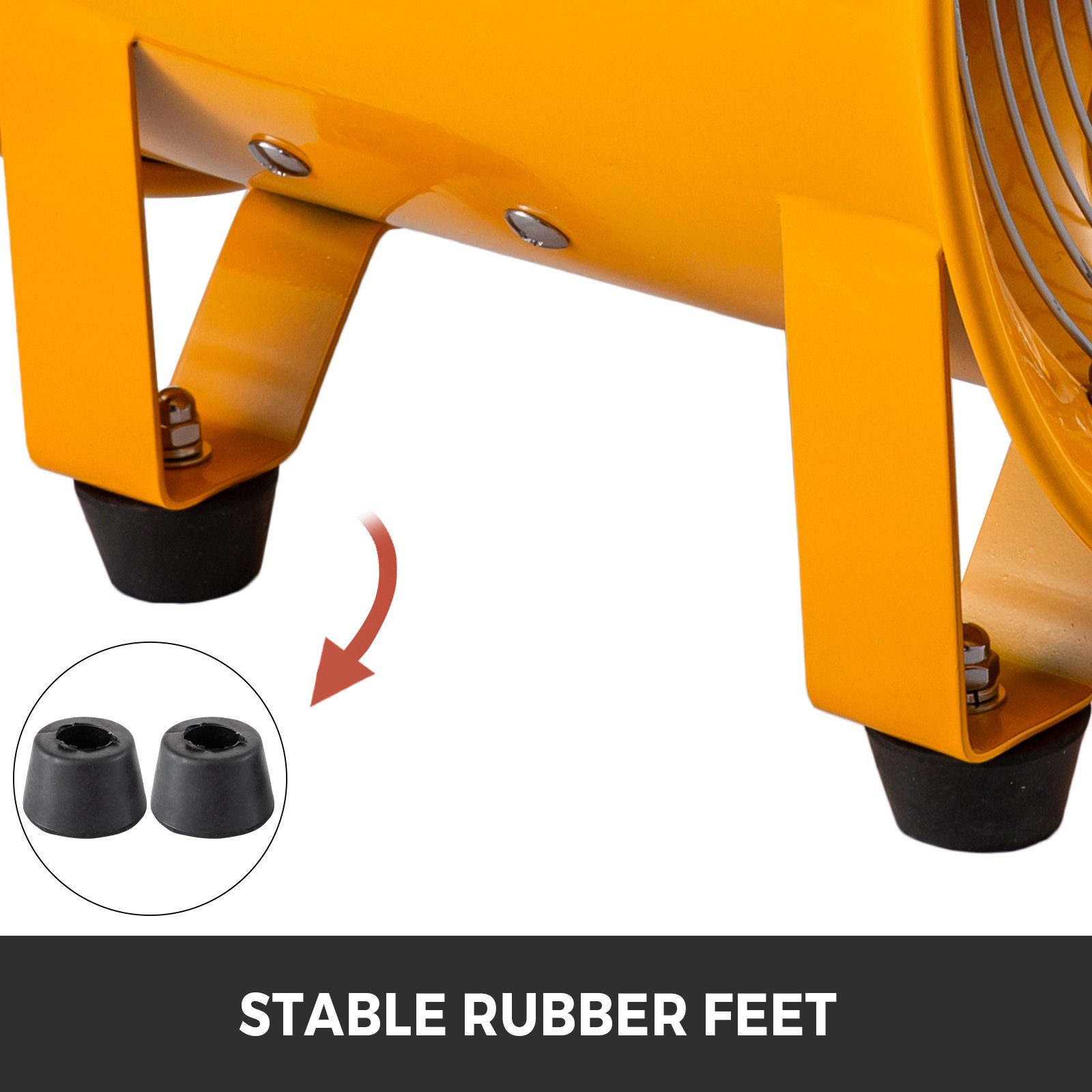

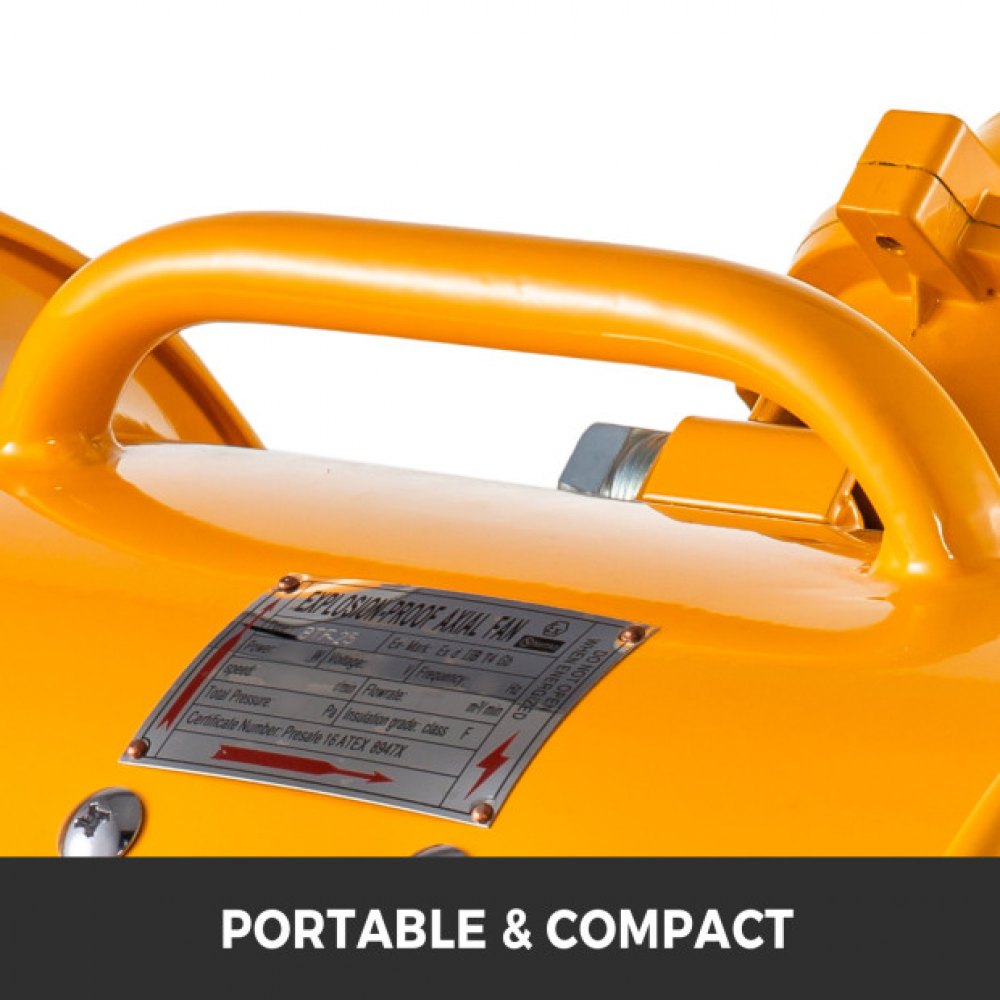

Effortless to Move
The portable ventilation fan is built with an easy-carry handle, making it practical and convenient to move and transport. The rubber feet positioned on the base help minimize noise, reduce vibration, and enable the fan to stand stably.
Wide Application
This portable ventilator is designed for ventilating most rooms and large locations. Such as factories, warehouses, workshops, laboratories, automobile manufacturing, automobile repair shops, plastic machinery, etc.
Specifications
- Color: Orange
- Power: 350W
- Voltage: 220V
- Frequency: 60 Hz
- Current: 3.2A
- Motor Speed: 3450 RPM
- Air Flow: 1942 CFM / 3300 m³/h (55 m³/min)
- Fan Diameter: 10 in/ 250 mm
- Noise: 66 dB(A)
- Static Pressure: 350 Pa
- Motor Type: 100% Copper, Explosion-proof
- Ex Mark: EX db IIB T4 Gb Certified by DNV
- CE Certificate Number: CN208A1Z 001
- UL Certificate Number: E498516
- Other Certification: RoHS, TÜV
- Fan Material: 0.079 in / 2.0 mm Steel Sheet
- Blades Material: Aluminum Alloy
- Axial Fan Bearing Type: 6202

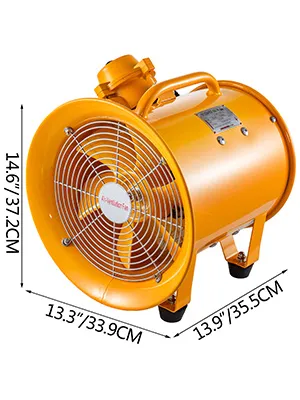

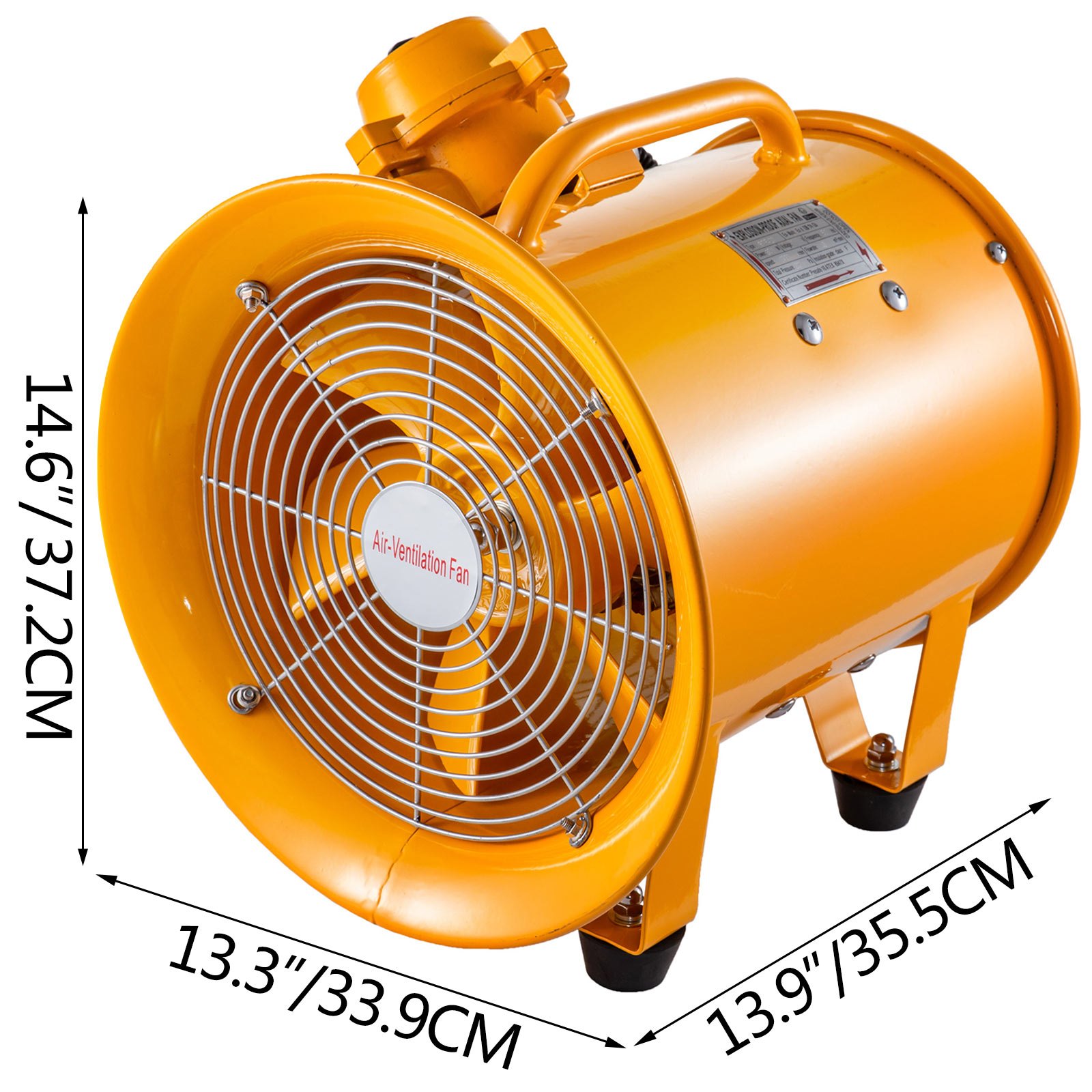

- Fan Dimensions(L x W x H): 13.78 x 13.38 x 14.96 in / 35 x 34 x 38 cm
- Net Weight: 28.66 lbs / 13.00 kg
Package Content
- 1 x ATEX Certified Ventilator
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
10'' Explosion-Proof Axial Fan
3450RPM High Speed & Portable Handle & Low Noise
This 10'' / 250 mm explosion-proof axial fan features 1942 CFM / 3300 m³/h large air volume, and 3450 r/min motor speed to provide high working efficiency and directional airflow to limited access areas. It is the ideal ventilation fan for factories, basements, warehouses, tunnels, and more places requiring ventilation. Avoid hazards from forming and let air in trapped rooms flow and circulate. Robustness and power have all come together to provide you with a superior ventilating solution.
- 10'' Explosion-Proof Axial Fan
- 350W Pure Copper Motor
- 3300 m³/h Large Air Flow
- Sturdy & Humanized Design
- Ventilate Anywhere
ATEX Certified Axial Fan
The portable exhaust fan is certified with ATEX, CE, UL, RoHS, TÜV, explosion-proof, and is safer to use. EX Mark: EX db IIB T4 Gb Certified by DNV. CE Certificate Number: CN208A1Z 001. UL Certificate Number: E498516.
Pure Copper Motor
The portable explosion-proof fan features a 350W pure copper motor with a 3450 RPM high speed and fits long periods of ventilation work. Impedance-protected motors contain windings that have a higher heat resistance.
Aluminum Alloy Blades
10 inch / 250 mm fan diameter and 6 thick blades provide a large air volume: 1942 CFM / 3300 m³/h, which means it can quickly move a large amount of air. Aluminum alloy blades are built to resist heat, cold, and corrosion.
Heavy Duty Steel Housing
This portable exhaust fan shell is constructed from a 0.079 in / 2.0 mm steel sheet, which can resist rust, compression, vibration, and deformation. In addition, two high-density covers avoid small animals from flying into the machine.
Effortless to Move
The portable ventilation fan is built with an easy-carry handle, making it practical and convenient to move and transport. The rubber feet positioned on the base help minimize noise, reduce vibration, and enable the fan to stand stably.
Wide Application
This portable ventilator is designed for ventilating most rooms and large locations. Such as factories, warehouses, workshops, laboratories, automobile manufacturing, automobile repair shops, plastic machinery, etc.
Package Content
- 1 x ATEX Certified Ventilator
Specifications
- Color: Orange
- Power: 350W
- Voltage: 220V
- Frequency: 60 Hz
- Current: 3.2A
- Motor Speed: 3450 RPM
- Air Flow: 1942 CFM / 3300 m³/h (55 m³/min)
- Fan Diameter: 10 in/ 250 mm
- Noise: 66 dB(A)
- Static Pressure: 350 Pa
- Motor Type: 100% Copper, Explosion-proof
- Ex Mark: EX db IIB T4 Gb Certified by DNV
- CE Certificate Number: CN208A1Z 001
- UL Certificate Number: E498516
- Other Certification: RoHS, TÜV
- Fan Material: 0.079 in / 2.0 mm Steel Sheet
- Blades Material: Aluminum Alloy
- Axial Fan Bearing Type: 6202
- Fan Dimensions(L x W x H): 13.78 x 13.38 x 14.96 in / 35 x 34 x 38 cm
- Net Weight: 28.66 lbs / 13.00 kg
