Features & Details
- CNC 3018 Router Machine: CNC 3018 PRO is an upgraded version of 3018 CNC. The 3Pin laser driver interfaces support PWM, TTL functions for full function laser engraving. We provide a detailed user manual, assembly instructions, and installation video for your convenience. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more.

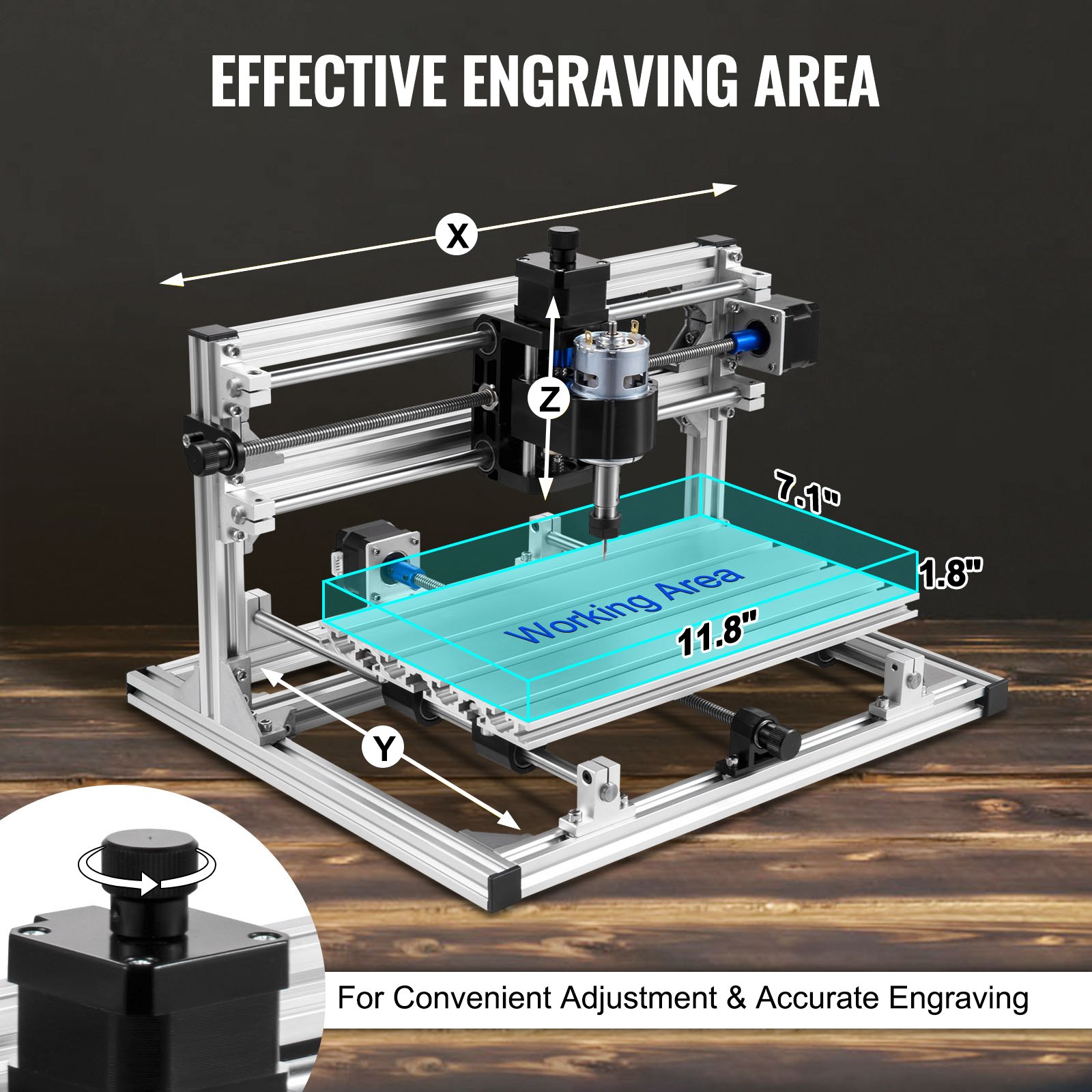

- Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.
- Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.25 Nm torque) and 775 DC(12-24V) 24V spindle motors with a rotational speed of 10000 r/min. And the engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.
- Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.
- Sturdy Material: The frame is mainly made of aluminum alloy and Bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 2 reviews
Reviews 5.0
All reviews are from verified purchases
See all 2 reviews
About this item
Product specification
- Model
- VG-S3018
- Effective Working Area(X x Y x Z)
- 11.8 x 7.1 x 1.8 inch / 30 x 18 x 4.5 cm
- Materials
- 2020 Aluminum
- Input Power
- DC 24V 5A
- Driving Units
- T8 Stainless Steel Screws
- Spindle Speed
- 10000 rpm
- Stepping Motor
- Size 42, 12V; Torque
- Control Software
- GRBL Control
- Cutter Diameter
- 0.125 inch / 3.175 mm
- Positioning Accuracy
- 0.003 inch/ 0.07 mm

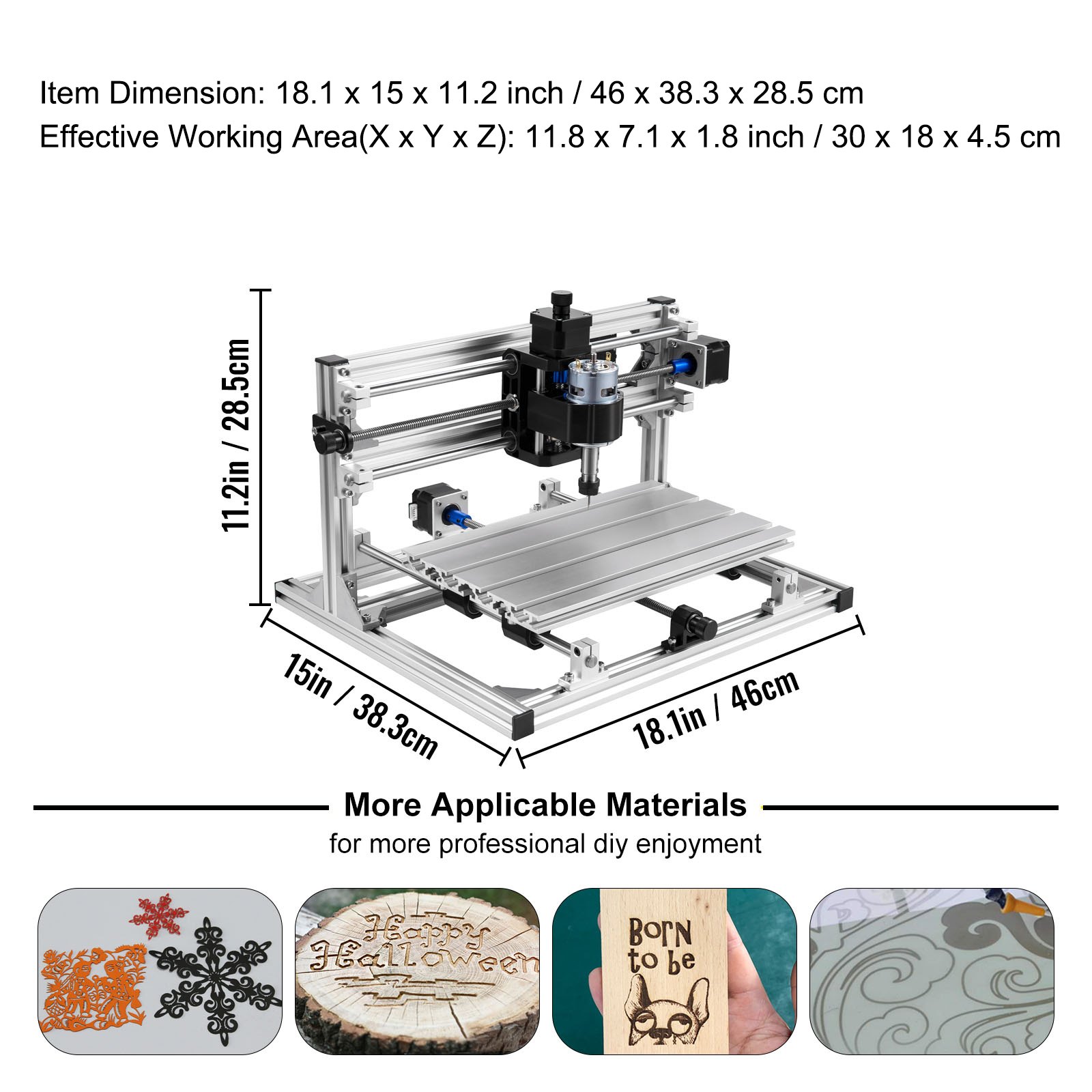

- Item Dimension
- 18.1 x 15 x 11.2 inch/ 46 x 38.3 x 28.5 cm
Description

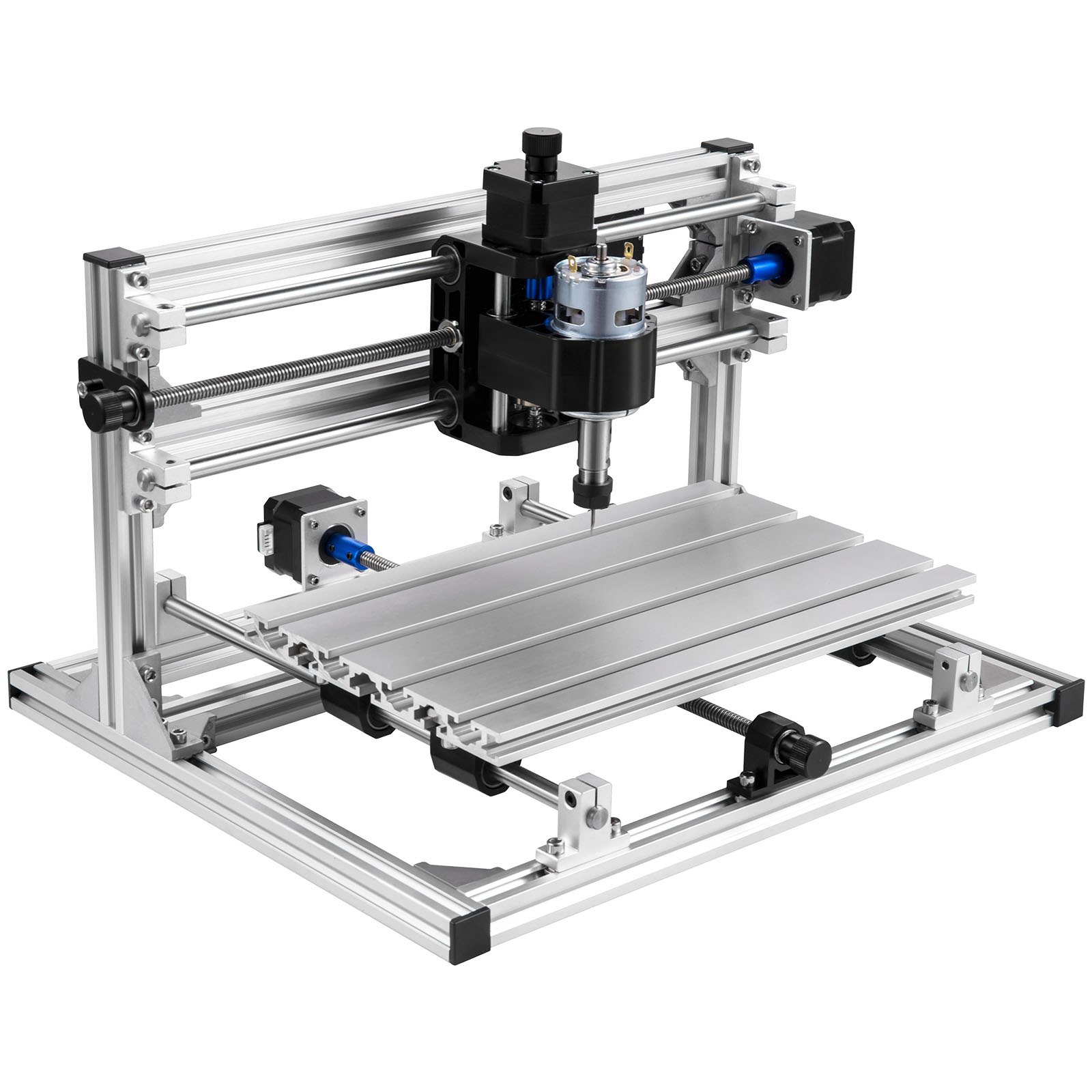

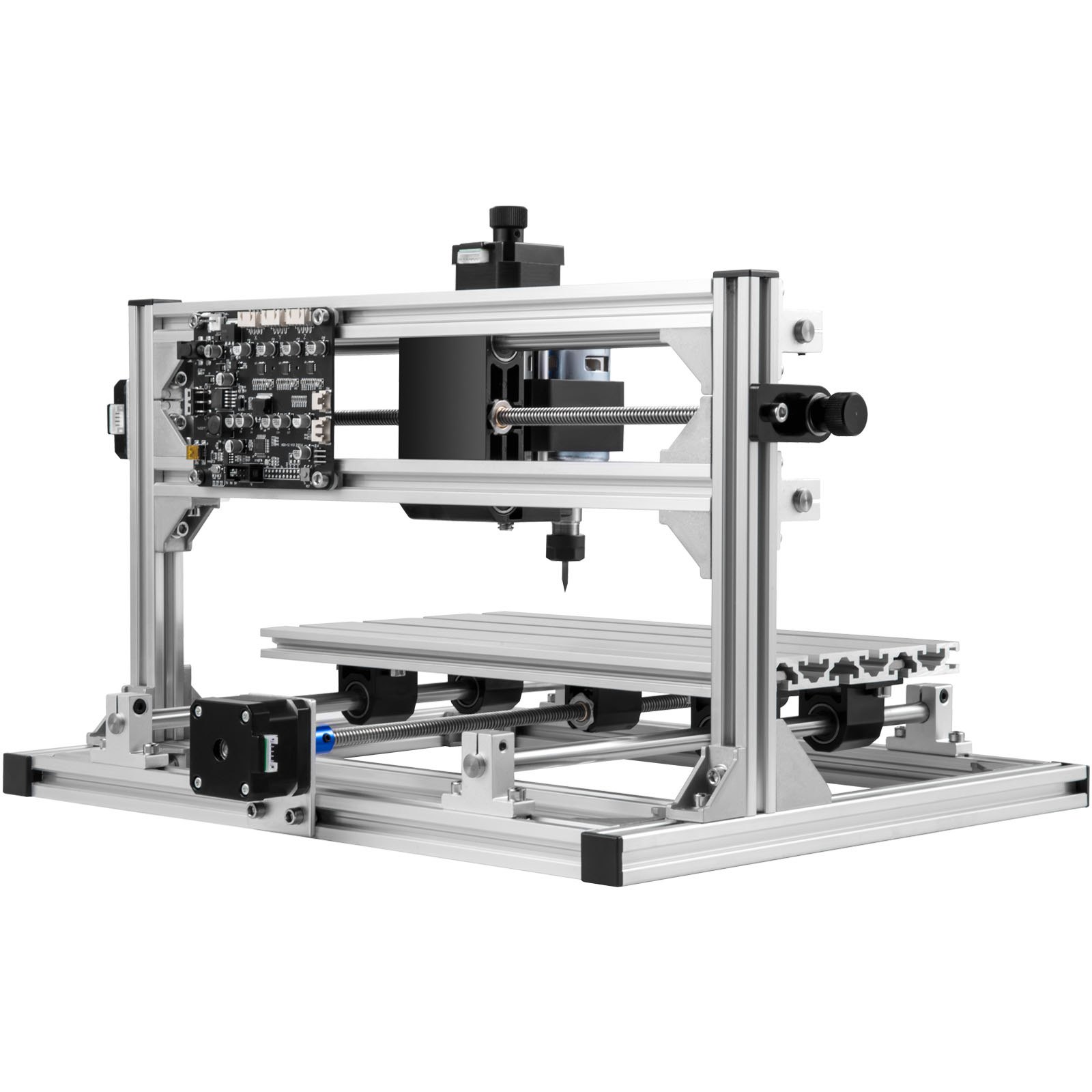

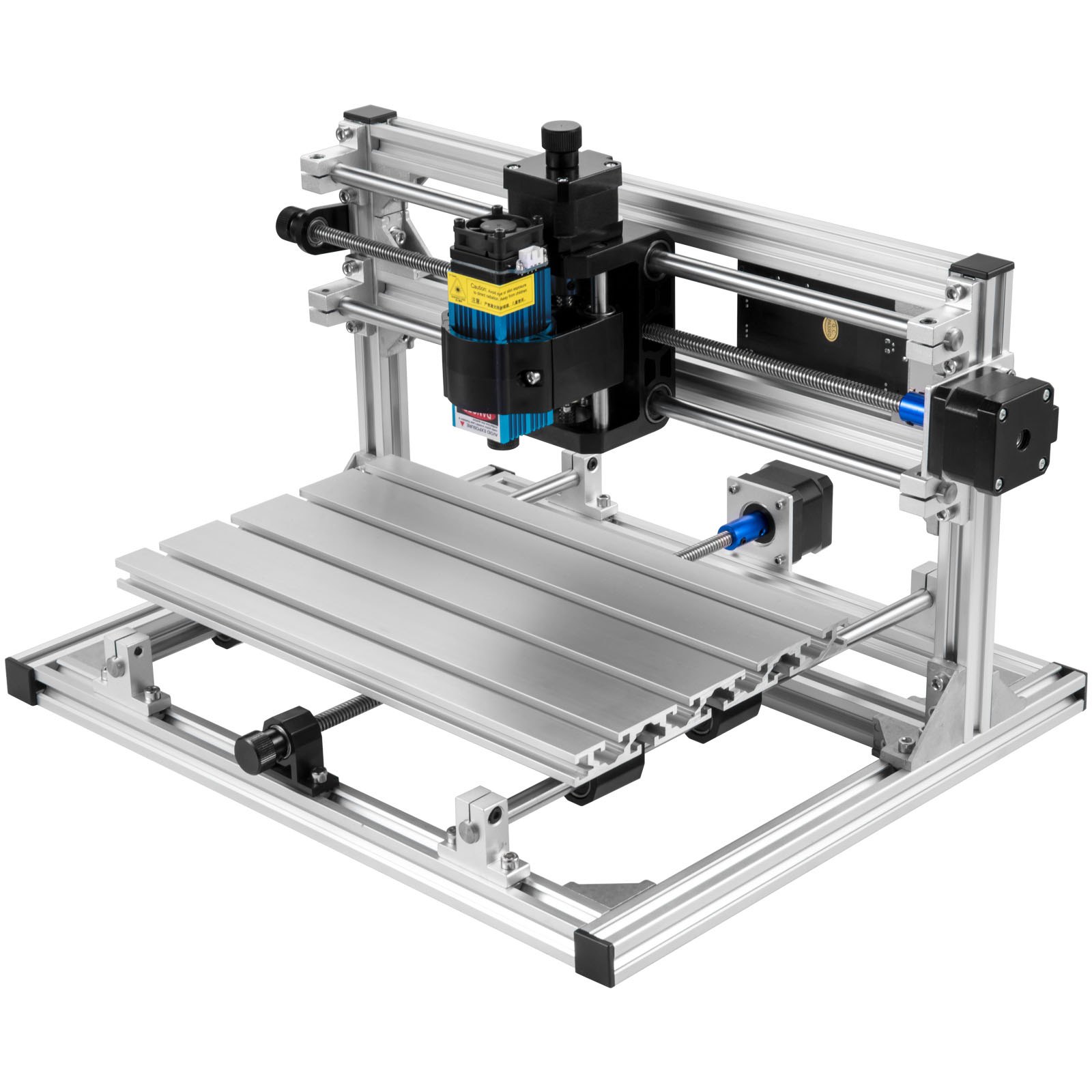

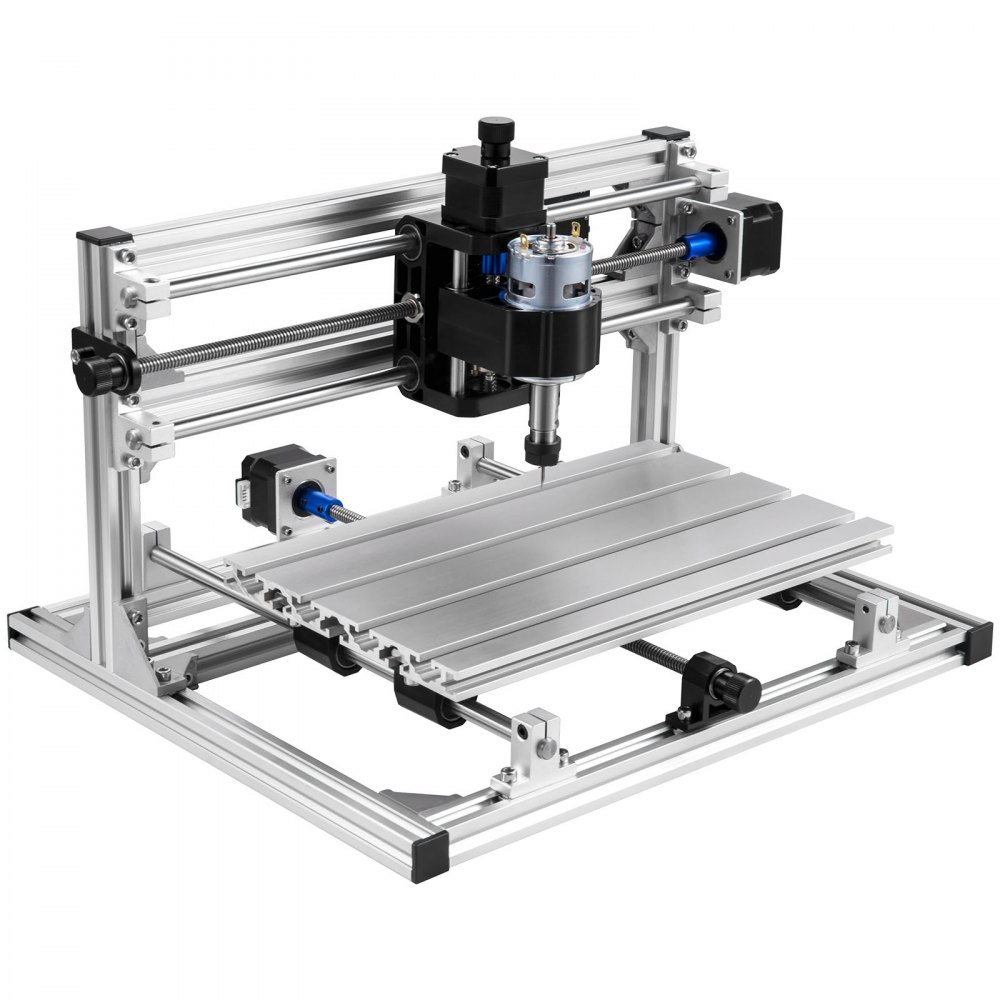

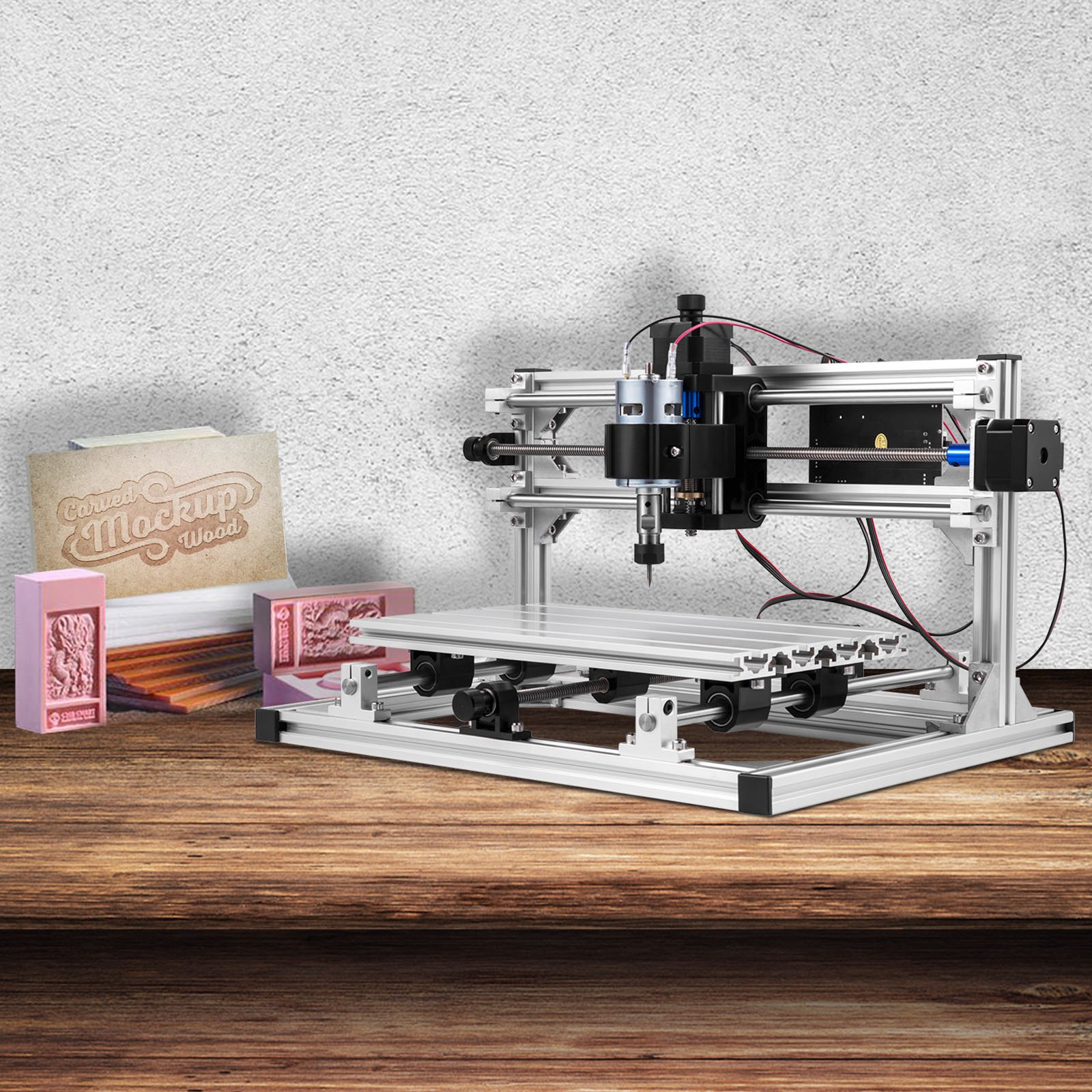

CNC 3018 Engraving Machine
Our CNC 3018 adopts premium aluminum material, ideal for engraving plastics, woods, acrylics, PVCs, PCBs, and other soft materials. It is equipped with a GRBL control board and high-speed motor to achieve X/Y/Z axis CNC control and laser engraving control to be an excellent affordable self-learning engraving tool.
- Durable Aluminum Profiles
- Upgraded Three Axes
- Convenient GRBL Control
- High-Speed Motors
- Effortless Operation
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

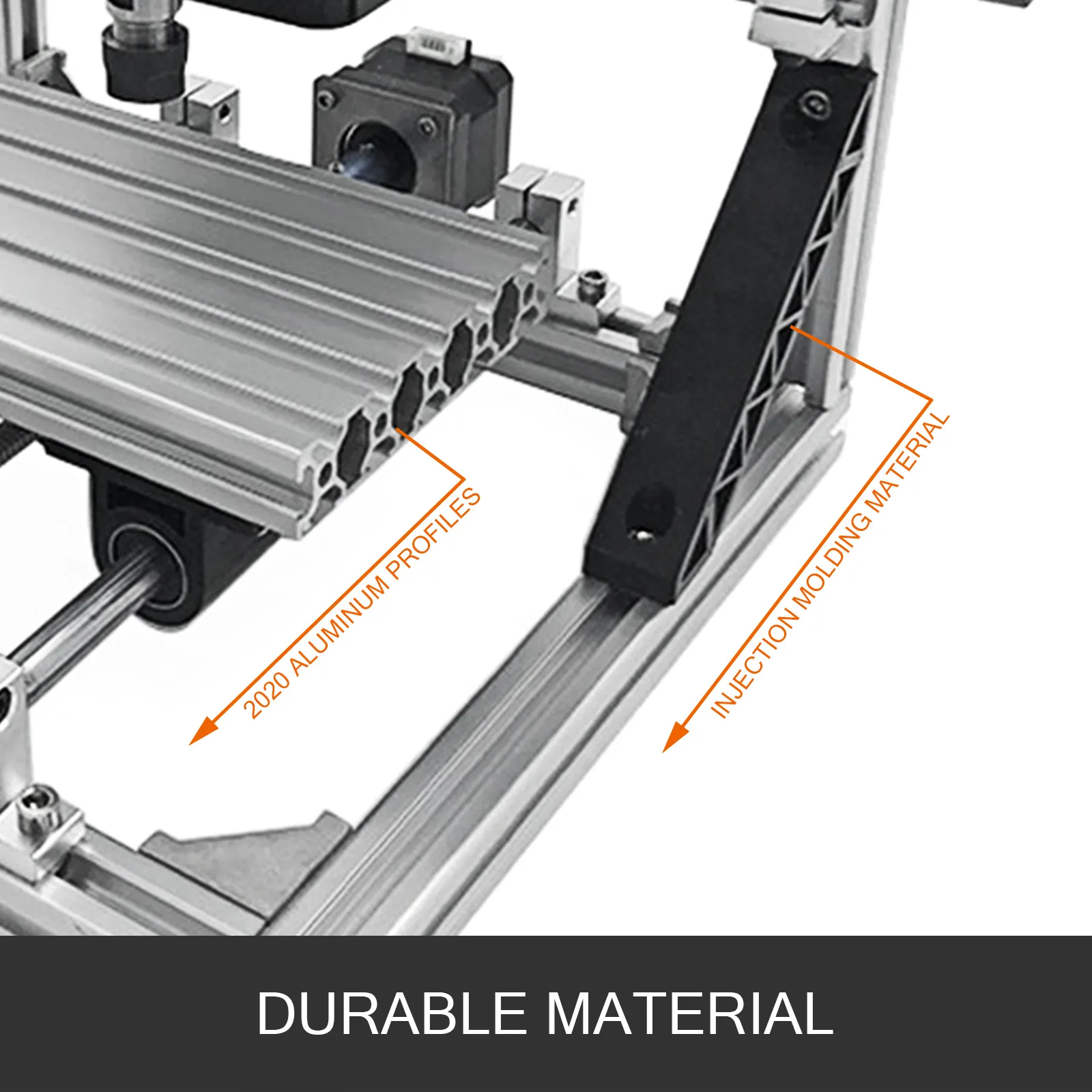

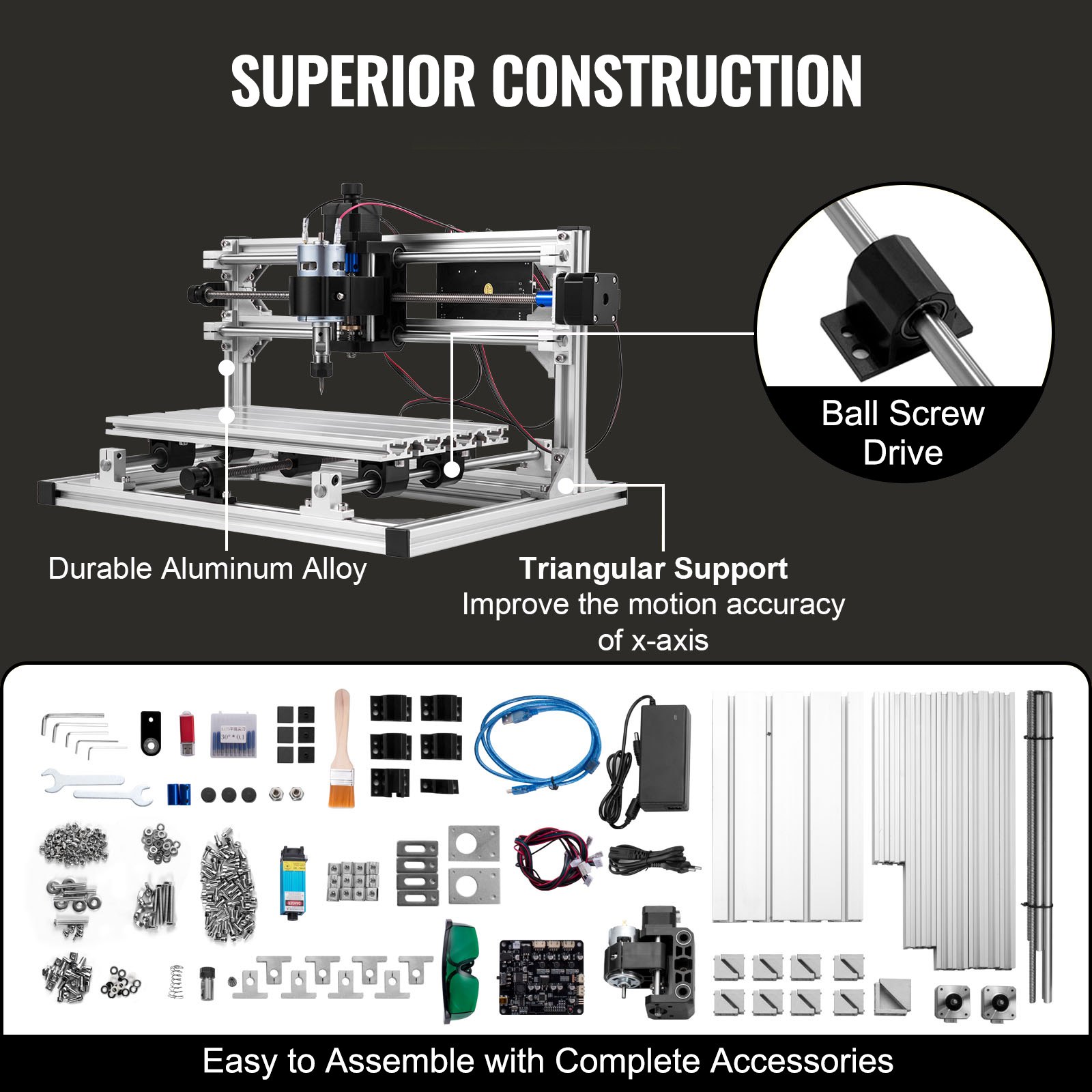

2020 Aluminum Material
The frame is mainly made of 2020 aluminum, and the fixed parts are constructed of large-size die-casting aluminum, which is of good appearance, high precision, and durability.

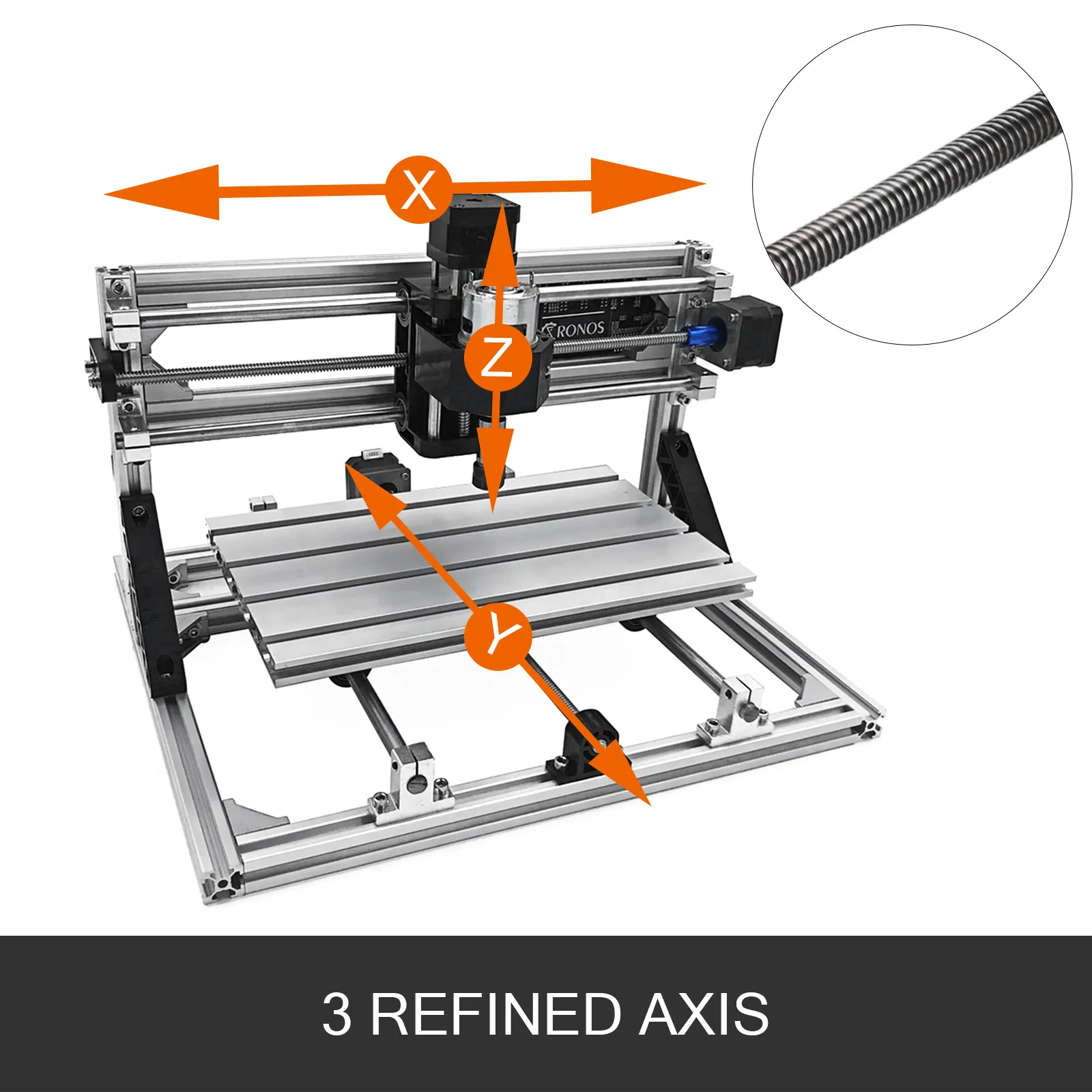

Three Refined Axes
The axes are equipped with knobs to help you move the carving machine manually, significantly improving working efficiency for a precise carving setting.

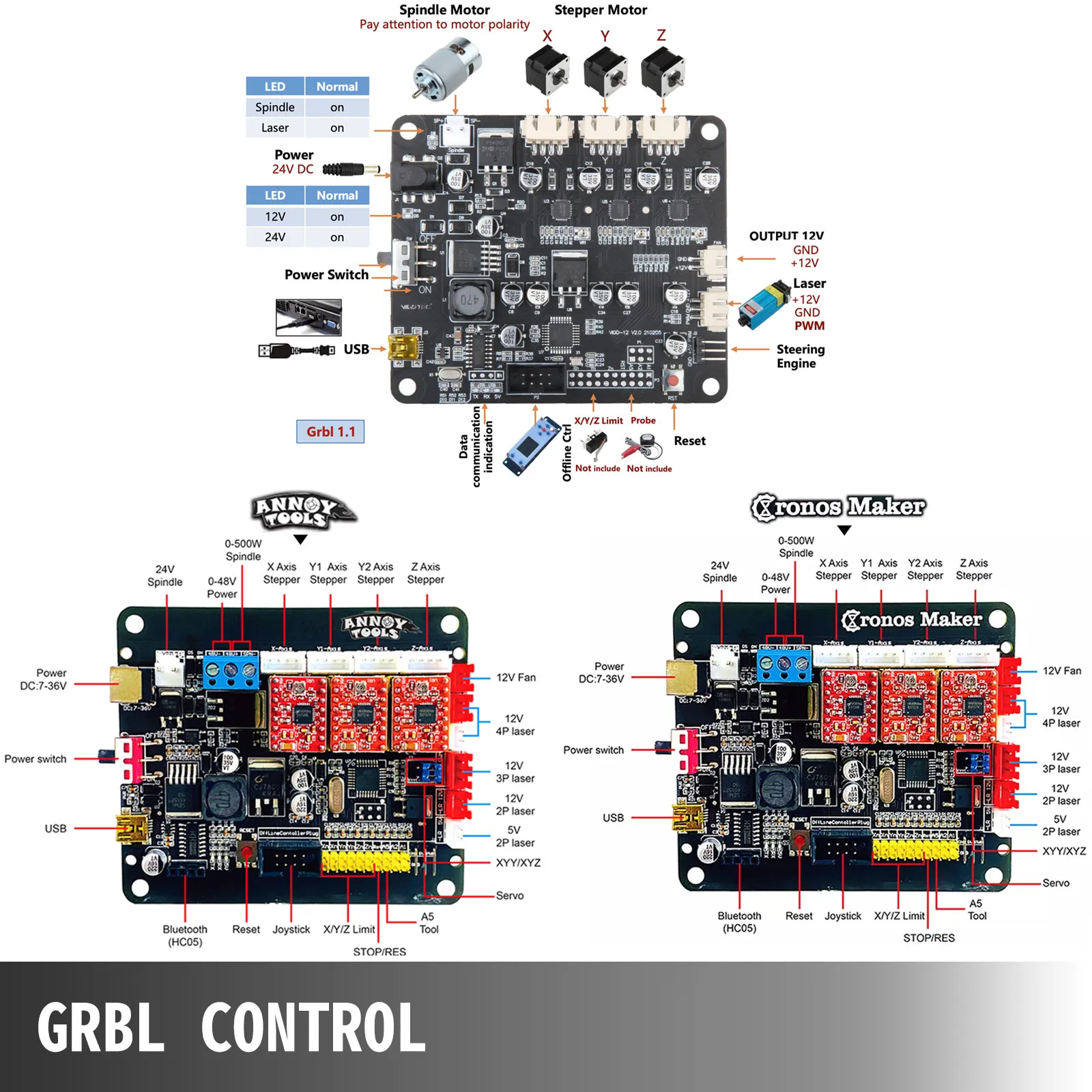

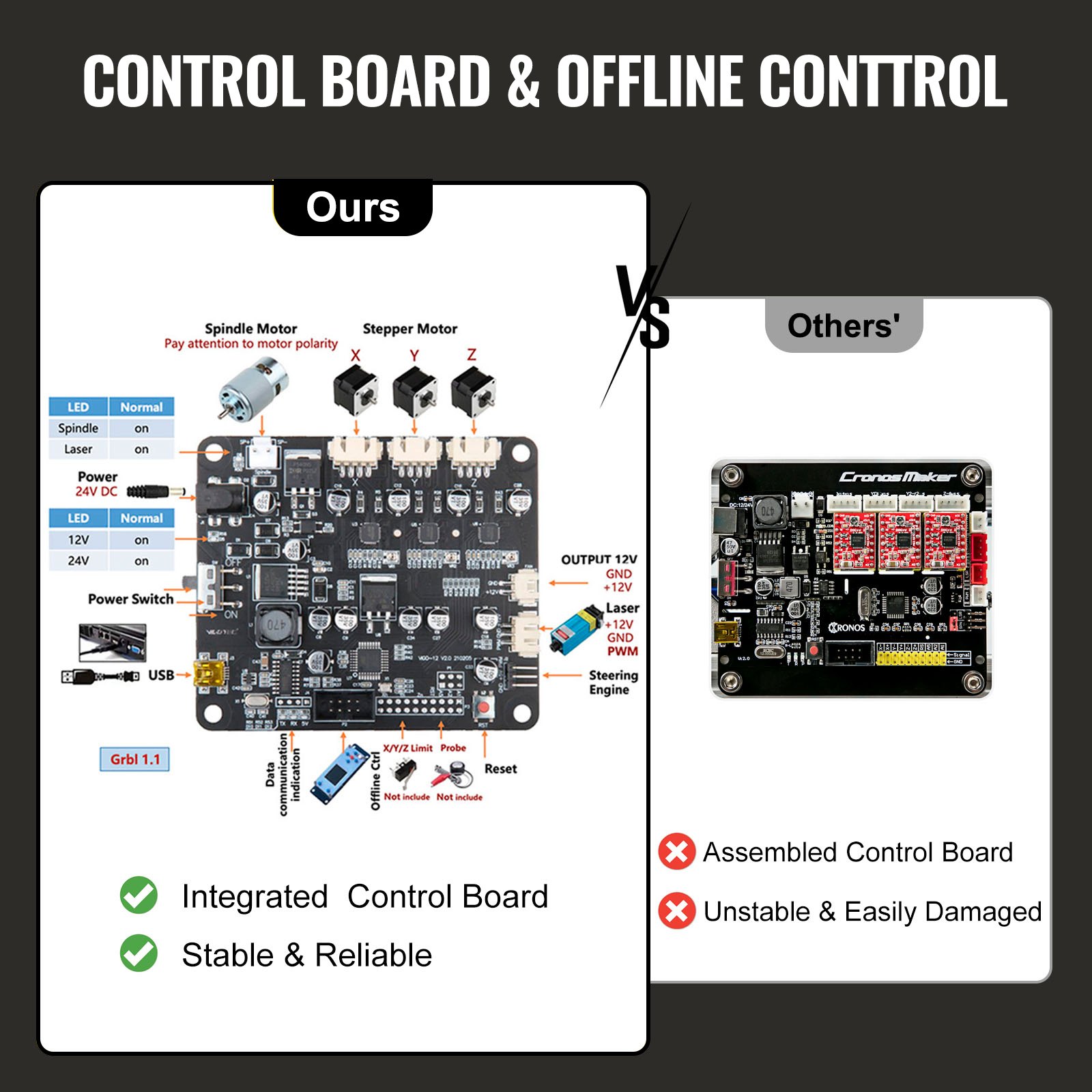

GRBL Control Board
The engraving machine is equipped with an integrated GRBL control board independently with full functions of X / Y / Z axis CNC control and laser engraving control.

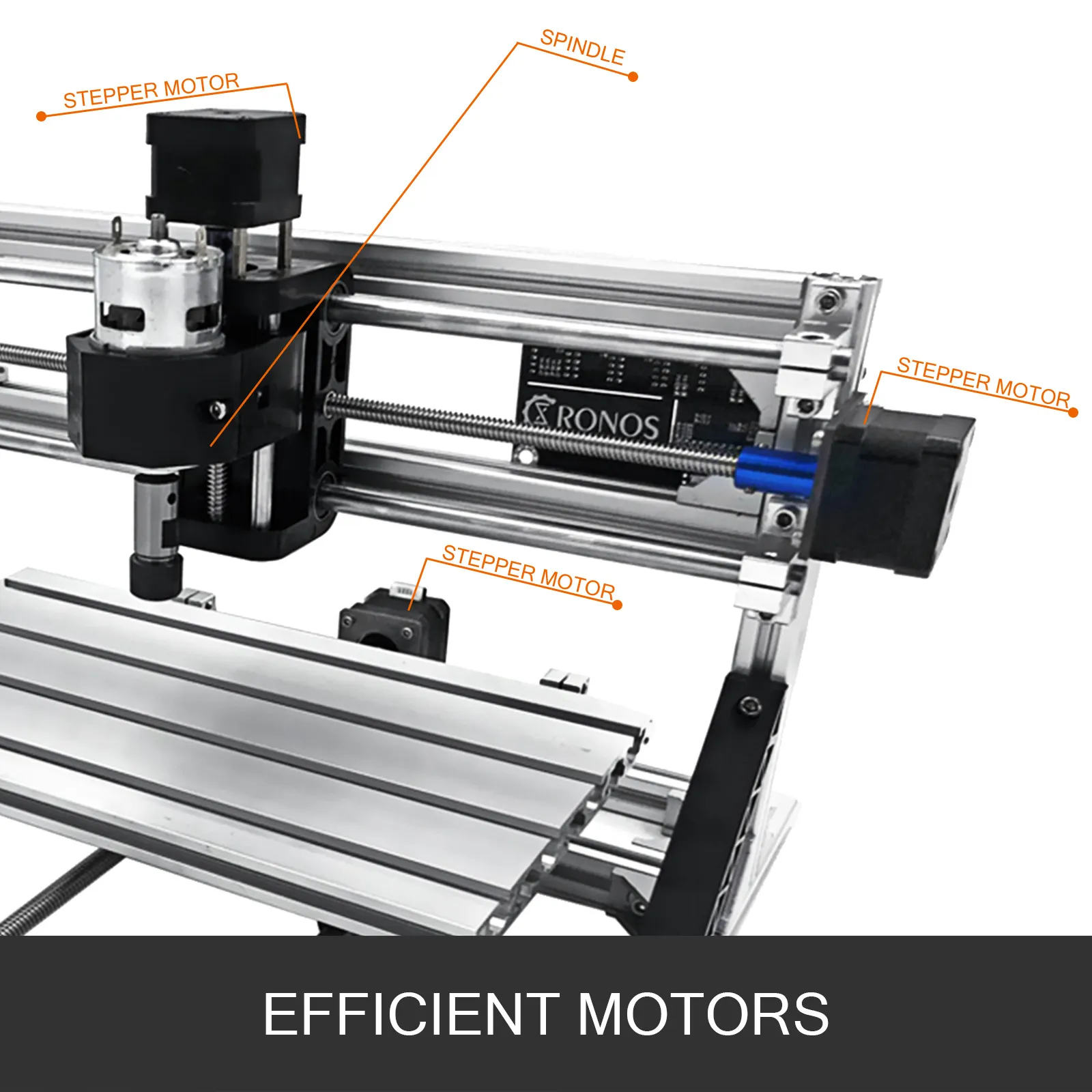

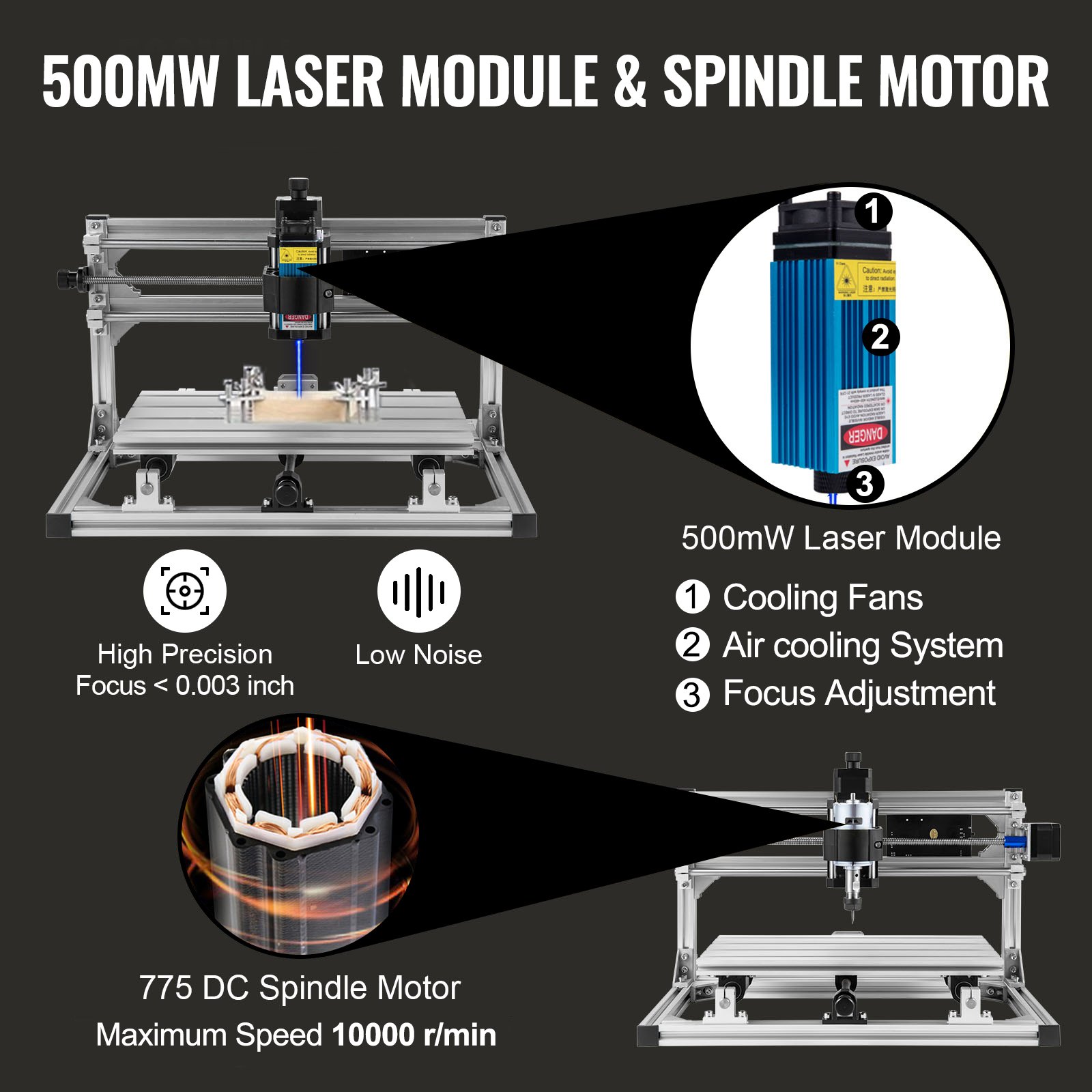

High-Efficiency Motors
There are three 42 stepper motors on three axes for smooth movement. The 775 (12-36V)24V spindle motor on the Z-axis can reach the speed of 10000r/min.
Hassle-free to Assemble
For your convenience, we provide a detailed user manual, assembly instructions, and installation video. You can enjoy the delight of using an engraving machine according to these descriptions.

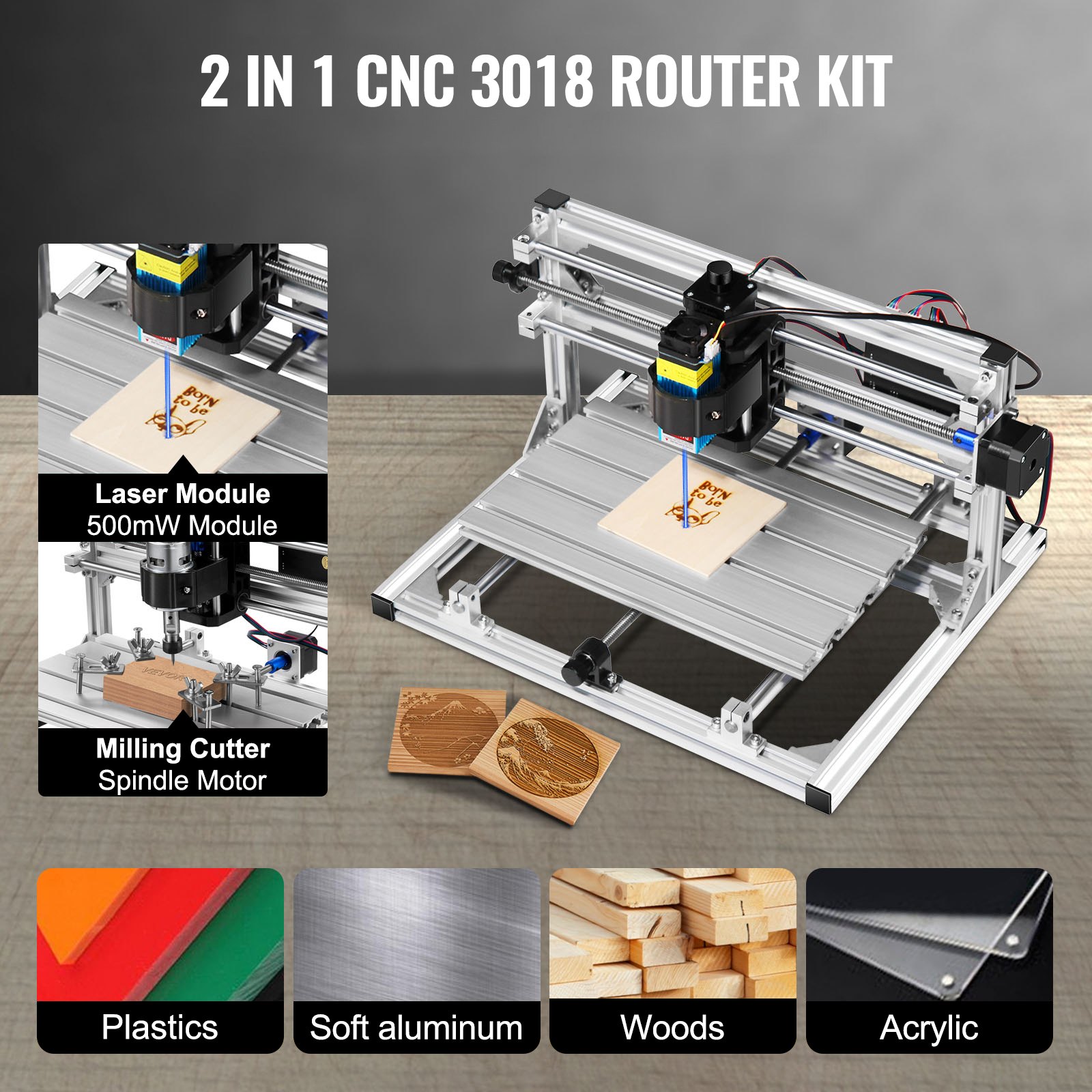

Extensive Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
Specifications
- Model: VG-S3018
- Effective Working Area(X x Y x Z): 11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm
- Materials: 2020 Aluminum
- Input Power: DC 24V 5A
- Driving Units: T8 Stainless Steel Screws
- Spindle Speed: 10000 rpm
- Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
- Control Software: GRBL Control
- Cutter Diameter: 0.125" / 3.175 mm
- Positioning Accuracy: 0.003"-0.004" / 0.08-0.1 mm

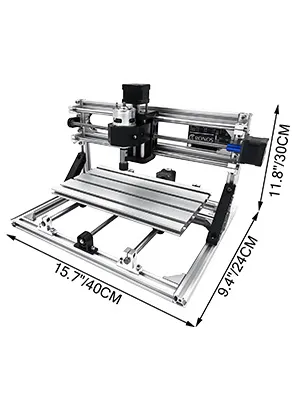

- Item Dimension: 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm

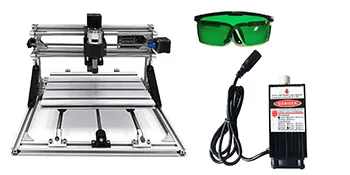

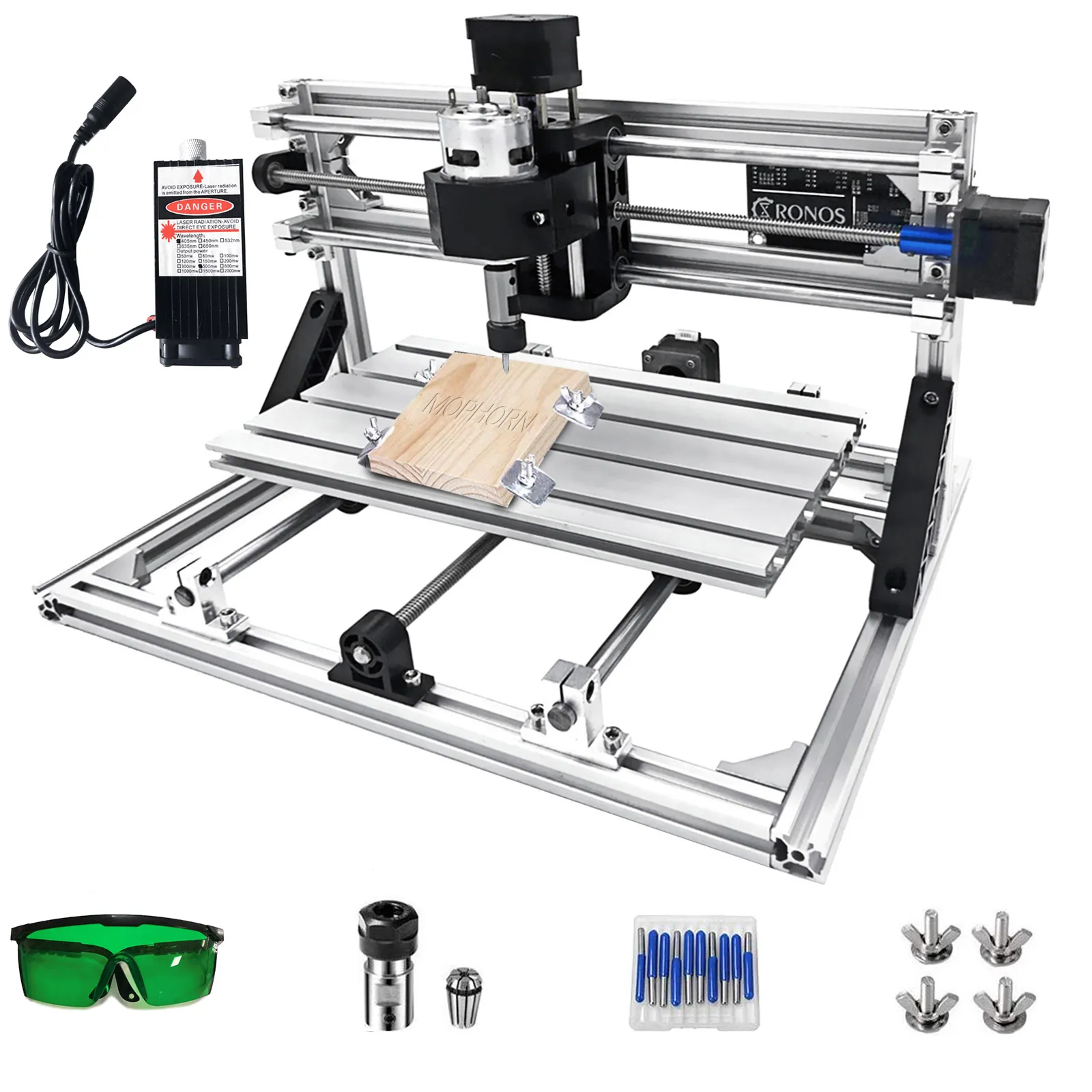

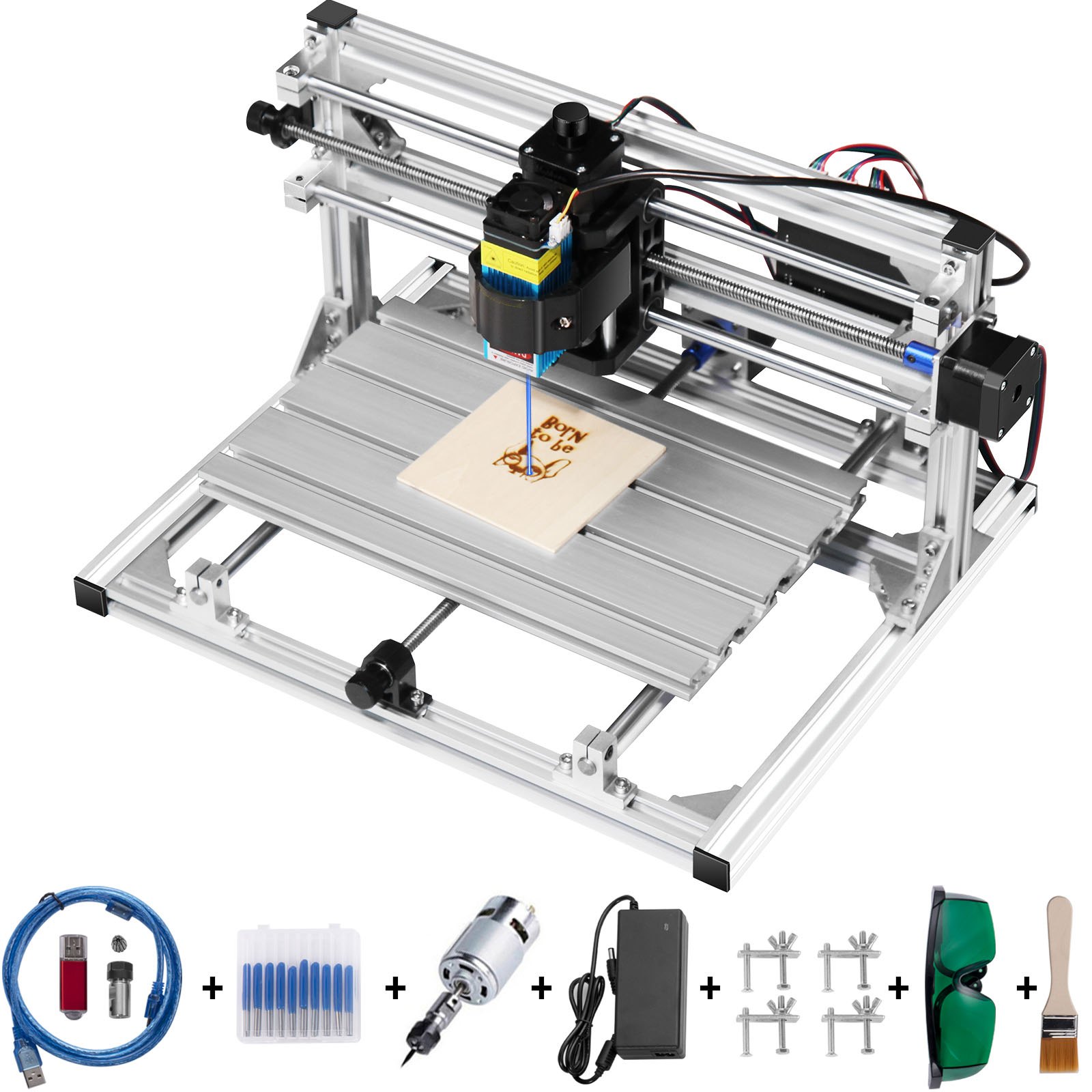

Package Content
- 1 x 3018 CNC Router Kit

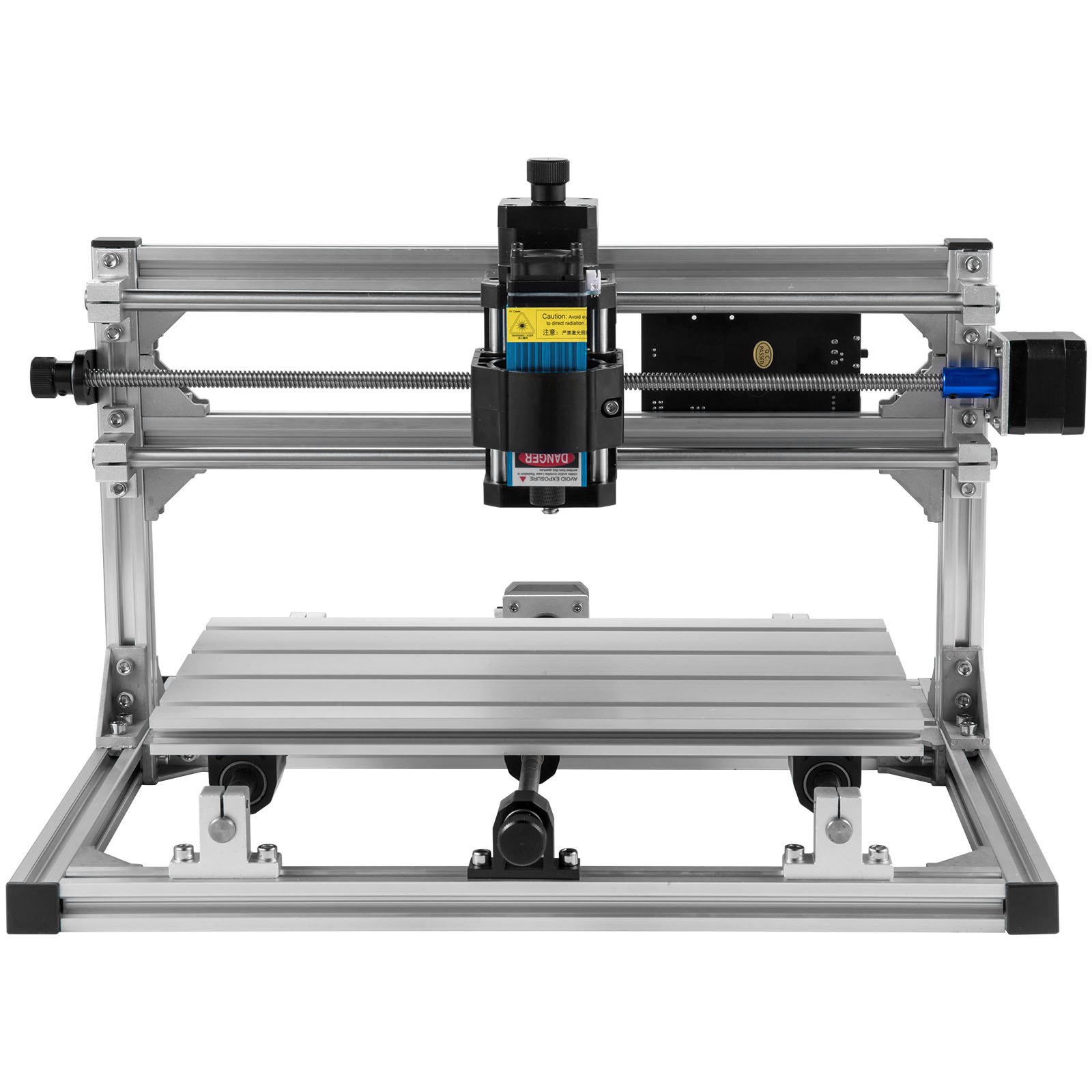

- 1 x 500mw Laser Module
- 1 x Spindle
- 1 x U-Disk (Software & Instruction)
- 1 x Power Supply
- 1 x USB Cable
- 1 x Set of Milling Cutter
- 1 x Pair of Protective Glasses
- 1 x Set of Tools
- 1 x Brush
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
CNC 3018 Engraving Machine
Our CNC 3018 adopts premium aluminum material, ideal for engraving plastics, woods, acrylics, PVCs, PCBs, and other soft materials. It is equipped with a GRBL control board and high-speed motor to achieve X/Y/Z axis CNC control and laser engraving control to be an excellent affordable self-learning engraving tool.
- Durable Aluminum Profiles
- Upgraded Three Axes
- Convenient GRBL Control
- High-Speed Motors
- Effortless Operation
2020 Aluminum Material
The frame is mainly made of 2020 aluminum, and the fixed parts are constructed of large-size die-casting aluminum, which is of good appearance, high precision, and durability.
Three Refined Axes
The axes are equipped with knobs to help you move the carving machine manually, significantly improving working efficiency for a precise carving setting.
GRBL Control Board
The engraving machine is equipped with an integrated GRBL control board independently with full functions of X / Y / Z axis CNC control and laser engraving control.
High-Efficiency Motors
There are three 42 stepper motors on three axes for smooth movement. The 775 (12-36V)24V spindle motor on the Z-axis can reach the speed of 10000r/min.
Hassle-free to Assemble
For your convenience, we provide a detailed user manual, assembly instructions, and installation video. You can enjoy the delight of using an engraving machine according to these descriptions.
Extensive Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
Package Content
- 1 x 3018 CNC Router Kit
- 1 x 500mw Laser Module
- 1 x Spindle
- 1 x U-Disk (Software & Instruction)
- 1 x Power Supply
- 1 x USB Cable
- 1 x Set of Milling Cutter
- 1 x Pair of Protective Glasses
- 1 x Set of Tools
- 1 x Brush
Specifications
- Model: VG-S3018
- Effective Working Area(X x Y x Z): 11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm
- Materials: 2020 Aluminum
- Input Power: DC 24V 5A
- Driving Units: T8 Stainless Steel Screws
- Spindle Speed: 10000 rpm
- Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
- Control Software: GRBL Control
- Cutter Diameter: 0.125" / 3.175 mm
- Positioning Accuracy: 0.003"-0.004" / 0.08-0.1 mm
- Item Dimension: 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (3)
Hi,
Can the laser module be upgraded on this..?
Thanks
Yes, you need to purchase a laser head separately.
By vevor
Helpful
(
0
)
is there files already created or can you download files
The file is shown in the link: http://qiniu.vevor.net/20200319115439427.pdf
By vevor
Helpful
(
0
)
Will this engrave fine silver plate 10cm by 10cm
No, the machine works on plastics, woods, acrylics, PVCs, PCBs, and other soft materials.
By vevor
Helpful
(
0
)
