Features & Details
- CNC 3040 Router Machine: CNC 3040 is an upgraded version of the old product. We provide a detailed user manual, assembly instructions, and installation video for your convenience. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more.

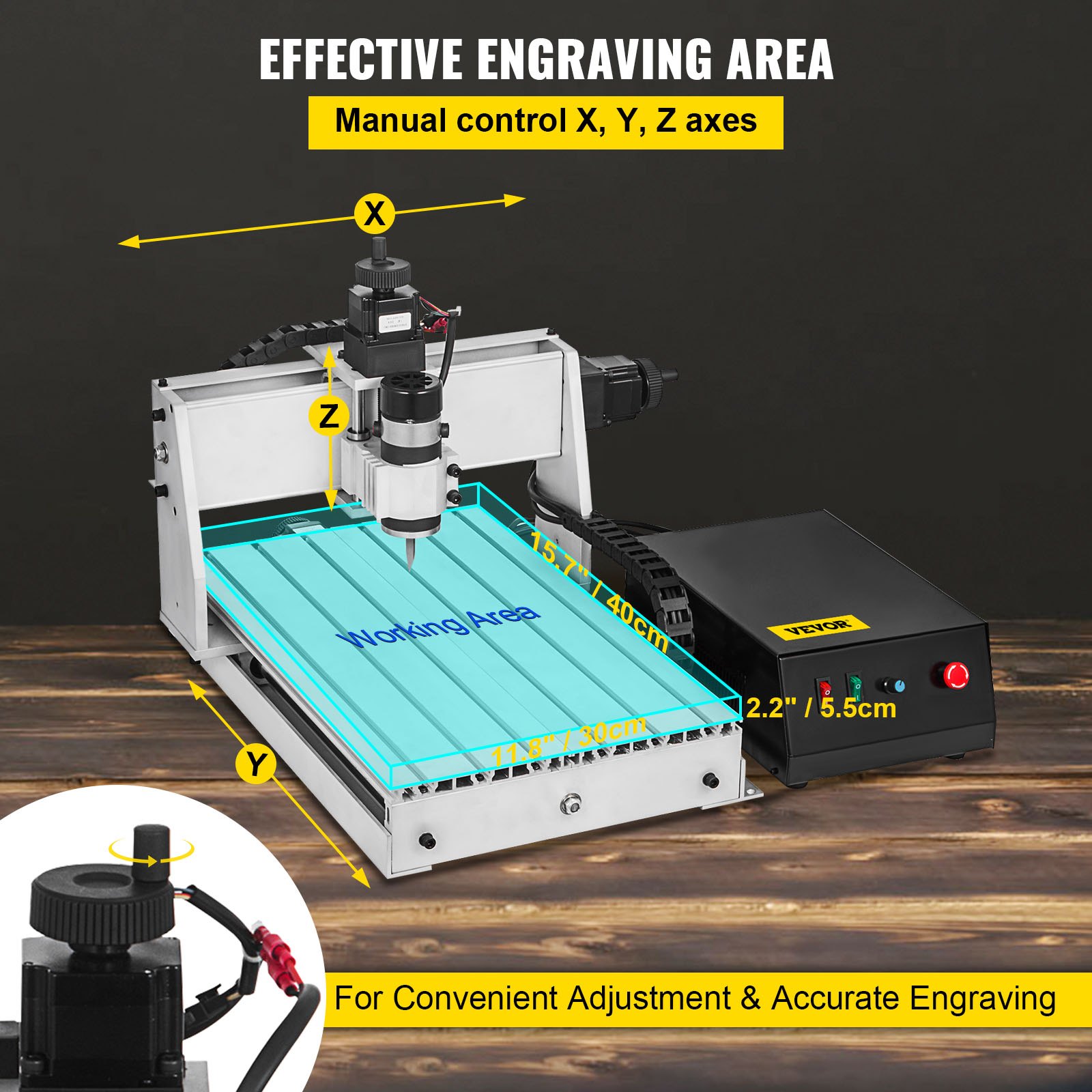

- Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 15.7(Y) x 2.2(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. X & Y axis ball screw and nuts can reduce friction and improve accuracy.

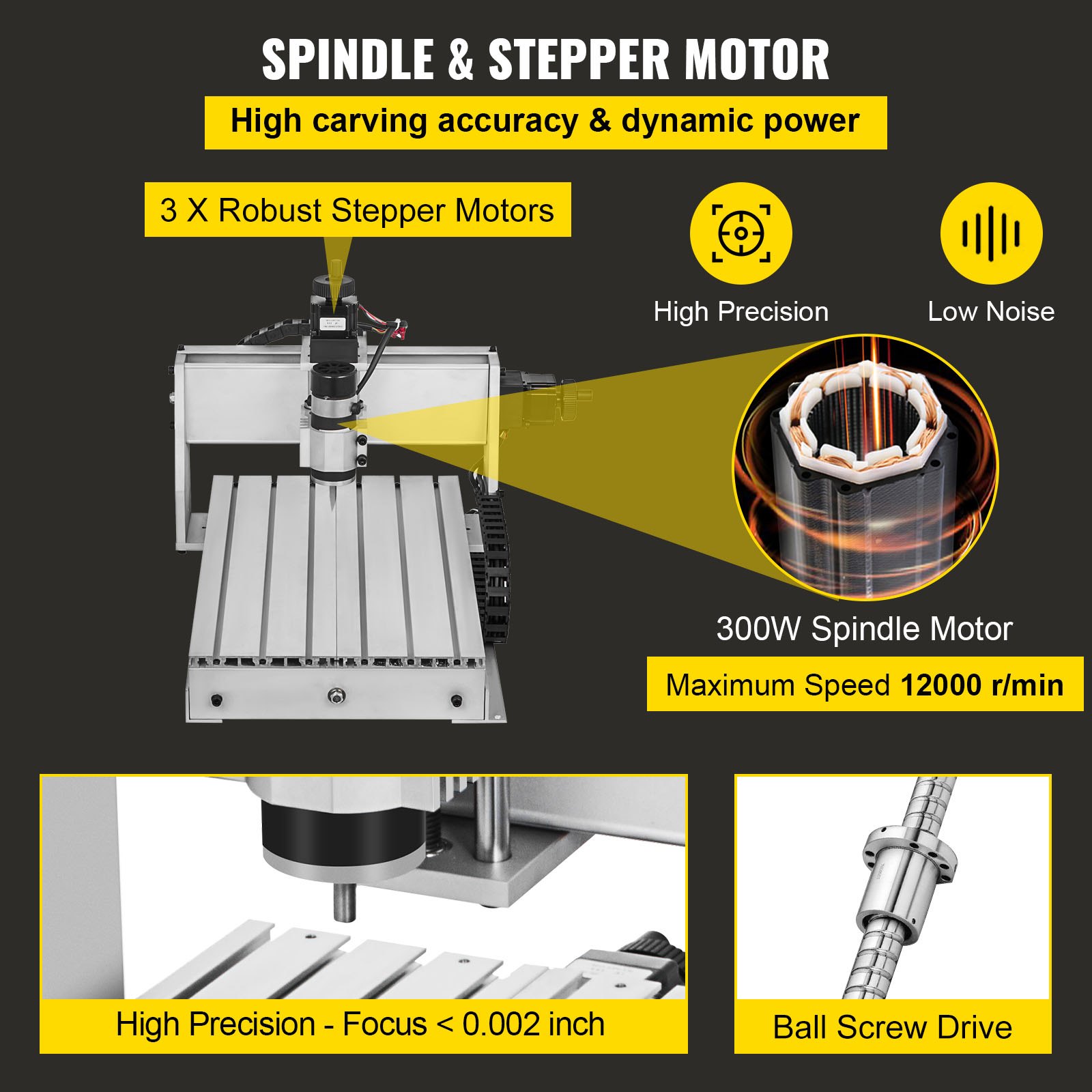

- Excellent Motor: This CNC engraving machine is equipped with three stepper motors(2A; 18V) and 300W DC spindle motors with a 12000 r/min rotational speed. And the engraver supports Windows XP, Windows 7, Windows 8, Windows 10 system, and other software to directly import .nc/.ncc/.txt/.tap/ format files for engraving. High precision: less than 0.002 inches.

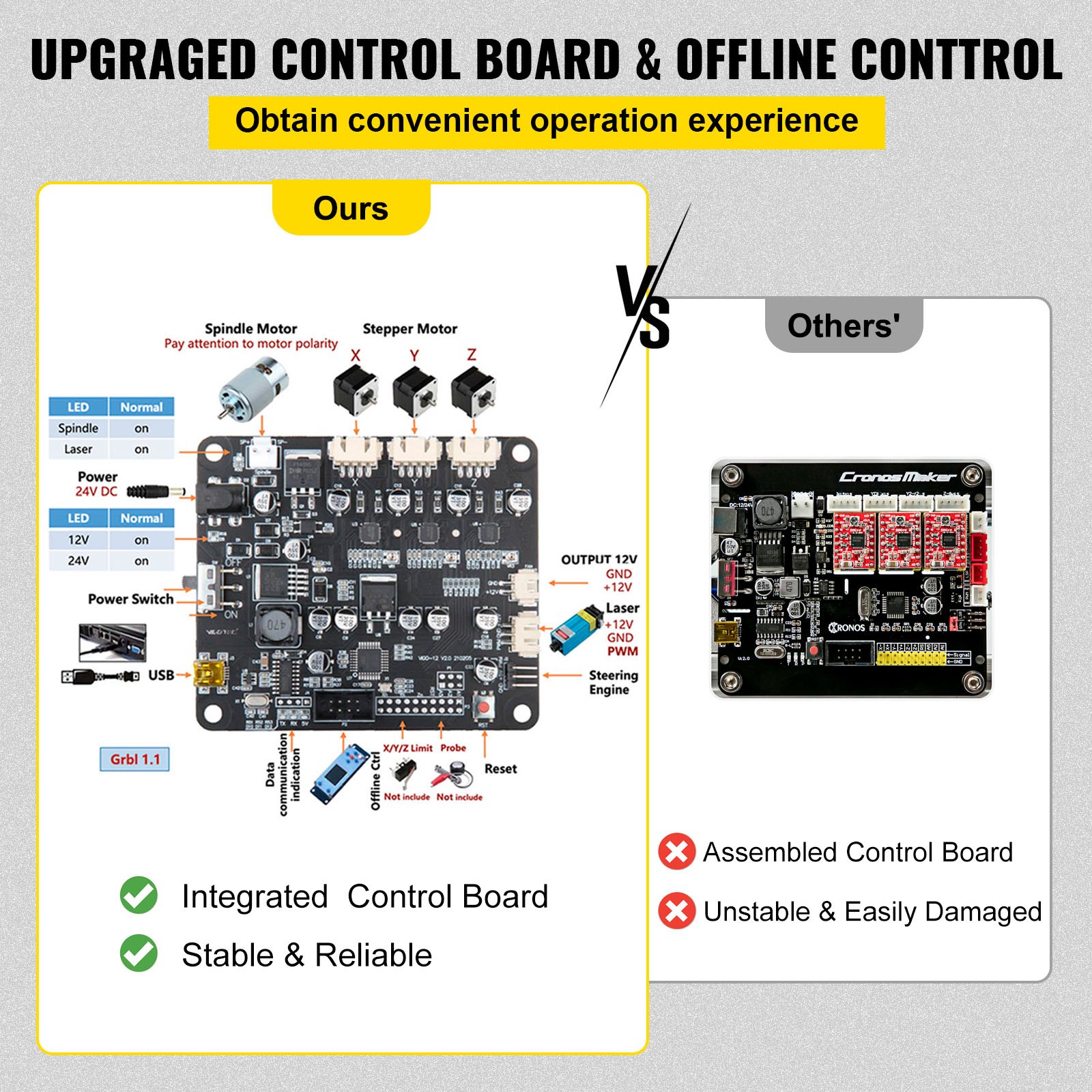

- Upgraded Control Box: Flexible coupling can be used for high torque transmission. This cutting machine has an independent offline controller. 1. No need to connect to the computer. 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle. 4. Helpful speed control and emergence stop bottoms. 5. Supported software: Mach 3.
- Sturdy Material: The frame is mainly made of aluminum alloy materials, with high strength. The chrome shafts are not easy to deform, designed aluminum dust-proof plate for easy cleaning, and suitable for long time use. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 31 reviews
Reviews 4.8
All reviews are from verified purchases
See all 31 reviews
About this item
Product specification

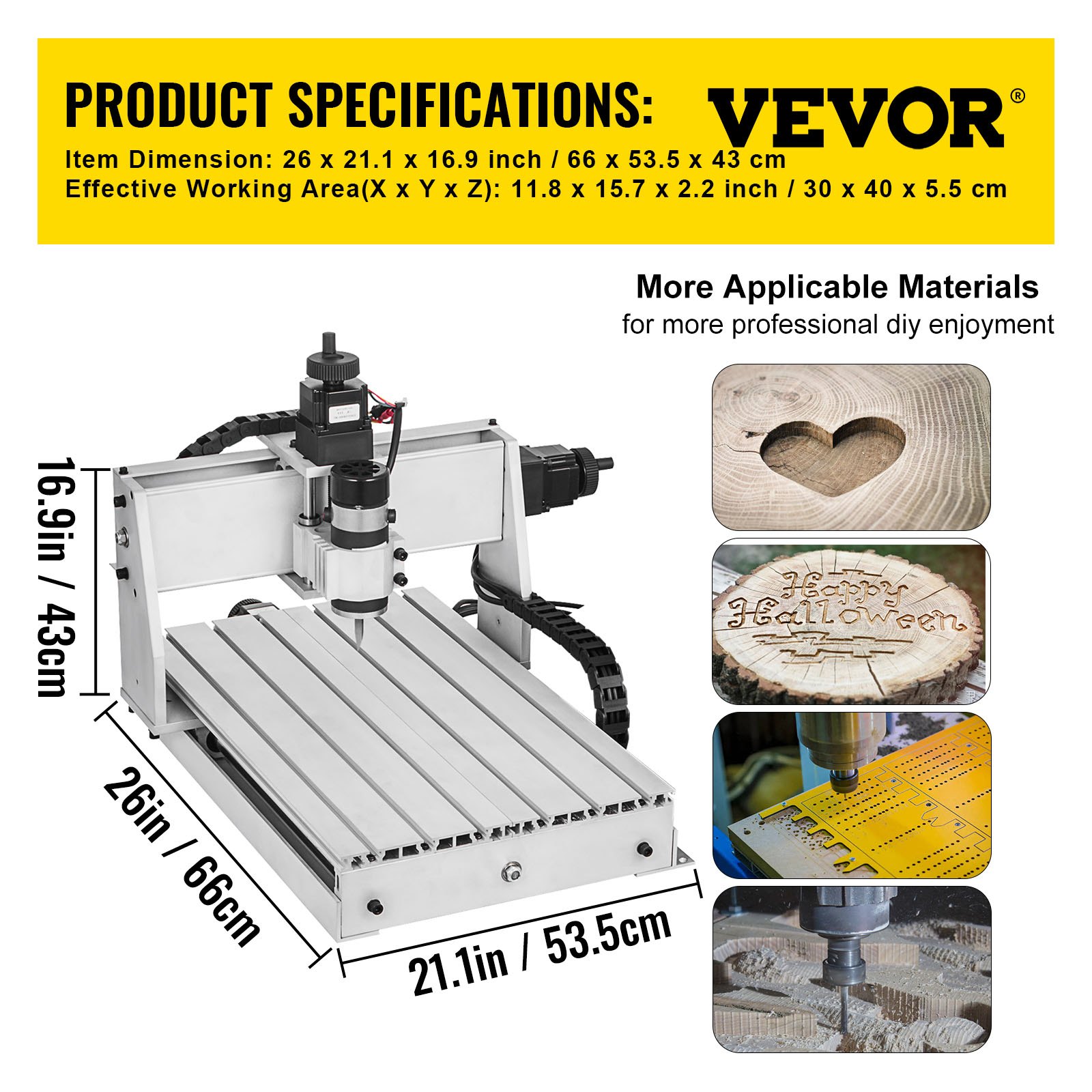

- Effective Working Area(X x Y x Z)
- 11.8 x 15.7 x 2.2 inch/ 30 x 40 x 5.5 cm
- Materials
- Aluminum Alloy
- Spindle Speed
- 12000 rpm
- Stepping Motor
- 2A 18V; ≥2400mN.m torque
- Spindle Motor
- 300W DC Motor, 0V~48V
- Control Software
- Mach 3
- Cutter Diameter
- 0.125 inch / 3.175 mm
- Machine Weight
- 25.5kg (56.2 lbs)
- Positioning Accuracy
- 0.002 inch/ 0.05 mm

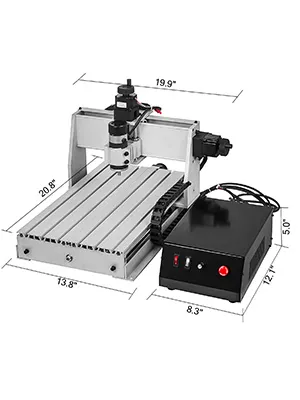

- Item Dimension
- 26 x 21.1 x 16.9 inch/ 66 x 53.5 x 43 cm
Description

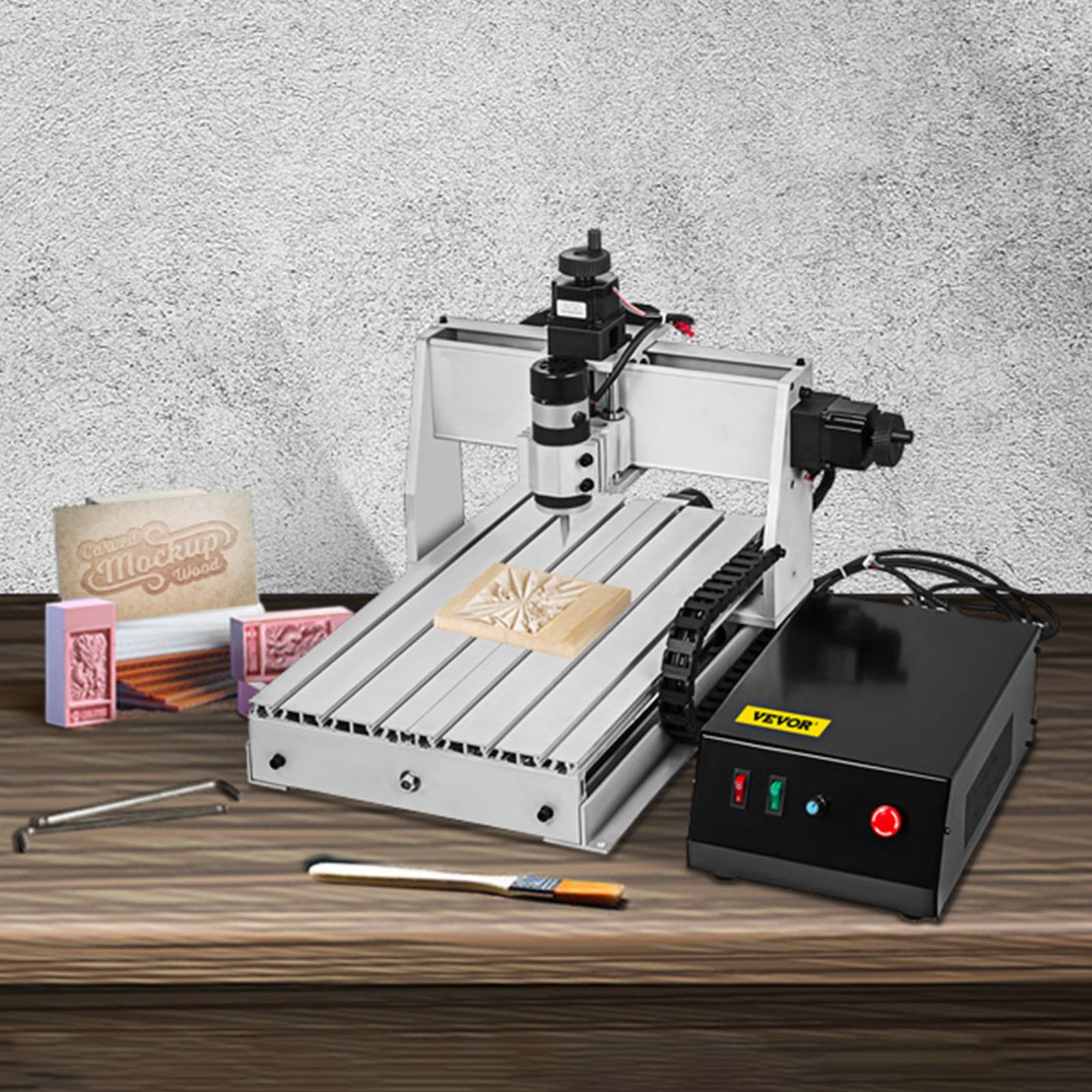

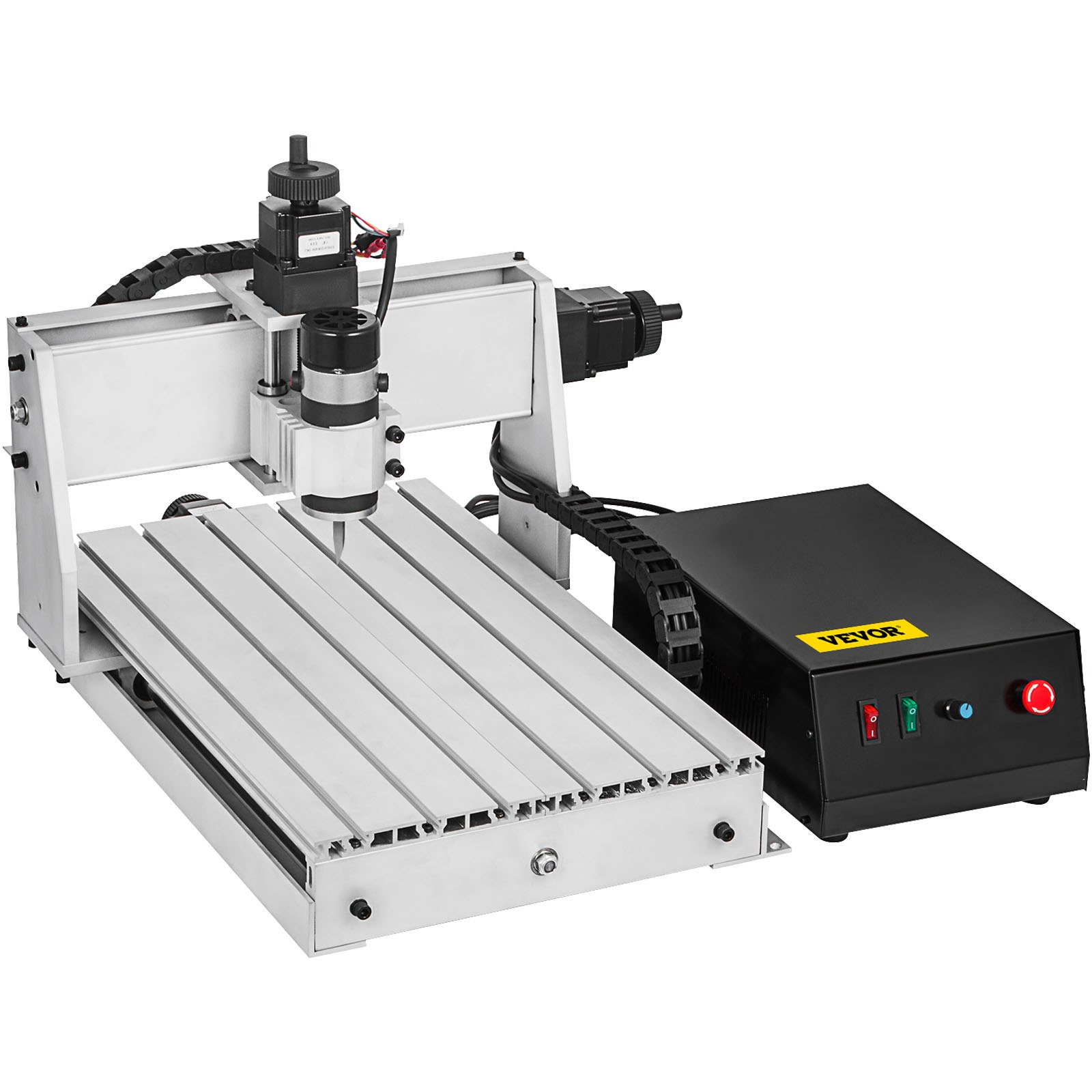

3 Axis CNC 3040 Engraving Milling Machine
The CNC 3040 router with 3 axis is suitable for Industry, technology research, advertising design, arts creation, student project and etc. The engraving process is visible as controlled by computer. It is a desktop CNC machine, designed for processing standard level of engraving, suitable for both production and amateur use.
- Well-Designed Axis
- High Efficiency
- Precise Control
- Superior Working Area
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

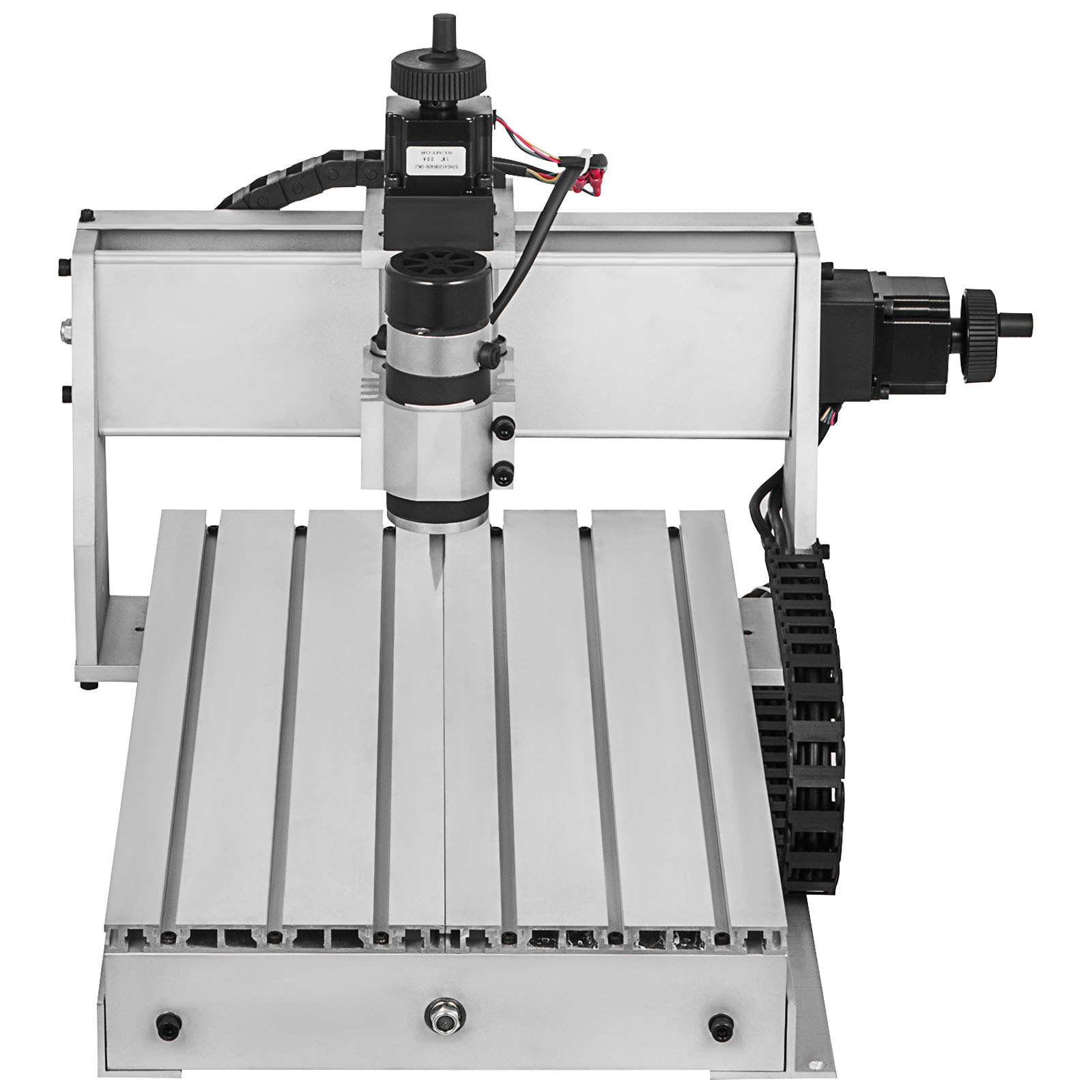

3 Refined Axis
Equipped with 3 axis, able to realize plane engraving, whose effective working travel is 300(X)x400(Y)x55(Z)mm.

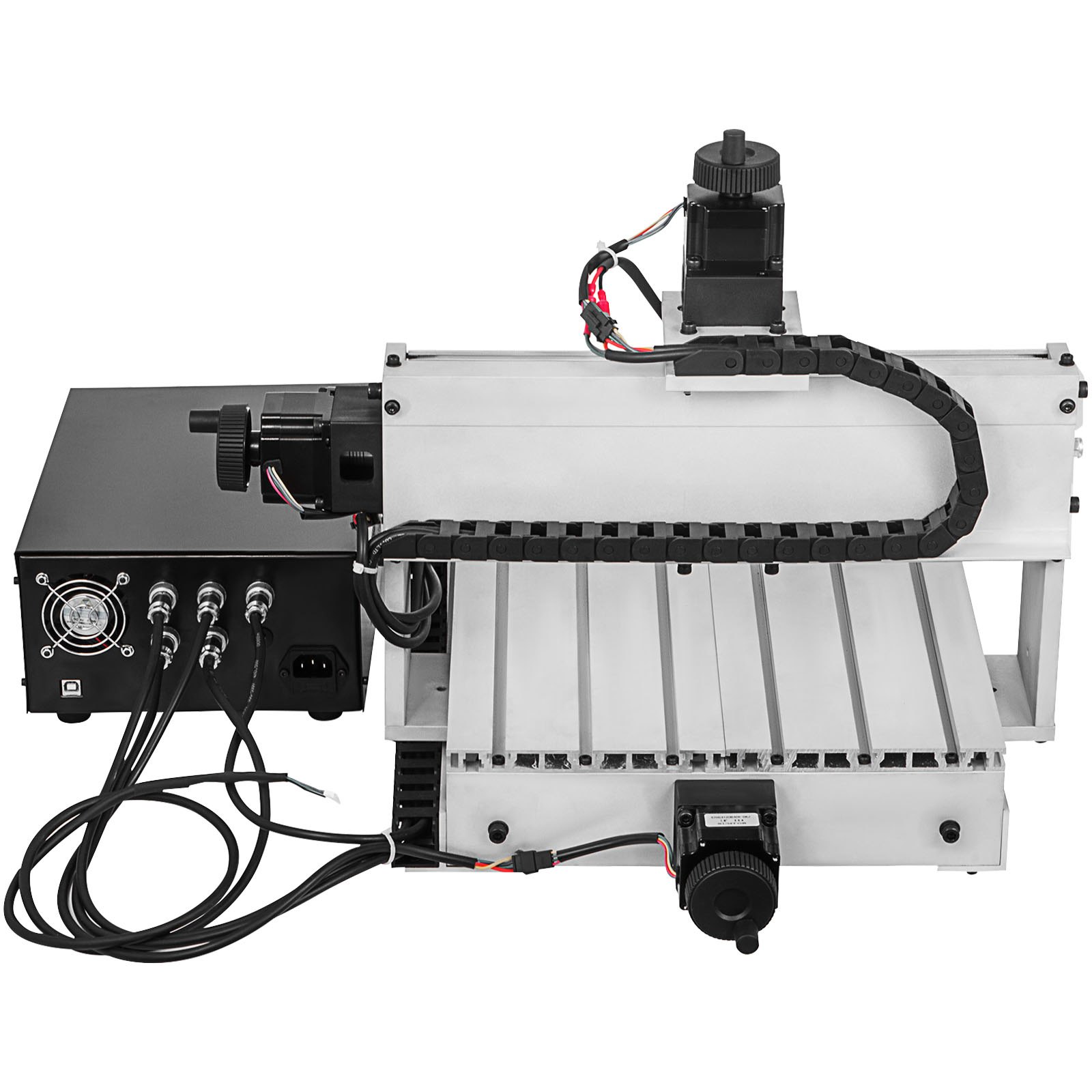

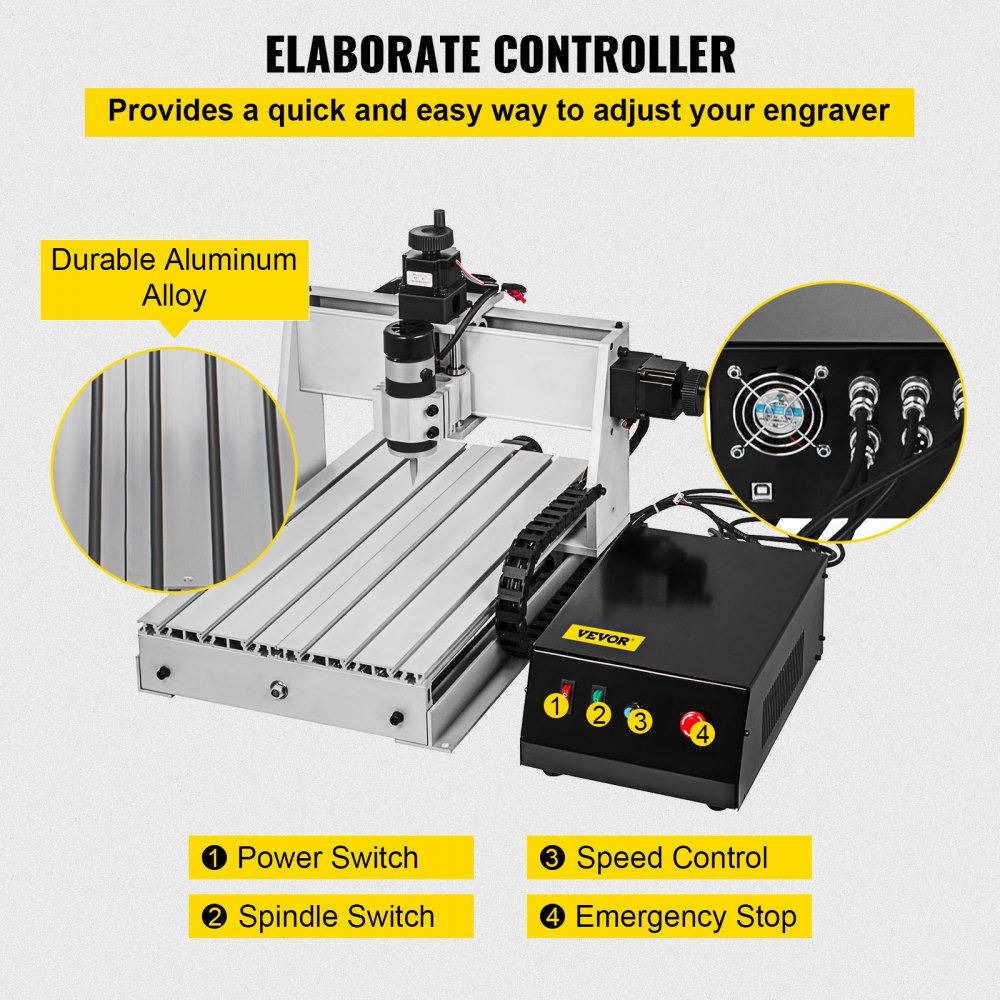

Elaborate Controller
The engraving milling machine comes with a controller with built-in well-made transformer, which provides stable power for the control unit for long time continuous use, featuring one-to-one interface design and emergency stop button for high safety.

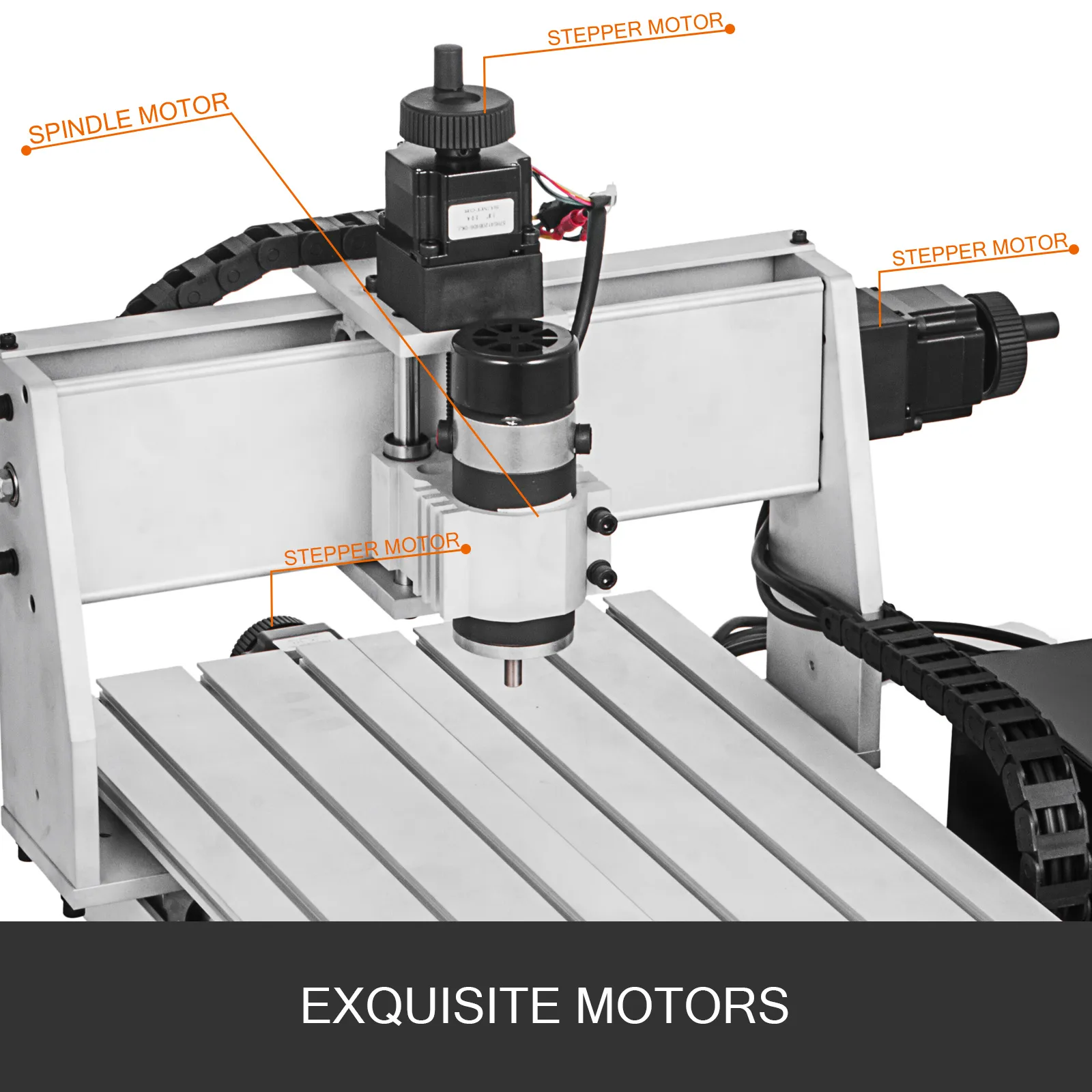

Exquisite Motors
Equipped with a 57 two-phase stepper motor(2A) on each of the three axis for easy movement, which are reliably connected by external couplings for high torque transfer. And the knobs with small handles on stepper motors can realize positioning adjustment. The 300W spindle motor on Z axis is able to reach the speeds of 8000 rpm/min(stepless speed regulation).

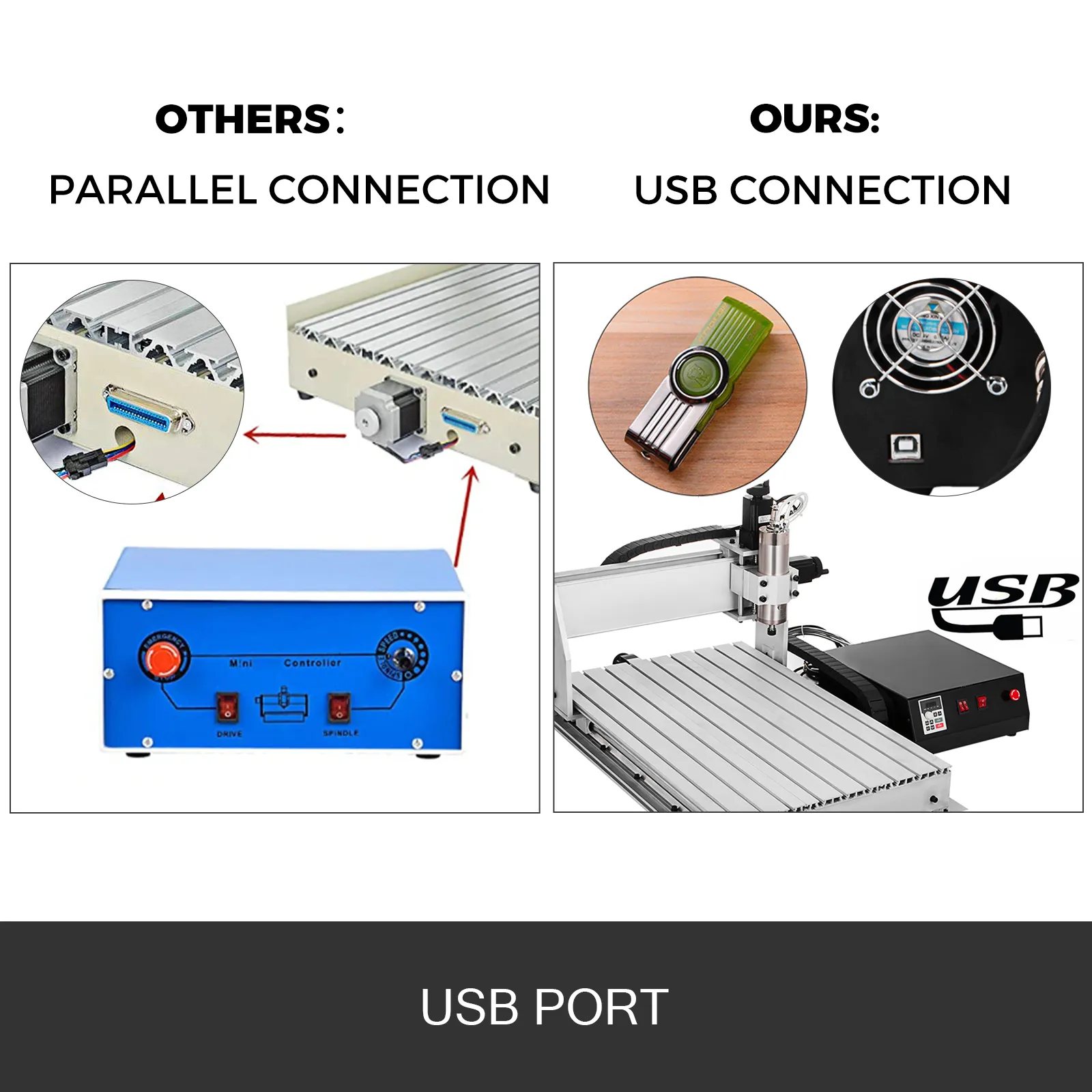

USB Port
Equipped with a USB flash drive, which can be directly connected to the computer instead of optical disc drive. Instruction manual, operating software Mach3 installation package and other related data are included.
Aluminium Worktable
Made of 6061 aluminium alloy and 6063 industrial aluminum. Aluminum backing plate and dust-proof plate are effective in preventing chips from splashing onto the screw and the optical axis, for long-term use and easy cleaning. The large worktable (320x525x15mm) provides higher enforce-ability for engraving.
Widespread Use
This engraving milling machine can be widely used in the engraving of soft materials such as plastic, wood, acrylic, PVC, PCB, etc. It is a perfect tool designed for processing advertising signs, artwork, crafts, models, etc.
Specifications
- Power: 300W
- Effective Working Travel：300(X)Mm*400(Y)Mm*55(Z)Mm (11.8"*15.7"*2.2")
- Shape Dimension：610*450*390mm (24.0"*17.7"*15.4")
- Max.Workpiece Dimension：320mm*525mm≤65mm (12.6"*20.7"≤2.6")
- Frame Materials：6061 Aluminum Alloy + 6063 Industrial Aluminum
- Driving Units X/Y/Z Axis:1202 Trapezoidal Screws
- Spindle Speed: 0 ~ 8000rpm/Min (Stepless Speed Regulation)
- Repeat Accuracy: ≤0.05mm (0.002")
- Carving Speed:0-1000mm/Min (Different Materials Differ)
- Machine Weight: 25.5kg (56.2 lbs)

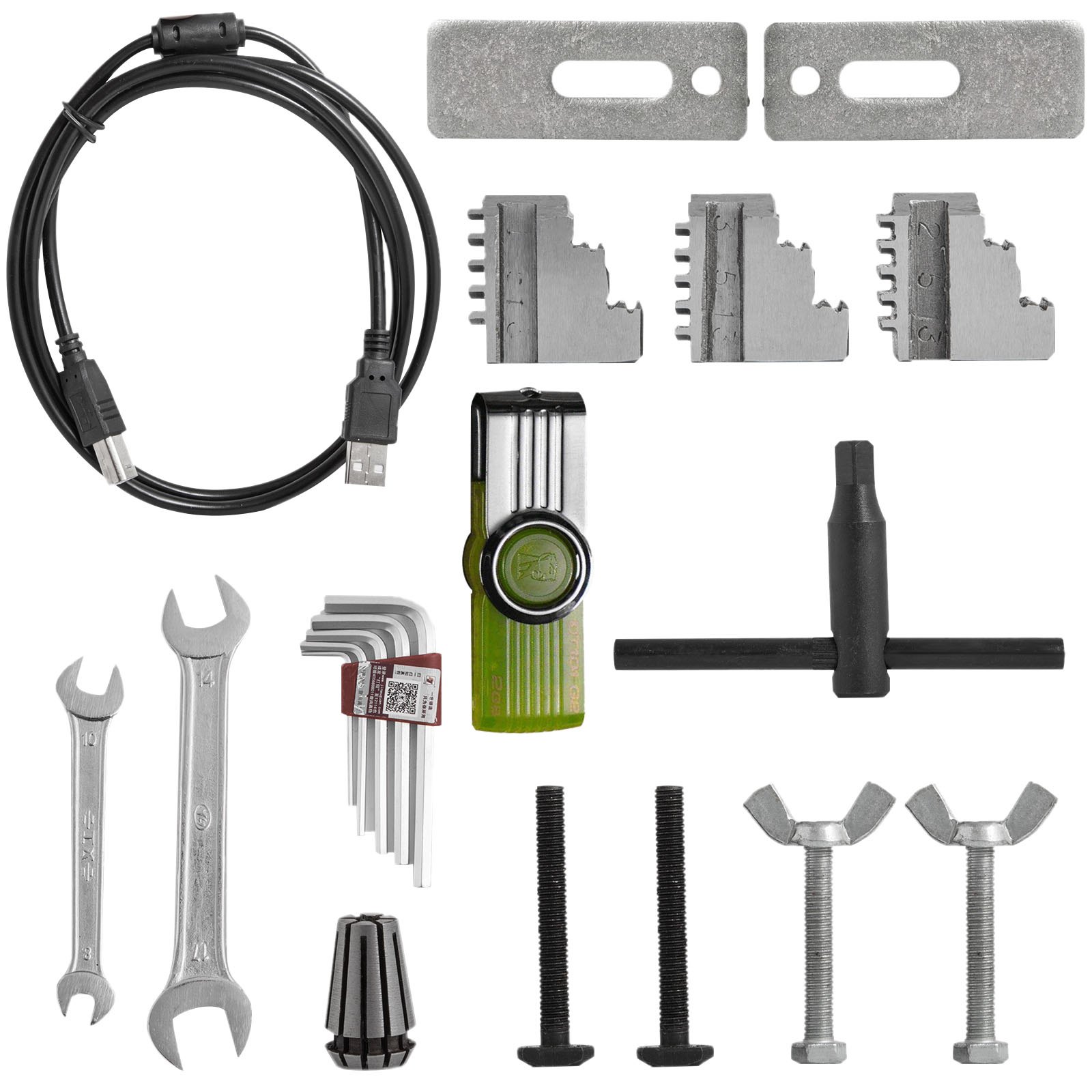

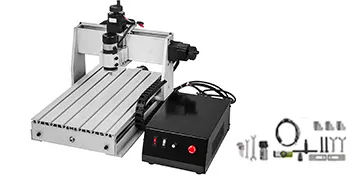

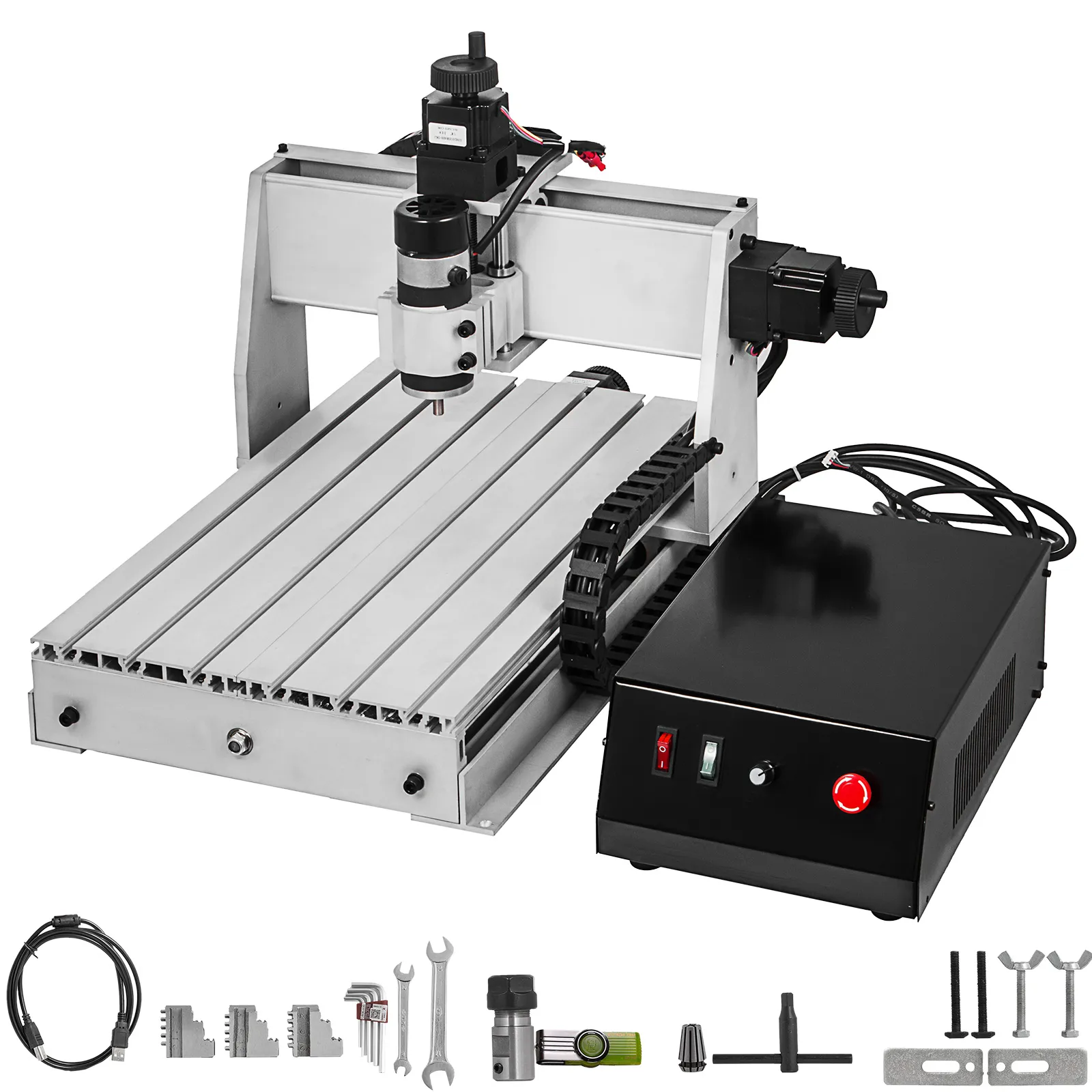

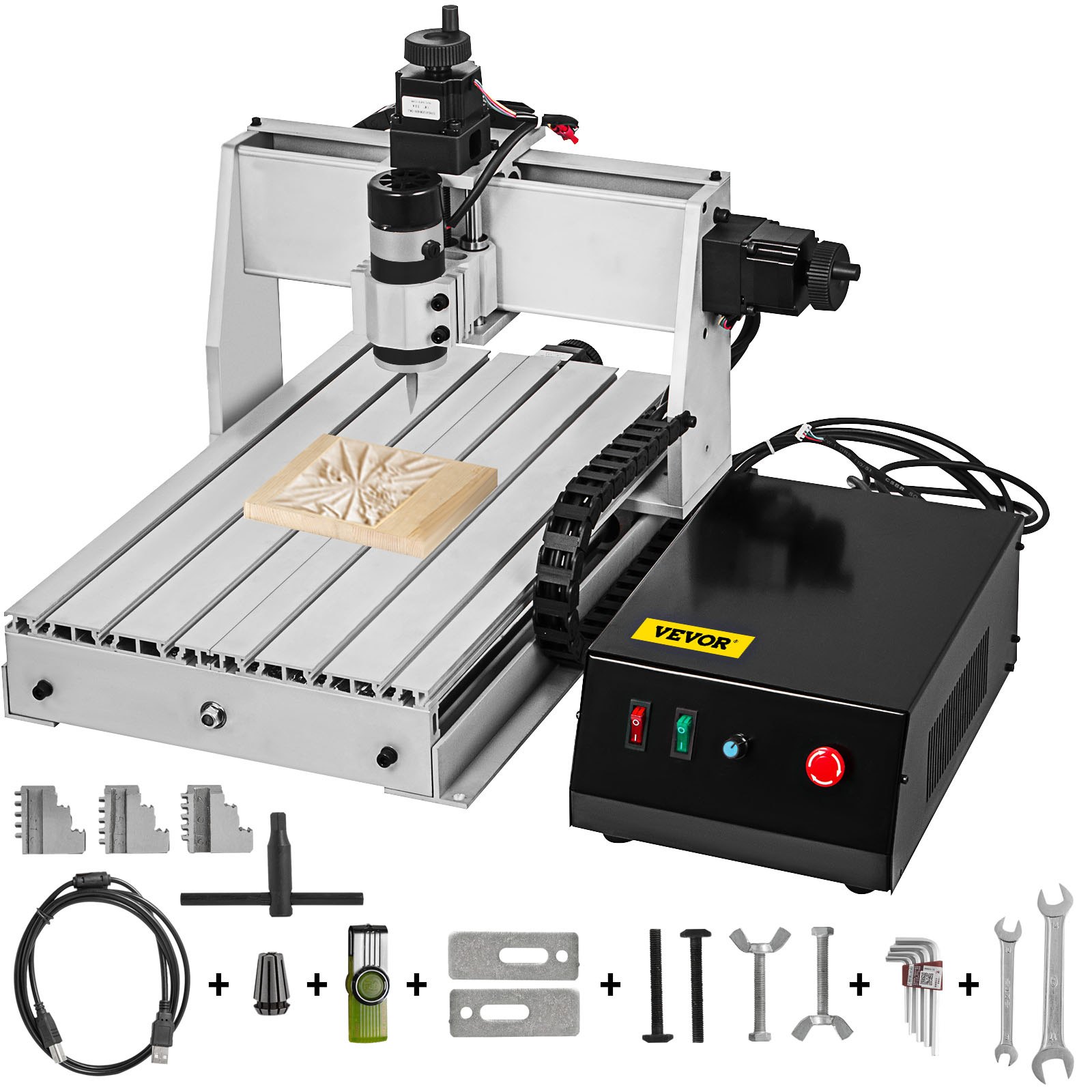

Package Content
- 1 x 3 Axis CNC 3040 Engraving Milling Machine
- 1 x USB Cable
- 1 x USB Disk
- 1 x A Set Of Installation Tools
- 1 x Cutting Tool
- 1 x Z Axis Automatic Setting Tool
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
3 Axis CNC 3040 Engraving Milling Machine
The CNC 3040 router with 3 axis is suitable for Industry, technology research, advertising design, arts creation, student project and etc. The engraving process is visible as controlled by computer. It is a desktop CNC machine, designed for processing standard level of engraving, suitable for both production and amateur use.
- Well-Designed Axis
- High Efficiency
- Precise Control
- Superior Working Area
3 Refined Axis
Equipped with 3 axis, able to realize plane engraving, whose effective working travel is 300(X)x400(Y)x55(Z)mm.
Elaborate Controller
The engraving milling machine comes with a controller with built-in well-made transformer, which provides stable power for the control unit for long time continuous use, featuring one-to-one interface design and emergency stop button for high safety.
Exquisite Motors
Equipped with a 57 two-phase stepper motor(2A) on each of the three axis for easy movement, which are reliably connected by external couplings for high torque transfer. And the knobs with small handles on stepper motors can realize positioning adjustment. The 300W spindle motor on Z axis is able to reach the speeds of 8000 rpm/min(stepless speed regulation).
USB Port
Equipped with a USB flash drive, which can be directly connected to the computer instead of optical disc drive. Instruction manual, operating software Mach3 installation package and other related data are included.
Aluminium Worktable
Made of 6061 aluminium alloy and 6063 industrial aluminum. Aluminum backing plate and dust-proof plate are effective in preventing chips from splashing onto the screw and the optical axis, for long-term use and easy cleaning. The large worktable (320x525x15mm) provides higher enforce-ability for engraving.
Widespread Use
This engraving milling machine can be widely used in the engraving of soft materials such as plastic, wood, acrylic, PVC, PCB, etc. It is a perfect tool designed for processing advertising signs, artwork, crafts, models, etc.
Package Content
- 1 x 3 Axis CNC 3040 Engraving Milling Machine
- 1 x USB Cable
- 1 x USB Disk
- 1 x A Set Of Installation Tools
- 1 x Cutting Tool
- 1 x Z Axis Automatic Setting Tool
Specifications
- Power: 300W
- Effective Working Travel：300(X)Mm*400(Y)Mm*55(Z)Mm (11.8"*15.7"*2.2")
- Shape Dimension：610*450*390mm (24.0"*17.7"*15.4")
- Max.Workpiece Dimension：320mm*525mm≤65mm (12.6"*20.7"≤2.6")
- Frame Materials：6061 Aluminum Alloy + 6063 Industrial Aluminum
- Driving Units X/Y/Z Axis:1202 Trapezoidal Screws
- Spindle Speed: 0 ~ 8000rpm/Min (Stepless Speed Regulation)
- Repeat Accuracy: ≤0.05mm (0.002")
- Carving Speed:0-1000mm/Min (Different Materials Differ)
- Machine Weight: 25.5kg (56.2 lbs)
