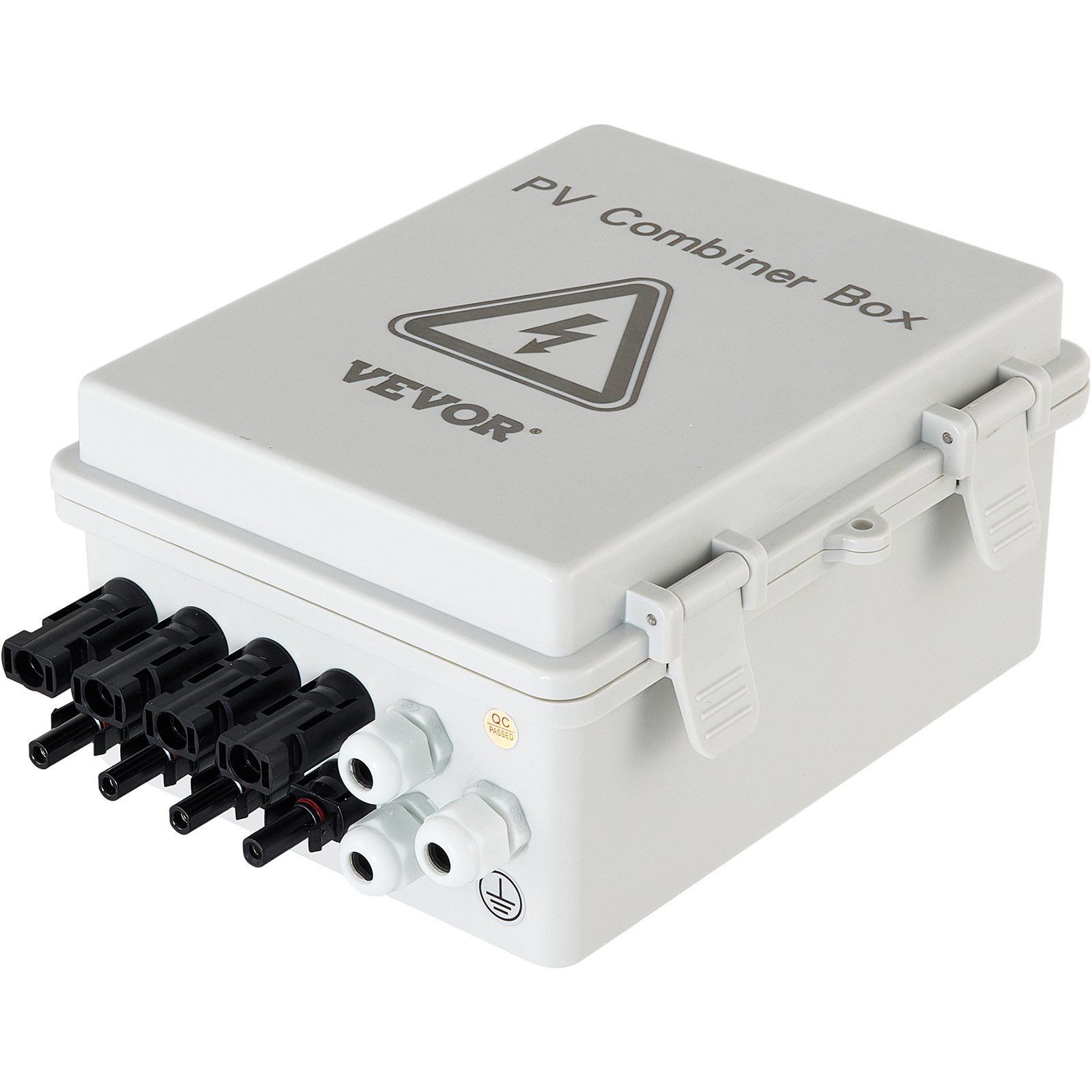

VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
Report Incorrect Product Information
G2415A63AIP654HIKV0

VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit

£88.43
88.43
  • Professional PV Combiner Box: PV combiner box tidied up connection and confluence of photovoltaic modules. It is used to reduce the connection of the photovoltaic array to the inverter and optimize the system structure. Make it easy to cut off the circuit in maintenance and reduce the scope of the power outage when the photovoltaic system fails. It will make the photovoltaic system at its best and increase output power.
  • Secure & Reliable Protection: The solar PV combiner box is equipped with 4 pcs 15A DC fuses, a high-voltage lightning arrester, and a 500V 63A air circuit breaker. It has short circuit/lightning surge/over-voltage/over-current protection/grounding protection to avoid damage to photovoltaic panels and inverters when fault occurs.
  • IP65 Waterproof & ABS Shell: The IP65 design of the solar PV combiner shell is waterproof and dustproof, ensuring that frequent replacement is not needed. The sturdy shell is made of high-quality ABS plastic material, insulating, moisture-proof, and has no dripping. In addition, it has impact resistance and high break resistance, keeping your equipment well protected in harsh environments.
  • Easy Installation & Wiring: A plug & play and pre-connected cable offers an easy solution for solar panel connection, saving at least 1-2 hours of wiring by hand. The box PV combiner can be mounted on any regular surface with provided mounting buckles, and no key is needed to open and close the box. Built-in with a ground wire connector, ground wire installation is also available. Compatible with any brand of solar panels with solar connectors.
  • Extensive Application: The combiner box is a perfect device for outdoor installation and use. Suitable for photovoltaic on-grid/off-grid solar power generation systems, solar panel systems, PV array, RV solar power, home solar panel systems. It can support solar panel systems up to 720W in 12V system, 1440W in 24V system, 2880W in 48V system.

Frequently bought together

People Who Bought This Item Also Bought

VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit

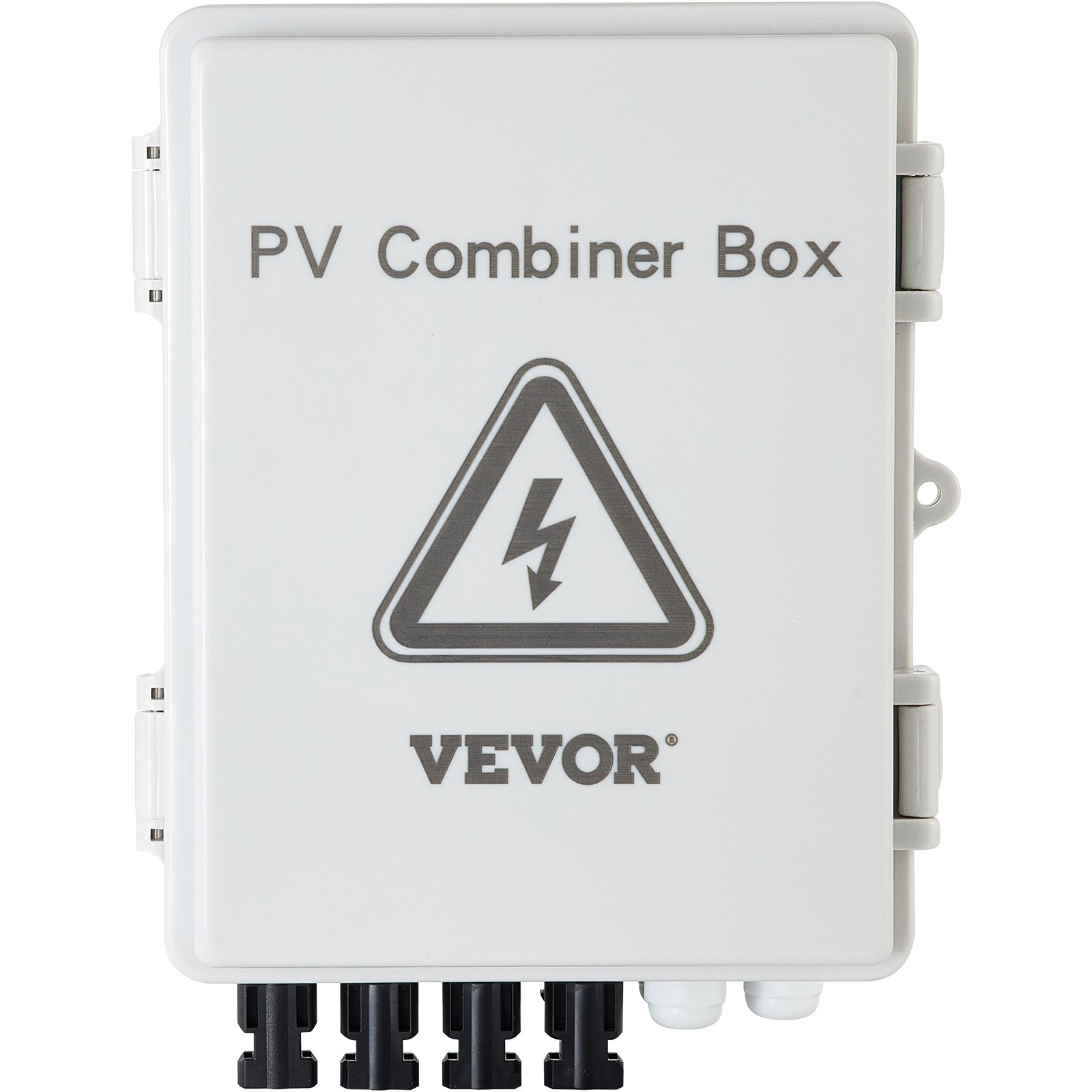

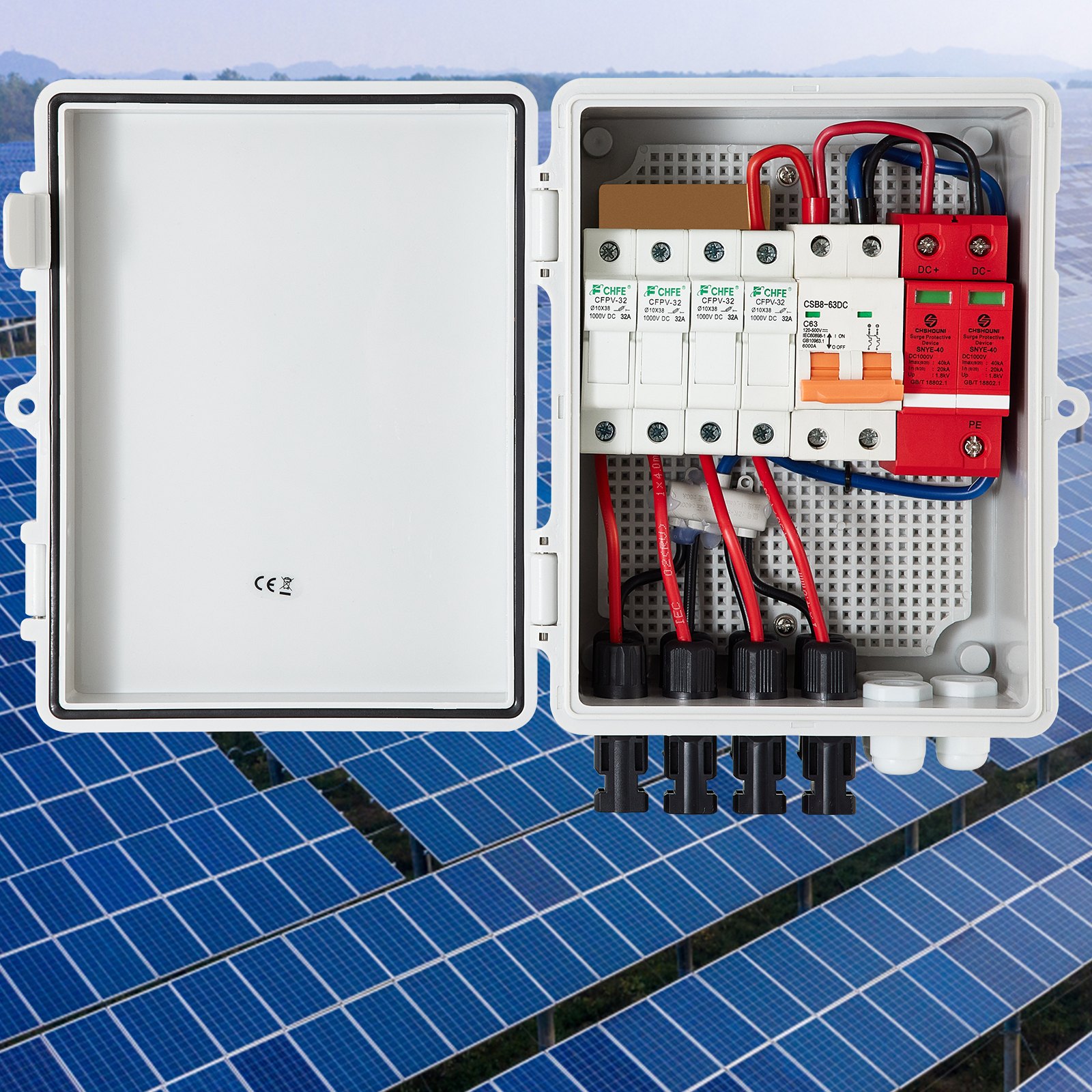

4 String Solar PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
  • Our PV Combiner Box is a perfect device designed to reduce the connection line between PV modules and inverters, facilitate maintenance and improve reliability. Equipped with high-voltage lightning arresters, 15A DC fuses, and circuit breakers to play a role in circuit protection and lightning protection. It supports photovoltaic On-Grid/Off-Grid solar power generation systems, solar panel systems, up to 700W in 12V system, 1400W in 24V system, 2800W in 48V system.
  • Professional PV Combiner Box
  • Secure & Reliable Protection
  • IP65 Waterproof & ABS Shell
  • Easy Installation & Wiring

VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
High Voltage Lightning Arrester
The combiner box for solar systems is built with a professional high voltage lightning arrester to provide lightning and rain protection. Both positive and negative with thunder proof protection.
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit

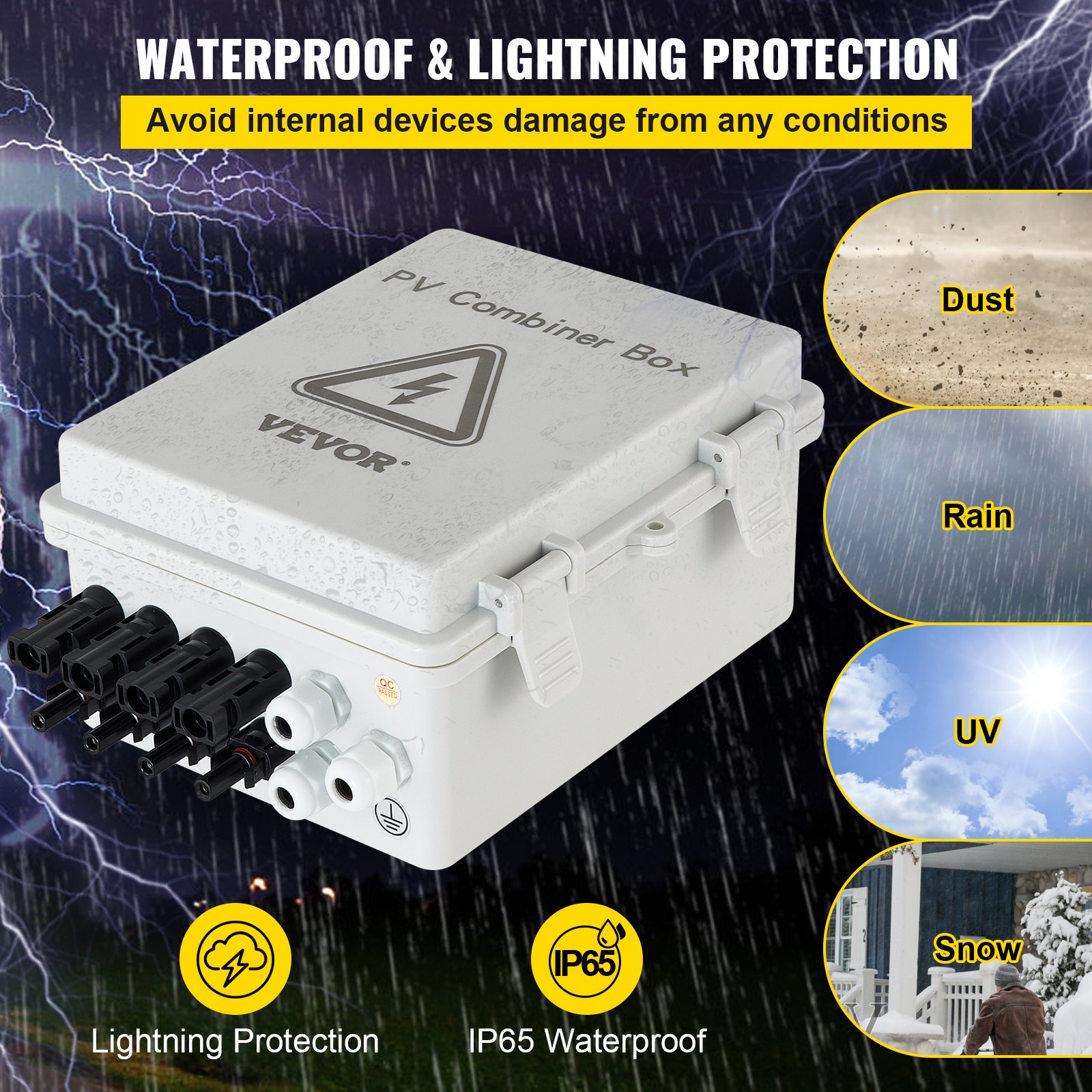

IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures even more security on construction sites.
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit

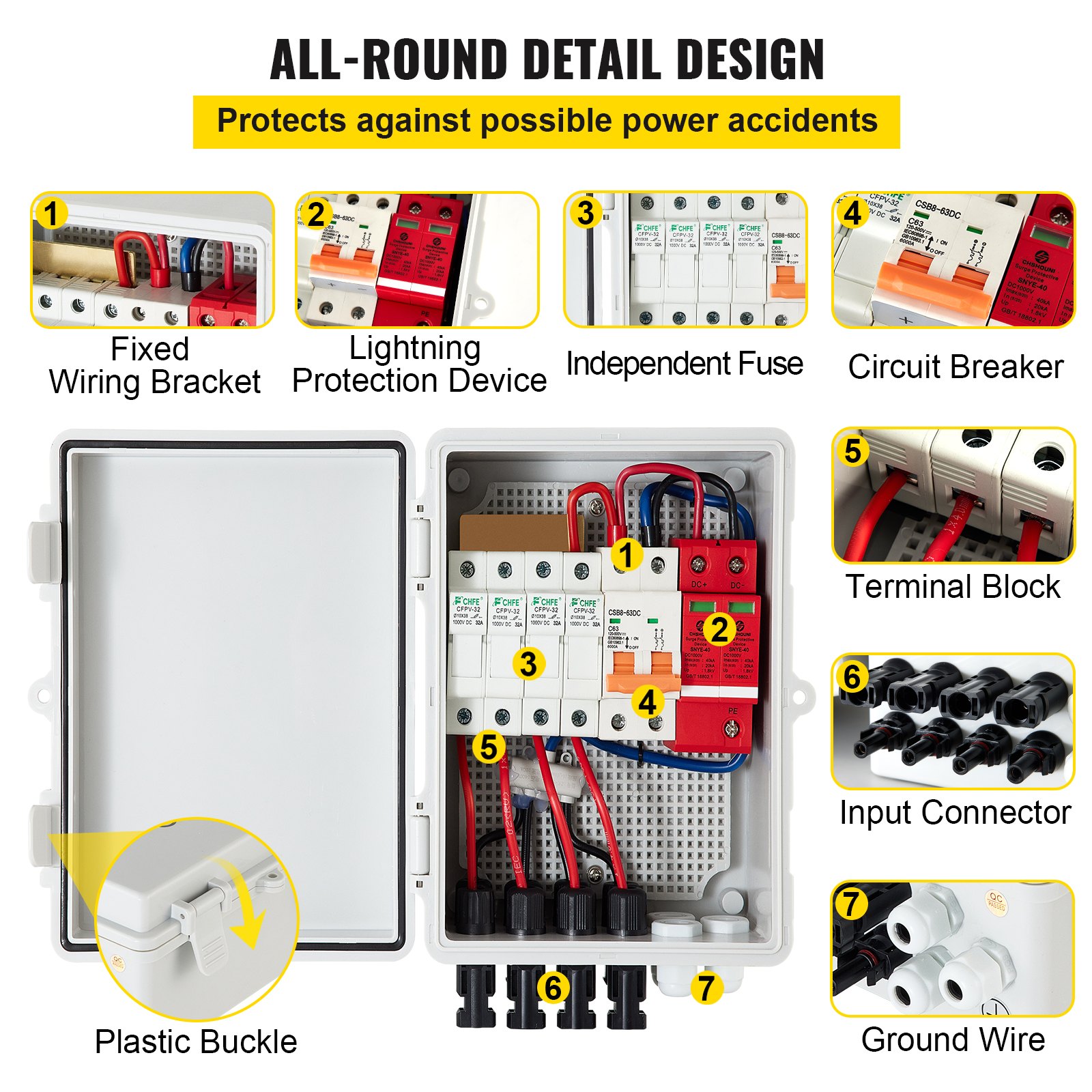

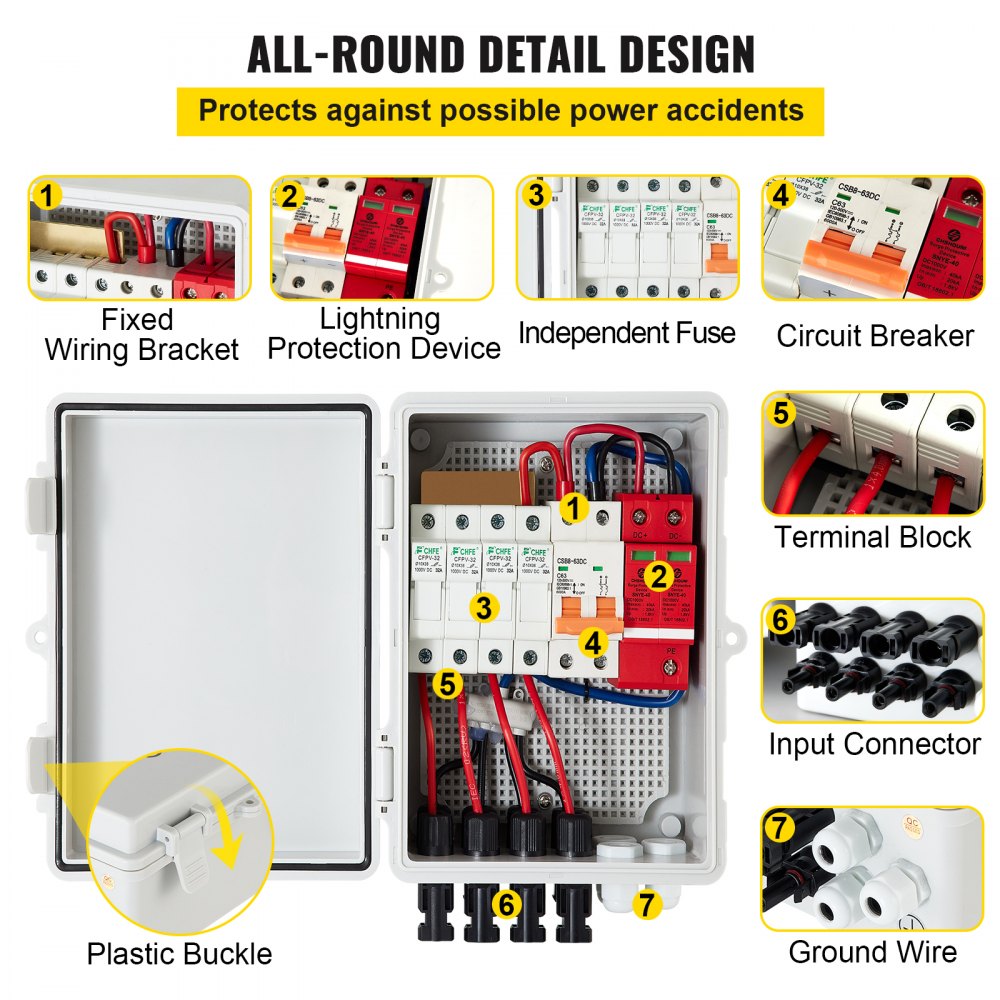

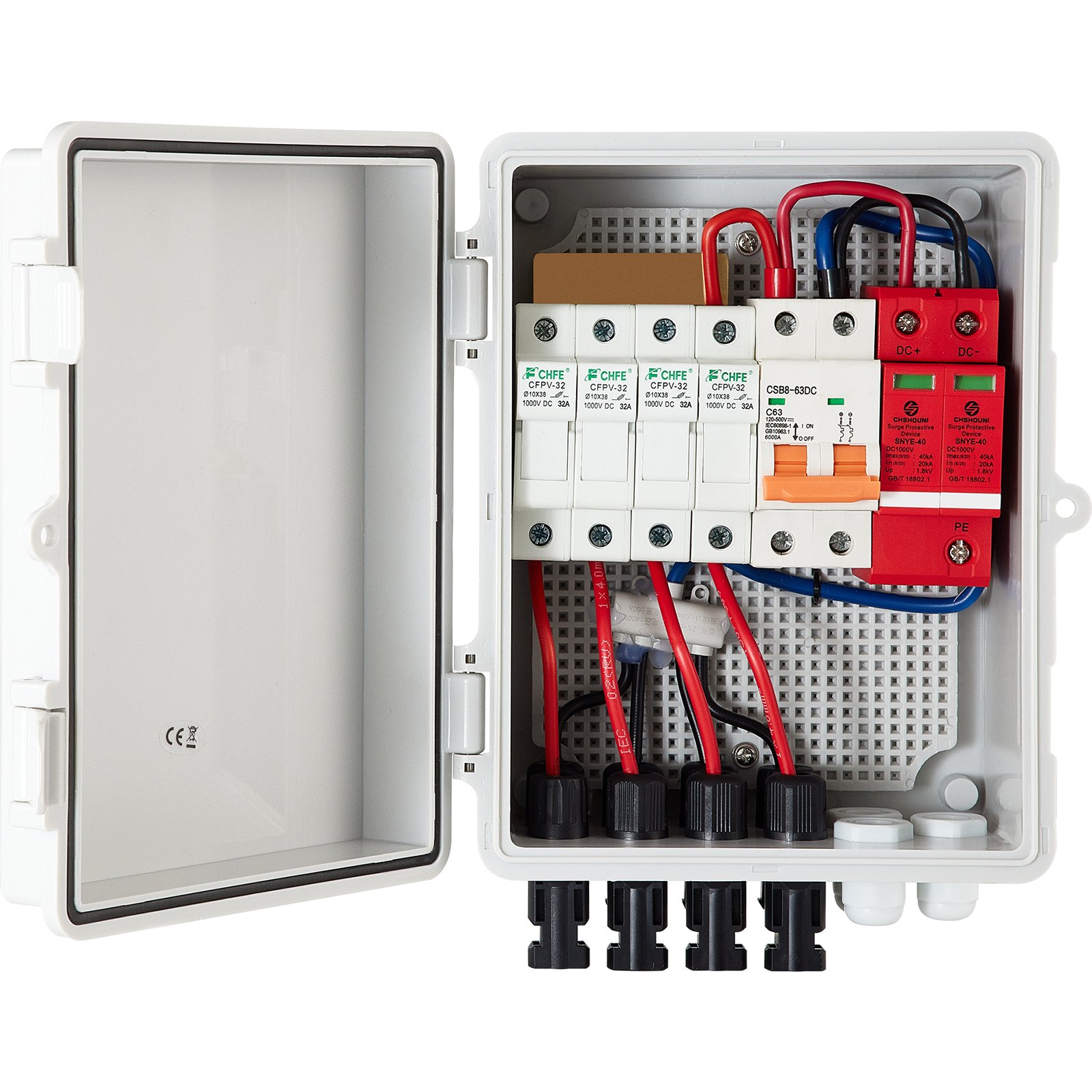

Thoughtful Design
The PV combiner features 4 x 15A fuses for good current limiting characteristics and breaking high ability. 63A circuit breaker can cut off and connect the load circuit, providing short-circuit fault protection.
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit

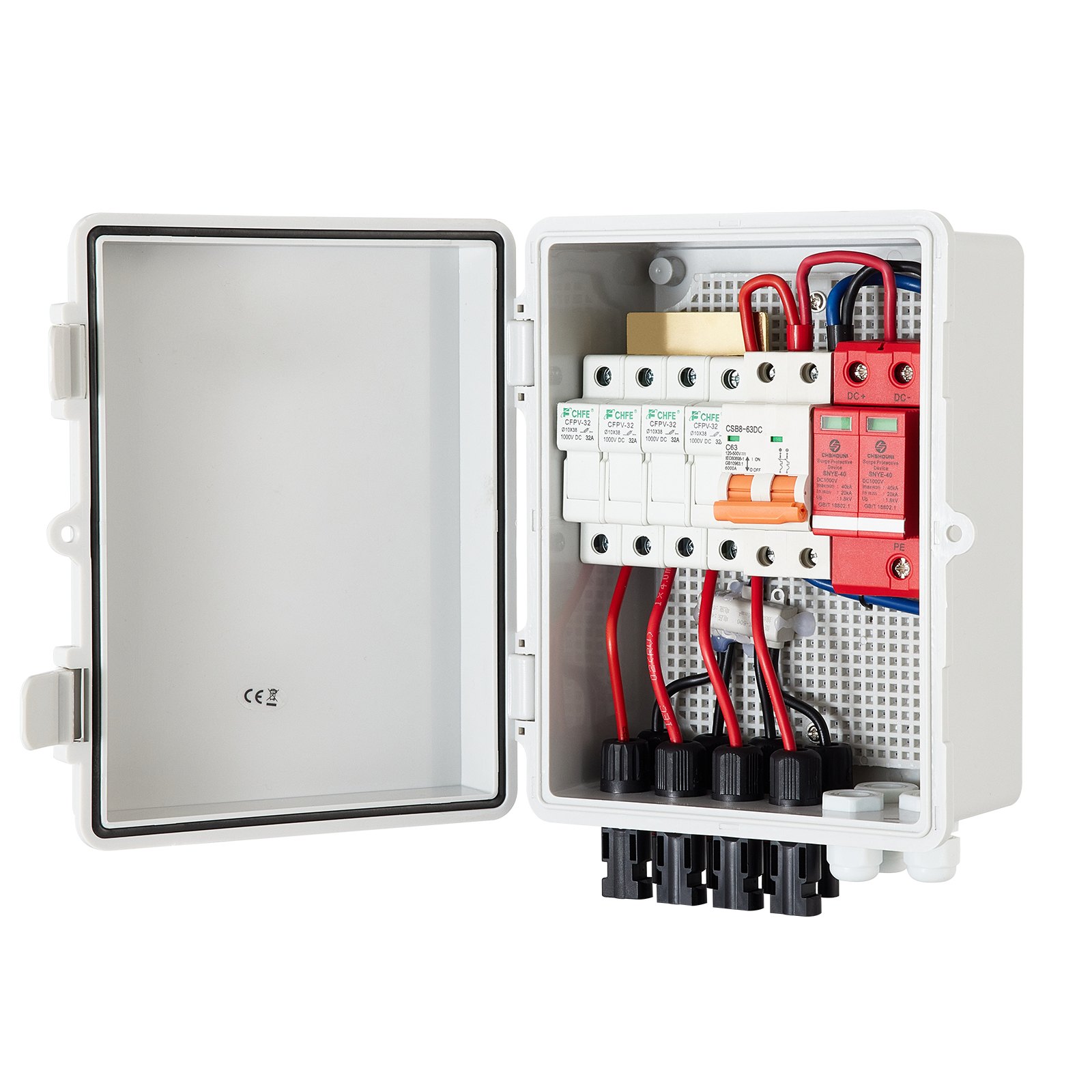

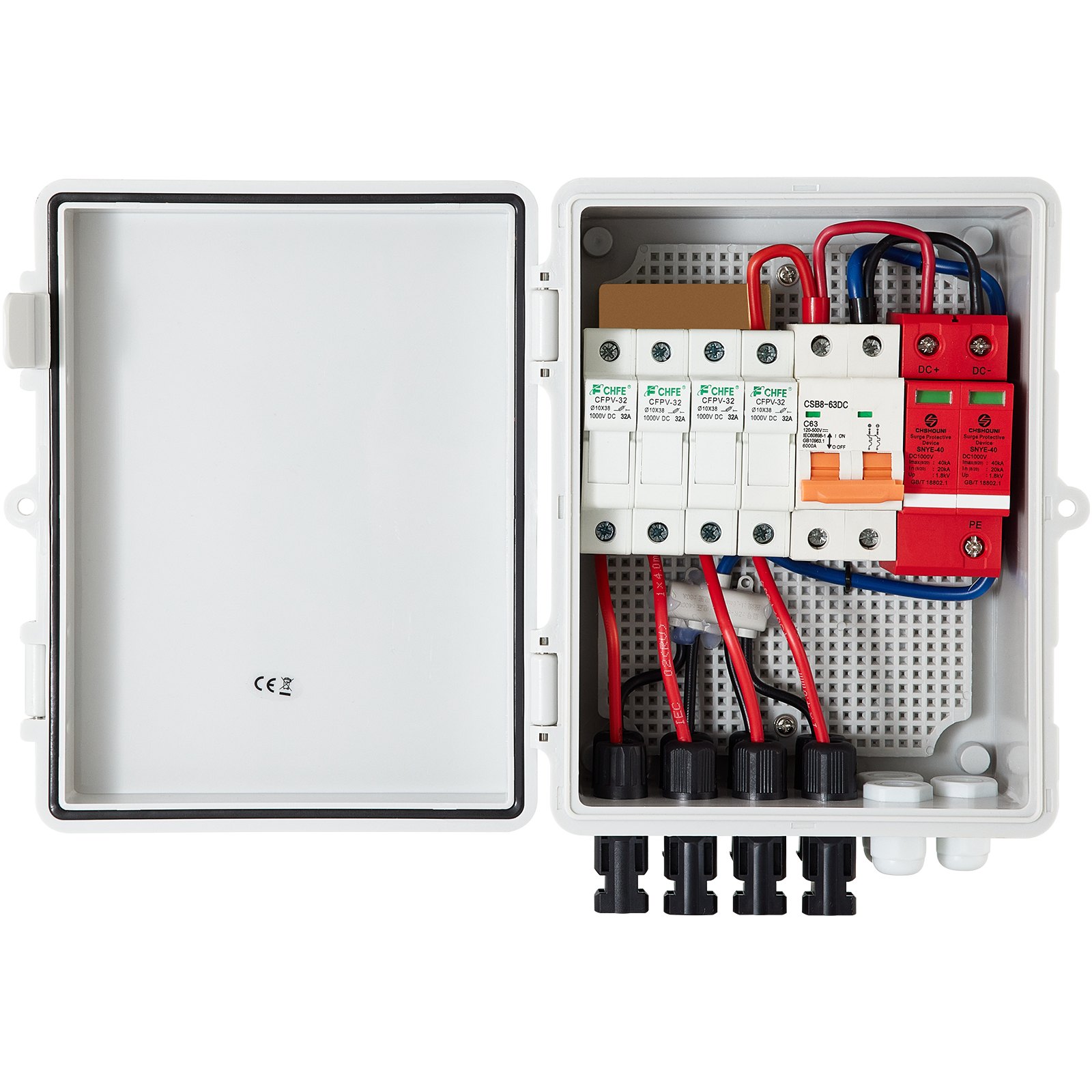

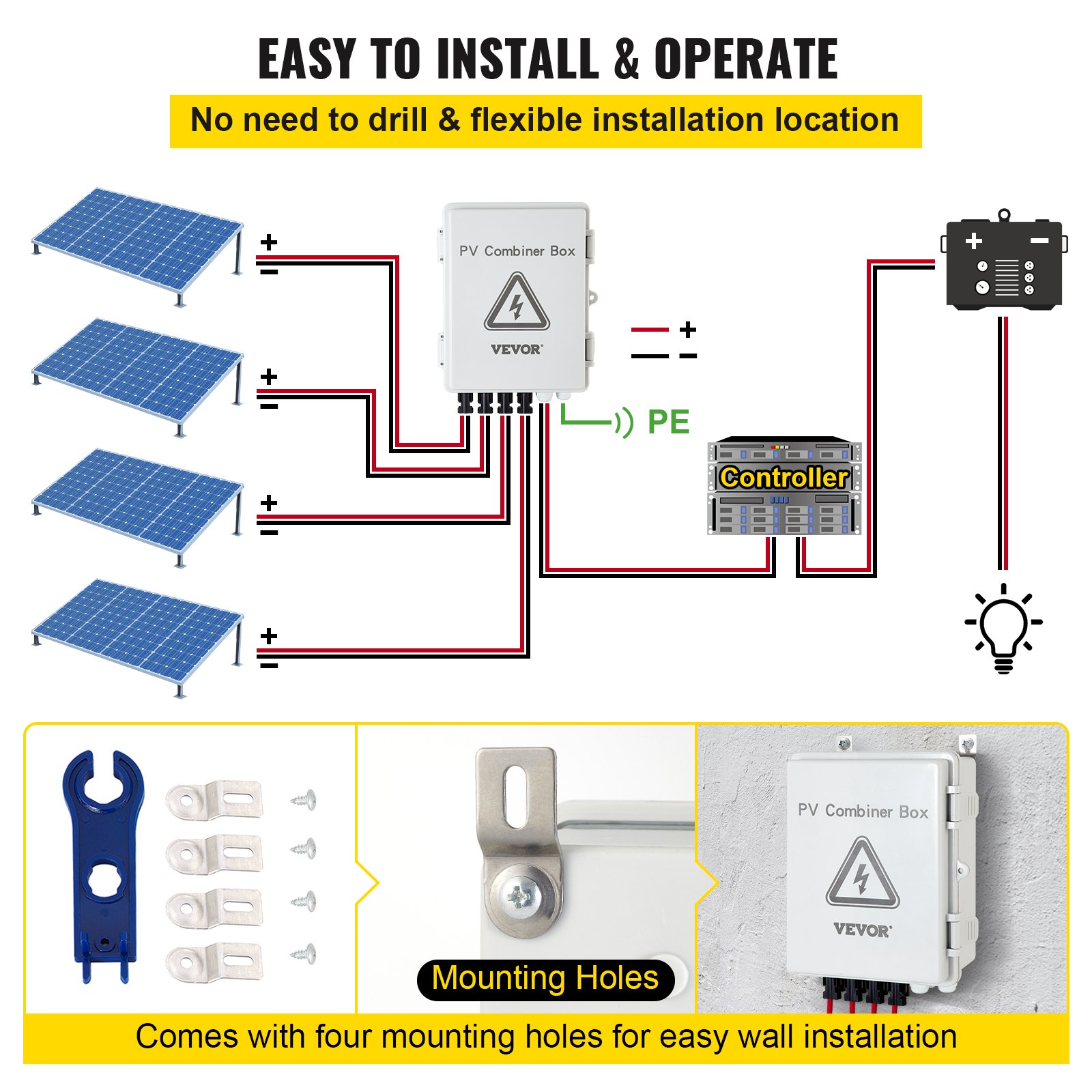

Simple & Straightforward Connection
All wires are pre-wired in the solar breaker combiner box, very sturdy to combine your solar panels, making your solar panel system connection easier. It comes with complete mounting accessories to be installed anywhere.
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit

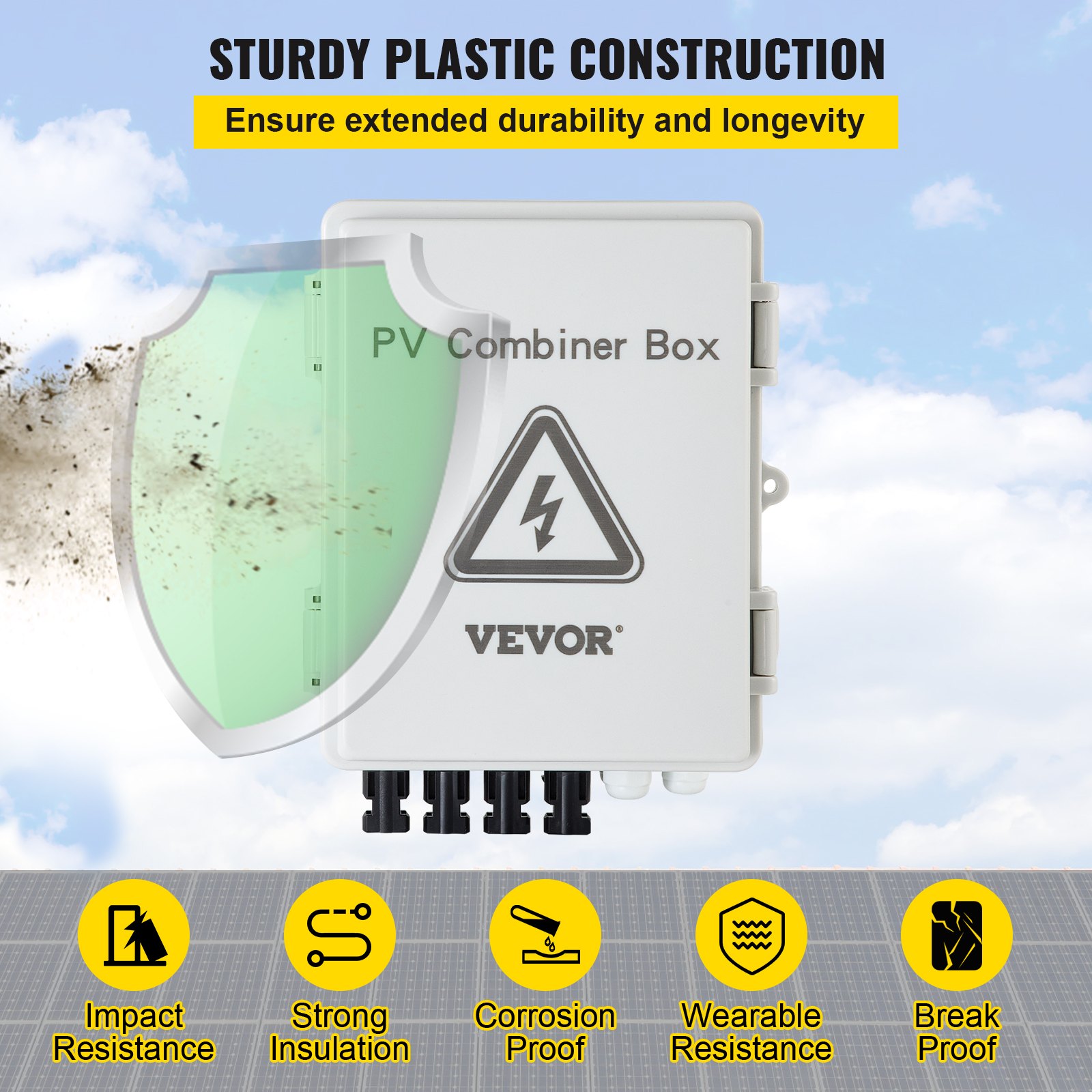

Premium ABS Material
The board wall distributor features ABS material with high impact strength, good weather resistance, and strong wear resistance. In addition, the plastic coating protects against water and dirt.
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit

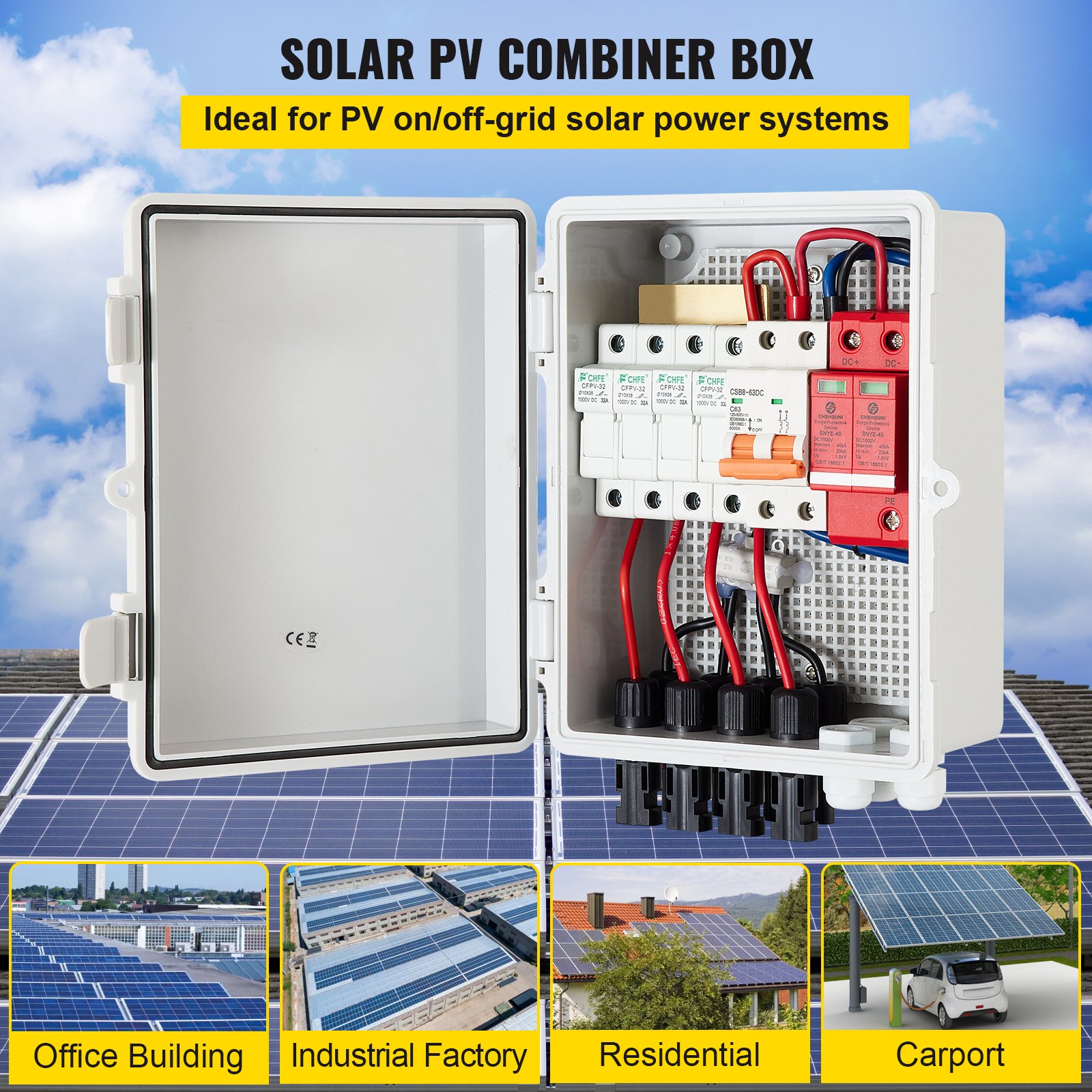

Extensive Application
The solar breaker combiner box is ideal for photovoltaic grid-connected and off-grid power generation systems. It is mainly used with solar panels in office buildings, industrial factories, residential buildings, carports, etc.
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
Specifications
  • Model: SWHL-4
  • Number Of Max. Connection PV Array: 4
  • Max. Input Current of Single PV Array: 15A
  • Total Input Current of PV Array: 60A
  • Max Input Voltage of Single PV Array: 500V
  • Max Output Voltage: 500V
  • Protection Grade: IP65
  • Operational Environment Temperature: -30℃ to 70℃ / -22℉ to 158℉
  • Relative Humidity: 0-95%, No Condensation
  • Cooling Method: Natural Cooling
  • Surge Lightning Protection: Yes
  • Surge Protective Device: in: 20kA; Imax: 40kA; Up: 1.8kV
  • SPD Indicate Light Status: Green: Normal; Red: Triggered
  • Air Circuit Breaker Parameter: 500V, 63A; ON/OFF
  • Fuse Parameter: DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
  • Fuse Holder Parameter: DC1000V, 32A
  • RV Solar System: 720W in 12V System, 1440W in 24V System, 2880W in 48V System

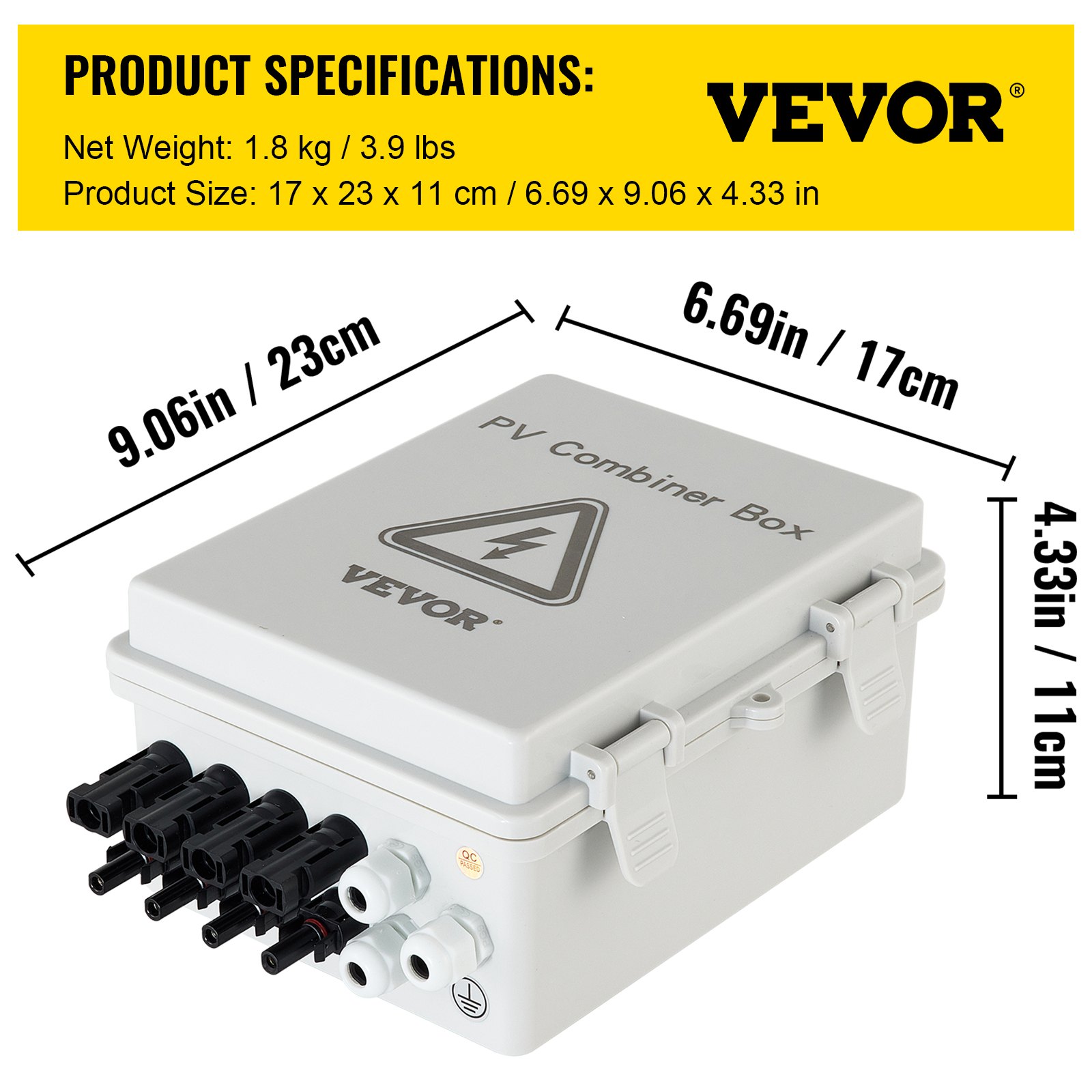

  • Product Dimensions(L x W x H): 17 x 23 x 11 cm / 6.69 x 9.06 x 4.33 in
  • Net Weight: 1.8 kg / 3.9 lbs
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
Package Content
  • 1 x PV Combiner Box
  • 1 x Solar Connector Tool
  • 4 x Mounting Buckles
  • 4 x Screws
  • 1 x Product Manual
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit

VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
4 String Solar PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
  • Our PV Combiner Box is a perfect device designed to reduce the connection line between PV modules and inverters, facilitate maintenance and improve reliability. Equipped with high-voltage lightning arresters, 15A DC fuses, and circuit breakers to play a role in circuit protection and lightning protection. It supports photovoltaic On-Grid/Off-Grid solar power generation systems, solar panel systems, up to 700W in 12V system, 1400W in 24V system, 2800W in 48V system.
  • Professional PV Combiner Box
  • Secure & Reliable Protection
  • IP65 Waterproof & ABS Shell
  • Easy Installation & Wiring
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
High Voltage Lightning Arrester
The combiner box for solar systems is built with a professional high voltage lightning arrester to provide lightning and rain protection. Both positive and negative with thunder proof protection.
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures even more security on construction sites.
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
Thoughtful Design
The PV combiner features 4 x 15A fuses for good current limiting characteristics and breaking high ability. 63A circuit breaker can cut off and connect the load circuit, providing short-circuit fault protection.
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
Simple & Straightforward Connection
All wires are pre-wired in the solar breaker combiner box, very sturdy to combine your solar panels, making your solar panel system connection easier. It comes with complete mounting accessories to be installed anywhere.
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
Premium ABS Material
The board wall distributor features ABS material with high impact strength, good weather resistance, and strong wear resistance. In addition, the plastic coating protects against water and dirt.
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
Extensive Application
The solar breaker combiner box is ideal for photovoltaic grid-connected and off-grid power generation systems. It is mainly used with solar panels in office buildings, industrial factories, residential buildings, carports, etc.
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
Package Content
  • 1 x PV Combiner Box
  • 1 x Solar Connector Tool
  • 4 x Mounting Buckles
  • 4 x Screws
  • 1 x Product Manual
VEVOR Solar Combiner Box PV Combiner 15A 4 String Plastic for Solar Panel Kit
Specifications
  • Model: SWHL-4
  • Number Of Max. Connection PV Array: 4
  • Max. Input Current of Single PV Array: 15A
  • Total Input Current of PV Array: 60A
  • Max Input Voltage of Single PV Array: 500V
  • Max Output Voltage: 500V
  • Protection Grade: IP65
  • Operational Environment Temperature: -30℃ to 70℃ / -22℉ to 158℉
  • Relative Humidity: 0-95%, No Condensation
  • Cooling Method: Natural Cooling
  • Surge Lightning Protection: Yes
  • Surge Protective Device: in: 20kA; Imax: 40kA; Up: 1.8kV
  • SPD Indicate Light Status: Green: Normal; Red: Triggered
  • Air Circuit Breaker Parameter: 500V, 63A; ON/OFF
  • Fuse Parameter: DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
  • Fuse Holder Parameter: DC1000V, 32A
  • RV Solar System: 720W in 12V System, 1440W in 24V System, 2880W in 48V System
  • Product Dimensions(L x W x H): 17 x 23 x 11 cm / 6.69 x 9.06 x 4.33 in
  • Net Weight: 1.8 kg / 3.9 lbs

Specification

Model SWHL-4
Number Of Max. Connection PV Array 4
Max. Input Current of Single PV Array 15A
Total Input Current of PV Array 60A
Max Input Voltage of Single PV Array 500V
Max Output Voltage 500V
Protection Grade IP65
Operational Environment Temperature -30℃ to 70℃ / -22℉ to 158℉
Relative Humidity 0-95%, No Condensation
Cooling Method Natural Cooling
Surge Lightning Protection Yes
Surge Protective Device in
SPD Indicate Light Status Green
Air Circuit Breaker Parameter 500V, 63A; ON/OFF
Fuse Parameter DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
Fuse Holder Parameter DC1000V, 32A
RV Solar System 720W in 12V System, 1440W in 24V System, 2880W in 48V System
Product Dimensions(L x W x H) 17 x 23 x 11 cm / 6.69 x 9.06 x 4.33 in
Net Weight 1.8 kg / 3.9 lbs
