Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
+12
More
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled
Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled Automatic Coil Winder Winding Machine Step-servo Motor Micro-computer Controlled

Features & Details

  • 【PREMIUM PERFORMANCE】- Our CNC automatic winding machine adopts a step-servo motor driven by the constant current circuit, which completes the winding process with high speed and high precision. The guiding traverse shaft provides 99-steps moving speed selection.
  • 【AUTOMATIC FUNCTION】- Self-inspecting functions, including the equipment's errors, excessive speed tracking, and the calibration of the speed, can automatically reduce the winding speed to a stable state. Memory capacity accommodates 999 sets of parameters with off-power memory retention.
  • 【INTEGRATED DESIGN】- This coil winder features an integrated design that can achieve size reduction: putting stepper motor driver, DC motor speed controller, brake and power supply control circuits, and cooling system into one control box.
  • 【EASY TO OPERATE】- With a CNC micro-computer controller, our winding machine is convenient for you to set the parameters such as starting point, winding displacement width, circles, speed of starting the winding, stopping slow-speed, winding speed, etc.
  • 【WIDE APPLICATION】- Fit for 0.03-1.2 mm wire, this automatic wire coil winding machine is widely applied for medium or small transformer, relay, communication coil, ignition coil, and other winding products.

Frequently Bought Together

Reviews 0.0
All reviews are from verified purchases
Average rating based on 0 reviews

See all 0 reviews

About this item

Product specification
Power Voltage
Single Phase AC 110 V 60 HZ
Winding Displacement Machine
Step-servo Motor
Spindle Motor
Brushless DC 400 W
Wire Diameter
0.03-1.2 mm
Maximum Winding Width
108 mm (4.3")
Maximum Framework Diameter
200 mm(7.9")
Maximum Turning Speed
6000 circles/min, Speed Adjust Function
Storage Winding Groups
999 Groups
Counting Resolution
0.1 Circle
Complete Appliance Weight
35 kg
Product Size
317 x 305 x 406 mm (12.5" x 12"x 16")
Package Size
550 x 480 x 530 mm (21.6" x 18.9" x 20.9")
Description
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.

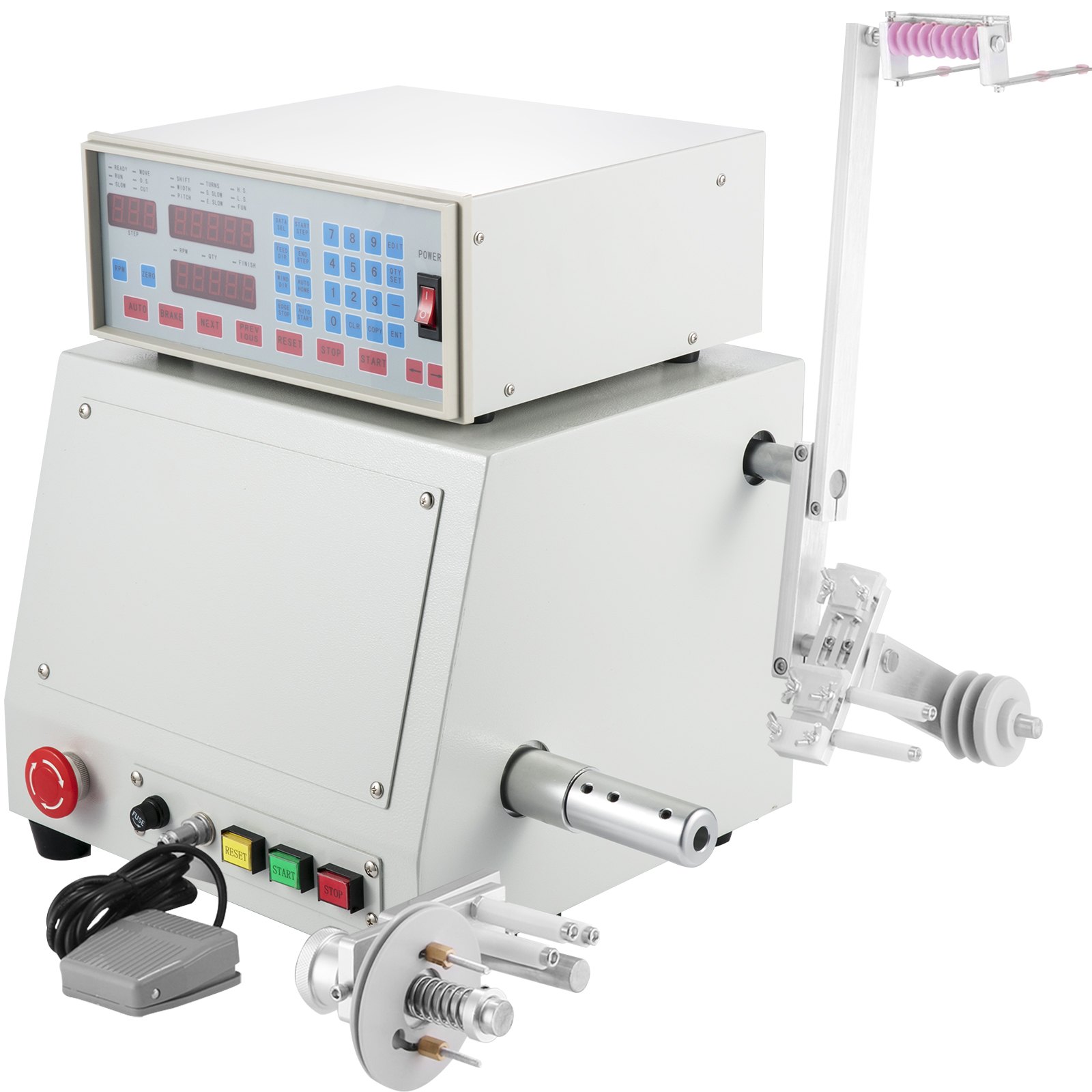

VEVOR cnc coil winder with copper wire spools and control panel.
VEVOR cnc coil winder with digital control panel and winding mechanism.
CNC Coil Winder Machine
This automatic coil winding machine is low noisy and less sensitive to external power fluctuation. The excellent step-servo motor provides our coil winder machine with fast speed and high precision. What's more, the CNC controller, foot switch, and tape rack are all convenient for your usage.
  • Premium Performance
  • Automatic Function
  • Integrated Design
  • Easy to Operate

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

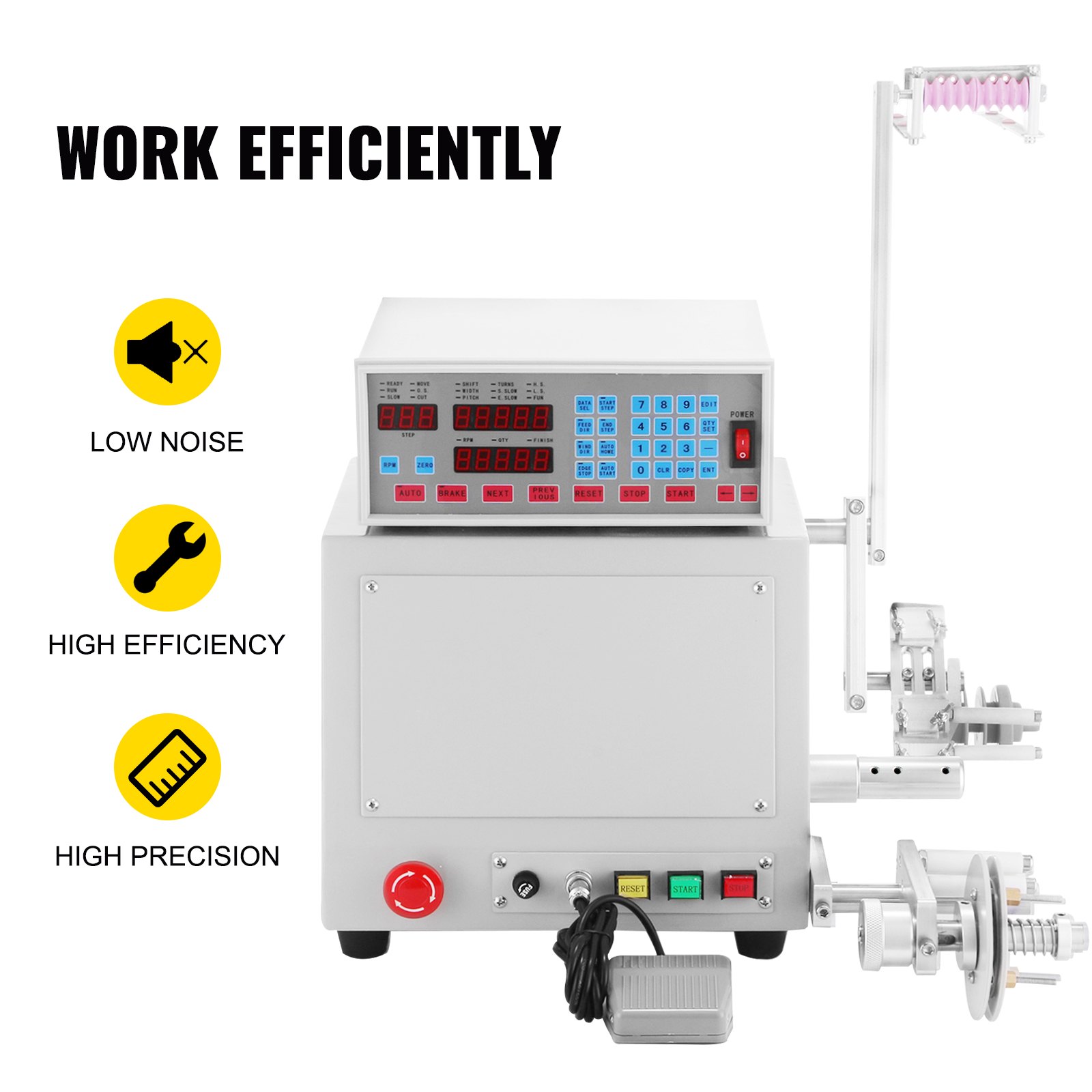

VEVOR cnc coil winder with digital display and efficiency icons for low noise and precision.
Work Efficiently
Maximum turning speed: 6000 circles/min. The motor with a constant-current driver provides fast wire guiding speeds and speed adjustable function.

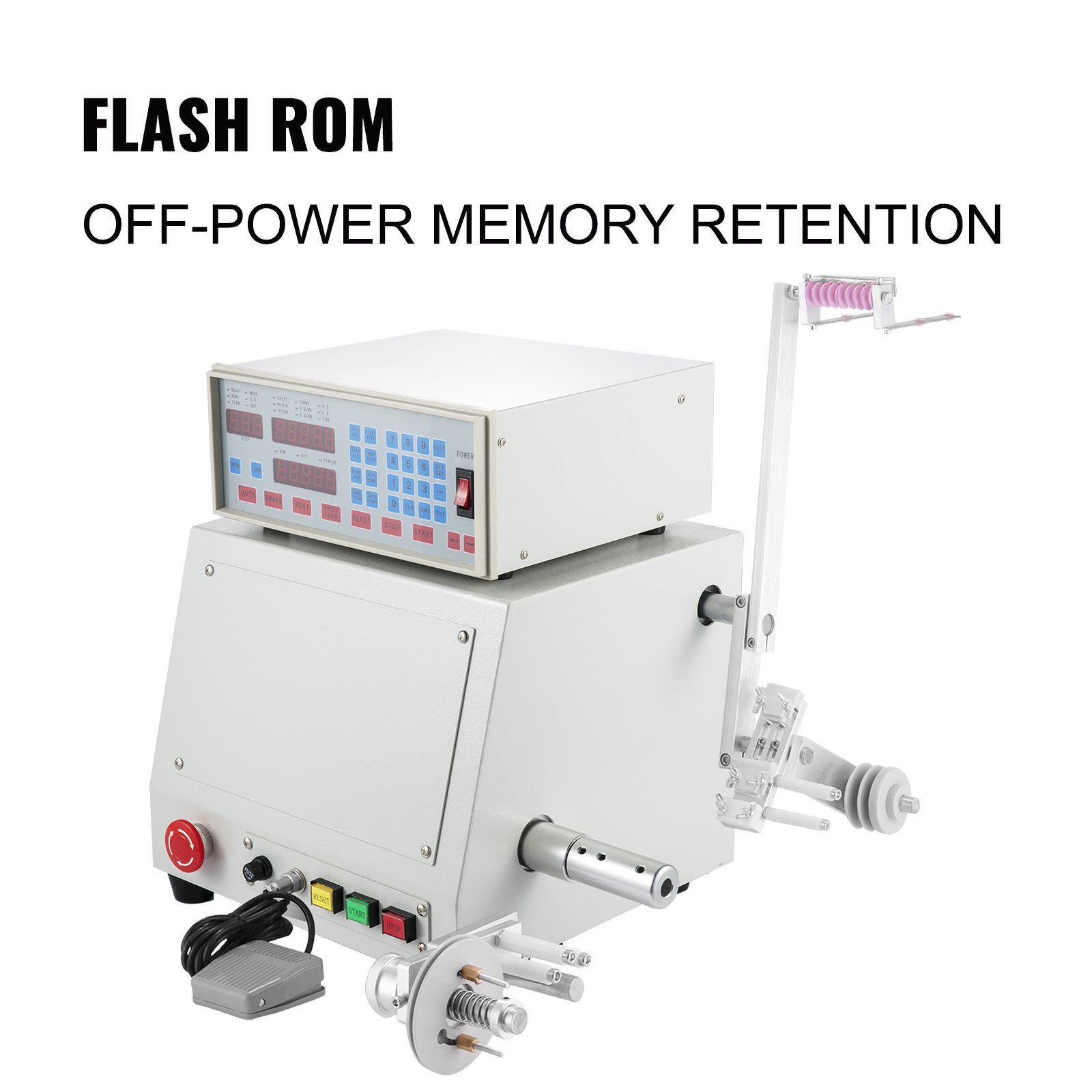

VEVOR cnc coil winder with digital display and control buttons for off-power memory retention.
Rapid Flash ROM
Using flash ROM, our coil machine can hold up to 999 sets of wind data. The capacity is large, and the data will not be lost after power failure.

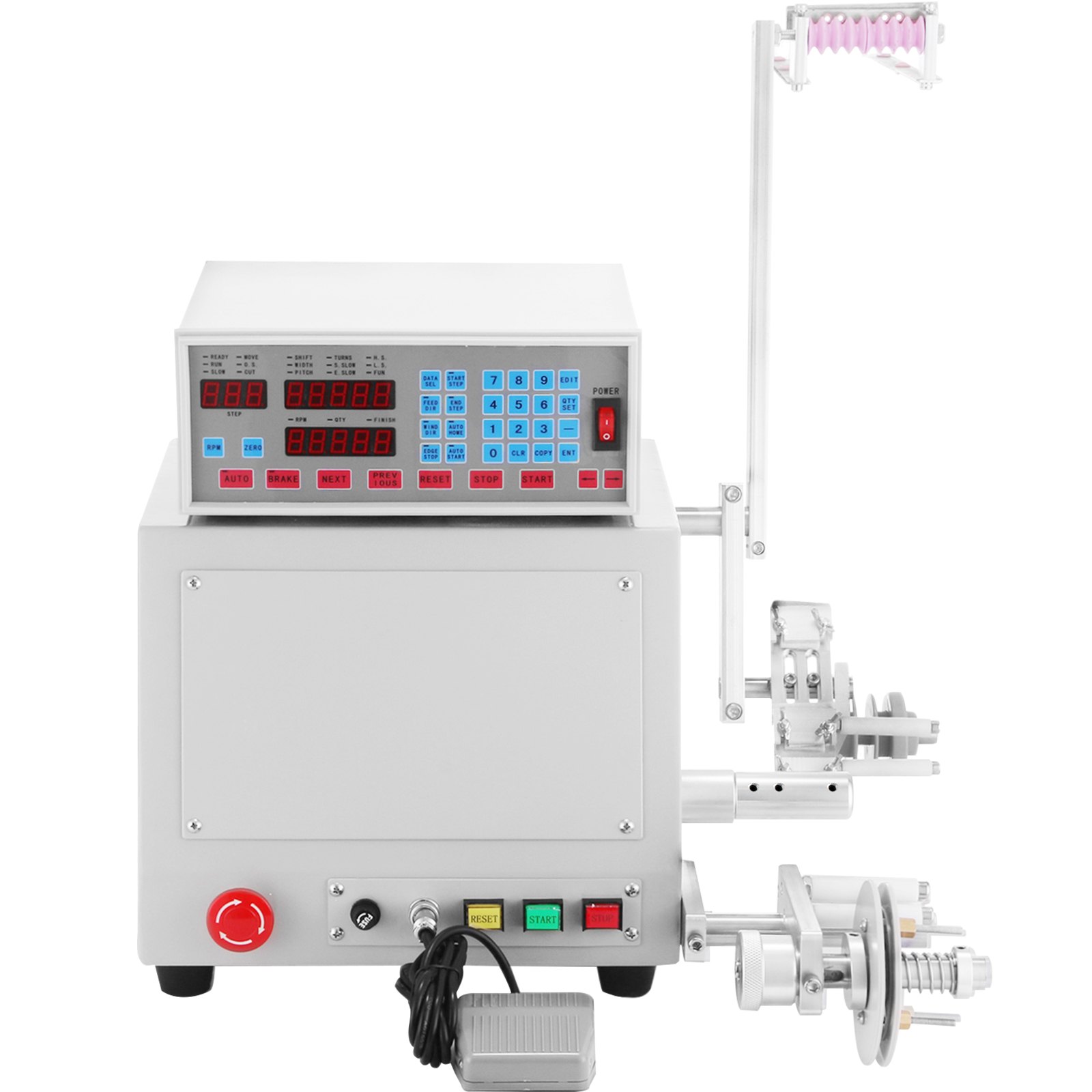

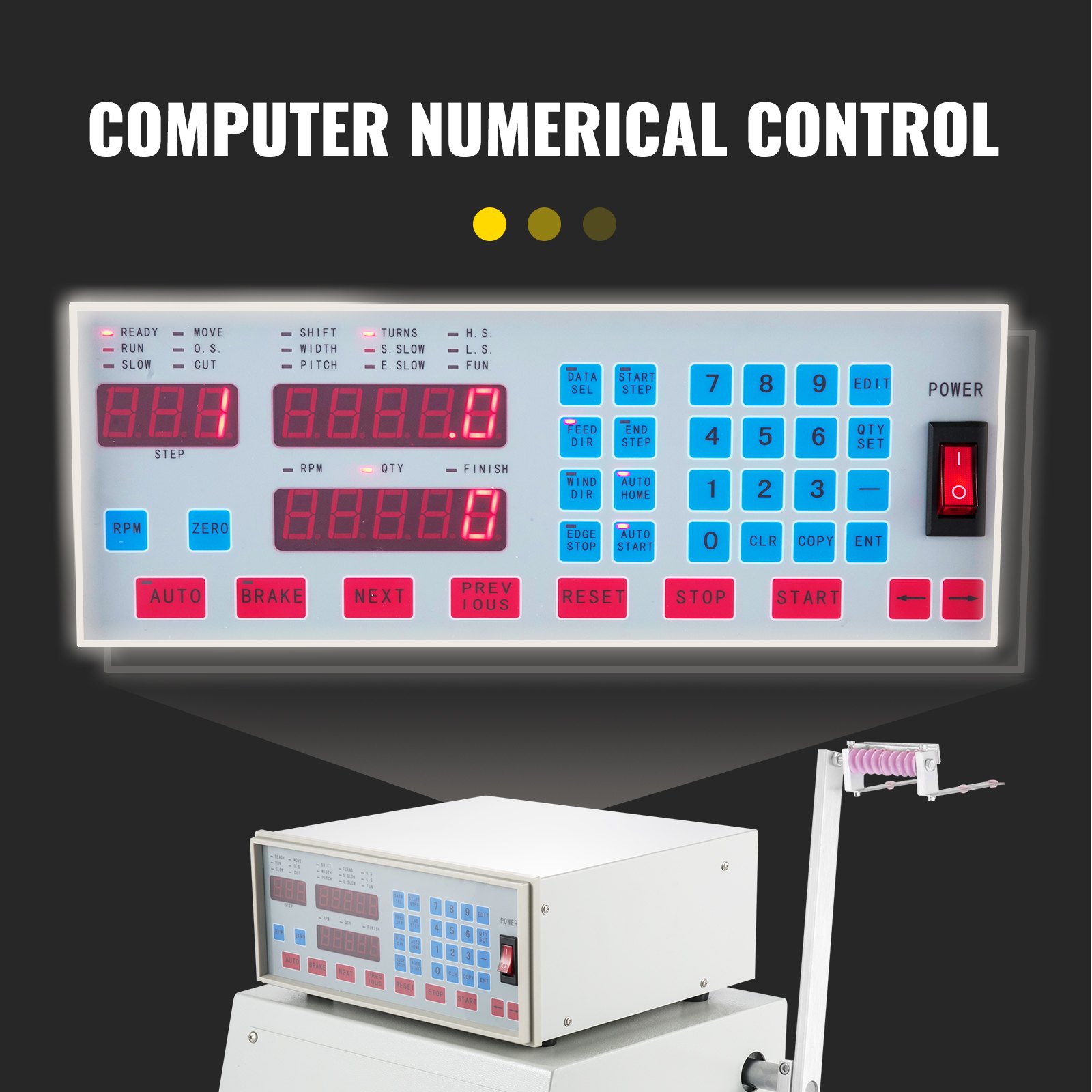

VEVOR cnc coil winder control panel with digital display and buttons.
Computer Numerical Control
Thanks to the CNC controller, winding speed can be specified using the front panel keypad, resulting in easy programming of multi-step, multi-speed settings.

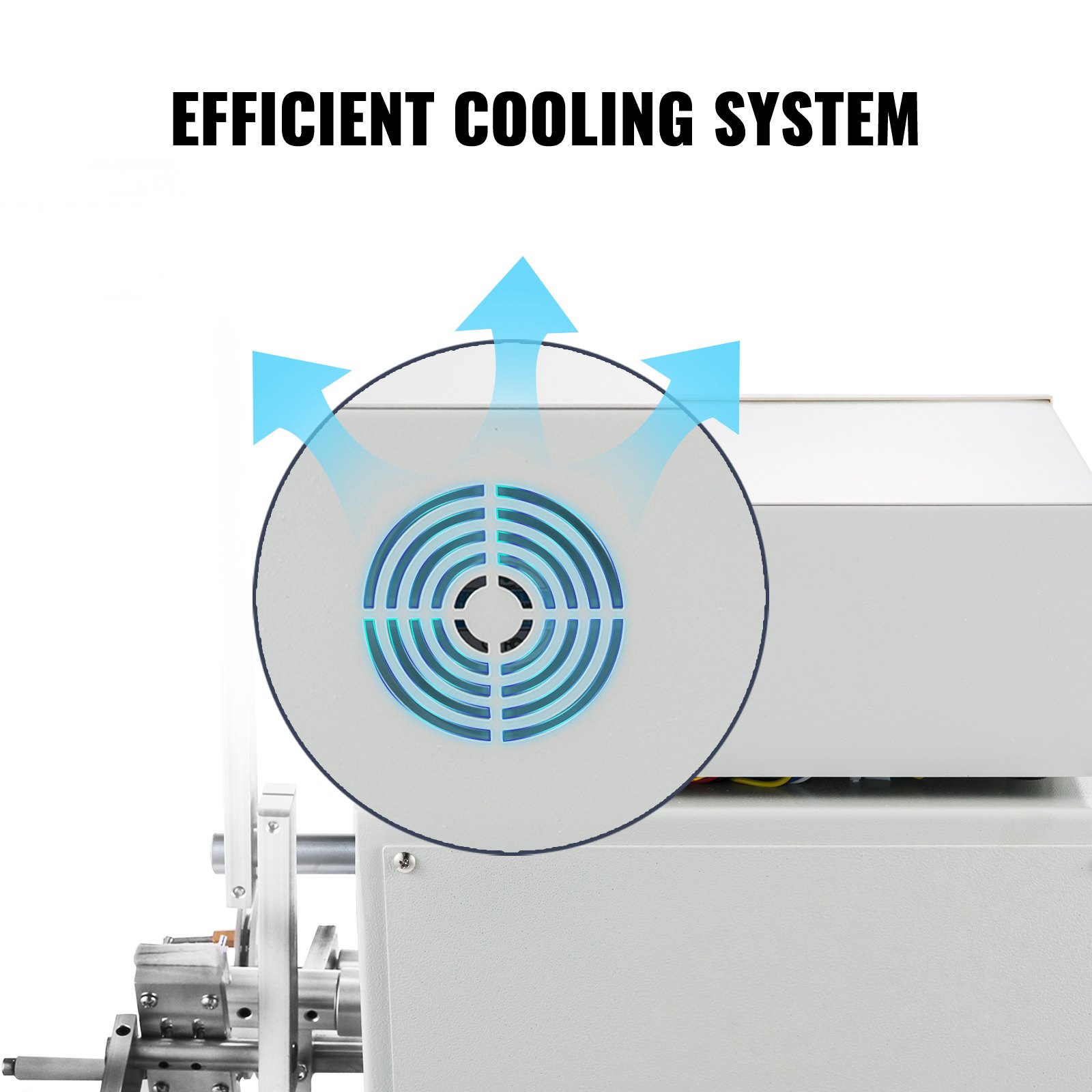

efficient cooling system for VEVOR cnc coil winder featuring directional air vents.
Efficient Cooling System
The high-speed radiating holes ensure that the machine works at a constant temperature, with higher efficiency and longer life.

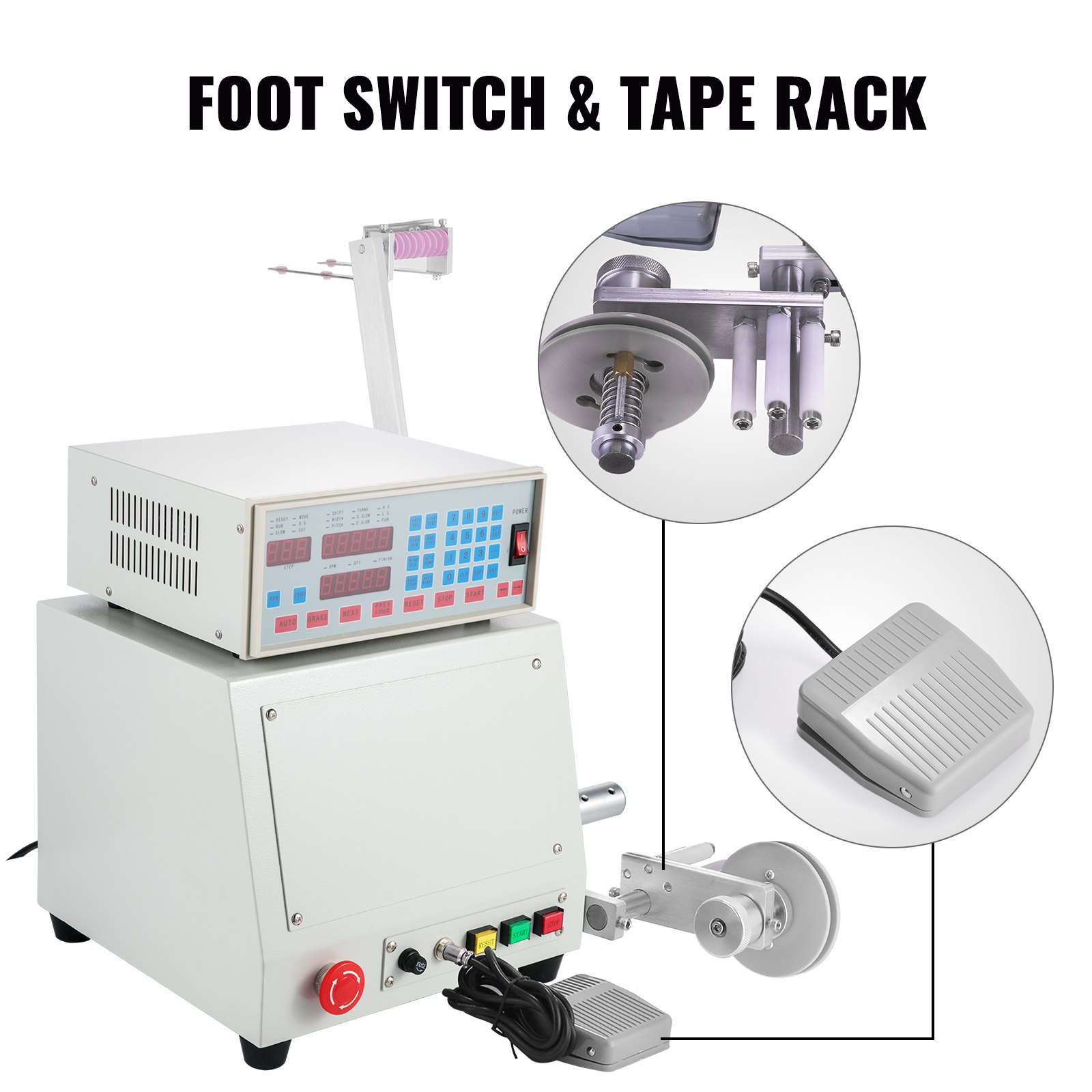

VEVOR cnc coil winder with foot switch and tape rack, showcasing control panel.
Foot Switch & Tape Rack
For your convenience, our winding machine is equipped with a foot switch and an insulating tape rack that can wrap the coil with tape.

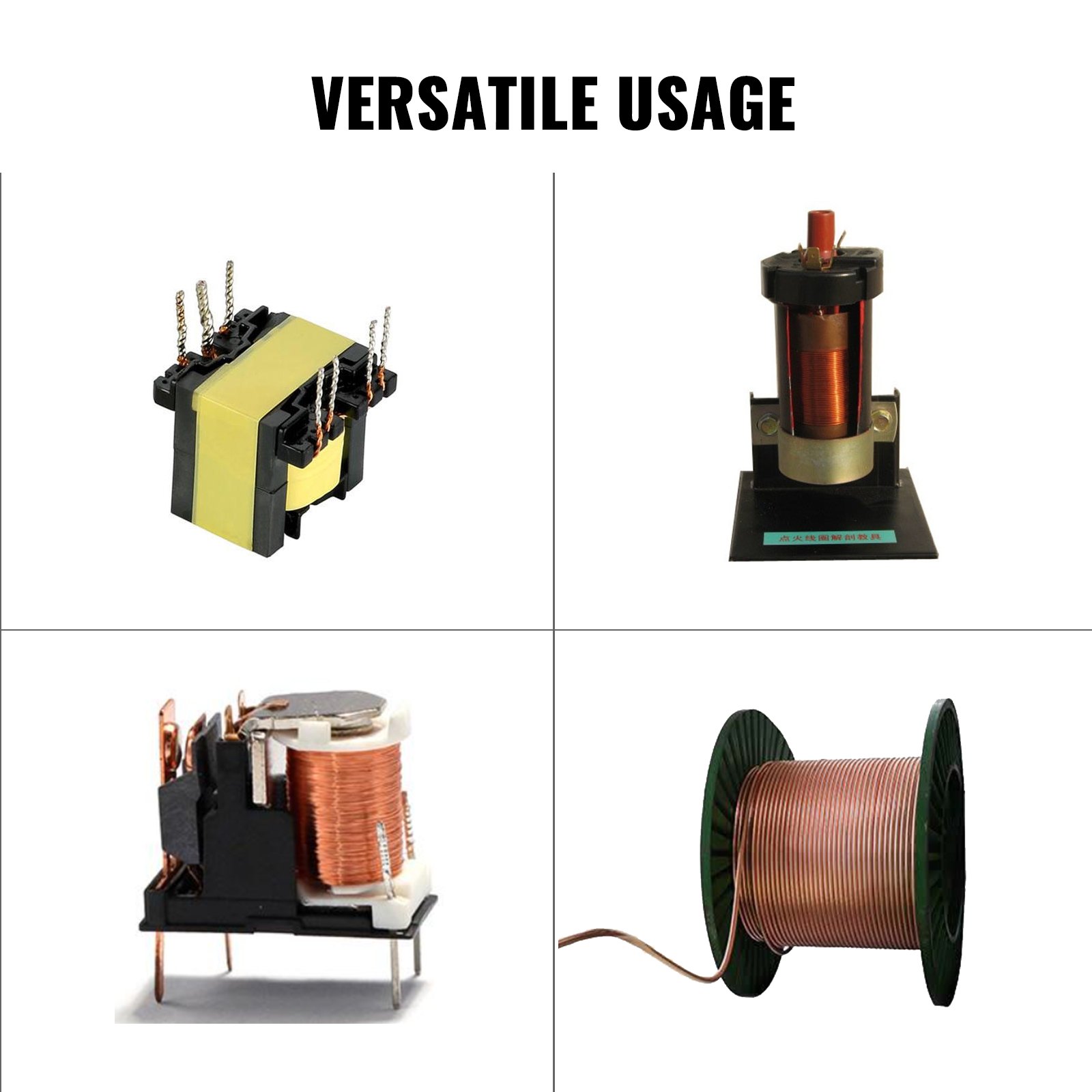

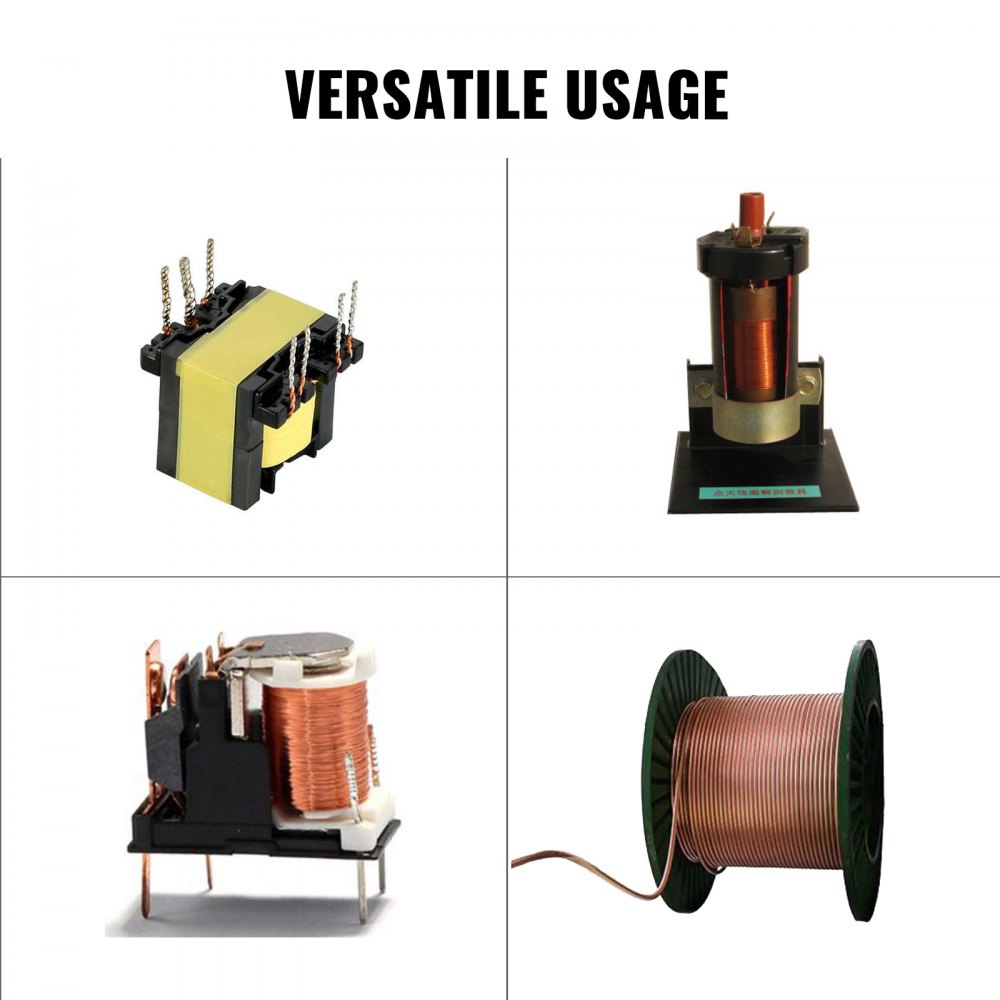

various coils and transformers showcasing VEVOR cnc coil winder capabilities.
Versatile Usage
Our CNC coil winding machine is ideal for medium or small transformer, relay, communication coil, ignition coil, and other winding products.

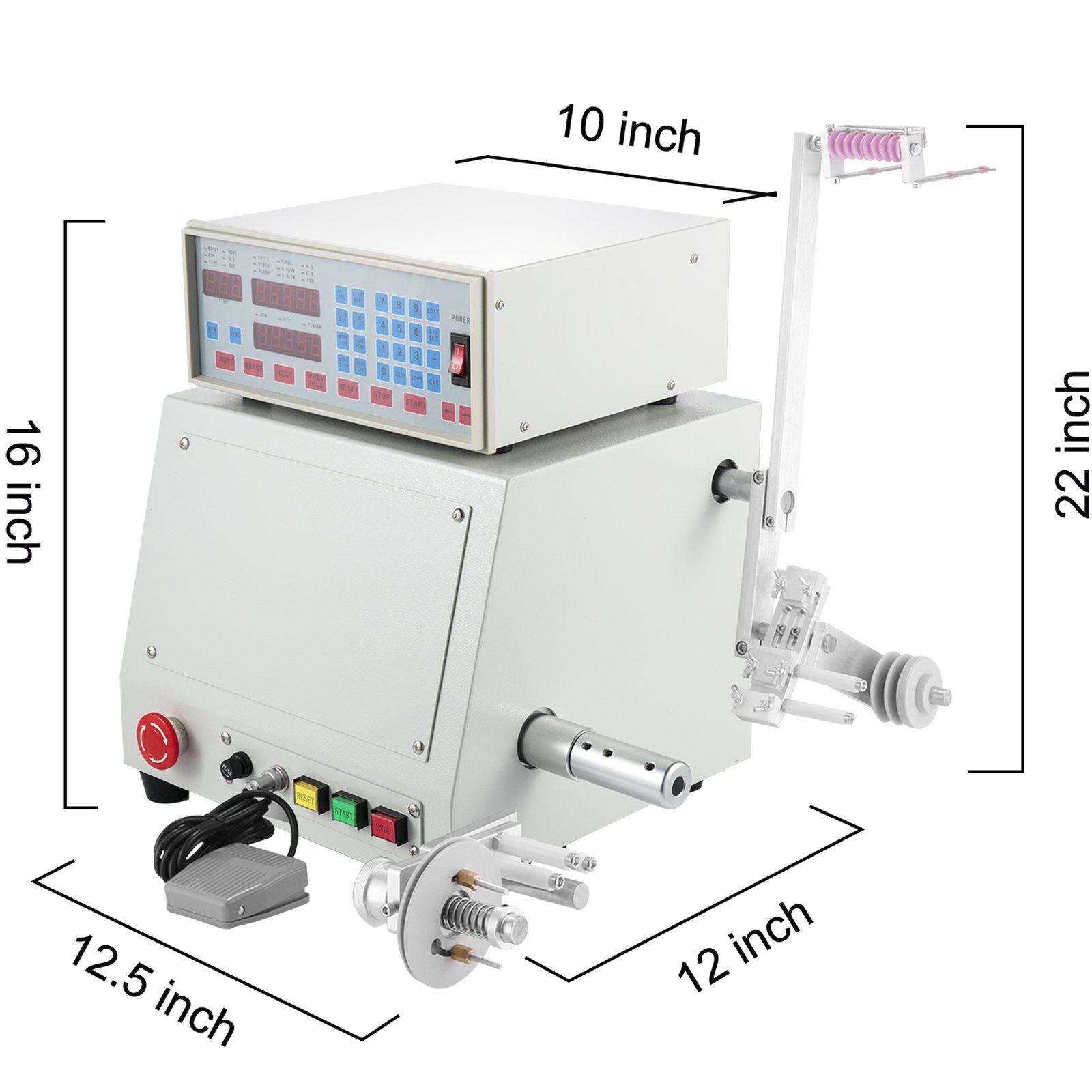

VEVOR cnc coil winder with dimensions noted: 16x10x12.5x12x22 inches.
Specifications
  • Power Voltage: Single Phase AC 110 V 60 HZ
  • Winding Displacement Machine: Step-servo Motor
  • Spindle Motor: Brushless DC 400 W
  • Wire Diameter: 0.03-1.2 mm
  • Maximum Winding Width: 108 mm (4.3")
  • Maximum Framework Diameter: 200 mm(7.9")
  • Maximum Turning Speed: 6000 circles/min, Speed Adjust Function
  • Storage Winding Groups: 999 Groups
  • Counting Resolution: 0.1 Circle
  • Complete Appliance Weight: 35 kg
  • Product Size: 317 x 305 x 406 mm (12.5" x 12"x 16")
  • Package Size: 550 x 480 x 530 mm (21.6" x 18.9" x 20.9")

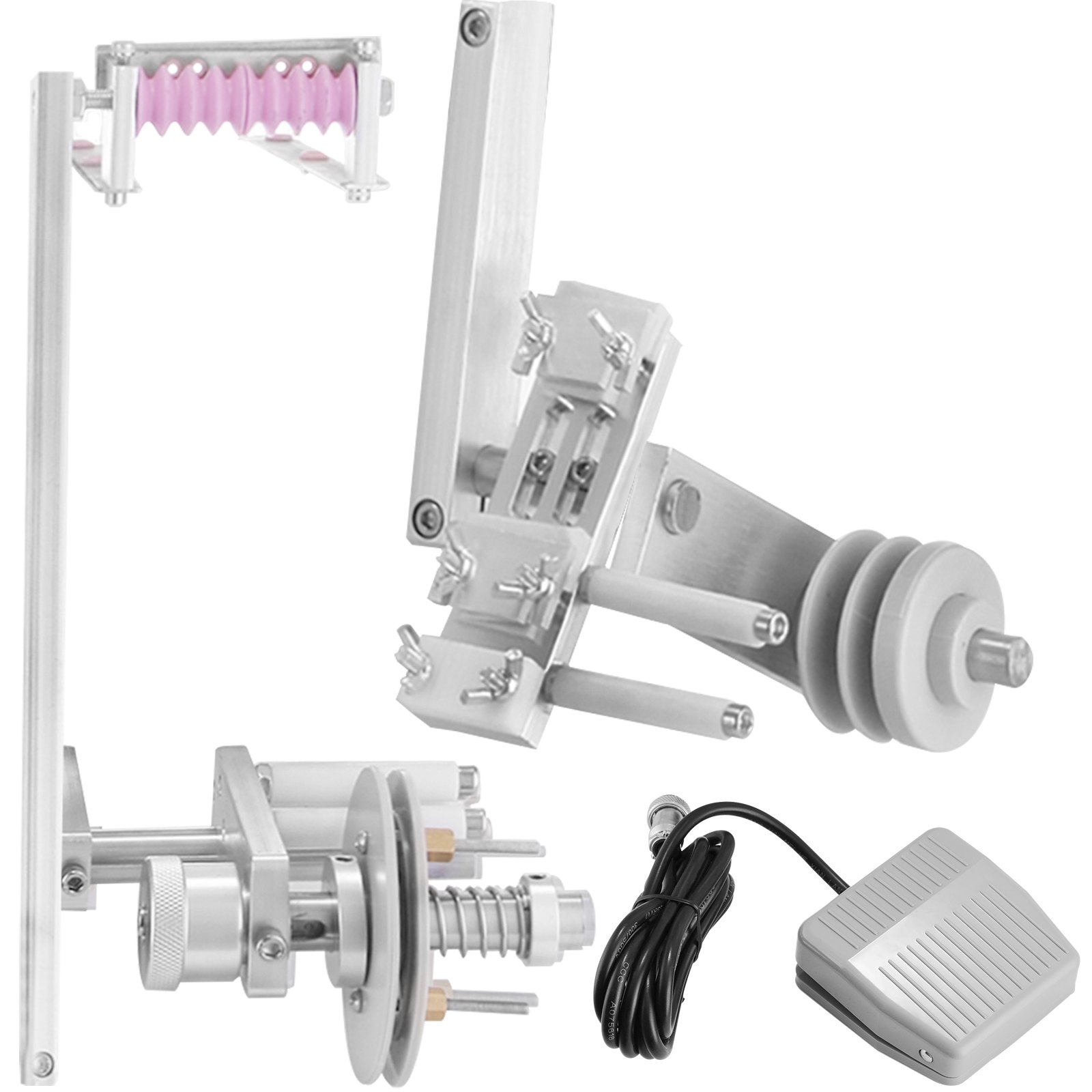

VEVOR cnc coil winder with metal components and foot pedal for precision winding.
Package Content
  • 1 x Automatic Coil Winder
  • 1 x Foot Switch
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.
VEVOR cnc coil winder with copper wire spools and control panel.

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR cnc coil winder with digital control panel and winding mechanism.
CNC Coil Winder Machine
This automatic coil winding machine is low noisy and less sensitive to external power fluctuation. The excellent step-servo motor provides our coil winder machine with fast speed and high precision. What's more, the CNC controller, foot switch, and tape rack are all convenient for your usage.
  • Premium Performance
  • Automatic Function
  • Integrated Design
  • Easy to Operate
VEVOR cnc coil winder with digital display and efficiency icons for low noise and precision.
Work Efficiently
Maximum turning speed: 6000 circles/min. The motor with a constant-current driver provides fast wire guiding speeds and speed adjustable function.
VEVOR cnc coil winder with digital display and control buttons for off-power memory retention.
Rapid Flash ROM
Using flash ROM, our coil machine can hold up to 999 sets of wind data. The capacity is large, and the data will not be lost after power failure.
VEVOR cnc coil winder control panel with digital display and buttons.
Computer Numerical Control
Thanks to the CNC controller, winding speed can be specified using the front panel keypad, resulting in easy programming of multi-step, multi-speed settings.
efficient cooling system for VEVOR cnc coil winder featuring directional air vents.
Efficient Cooling System
The high-speed radiating holes ensure that the machine works at a constant temperature, with higher efficiency and longer life.
VEVOR cnc coil winder with foot switch and tape rack, showcasing control panel.
Foot Switch & Tape Rack
For your convenience, our winding machine is equipped with a foot switch and an insulating tape rack that can wrap the coil with tape.
various coils and transformers showcasing VEVOR cnc coil winder capabilities.
Versatile Usage
Our CNC coil winding machine is ideal for medium or small transformer, relay, communication coil, ignition coil, and other winding products.
VEVOR cnc coil winder with metal components and foot pedal for precision winding.
Package Content
  • 1 x Automatic Coil Winder
  • 1 x Foot Switch
VEVOR cnc coil winder with dimensions noted: 16x10x12.5x12x22 inches.
Specifications
  • Power Voltage: Single Phase AC 110 V 60 HZ
  • Winding Displacement Machine: Step-servo Motor
  • Spindle Motor: Brushless DC 400 W
  • Wire Diameter: 0.03-1.2 mm
  • Maximum Winding Width: 108 mm (4.3")
  • Maximum Framework Diameter: 200 mm(7.9")
  • Maximum Turning Speed: 6000 circles/min, Speed Adjust Function
  • Storage Winding Groups: 999 Groups
  • Counting Resolution: 0.1 Circle
  • Complete Appliance Weight: 35 kg
  • Product Size: 317 x 305 x 406 mm (12.5" x 12"x 16")
  • Package Size: 550 x 480 x 530 mm (21.6" x 18.9" x 20.9")
