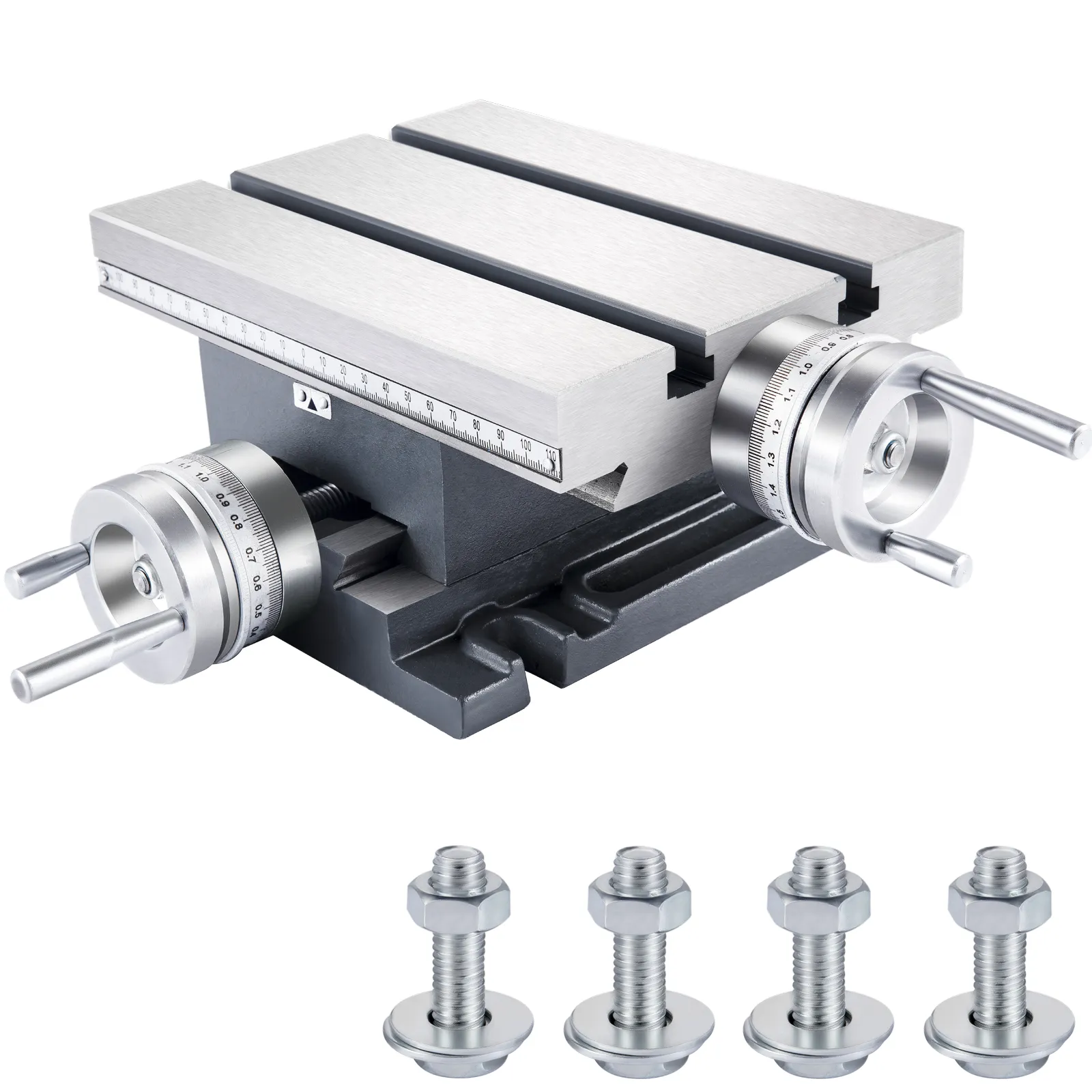

Compound Slide Table: The compound cross slide worktable is designed for drilling machines, milling machines, etc., for precise positioning when jig boring or drilling. It's a good partner for your drilling works.
Smooth XY Movement: Our milling machine worktable can move horizontally and vertically through the adjustment handles. The workbench vertical travel length is 4.3"/108 mm, and the horizontal travel length is 4.7"/120 mm.
0.0004 Inch Precise Dial: The handwheels contain thrust bearing, operate more smoothly, and the indexing accuracy is 0.01 mm/0.0004" that ensures accurate position. 8.9" x 6.9" / 226 x 175 mm working area is large enough.
Premium Surface: Our multifunction milling bench drill is made of heavy-duty HT200 cast iron, which can withstand the harsh environment. The base is 8.9" x 7.1" / 228 x 180 mm and is flat enough that no shaking during operation.
Various Application: The cross slide working table is an indispensable tool for all types of positioning, milling, drilling, optical viewing, and staging; ideal for all drill stands, drilling, and milling machines.
Heavy and good build quality. Worked well on my drill press using to mill out rectangular holes. Accurate and easy to use. I don't know why but on the y axis the turning handle gets a bit tight the more it nears the x axis. I'm not sure why that is. Hence the 4 out of 5 rating.
See Less
See More
Milling Machine Table
Reviewed on Mar 28,2024
I bought this small milling worktable to fit on the table of my bench drill. It certainly is a good, heavy, sturdy workable, which is just what I need to do small milling jobs. However, as other reviewers have mentioned, I did need to modify and rectify a few issues. I dismantled the worktable and filed off the burrs, which had been left after this item had been manufactured. There was also some paint overspray on the slides, which I also removed. Also the friction device, which holds the graduated scale in position on the two spindles, turned out to be masking tape! I removed this and have ordered a couple of large wavy washers to make my own friction device. This will need some machining work on the graduated scales, but after that, it should work fine. I also lubricated and adjusted the keys in the slideways, unitl the table was was moving nicely.
All in all, a good, solid piece of kit for a great price, albeit needing some fettling to make it even better. I've already used it for a small milling job on aluminium, and the results were great.
See Less
See More
Jimbo
Reviewed on Mar 11,2023
Great seller! Fast response, accurate description. A great product at a very good price, delivered quickly. Pleasure doing business with.
See Less
See More
Nutcase DIYer
Reviewed on Jan 01,2023
Good value for money. Not super precision but good enough. Robustly made and rather heavy. [not sure why this review must contain a minimum number of characters].
See Less
See More
mfletch
Reviewed on Dec 27,2022
Made of cast iron but needs a complete strip down an excellent clean and deburring lots of sharp edges but once done its usable as a drill table and very light milling.
See Less
See More
Alan Wallington
Reviewed on Sep 27,2022
Very pleased with this item. Please bear in mind I am not precision engineer, I am a wood worker mainly interested with wood turning. Now and again I have the need for a metal work lathe, but I cannot justify buying one, so I have converted my wood lathe into a metal work lathe. To achieve this I purchased this simple compound table, a tool post and tool holder and a set of metal turning tools. OK, it not a Colchester or any other precise lathe but used very gently it works a treat. Had to rebuild the table of course! Would recommend just adding an m6 nut to the handwheels.
See Less
See More
Ann Mackenzie
Reviewed on Aug 04,2022
Good casting but required the end thrust bearings replaced.Easy job. Used to hold a job next to my milling head. Very happy with purchase
See Less
See More
BigBertie
Reviewed on Jul 09,2022
What I expected for the price was something that was basically sound but had been shoddily assembled, was probably unusable as delivered but with fettling could be turned into a decent bit of kit. That is exactly what I got! About 5 hours later and it’s pretty good, perfectly sufficient with a drill press and OK for light milling.
Non existent quality control resulted in an excellent price. Rough edges, nibs, wobbling, paint overspray on running surfaces, hand wheels incorrectly sized meant that bearings and calibrated wheels didn’t work. Oh, and no grease anywhere so although easier to clean, hardly surprising that everything felt rough.
However, cleaning, filing, sanding, deburring, scraping off paint and lubricating worked wonders. The hand wheels needed touching up on the lathe…the tolerances were wrong so rotating parts were either too tight or too loose. I couldn’t have done it without a lathe but it wasn’t difficult work with one and everything now runs smoothly and accurately. The cast iron is quite soft but that makes it easier to tweak. The only thing I’ve yet to do after installing on my drill press is to check the horizontals of the table. I expect it to be out but it should be easy to simply shim it up to get everything square.
So if you want to use it out if the box…awful….but if you’re happy and able to put in a few hours setting the thing up properly, you’ll have a decent xy table with no side play and smooth operation for a very good price. Am I happy that I bought it? Yes. Would I recommend it? Yes…with the above provisos. Overall rating ** as received, but ***** after fettling.
See Less
See More
MR BRIAN VICKERY
Reviewed on Jun 09,2022
VERY GOOD PRODUCT, I WILL BE USING IT FOR SMALL MILLING JOBS.
See Less
See More
Oil-less Dave
Reviewed on Jun 04,2022
Many reviews focus on the finish of these tables, in most respects mine was usable out of the box. I stripped it and relieved all sharp edges but found the ways to be adequately ground so just lubricated. Thrust bearings were present and the gib strips adjusted to leave free movement with no play. The only issue was the perfunctory flaky chroming of the hand wheels which I had to clean up!. For the price I was impressed but have yet to affirm the levels on the horizontal plane. Not so critical on drill press but important for milling? Overall a worthwhile purchase.
See Less
See More
See all 18 reviews
About this item
Product specification
Model
202
Working Table Size
Approx.8.9 x 6.9 in / 226 x 175 mm
Base Size
Approx. 8.9 x 7.1 in / 228 x 180 mm
X-Axis Travel
Approx. 4.7 in/120 mm
Y-Axis Travel
Approx. 4.3 in/108 mm
Center Distance of Base Installation Slot
Approx. 5.9 in/150 mm
Base Mounting Slot Hole Distance
Approx. 6.3 in/160 mm
Base Mounting Groove Width
Approx. 0.5 in/12 mm
Description
Milling Machine Table
Our compound cross slide worktable is used in positioning, milling, drilling, microscope viewing, and staging; it's an excellent partner to many machine tools. This worktable is made of solid cast iron, equipped with handwheels and a dial. You can move or rotate the X and Y axes conveniently to meet your working requirements.
Compound Slide Table
Smooth XY Movement
0.0004 Inch Precise Dial
Precise Surface
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Drill Press Worktable
The milling machine multifunction working table is an excellent partner for bench drills, column drills, drill stands, and milling stands.
2 Axes Movement
The slide rail of the working table is fast and tightly locked. X(4.7"/120 mm) and Y(4.3"/108 mm) axes moving quickly.
Accurate Measure
This cross slide table is equipped with a precise dial and handles that provide rapid, accurate positioning.
Smooth & Ground Table
The flat working area and machined T-slots are efficient to provide significant help during your processing.
Durable Material
It is made of sturdy HT200 cast iron, which is firm and hard-wearing. These features allow a long service time.
Widely Used
This milling working table is indispensable for precise drilling and milling. It's ideal for all drill stands, drilling, and milling machines.
Specifications
Model: 202
Working Table Size: Approx.8.9 x 6.9 in / 226 x 175 mm
Base Size: Approx. 8.9 x 7.1 in / 228 x 180 mm
X-Axis Travel: Approx. 4.7 in/120 mm
Y-Axis Travel: Approx. 4.3 in/108 mm
Center Distance of Base Installation Slot: Approx. 5.9 in/150 mm
Base Mounting Slot Hole Distance: Approx. 6.3 in/160 mm
Base Mounting Groove Width: Approx. 0.5 in/12 mm
Package Content
1 x Compound Slide Milling Table
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Milling Machine Table
Our compound cross slide worktable is used in positioning, milling, drilling, microscope viewing, and staging; it's an excellent partner to many machine tools. This worktable is made of solid cast iron, equipped with handwheels and a dial. You can move or rotate the X and Y axes conveniently to meet your working requirements.
Compound Slide Table
Smooth XY Movement
0.0004 Inch Precise Dial
Precise Surface
Drill Press Worktable
The milling machine multifunction working table is an excellent partner for bench drills, column drills, drill stands, and milling stands.
2 Axes Movement
The slide rail of the working table is fast and tightly locked. X(4.7"/120 mm) and Y(4.3"/108 mm) axes moving quickly.
Accurate Measure
This cross slide table is equipped with a precise dial and handles that provide rapid, accurate positioning.
Smooth & Ground Table
The flat working area and machined T-slots are efficient to provide significant help during your processing.
Durable Material
It is made of sturdy HT200 cast iron, which is firm and hard-wearing. These features allow a long service time.
Widely Used
This milling working table is indispensable for precise drilling and milling. It's ideal for all drill stands, drilling, and milling machines.
Package Content
1 x Compound Slide Milling Table
Specifications
Model: 202
Working Table Size: Approx.8.9 x 6.9 in / 226 x 175 mm
Base Size: Approx. 8.9 x 7.1 in / 228 x 180 mm
X-Axis Travel: Approx. 4.7 in/120 mm
Y-Axis Travel: Approx. 4.3 in/108 mm
Center Distance of Base Installation Slot: Approx. 5.9 in/150 mm
Base Mounting Slot Hole Distance: Approx. 6.3 in/160 mm
Base Mounting Groove Width: Approx. 0.5 in/12 mm
