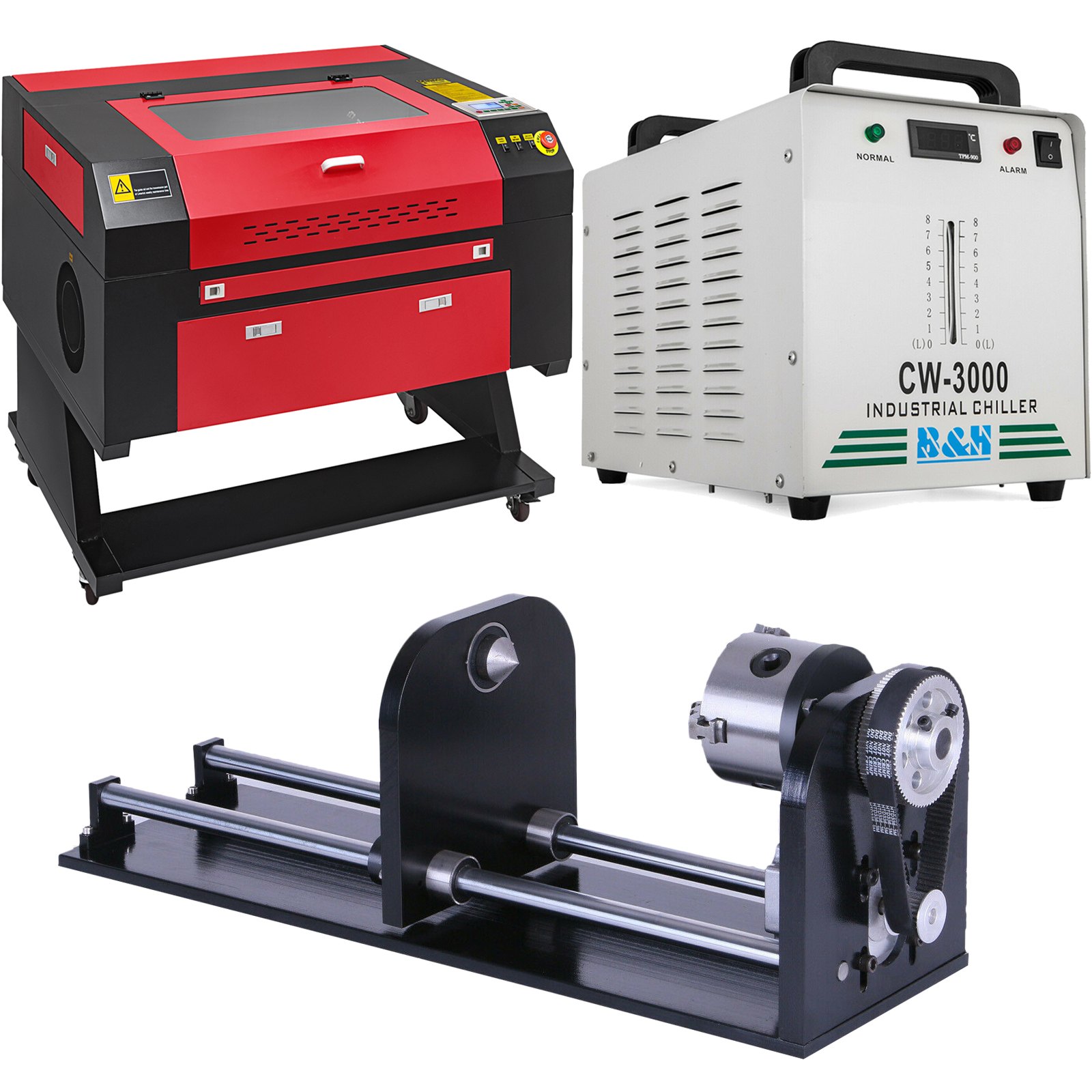

Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis
Report Incorrect Product Information
750DKJ+XZZJGYLSJ1V2

Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis

£2041.99
2041.99
  • As a professional cooling machine, CW-3000 Series industrial water chiller is designed for cooling the one CO2 glass laser tube under 100W of the laser engraving and cutting machine. The rotary axis is designed for laser engraver cutting machine for enhancing the product quality.
  • 【PRODUCT DETAILS】- The industrial water cooler chiller is 220V voltage, 60HZ frequency, 0.45A current, 50W/℃ Cooling and 10L capacity. The laser engraver's working size is 20"x28"(500mm x 700mm), 60W laser power, 500mm/s max speed and 1000 DPI resolution. The rotary axis is 80mm 3-jaw scroll chuck with anti-rusty coating surface.
  • 【PREMIUM QUALITY】- The water cooler chiller has professional forced air-cooled radiator, high heat dissipating capacity and not easy to be blocked. The laser engraving machine adopts 60W CO2 glass sealed laser tube, premium laser head, international standard laser power supply, and integrated framework design.
  • 【POWERFUL PERFORMANCE 】- This laser engraver supports USB2.0 port, U disk reading and writing, support U disk system upgrade; Able to work independently of PC; Visible red dot pointer for better guidance; Use virtual array list and additional off-cut graph to realize the off-cut function; With feeding devices to realize the cyclical model of working-feeding-working; Separation of cutting up to 256 Colors.
  • 【GREAT PROTECTION SYSTEM】- The laser engraver machine has air assist, removing heat and combustible gases from the cutting surface to prevent burning during engraving working, and with a built-in cooling fan for effective ventilation. The water cooler chiller has completed water flow and over high temperature alarm functions.

Frequently bought together

People Who Bought This Item Also Bought

Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis
Laser Engraver Cw-3000 Industrial Water Cooler Chiller And Cnc Rotary Axis
unashoppingifytemplatenew
The new laser engraving and cutting machine is a kind of laser engraving machine system equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble and glass etc.
As a professional cooling machine, CW-3000 Series industrial water chiller is designed for cooling the one CO2 glass laser tube under 100W of the laser engraving and cutting machine. The rotary axis is designed for laser engraver cutting machine for enhancing the product quality.

  • 【PRODUCT DETAILS】- The industrial water cooler chiller is 220V voltage, 60HZ frequency, 0.45A current, 50W/℃ Cooling and 10L capacity. The laser engraver's working size is 20"x28"(500mm x 700mm), 60W laser power, 500mm/s max speed and 1000 DPI resolution. The rotary axis is 80mm 3-jaw scroll chuck with anti-rusty coating surface.
  • 【PREMIUM QUALITY】- The water cooler chiller has professional forced air-cooled radiator, high heat dissipating capacity and not easy to be blocked. The laser engraving machine adopts 60W CO2 glass sealed laser tube, premium laser head, international standard laser power supply, and integrated framework design.
  • 【POWERFUL PERFORMANCE 】- This laser engraver supports USB2.0 port, U disk reading and writing, support U disk system upgrade; Able to work independently of PC; Visible red dot pointer for better guidance; Use virtual array list and additional off-cut graph to realize the off-cut function; With feeding devices to realize the cyclical model of working-feeding-working; Separation of cutting up to 256 Colors.
  • 【GREAT PROTECTION SYSTEM】- The laser engraver machine has air assist, removing heat and combustible gases from the cutting surface to prevent burning during engraving working, and with a built-in cooling fan for effective ventilation. The water cooler chiller has completed water flow and over high temperature alarm functions.
  • 【WORKS COOPERATIVELY】- The industrial water cooler chiller, together with new system laser engraver and rotary axis, it's definitely a nice combination to improve the work efficiency and performance of the CNC.
  • Product Parameters
The water cooler chiller features stable performance, with 220V voltage,50W/℃ Cooling and 9L capacity.The laser engraver has large working size,60W laser power, 500mm/s max speed and 1000 DPI resolution. Rotary axis has 80mm 3-jaw scroll chuck and 1:2.5 synchronous pulley induction.
  • Superior Quality
Both of the CNC, water cooler chiller and rotary axis use high-quality material to make. They are exquisite in appearance and fine in workmanship. The excellent materials provide them stable perfromance and a great experience of use.
  • Excellent Performance
This laser engraver cutting machine supports USB2.0 port, U disk reading and writing, support U disk system upgrade; Able to work independently from PC; Visible red dot pointer for better guidance; Use virtual array list and additional off-cut graph to realize the off-cut function; With feeding devices to realize the cyclical model of working-feeding-working; Separation of cutting up to 256 Colors.
  • Great Protection System
The laser cutting machine possesses air assist, removing heat and combustible gases from the cutting surface to prevent burning during engraving working, and with a built-in cooling fan for effective ventilation. Equipped with alarm output port, the water cooler chiller can quickly protect sensitive components.
  • High Compatibility
Supports multiple graphic formats, including HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI, etc. Adopts advanced DSP digital control system, the cnc is able to directly output from CorelDraw and Auto CAD.
  • Widely Used
This laser engraver can be used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, glass, and etc. And the water cooler and the rotary axis are suitable for laser engraver cutting machine for enhancing working efficiency.
Technical Parameters for Laser Engraver Cutting Machine

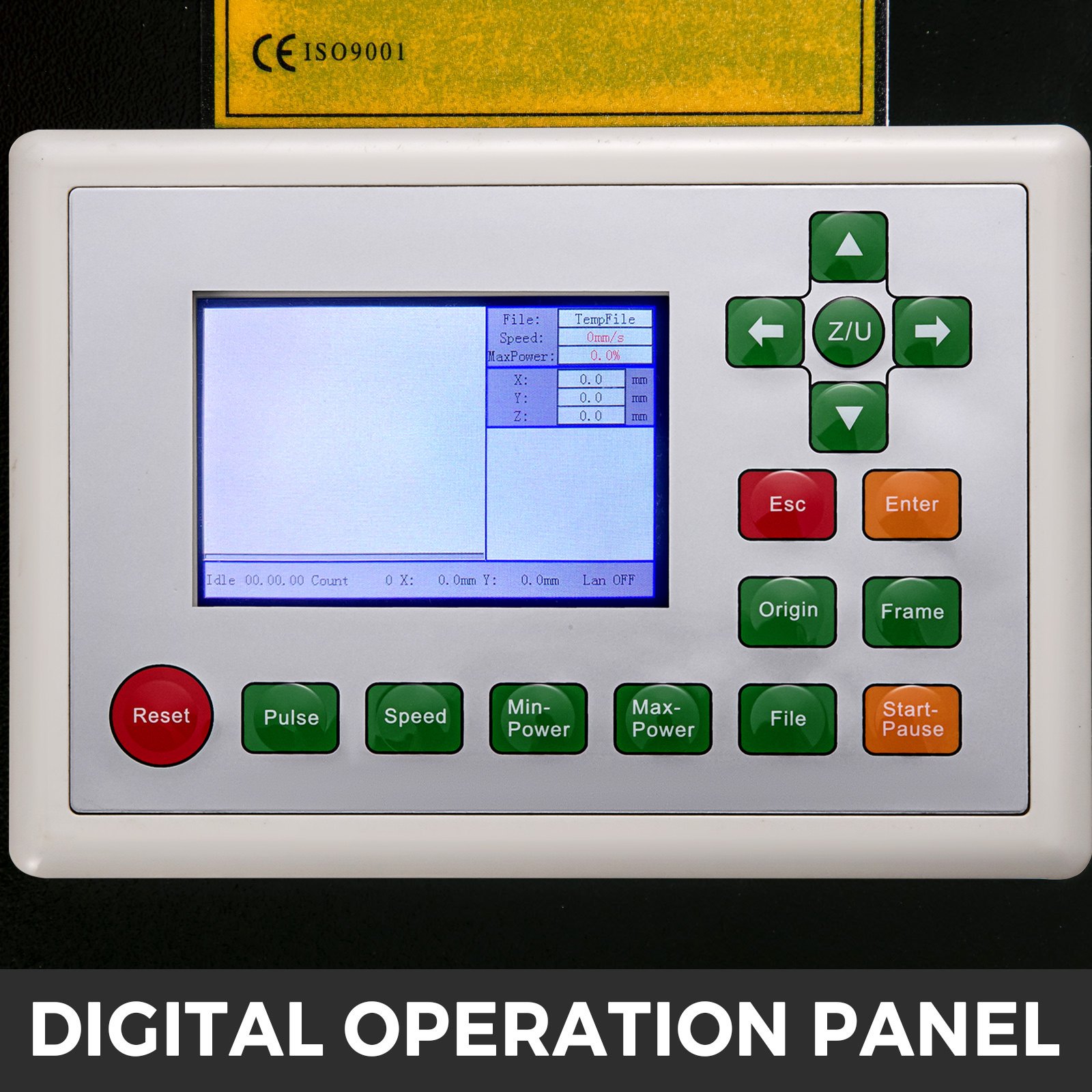

  • Control system:DSP

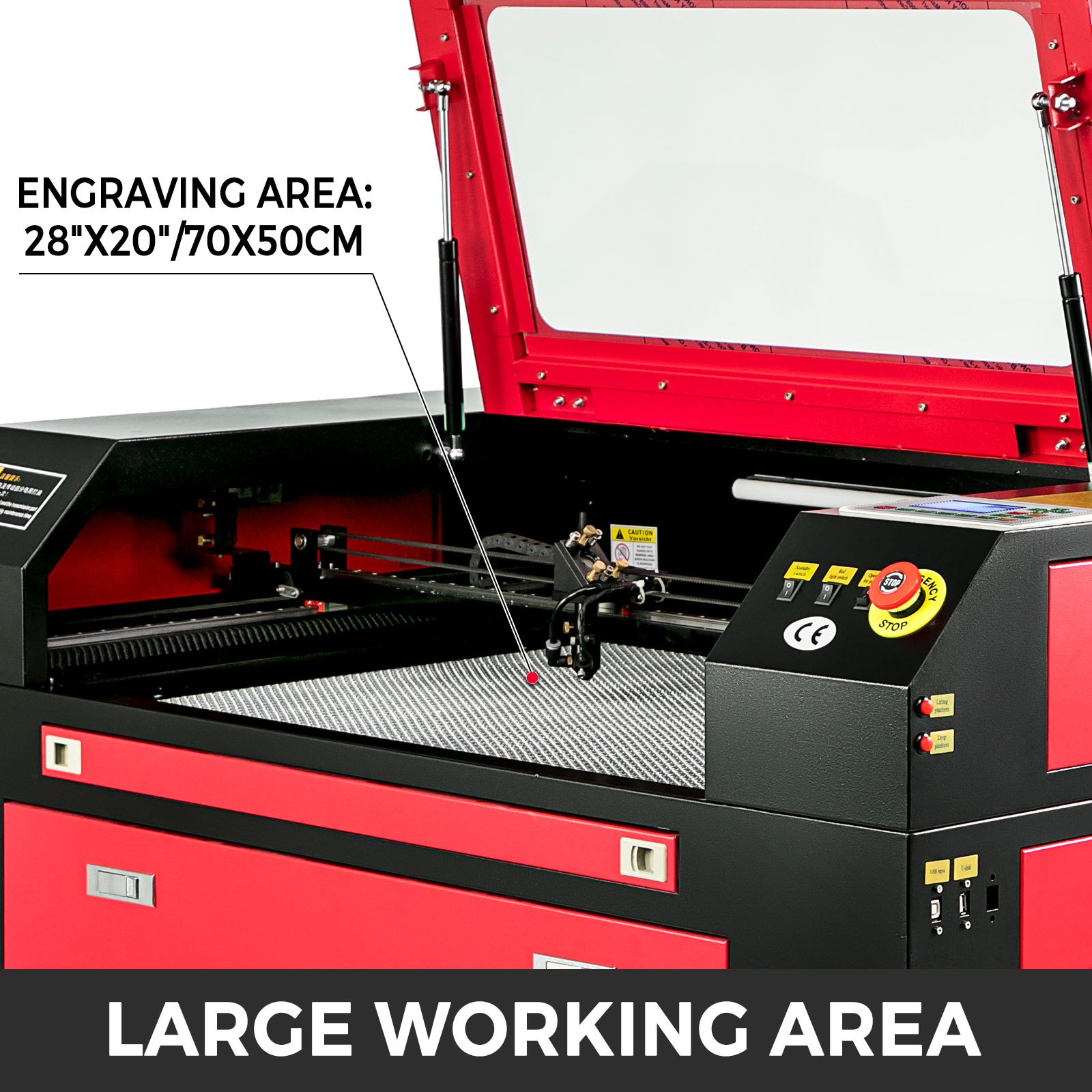

  • Working size: 20"x28"(500mm x 700mm)
  • Up and down work plate: 7.8" (200mm)

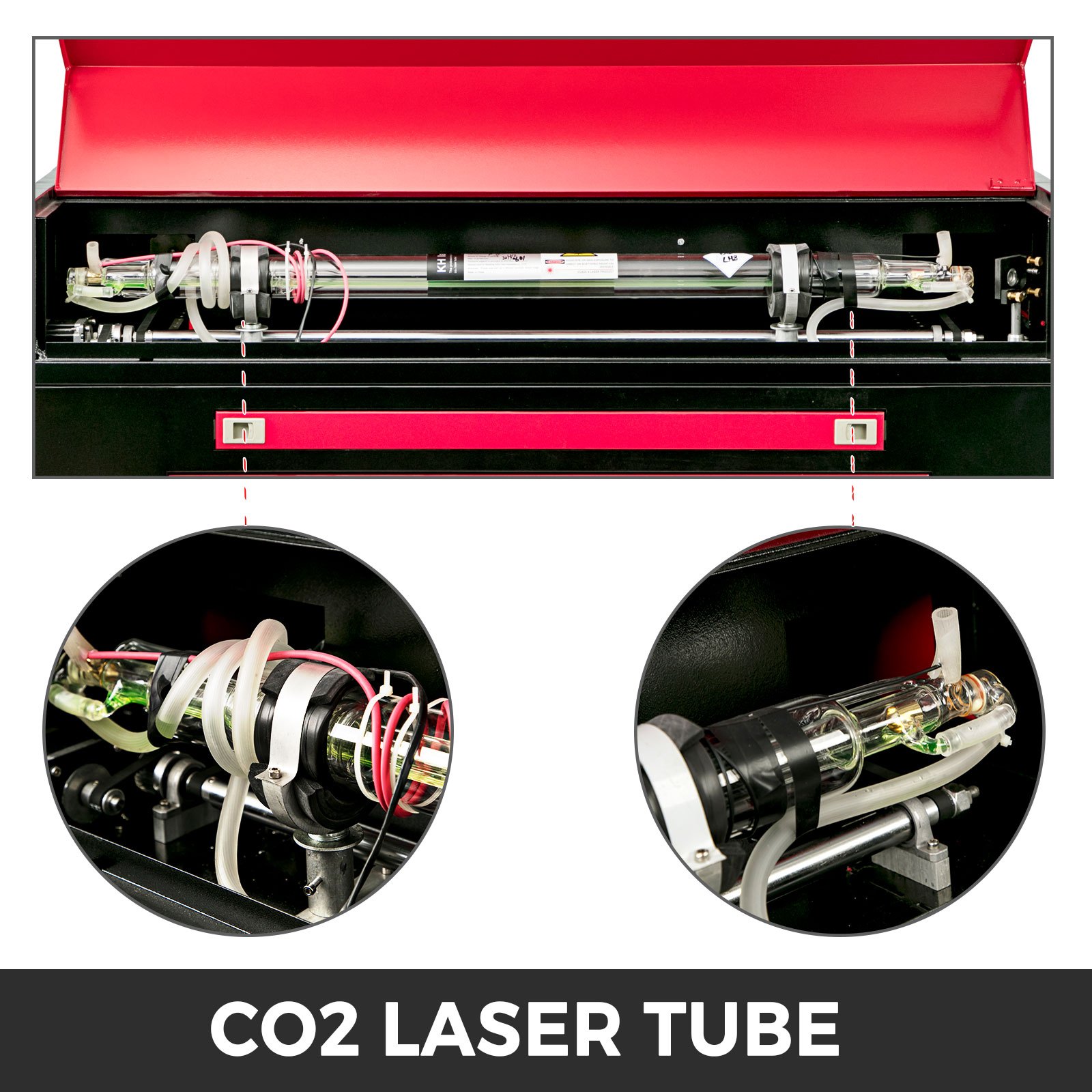

  • Laser tube type: Co2 Glass sealed laser tube
  • Laser power: 60W
  • Driver type: Micro Stepping Motor
  • Max speed: 500mm/s
  • Resolution: 2000 DPI
  • Location precision: 0.01mm

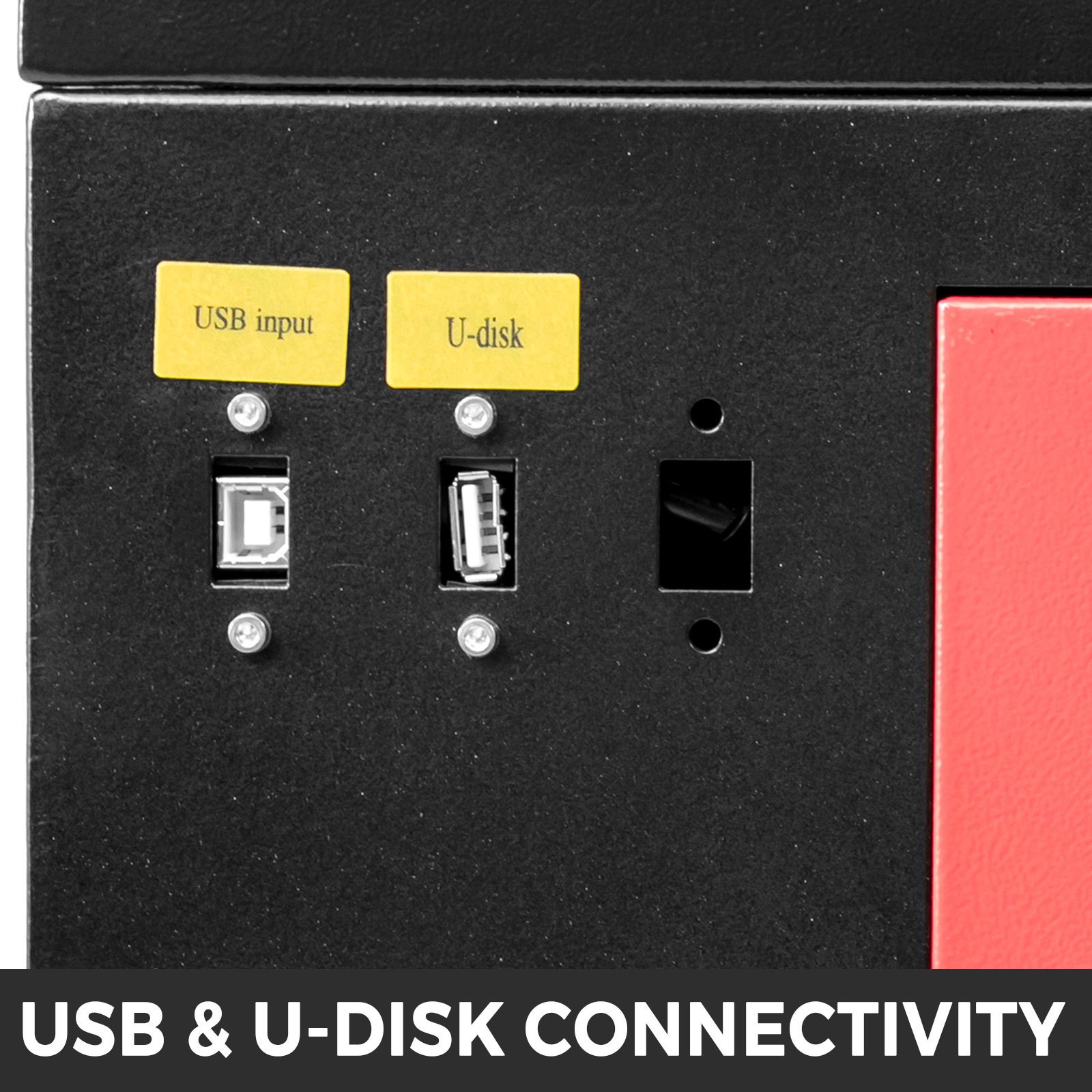

  • PC Interface: USB2.0 and USB Disk
  • Software: PowerCut, CorelDraw or AutoCAD
  • Image form: HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI
  • Machine Dimension(L/W/H): 1150*860*970(mm)
  • Package Dimension(L/W/H): 1700* 1000*1200 (mm)
  • Package: Standard Wooden case for export
  • N.W.: 125 KG(275.58 lbs)
  • G.W.: 185 KG(407.86 lbs)

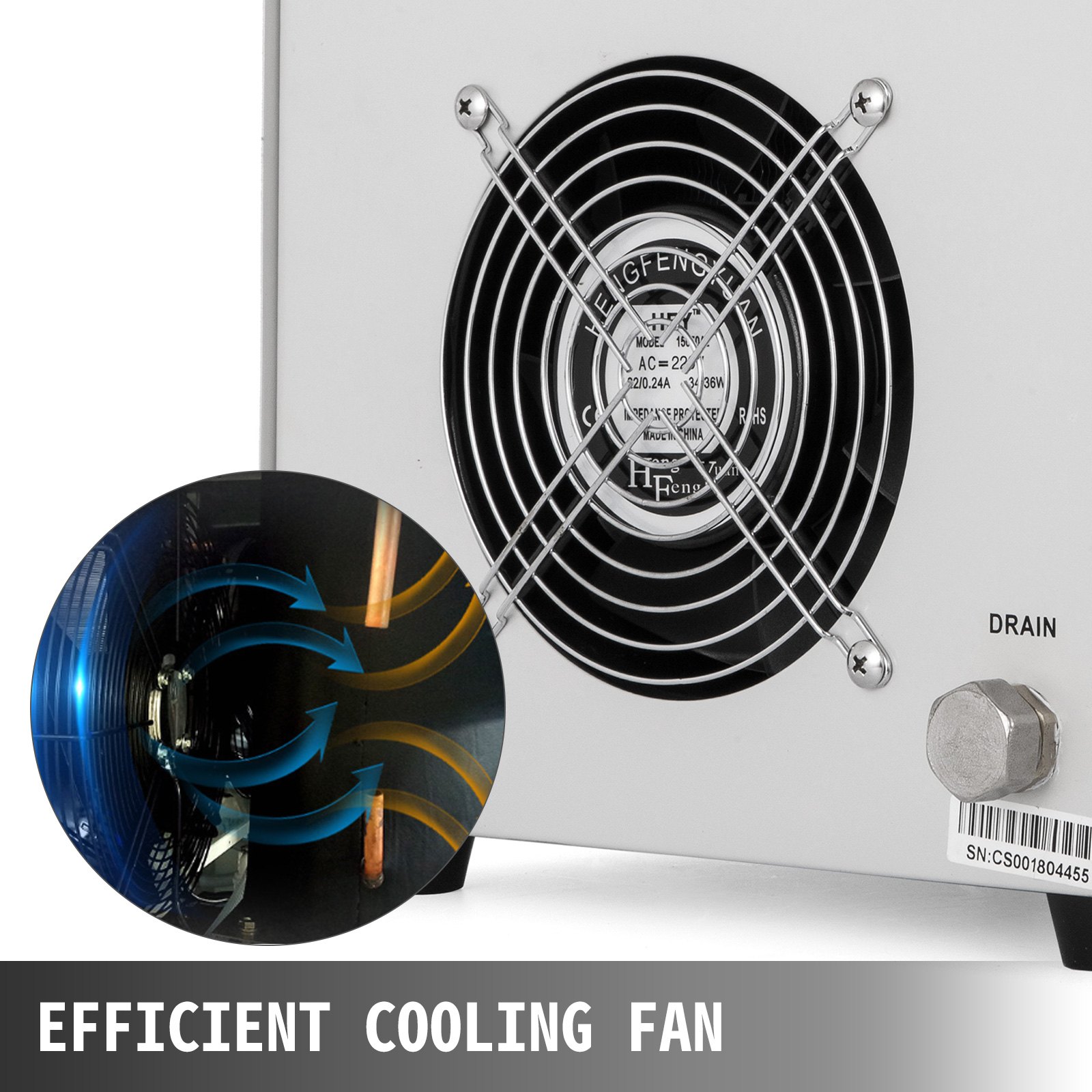

Technical Parameters for Water Cooler Chiller
  • MODEL: CW-3000AG
  • Voltage: 220V
  • Frequency: 60HZ
  • Current: 0.45A
  • Cooling: 50W/℃
  • Capacity: 10L
  • Max. Lift: 10M
  • Max. Flow: 10L/Min
  • N.W: 9.5kg
  • G.W: 12kg
  • Protection: Flow Alarm
  • Package: Carton Box
  • Way Of Circulation: Water Pump Forces Circulation

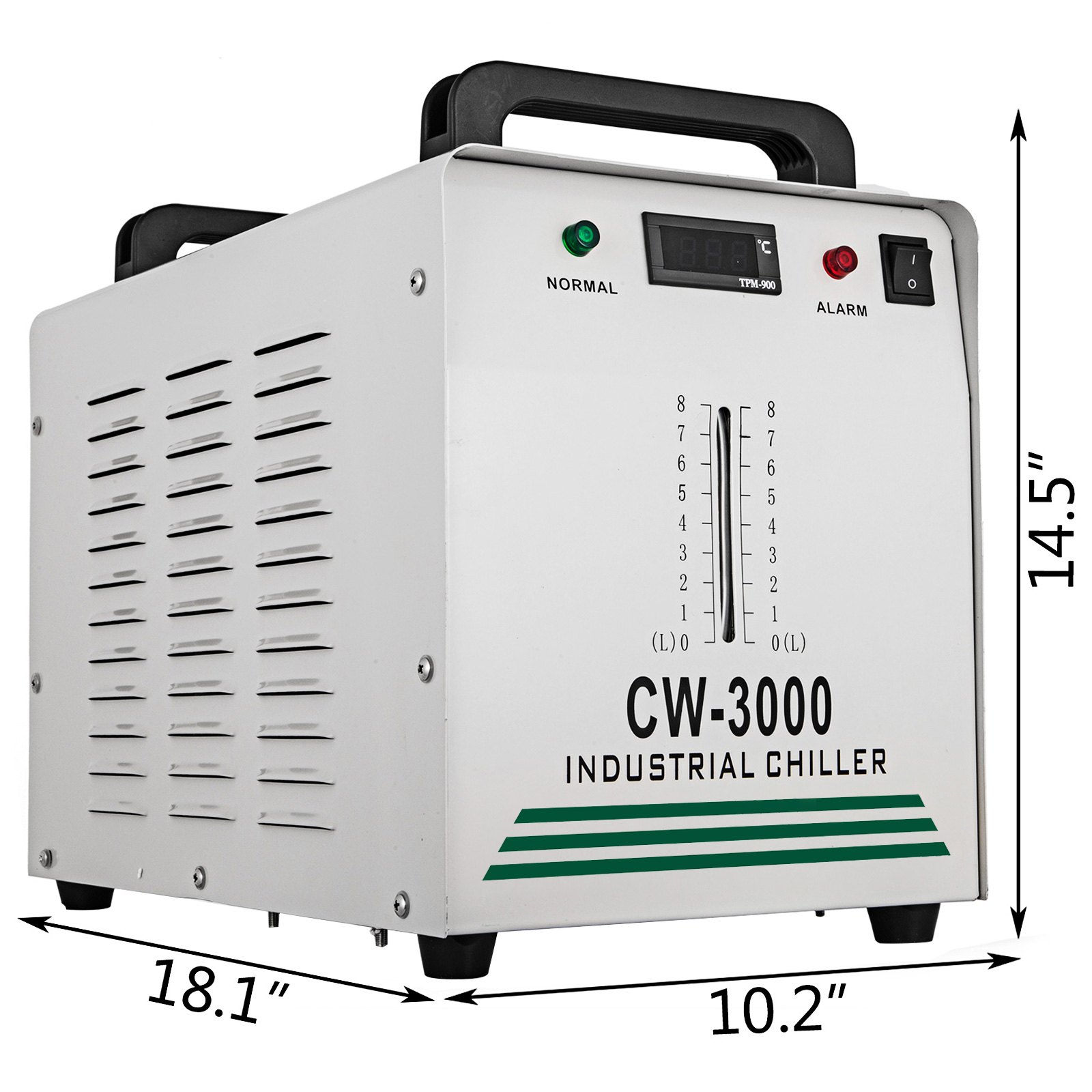

  • Dimensions: 470mm*270*370mm/18.50" x 10.63" x 14.57" (L*W*H)
  • Packing Dimensions: 590*380*470mm/22.05" x 14.57" x 18.11" (L*W*H)
  • Inlet And Outlet Hold: Outside Dimensions 10mm Brass Connector

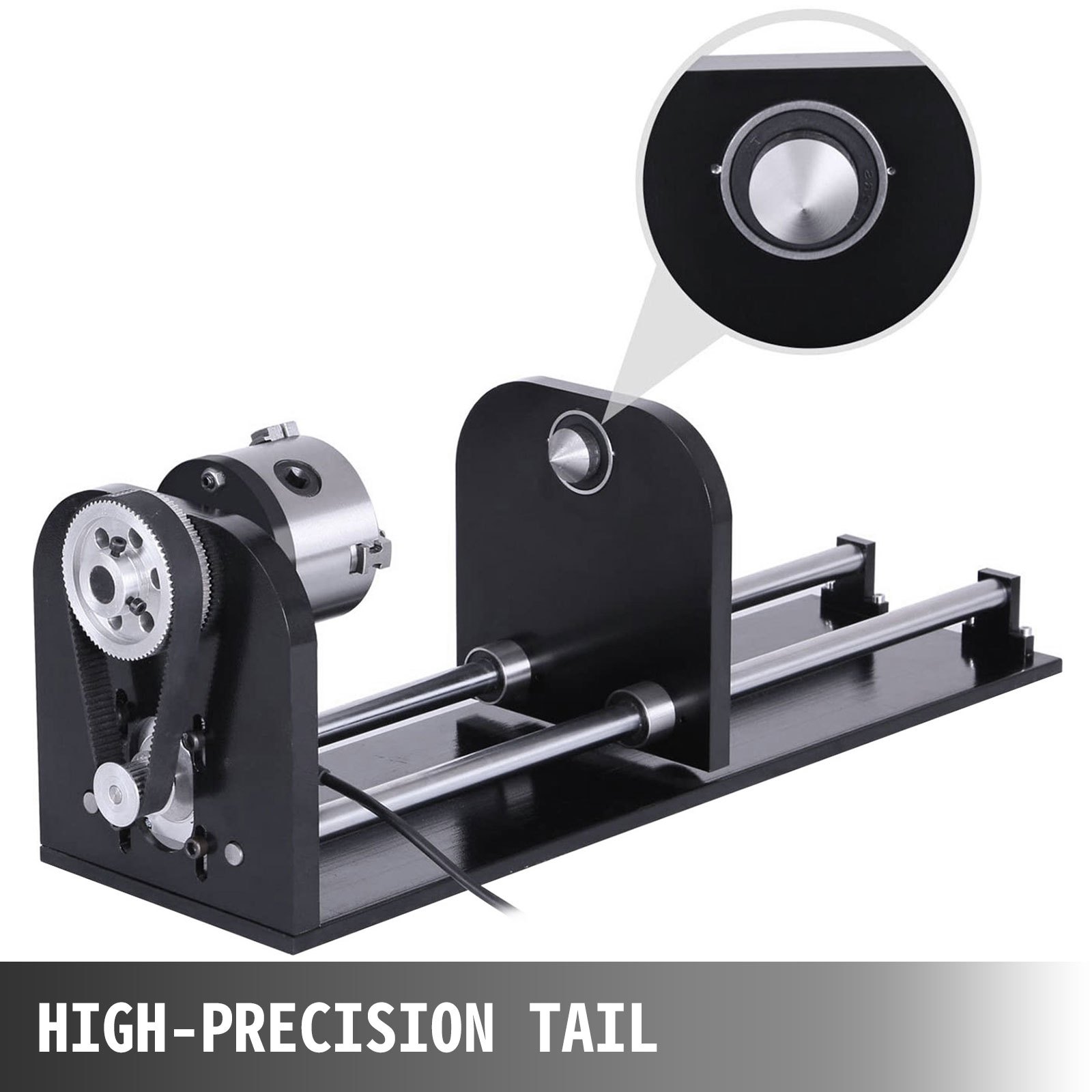

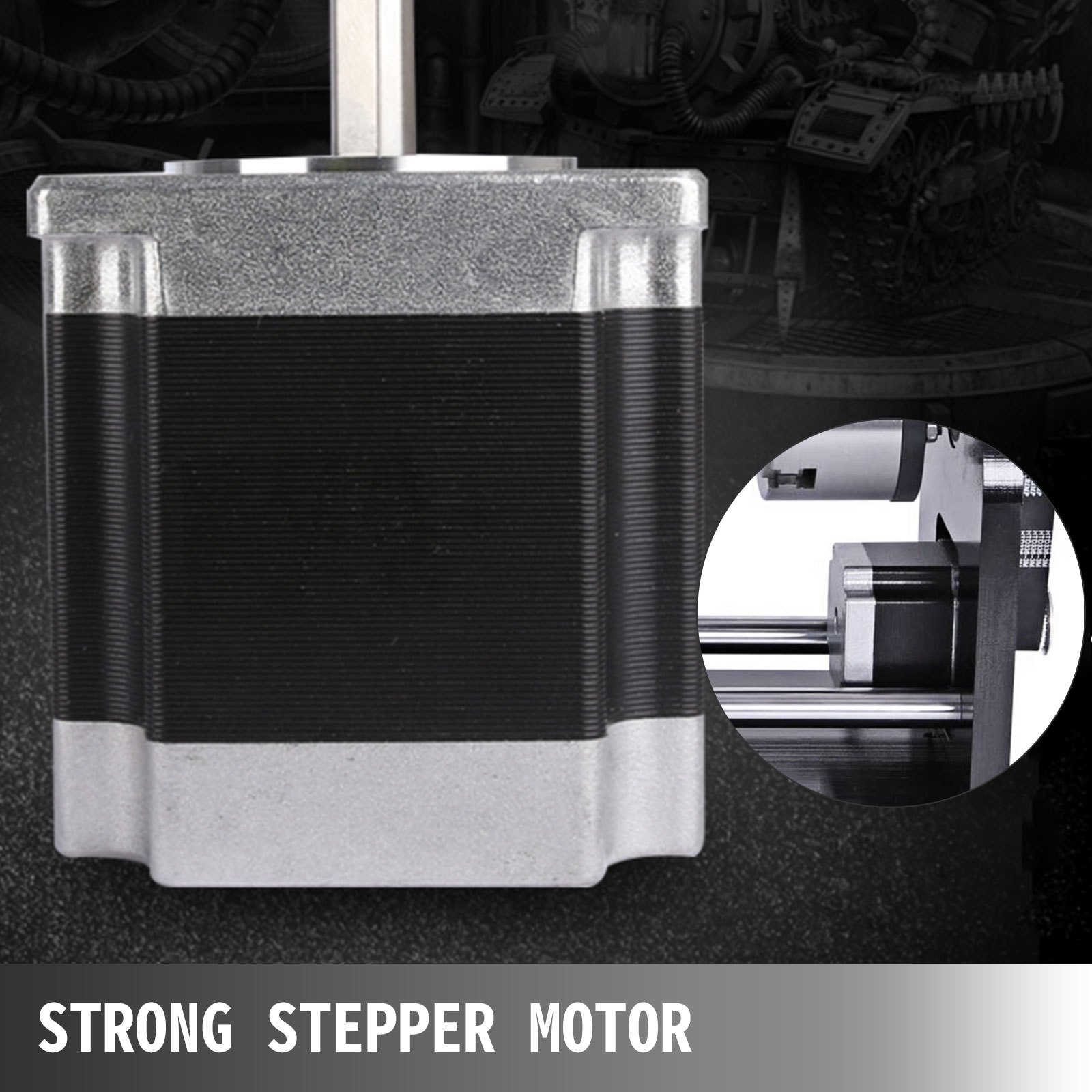

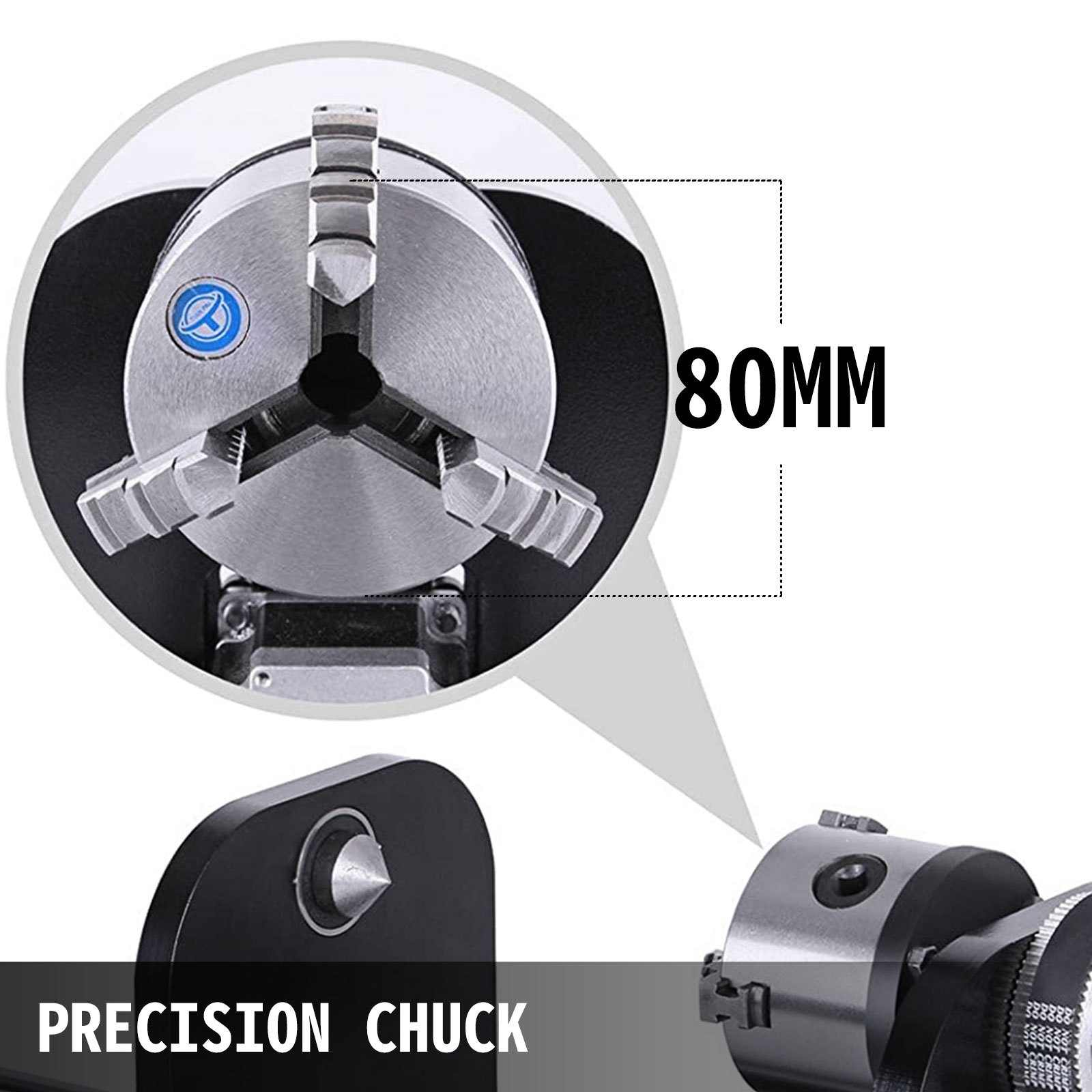

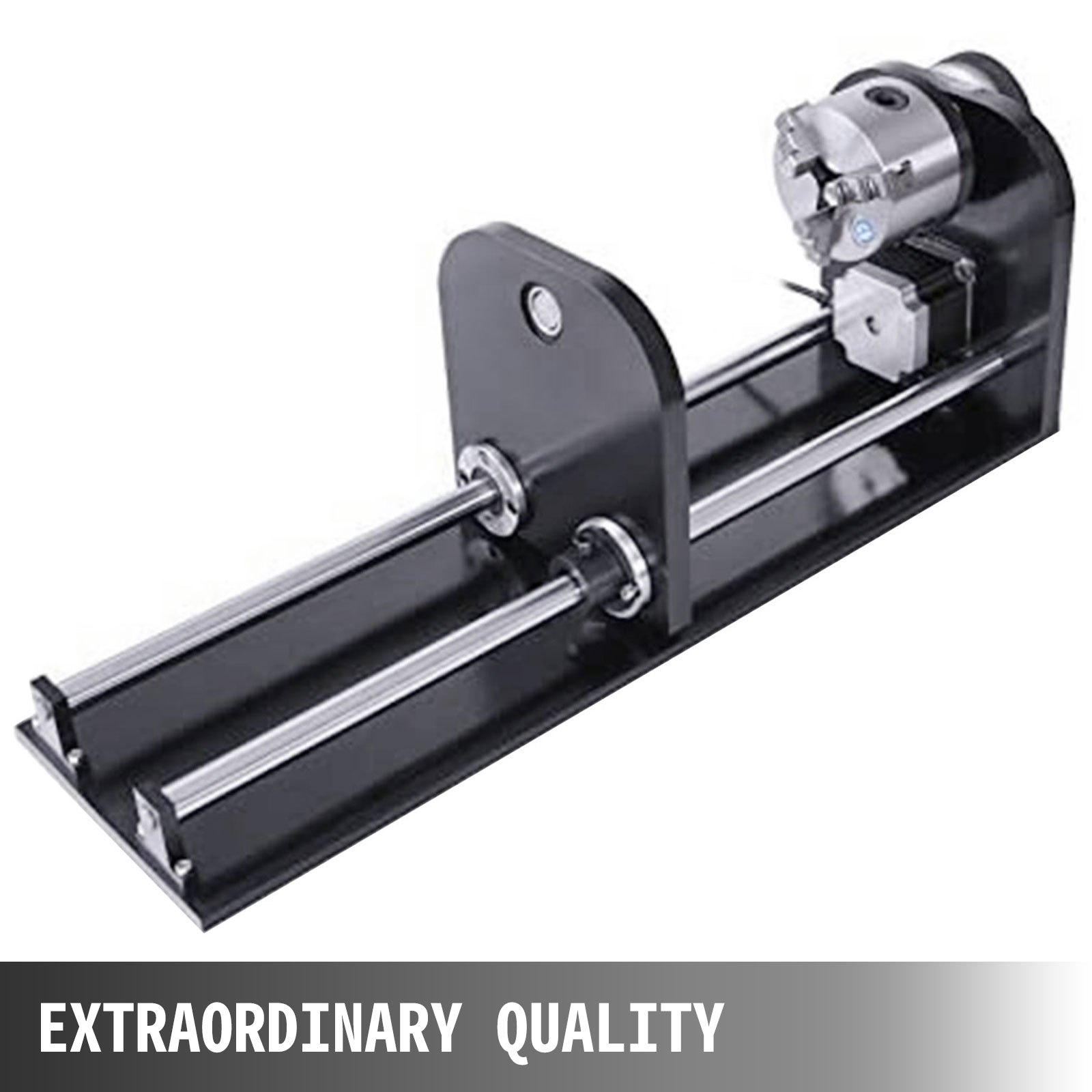

Technical Parameters for CNC Rotary Axis
  • Rated Voltage:2.07v Dc
  • Phase Resistance (20℃)  1.38×(1±15%)ω/Phase
  • The Maximum Statictorque:≥780mn.M
  • Swing( Shaft To See ):A-Ab-B-Clockwise Direction
  • Maximum No-Load Running Frequency:≥2500pps
  • Electrical Strength:Ac600v/1ma/1s
  • Rotor Inertia:220g.㎡
  • Step Angle:1.8°±0.09°
  • Rated Current:Dc 1a/Phase
  • Inductance (1khz):30×(1±20%)Mh/Phase
  • Detent Rorque:320g.Cm Ref.
  • Maximum No-Loadstart Frequency:≥1500 Pps
  • Insulation Resistance:≥100mω(Dc 500v)
  • Insulation Grade:B
  • Quality    0.8kg Ref.
  • Material Of Pulley:H62
  • Tooth Form:Mxl
  • Number Of Teeth    Z=20
  • Pitch Of Teeth    P=2.032
  • Pitch Circle:φ12.936
  • Outer Circle:φ12.428±0.003
  • Product Dimensions: H152 × L4500 ×W178 (Mm)
Package for Laser Engraver Cutting Machine
  • 1 X Main Body
  • 1 X Air exhaust fan
  • 1 X Air Pump
  • 1 X Water Pump
  • 1 X Communication cable
  • 3 X Reflect optics (installed in the machine)
  • 1 X Focus optics (installed in the machine)
  • 1 X Laser tube
  • 1 X English Manual (CD)
Package for Water Cooler Chiller
  • 1 × CW3000 Water Chiller Machine
  • 1 × Power Cable
  • 1 × English Manual
  • 2 × Sealing Washer
Package for CNC Rotary Axis
  • 1 X Rotary Axis
The new laser engraving and cutting machine is a kind of laser engraving machine system equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble and glass etc.
As a professional cooling machine, CW-3000 Series industrial water chiller is designed for cooling the one CO2 glass laser tube under 100W of the laser engraving and cutting machine. The rotary axis is designed for laser engraver cutting machine for enhancing the product quality.

  • 【PRODUCT DETAILS】- The industrial water cooler chiller is 220V voltage, 60HZ frequency, 0.45A current, 50W/℃ Cooling and 10L capacity. The laser engraver's working size is 20"x28"(500mm x 700mm), 60W laser power, 500mm/s max speed and 1000 DPI resolution. The rotary axis is 80mm 3-jaw scroll chuck with anti-rusty coating surface.
  • 【PREMIUM QUALITY】- The water cooler chiller has professional forced air-cooled radiator, high heat dissipating capacity and not easy to be blocked. The laser engraving machine adopts 60W CO2 glass sealed laser tube, premium laser head, international standard laser power supply, and integrated framework design.
  • 【POWERFUL PERFORMANCE 】- This laser engraver supports USB2.0 port, U disk reading and writing, support U disk system upgrade; Able to work independently of PC; Visible red dot pointer for better guidance; Use virtual array list and additional off-cut graph to realize the off-cut function; With feeding devices to realize the cyclical model of working-feeding-working; Separation of cutting up to 256 Colors.
  • 【GREAT PROTECTION SYSTEM】- The laser engraver machine has air assist, removing heat and combustible gases from the cutting surface to prevent burning during engraving working, and with a built-in cooling fan for effective ventilation. The water cooler chiller has completed water flow and over high temperature alarm functions.
  • 【WORKS COOPERATIVELY】- The industrial water cooler chiller, together with new system laser engraver and rotary axis, it's definitely a nice combination to improve the work efficiency and performance of the CNC.
  • Product Parameters
The water cooler chiller features stable performance, with 220V voltage,50W/℃ Cooling and 9L capacity.The laser engraver has large working size,60W laser power, 500mm/s max speed and 1000 DPI resolution. Rotary axis has 80mm 3-jaw scroll chuck and 1:2.5 synchronous pulley induction.
  • Superior Quality
Both of the CNC, water cooler chiller and rotary axis use high-quality material to make. They are exquisite in appearance and fine in workmanship. The excellent materials provide them stable perfromance and a great experience of use.
  • Excellent Performance
This laser engraver cutting machine supports USB2.0 port, U disk reading and writing, support U disk system upgrade; Able to work independently from PC; Visible red dot pointer for better guidance; Use virtual array list and additional off-cut graph to realize the off-cut function; With feeding devices to realize the cyclical model of working-feeding-working; Separation of cutting up to 256 Colors.
  • Great Protection System
The laser cutting machine possesses air assist, removing heat and combustible gases from the cutting surface to prevent burning during engraving working, and with a built-in cooling fan for effective ventilation. Equipped with alarm output port, the water cooler chiller can quickly protect sensitive components.
  • High Compatibility
Supports multiple graphic formats, including HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI, etc. Adopts advanced DSP digital control system, the cnc is able to directly output from CorelDraw and Auto CAD.
  • Widely Used
This laser engraver can be used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, glass, and etc. And the water cooler and the rotary axis are suitable for laser engraver cutting machine for enhancing working efficiency.
Technical Parameters for Laser Engraver Cutting Machine
  • Control system:DSP
  • Working size: 20"x28"(500mm x 700mm)
  • Up and down work plate: 7.8" (200mm)
  • Laser tube type: Co2 Glass sealed laser tube
  • Laser power: 60W
  • Driver type: Micro Stepping Motor
  • Max speed: 500mm/s
  • Resolution: 2000 DPI
  • Location precision: 0.01mm
  • PC Interface: USB2.0 and USB Disk
  • Software: PowerCut, CorelDraw or AutoCAD
  • Image form: HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI
  • Machine Dimension(L/W/H): 1150*860*970(mm)
  • Package Dimension(L/W/H): 1700* 1000*1200 (mm)
  • Package: Standard Wooden case for export
  • N.W.: 125 KG(275.58 lbs)
  • G.W.: 185 KG(407.86 lbs)
Technical Parameters for Water Cooler Chiller
  • MODEL: CW-3000AG
  • Voltage: 220V
  • Frequency: 60HZ
  • Current: 0.45A
  • Cooling: 50W/℃
  • Capacity: 10L
  • Max. Lift: 10M
  • Max. Flow: 10L/Min
  • N.W: 9.5kg
  • G.W: 12kg
  • Protection: Flow Alarm
  • Package: Carton Box
  • Way Of Circulation: Water Pump Forces Circulation
  • Dimensions: 470mm*270*370mm/18.50" x 10.63" x 14.57" (L*W*H)
  • Packing Dimensions: 590*380*470mm/22.05" x 14.57" x 18.11" (L*W*H)
  • Inlet And Outlet Hold: Outside Dimensions 10mm Brass Connector
Technical Parameters for CNC Rotary Axis
  • Rated Voltage:2.07v Dc
  • Phase Resistance (20℃)  1.38×(1±15%)ω/Phase
  • The Maximum Statictorque:≥780mn.M
  • Swing( Shaft To See ):A-Ab-B-Clockwise Direction
  • Maximum No-Load Running Frequency:≥2500pps
  • Electrical Strength:Ac600v/1ma/1s
  • Rotor Inertia:220g.㎡
  • Step Angle:1.8°±0.09°
  • Rated Current:Dc 1a/Phase
  • Inductance (1khz):30×(1±20%)Mh/Phase
  • Detent Rorque:320g.Cm Ref.
  • Maximum No-Loadstart Frequency:≥1500 Pps
  • Insulation Resistance:≥100mω(Dc 500v)
  • Insulation Grade:B
  • Quality    0.8kg Ref.
  • Material Of Pulley:H62
  • Tooth Form:Mxl
  • Number Of Teeth    Z=20
  • Pitch Of Teeth    P=2.032
  • Pitch Circle:φ12.936
  • Outer Circle:φ12.428±0.003
  • Product Dimensions: H152 × L4500 ×W178 (Mm)
Package for Laser Engraver Cutting Machine
  • 1 X Main Body
  • 1 X Air exhaust fan
  • 1 X Air Pump
  • 1 X Water Pump
  • 1 X Communication cable
  • 3 X Reflect optics (installed in the machine)
  • 1 X Focus optics (installed in the machine)
  • 1 X Laser tube
  • 1 X English Manual (CD)
Package for Water Cooler Chiller
  • 1 × CW3000 Water Chiller Machine
  • 1 × Power Cable
  • 1 × English Manual
  • 2 × Sealing Washer
Package for CNC Rotary Axis
  • 1 X Rotary Axis

Specification

1 X Main Body
1 X Air exhaust fan
1 X Air Pump
1 X Water Pump
1 X Communication cable
3 X Reflect optics (installed in the machine)
1 X Focus optics (installed in the machine)
1 X Laser tube
1 X English Manual (CD)
Package for Water Cooler Chiller
1 × CW3000 Water Chiller Machine
1 × Power Cable
1 × English Manual
2 × Sealing Washer
Package for CNC Rotary Axis
1 X Rotary Axis
