Features & Details
- 【ADVANCED TECHNOLOGY】 - Induction heater kit adopts the latest MOSFET, IGBT power units, and frequency conversion control techniques with high efficiency, low energy consumption, and higher output power.
- 【HEATING QUICKLY】 - With constant current and constant power control function, 15 kW heaters greatly optimizes the heating process of metal, realizes efficient and fast heating, and gives full play to the advantages of the product.
- 【AUTOMATIC CONTROL】 - With 100% load design, induction forge can work in 24 hours without stop. Infrared temperature detector can be equipped to realize the automatic control of temperature, improve heating quality, and simplify manual operation.
- 【EASY TO USE】 - With heating-insulating-cooling three stages function setting, the heating and insulating time required can get to accommodate to the batched and repeated heating situations.
- 【SAFETY PROTECTION】 - With multiple status displays of overflow, over-voltage, low water, phase failure, and load malfunction, providing higher reliability and sustainability.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 18 reviews
Reviews 4.9
All reviews are from verified purchases
See all 18 reviews
About this item
Product specification
- Output power
- 15 KW
- Output current
- 200 - 600 A
- Fluctuating frequency
- 30 - 100 KHZ
- Heating time
- 1-99 s (auto)
- Input voltage
- Single phase 230 V, 50 HZ
- Flow rate of cooling water
- 0.2 Mpa, 2 L / min
- Water temp. protection point
- 40 ℃ (104 ℉)
- Max. heating temperature
- 2200 ℃ (3992 ℉)
- Load duration
- 100%
- Cooling
- Water cooling

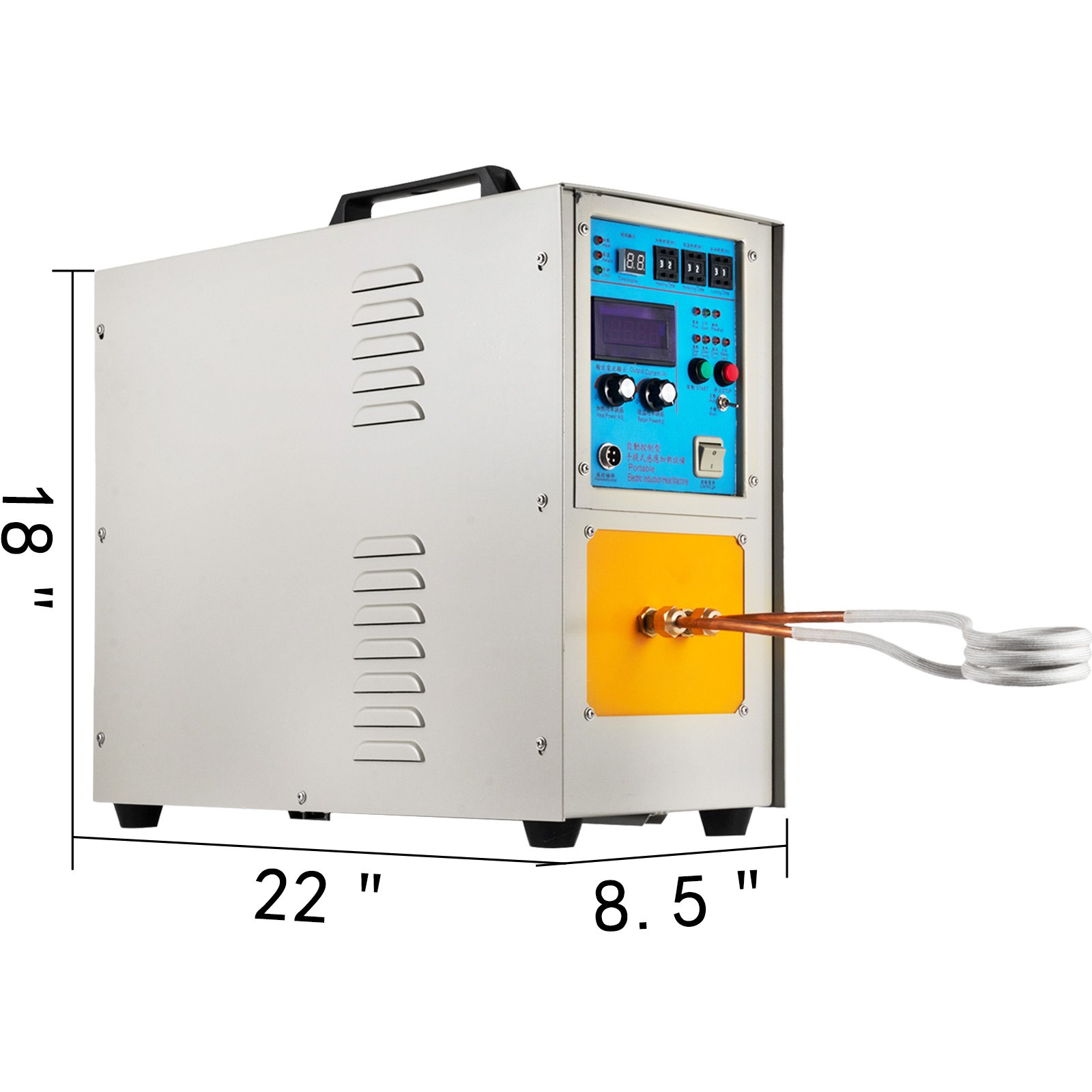

- Dimension
- 55 x 22 x 47 cm (22 x 9 x 19 inch)
- Weight
- 18 kg (40 lbs)
Description
High Frequency Induction Heater Furnace
The high-frequency 15 kW induction heater uses advanced technology, simple and easy to operate, high efficiency, low energy consumption, high output power. It selects a power source based on power and frequency. The higher the frequency, the shallower the heating depth, and the lower the frequency, the better the heat permeability. Widely used in brazing, silver welding, hot forging, melting, quenching, etc.
- Advanced Technology
- Heating Quickly
- Automatic Control
- Safety Protection
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

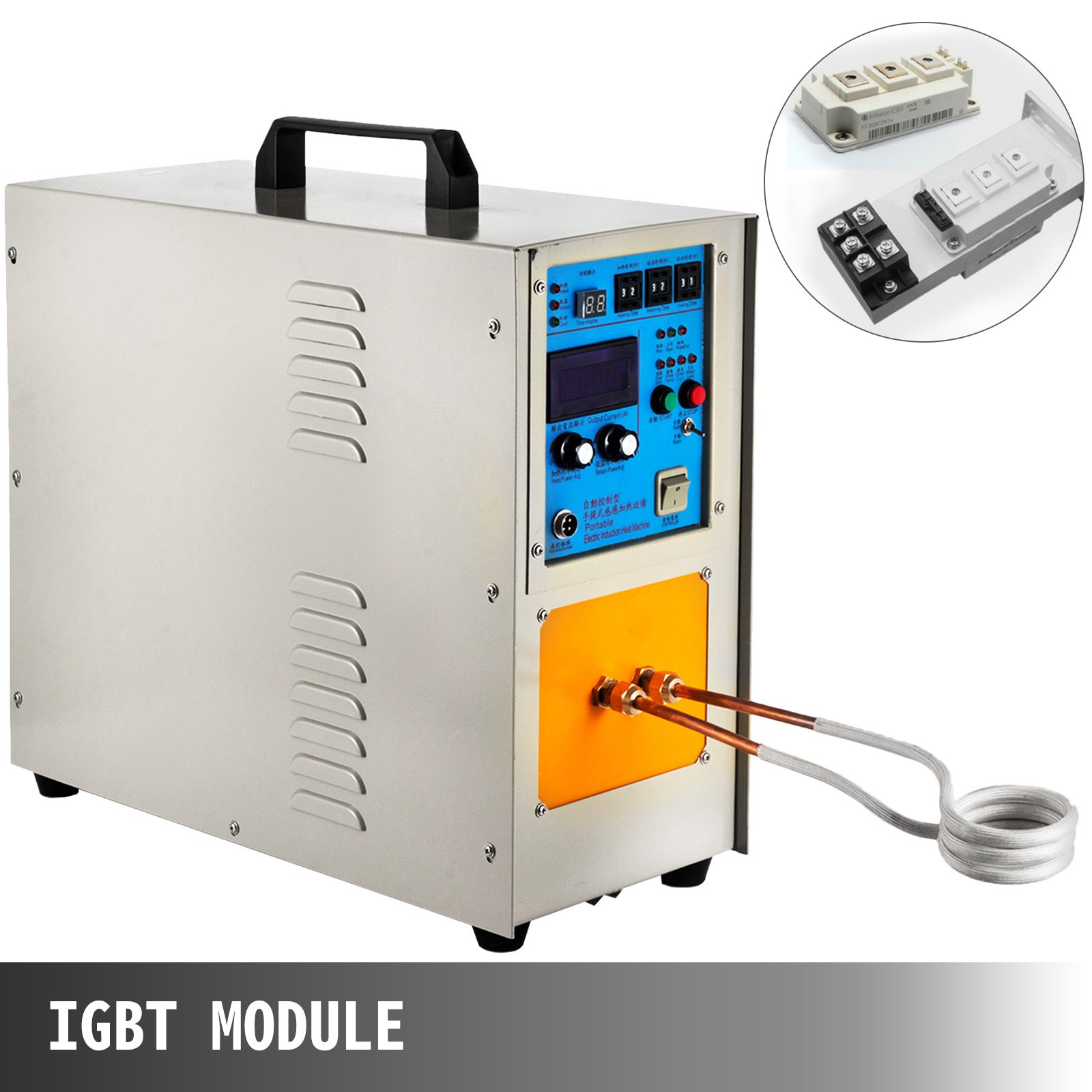

IGBT Module
The induction furnace uses IGBT modules imported from Germany, which has stable operation, high efficiency, low energy consumption, and stable output.

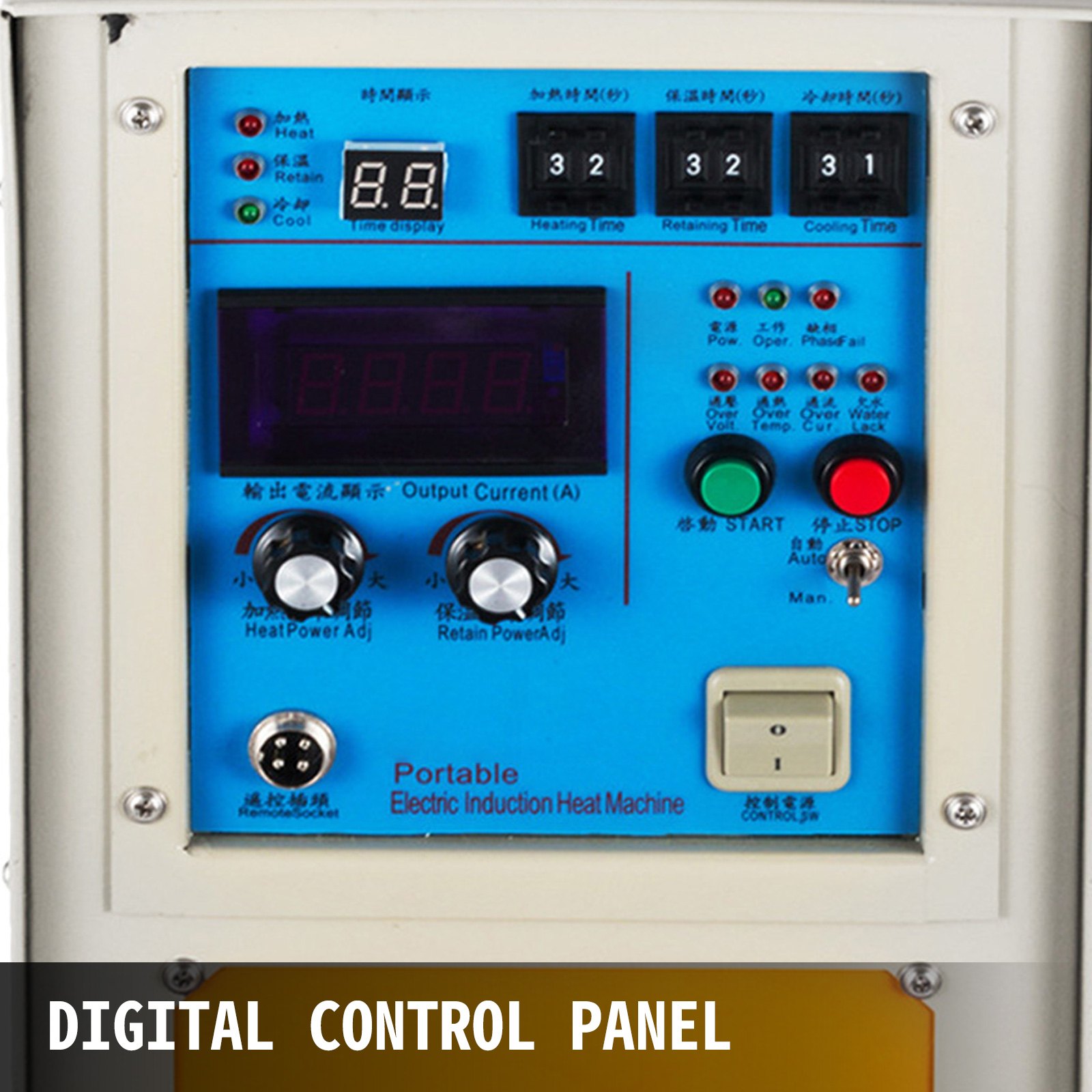

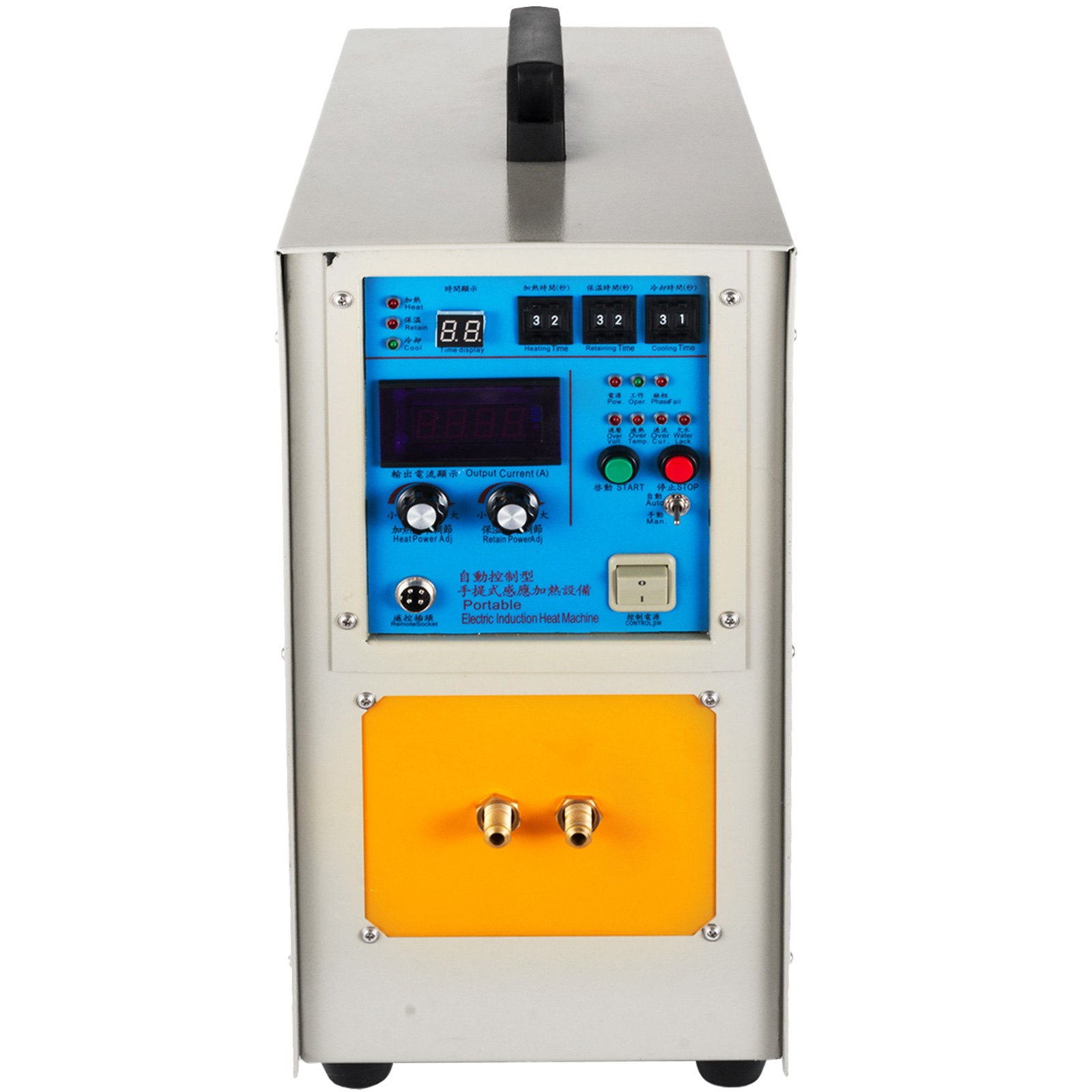

Digital Control Panel
The control panel is simple and easy to operate, the key functions are manifest at a glance, and the operation is safer.

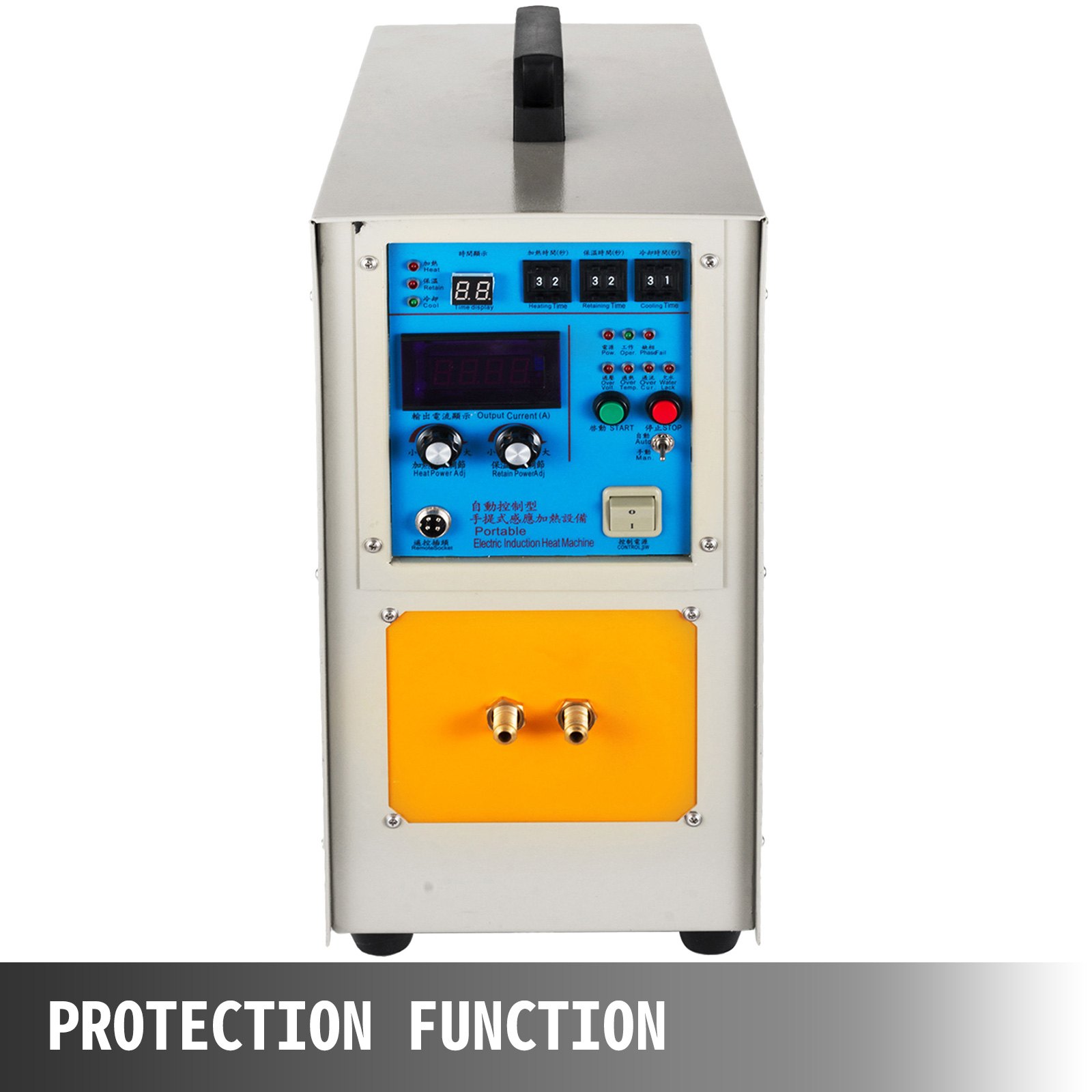

Protection Function
The function is perfect, with manual/automatic arbitrary adjustment. If any of the parameters of over-current, over-voltage, overheating, water shortage, and phase failure cannot meet the requirements, the machine will automatically protect. Safe and reliable.

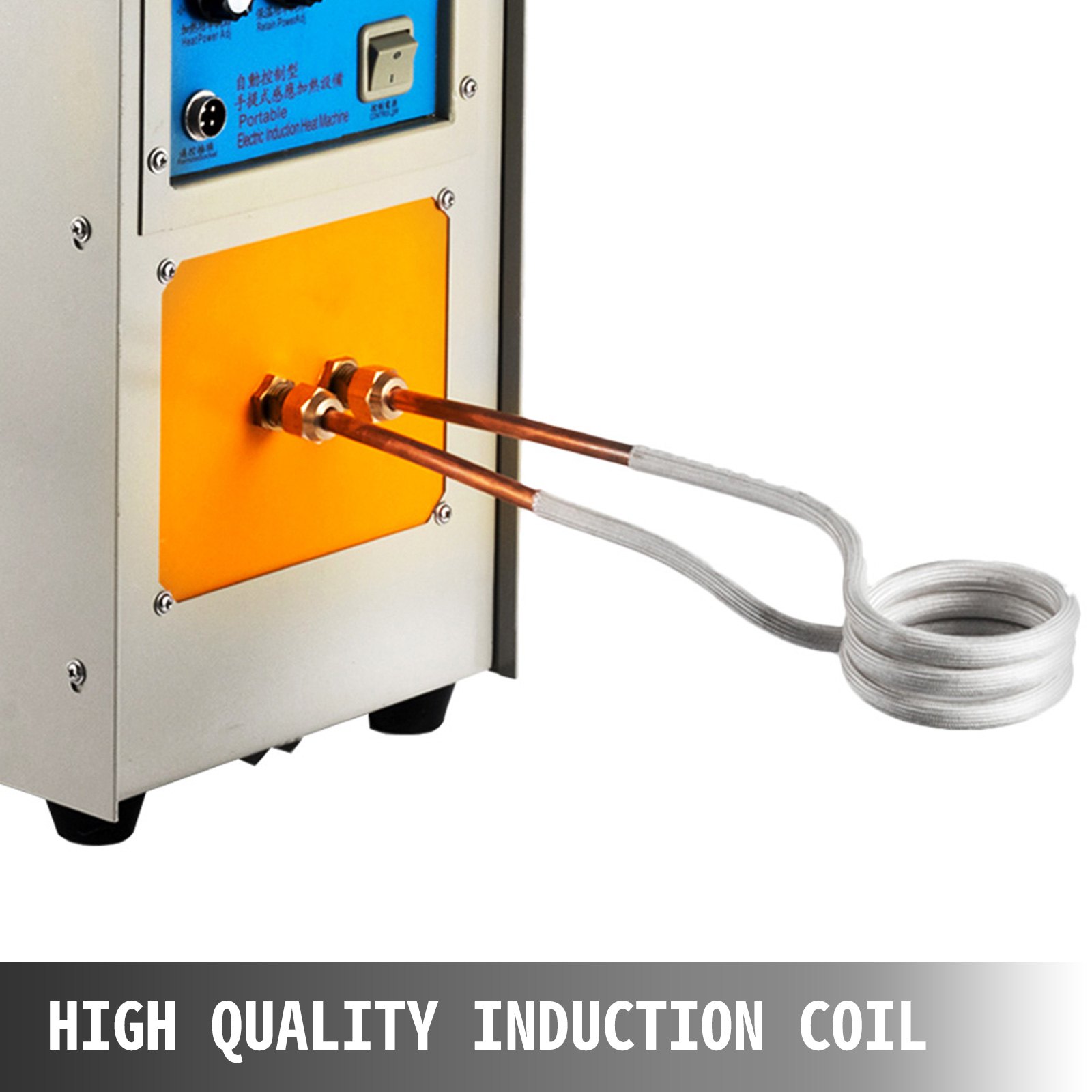

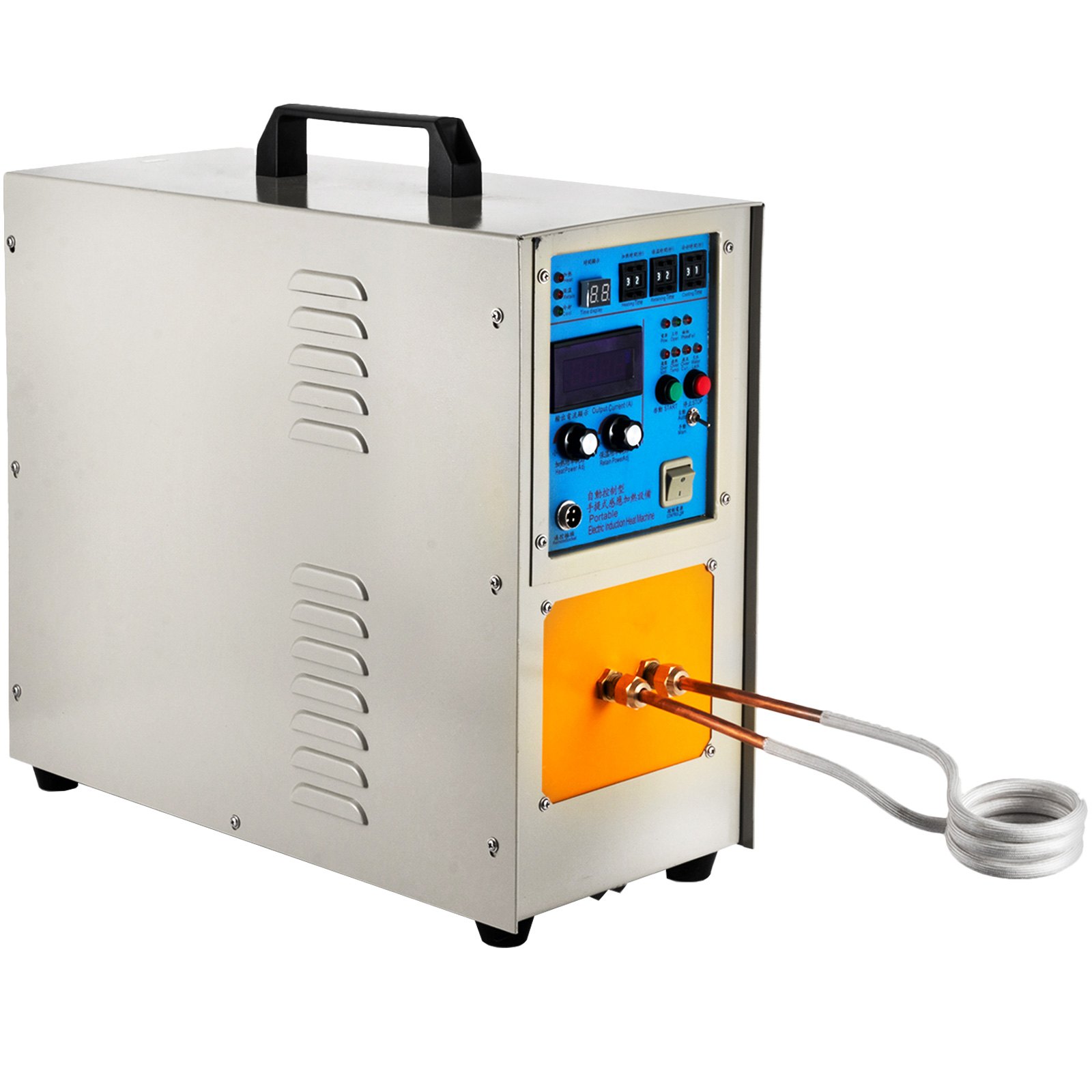

High Quality Induction Coil
High-frequency induction coil heater with high-quality induction coil, easy to operate, heating fast.

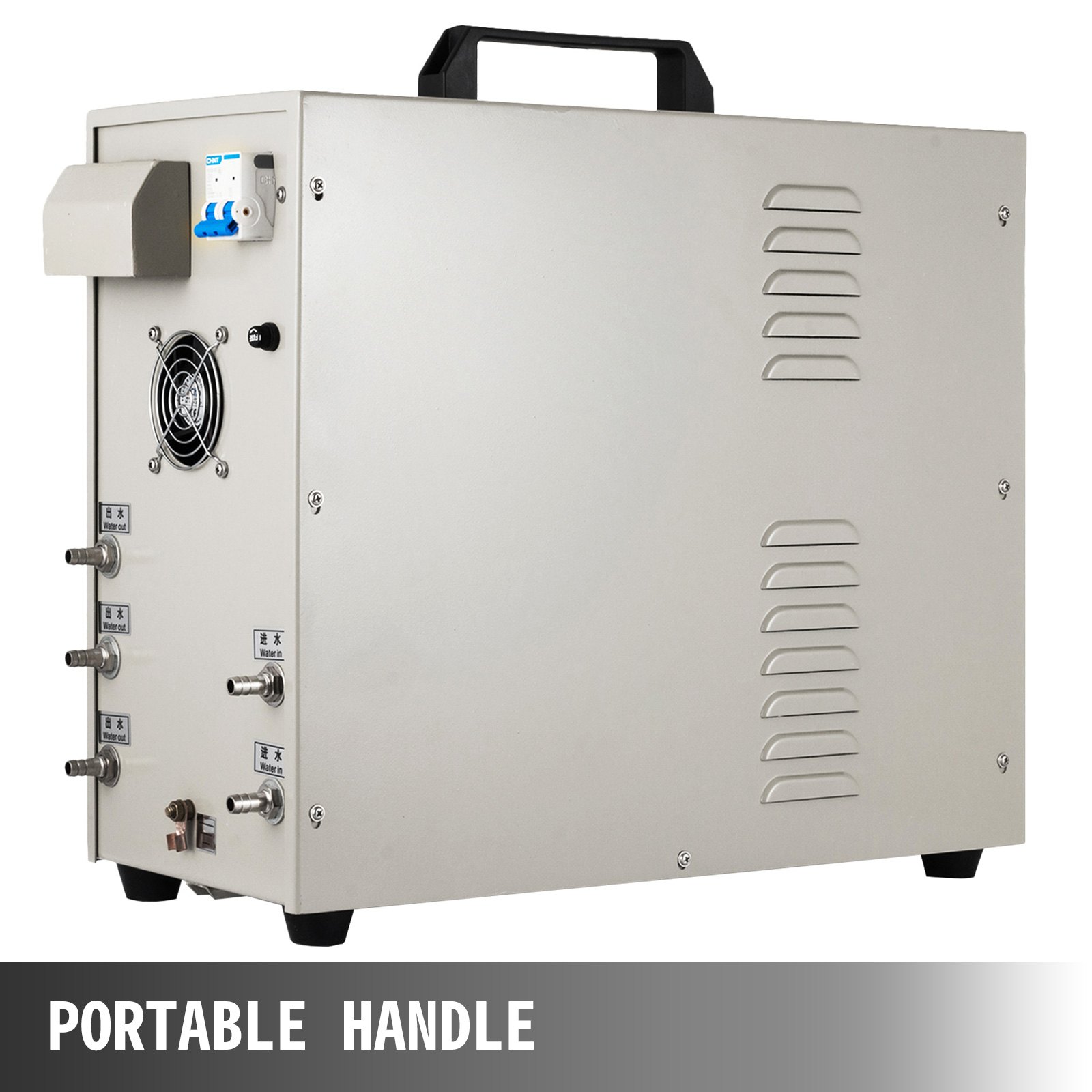

Portable Handle
The portable handle design is convenient for transportation, installation, and use. The compact body saves a lot of space for you.

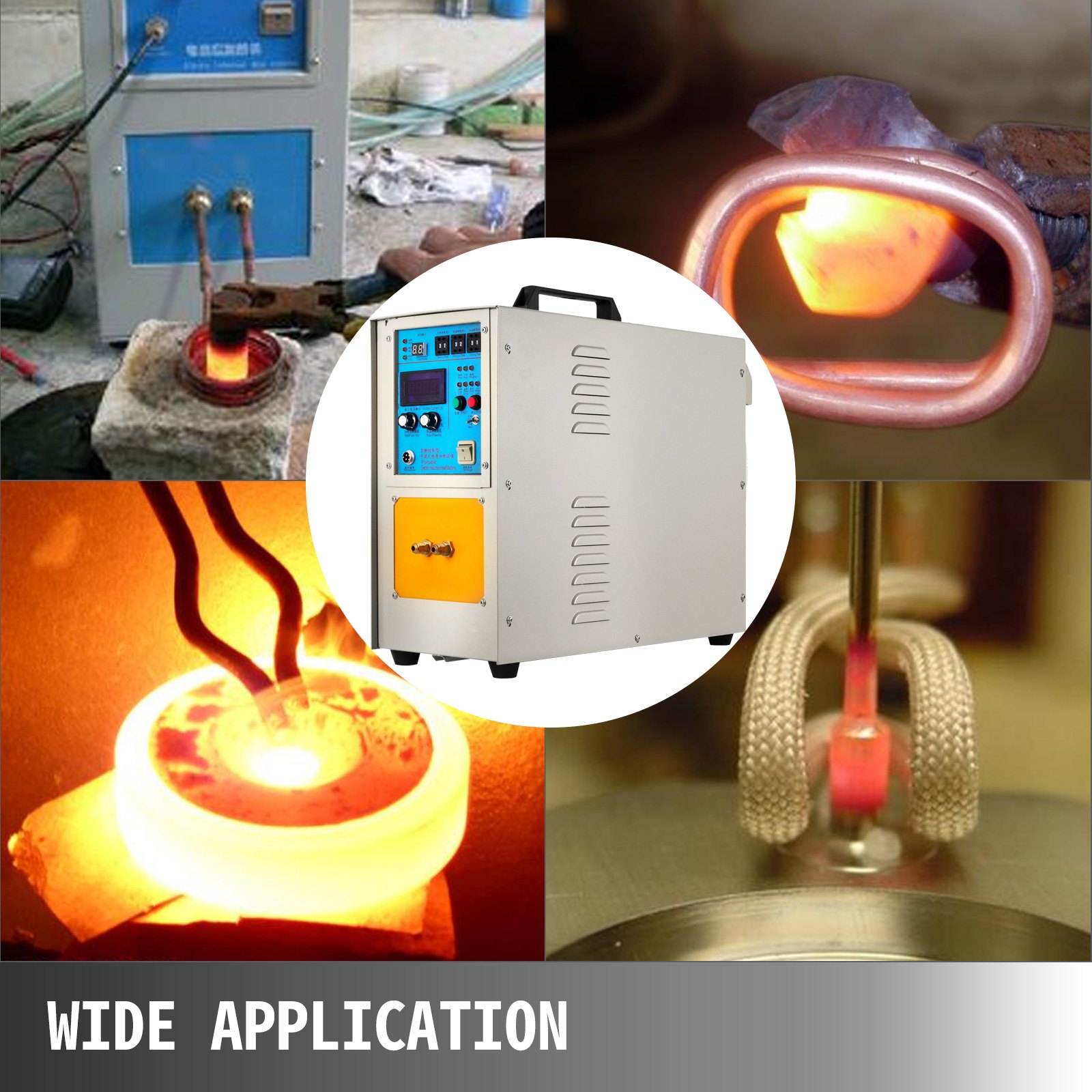

Wide Application
Induction coil heater is widely used in metal processing, hardware, household appliances, automotive, and other industries that require heat source equipment, such as thermoforming, welding, quenching, smelting, annealing, heat matching, and other processes.
Specifications
- Output power: 15 KW
- Output current: 200 - 600 A
- Fluctuating frequency: 30 - 100 KHZ
- Heating time: 1-99 s (auto)
- Input voltage: Single phase 230 V, 50 HZ
- Flow rate of cooling water: 0.2 Mpa, 2 L / min
- Water temp. protection point: 40 ℃ (104 ℉)
- Max. heating temperature: 2200 ℃ (3992 ℉)
- Load duration: 100%
- Cooling: Water cooling
- Dimension: 55 x 22 x 47 cm (22 x 9 x 19 inch)
- Weight: 18 kg (40 lbs)

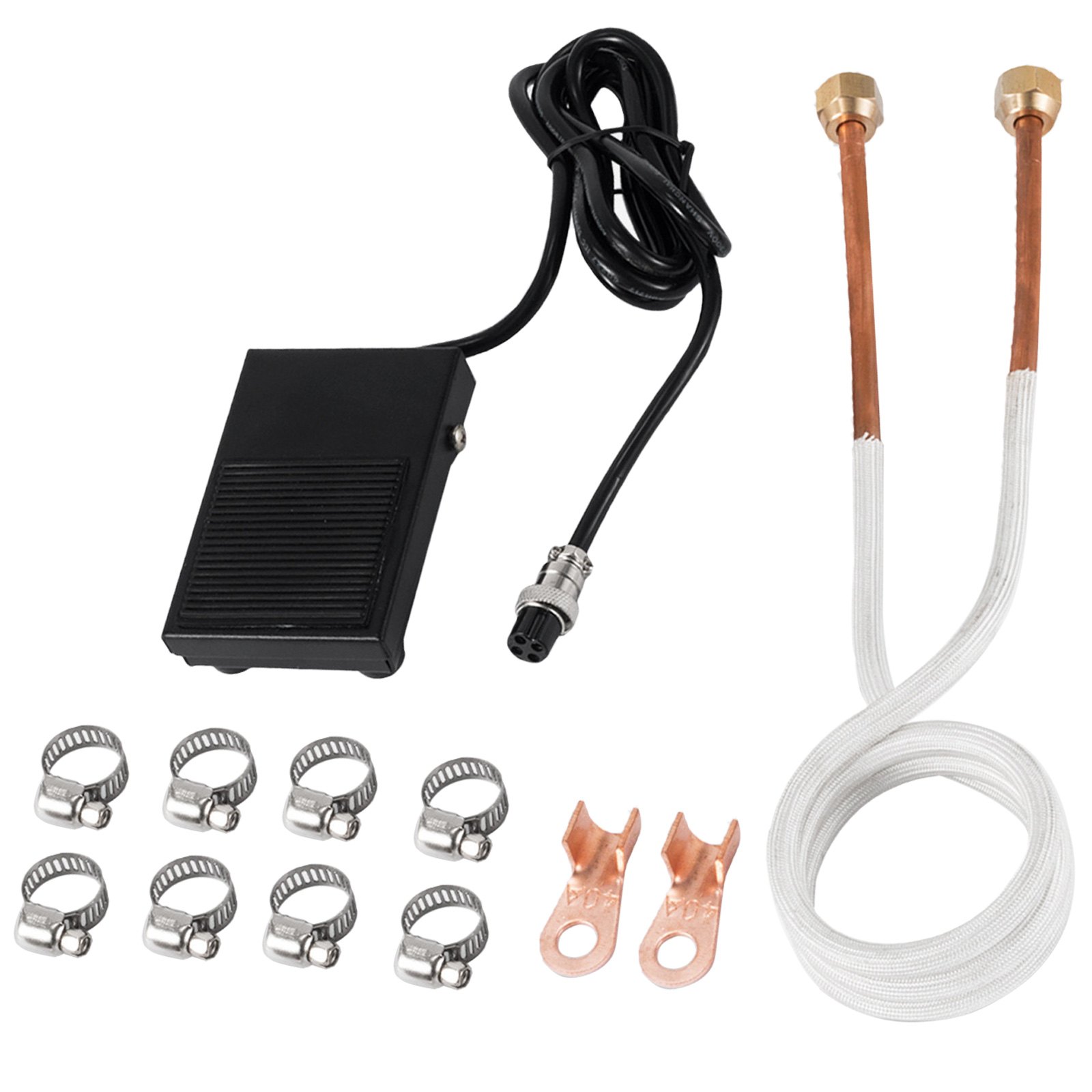

Package Content
- 1 x 15 KW High Frequency Induction Heater Furnace
- 1 x Heating Coil
- 1 x Foot Switch
- 1 x English Manual
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
High Frequency Induction Heater Furnace
The high-frequency 15 kW induction heater uses advanced technology, simple and easy to operate, high efficiency, low energy consumption, high output power. It selects a power source based on power and frequency. The higher the frequency, the shallower the heating depth, and the lower the frequency, the better the heat permeability. Widely used in brazing, silver welding, hot forging, melting, quenching, etc.
- Advanced Technology
- Heating Quickly
- Automatic Control
- Safety Protection
IGBT Module
The induction furnace uses IGBT modules imported from Germany, which has stable operation, high efficiency, low energy consumption, and stable output.
Digital Control Panel
The control panel is simple and easy to operate, the key functions are manifest at a glance, and the operation is safer.
Protection Function
The function is perfect, with manual/automatic arbitrary adjustment. If any of the parameters of over-current, over-voltage, overheating, water shortage, and phase failure cannot meet the requirements, the machine will automatically protect. Safe and reliable.
High Quality Induction Coil
High-frequency induction coil heater with high-quality induction coil, easy to operate, heating fast.
Portable Handle
The portable handle design is convenient for transportation, installation, and use. The compact body saves a lot of space for you.
Wide Application
Induction coil heater is widely used in metal processing, hardware, household appliances, automotive, and other industries that require heat source equipment, such as thermoforming, welding, quenching, smelting, annealing, heat matching, and other processes.
Package Content
- 1 x 15 KW High Frequency Induction Heater Furnace
- 1 x Heating Coil
- 1 x Foot Switch
- 1 x English Manual
Specifications
- Output power: 15 KW
- Output current: 200 - 600 A
- Fluctuating frequency: 30 - 100 KHZ
- Heating time: 1-99 s (auto)
- Input voltage: Single phase 230 V, 50 HZ
- Flow rate of cooling water: 0.2 Mpa, 2 L / min
- Water temp. protection point: 40 ℃ (104 ℉)
- Max. heating temperature: 2200 ℃ (3992 ℉)
- Load duration: 100%
- Cooling: Water cooling
- Dimension: 55 x 22 x 47 cm (22 x 9 x 19 inch)
- Weight: 18 kg (40 lbs)
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (9)
Do you need a separate water cooler and does this need to be with distilled water - or just pipes in to a large water bottle or “bucket”
A self-priming water pump is required.
By vevor
Helpful
(
0
)
what is the turn ratio, 16: or 16:2?
It is 16:1.
By vevor
Helpful
(
0
)
Could this machine melt metal in 10+ kg crucibles using customised coil to fit around it?
No, it can't.
By vevor
Helpful
(
0
)
Can you fit IR thermal controllers to this
Yes, you can, but the infrared temperature controller needs to have a signal port.
By vevor
Helpful
(
0
)
Hello what's the maximum coil length/size this machine can run? Thanks
About 800mm.
By vevor
Helpful
(
0
)
